◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#46488) — 53 parça
çizim 110988
24 34 30 36 72 46 76 74 51 47
BalonParca AdiParca NoAdetTipApplied Date A B
24 TANK ASM; WASHER
HEAD LAMP WASHER<CE4> 		8-98039-662-4 01 1 0710-1003 ●
24 TANK ASM; WASHER
EXC. HEAD LAMP WASHER<CE4> 		8-98039-661-4 01 1 0710-1003 ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 0710-1003 ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1004- ● ●
30 MOTOR ASM; FRT WASHER TANK 8-98070-170-0 01 1 0710- ● ●
34 CAP; WASHER TANK 8-97855-140-0 01 1 0710- ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0710- ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 0710- ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 0710- ● ●
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 0710- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98078-808-1 01 1 0710- ● ●
47 ARM; CRANK,WIPER MOTOR 8-98078-805-0 01 1 0710- ● ●
51 NUT; WIPER MOTOR LINK 1-83319-012-0 01 1 0710- ● ●
72 BRACKET; WIPER MOTOR 8-98078-807-0 01 1 0710- ● ●
74 WASHER; ARM TO MOTOR 1-83319-011-0 01 1 0710- ● ●
76 SCREW; BRKT TO WIPER MOTOR 1-86810-062-0 03 1 0710- ● ●

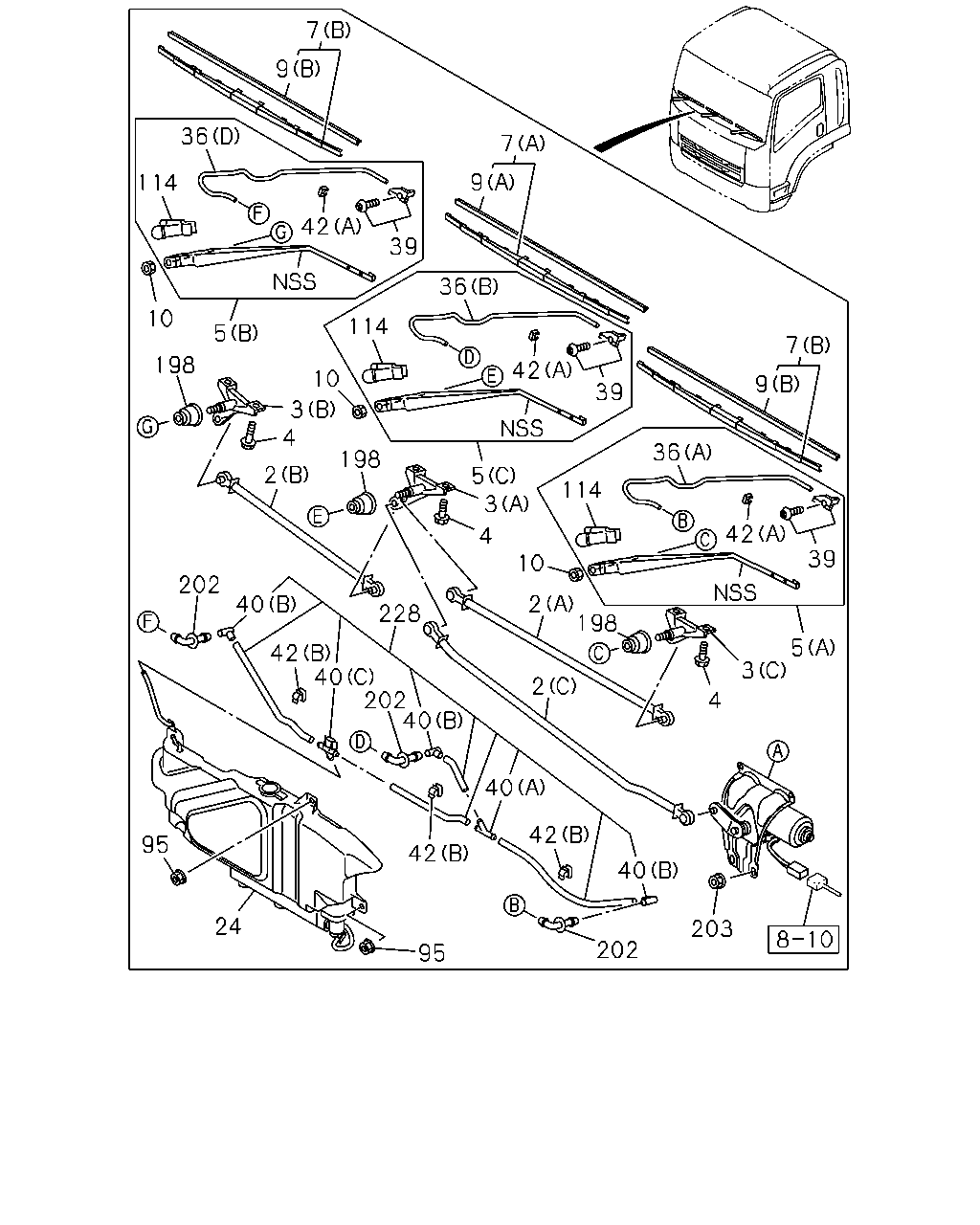

çizim 111007
7 9 36 114 42 39 9 7 114 10 5 198 10 3 36 7 9 39 42 5 114 3 198 4 2 36 42 39 5 3 4 198 10 2 2 228 202 40 42 40 202 40 40 42 40 203 202 95 42 95 24 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 LINK; FRT WIPER
(A) 		8-98078-812-0 01 1 0710- ● ●
2 LINK; FRT WIPER
(B) 		8-98078-813-0 01 1 0710- ● ●
2 LINK; FRT WIPER
(C) 		8-98078-814-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		8-98068-140-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98078-817-0 01 1 0710- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98078-818-0 01 1 0710- ● ●
4 BOLT; WIPER LINK TO BODY
M8X20 FLANGE 		0-28650-820-0 06 1 0710- ● ●
5 ARM; WIPER
(B) 		8-98078-821-1 01 1 0710- ● ●
5 ARM; WIPER
(C) 		8-98078-822-1 01 1 0710- ● ●
5 ARM; WIPER
(A) 		8-98078-823-1 01 1 0710- ● ●
7 BLADE; WIPER
(B) 		1-83315-047-2 02 1 0710- ● ●
7 BLADE; WIPER
(A) 		1-83315-048-2 01 1 0710- ● ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-015-0 02 1 0710- ● ●
9 RUBBER; FRT WIPER BLADE
(A) 		1-83355-016-0 01 1 0710- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0710- ● ●
24 TANK ASM; WASHER
HEAD LAMP WASHER<CE4> 		8-98039-662-4 01 1 0710-1003 ●
24 TANK ASM; WASHER
EXC. HEAD LAMP WASHER<CE4> 		8-98039-661-4 01 1 0710-1003 ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 0710-1003 ●
24 TANK ASM; WASHER 8-98039-661-4 01 1 1004- ● ●
36 HOSE; WASHER
(B) 		1-86810-098-0 01 1 0710- ● ●
36 HOSE; WASHER
(C) 		8-98070-173-0 01 1 0710- ● ●
36 HOSE; WASHER
(D) 		8-98078-825-0 01 1 0710- ● ●
36 HOSE; WASHER
(A) 		8-98078-826-0 01 1 0710- ● ●
39 NOZZLE; WINDSHIELD WASHER 1-83315-085-0 03 1 0710- ● ●
40 JOINT; WASHER HOSE
(C) 		8-97167-258-0 01 1 0710- ● ●
40 JOINT; WASHER HOSE
(B) 		8-97307-026-0 03 1 0710- ● ●
40 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 0710- ● ●
42 CLIP; WASHER HOSE
(A) 		1-86810-044-0 03 1 0710- ● ●
42 CLIP; WASHER HOSE
(B) 		8-98039-708-0 03 1 0710- ● ●
95 NUT; WASHER TANK
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
114 COVER; FRT WIPER ARM 1-83318-126-0 03 1 0710- ● ●
198 COVER; PIVOT,WIPER 8-98038-892-0 03 1 0710- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0710- ● ●
203 NUT; WIPER MOTOR
M8 FLANGE 		0-91180-208-0 04 1 0710- ● ●
228 HOSE ASM; WASHER 8-98039-703-1 01 1 0710- ● ●

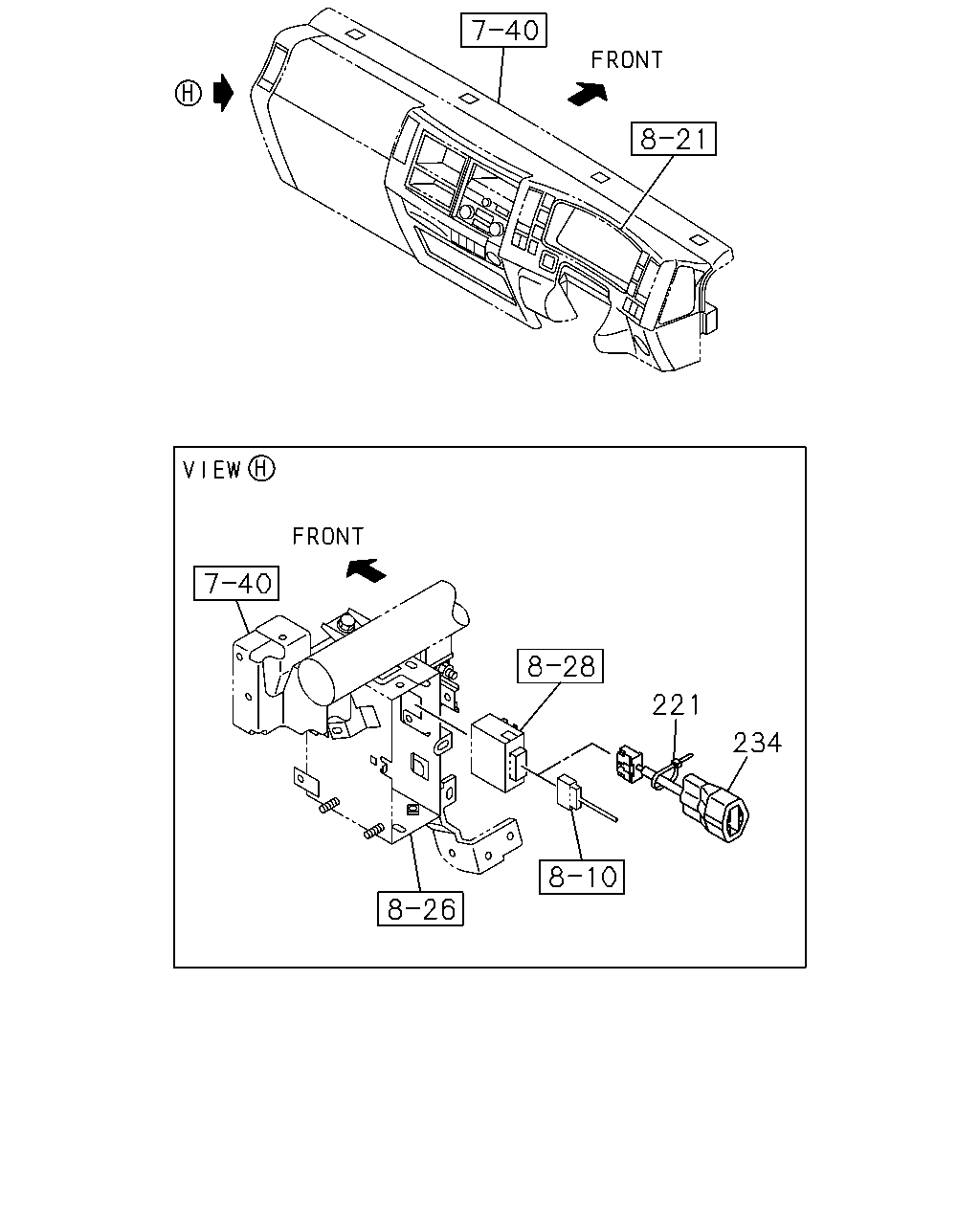

çizim 357481
221 234
BalonParca AdiParca NoAdetTipApplied Date A B
221 CLIP
L=140 		5-09707-031-1 01 1 1302-1308 ● ●
234 HARNESS; EXT,WIPER 8-98236-609-0 01 1 1302-1308 ● ●
