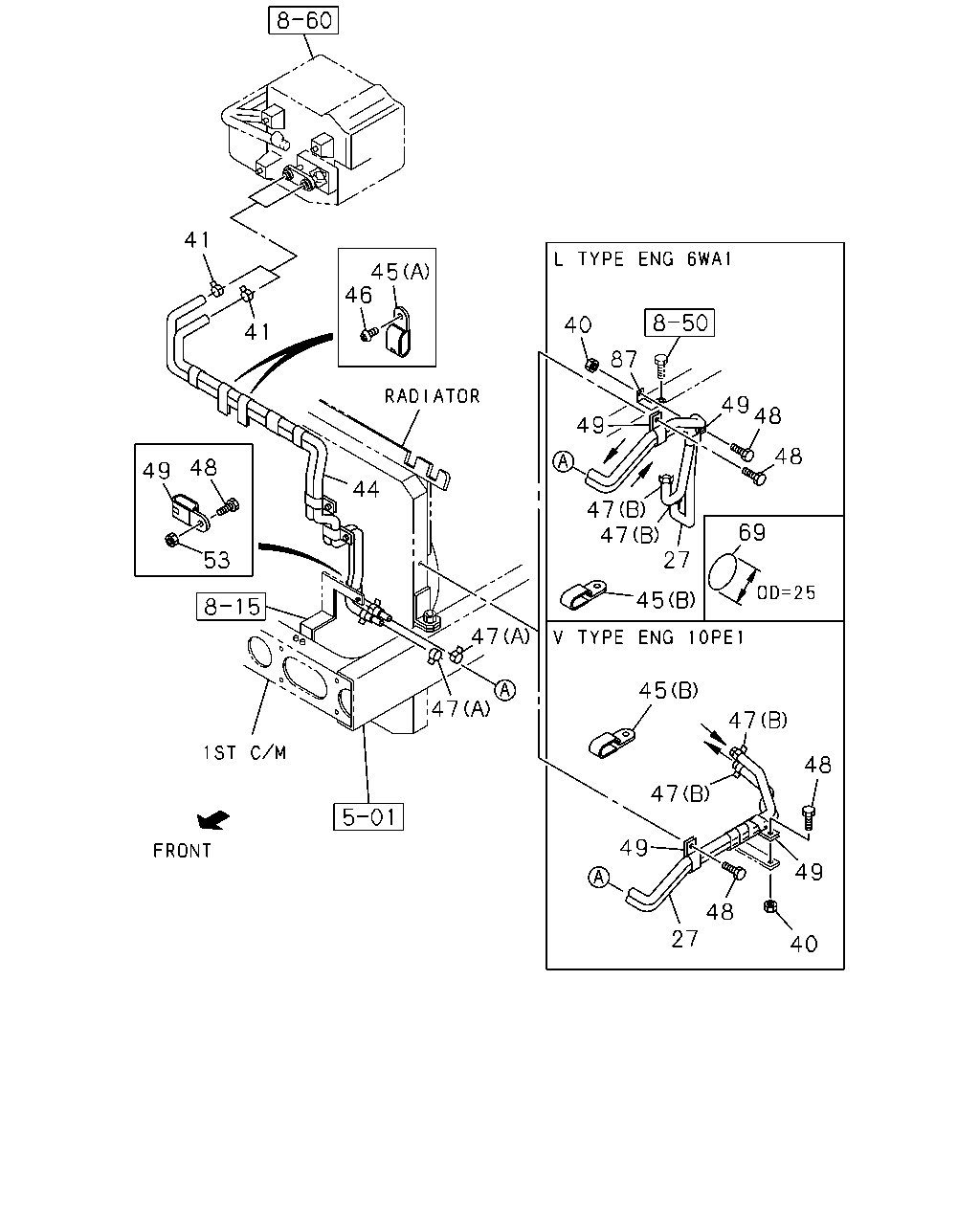

8-45 — HEATER PIPING (#4648) — 21 parça

41 45 46 40 41 87 49 48 49 48 48 49 44 47 47 27 69 53 45 47 45 47 47 48 47 49 49 48 27 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	HOSE; WATER,HTR UNIT TO WATER PIPE L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-614-0	01	1	9603-
27	HOSE; WATER,HTR UNIT TO WATER PIPE V TYPE ENG<91L> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-598-1	01	1	9603-
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9607-
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=22	8-94382-401-0	02	1	9603-
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-616-2	01	1	9603-9609
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-643-0	01	1	9610-9702
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-663-0	01	1	9703-
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) WO/SCREW	1-09701-143-1	02	1	9603-
45	CLIP; WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-09701-238-0	02	1	9603-
46	SCREW; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9609
46	SCREW; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9610-9901
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-09707-181-0	02	1	9603-
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B) ID=22	8-94382-401-0	02	1	9603-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606
48	BOLT; CLIP FIX CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20 FLANGE	0-28680-820-0	03	1	9607-9904
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28680-820-0	03	1	9905-
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9902-
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	03	1	9603-
53	NUT; HOSE CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	01	1	9610-
69	SEAL; RUBBER,HTR PIPE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	03	1	9603-
87	BRACKET; HTR HOSE CLIP L TYPE ENG<90L> HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83571-857-0	01	1	9603-
