◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#46478) — 119 parça
çizim 110969
531 115
BalonParca AdiParca NoAdetTipApplied Date A B
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ●
531 RELAY; MAIN
24V 30A JIDECO 		8-97238-540-0 01 1 0710-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●

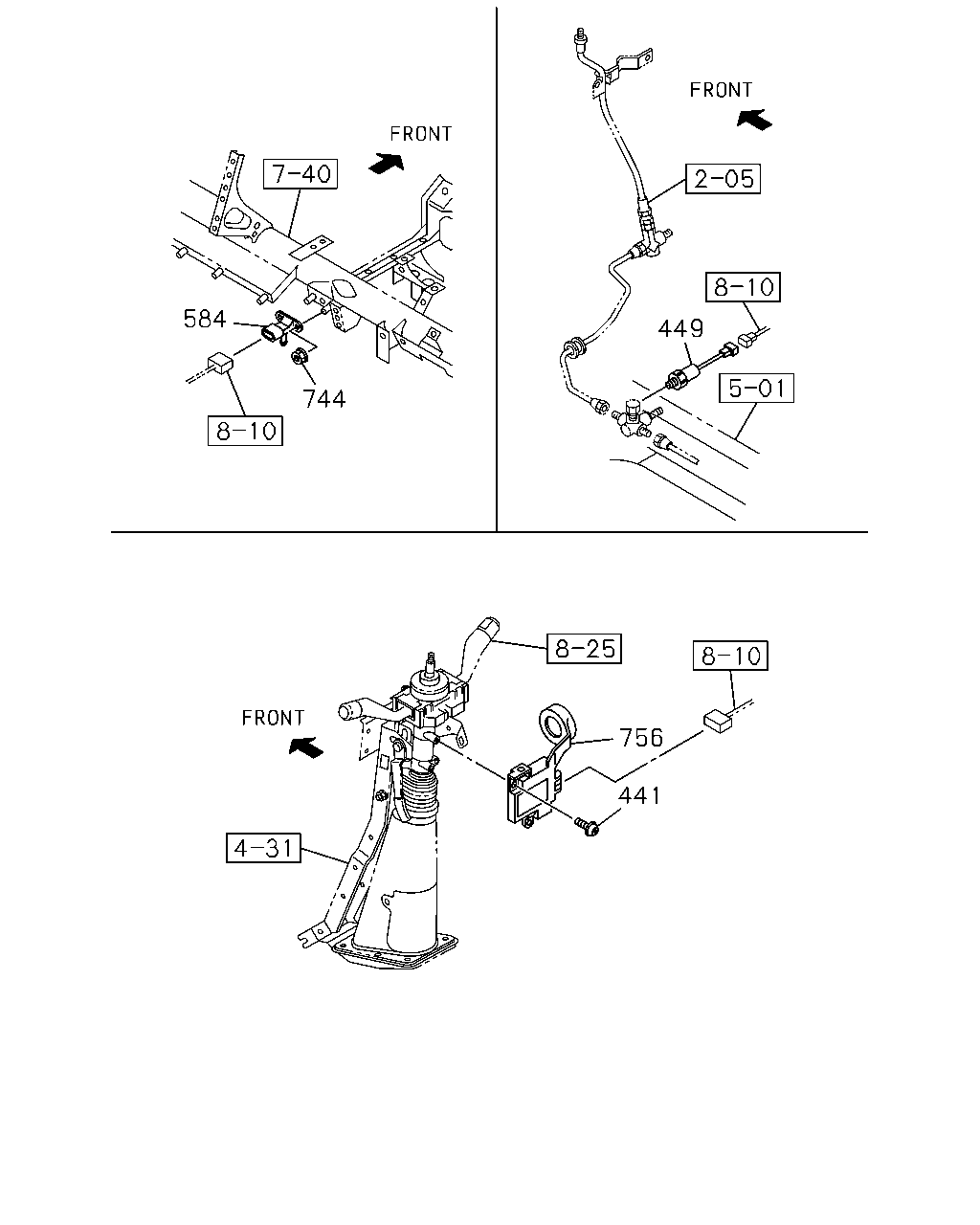

çizim 110971
584 449 744 756 441
BalonParca AdiParca NoAdetTipApplied Date A B
441 SCREW; CONT UNIT
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 02 1 0710- ● ●
449 SWITCH; OIL PRESS,CLUTCH
H.S.A SYSTEM<6EP> 		1-82410-143-1 01 1 0710- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 0710- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98073-883-0 01 1 0710-0711 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98097-554-0 01 1 0712-1005 ● ●
756 CONTROL UNIT; IMMOBILIZER 8-98158-127-0 01 1 1006- ● ●

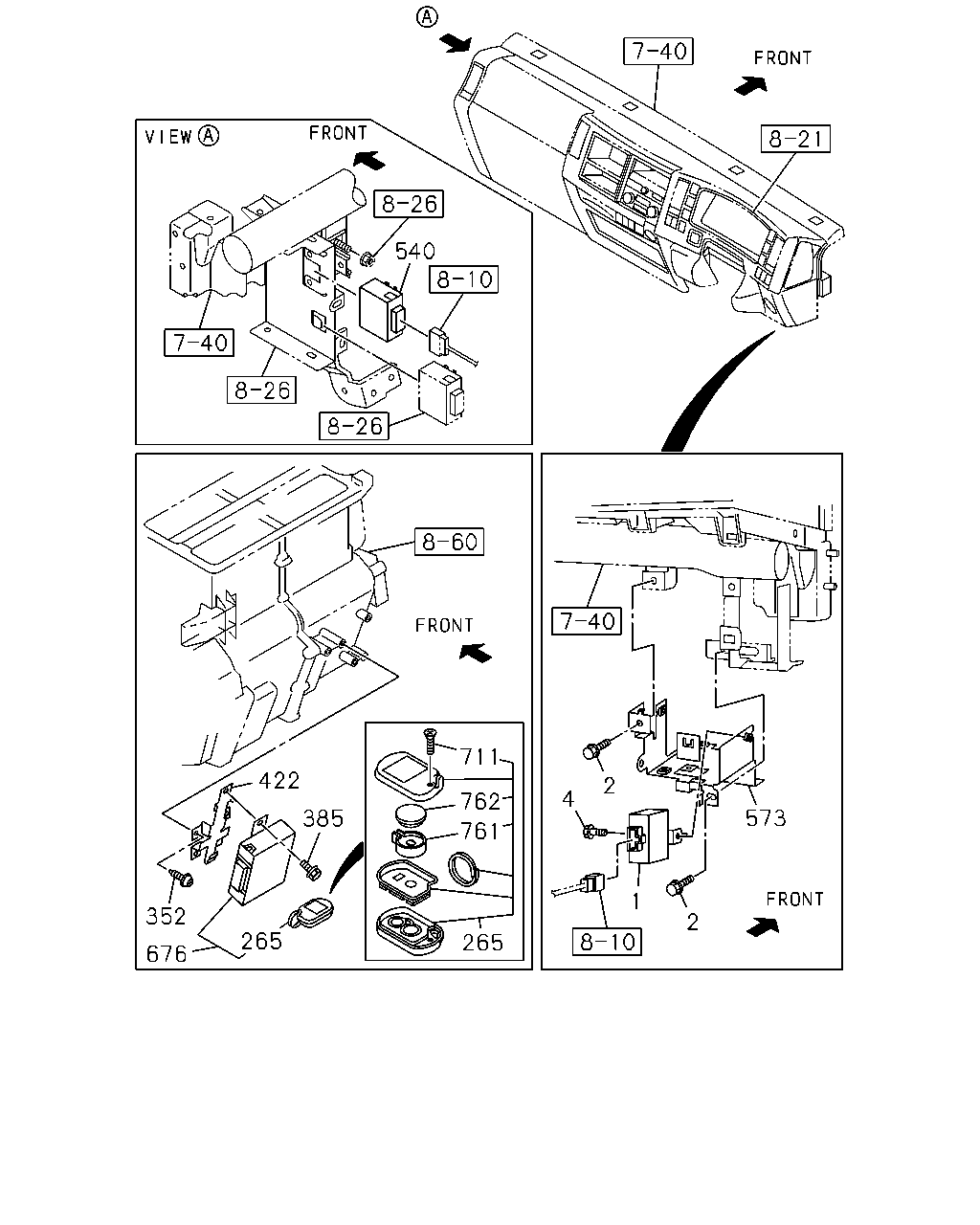

çizim 110975
540 711 422 2 4 762 385 573 761 1 352 2 265 265 676
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 0710- ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
4 SCREW; FLASHER UNIT
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98048-459-1 02 1 0710-1012 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98180-751-0 02 1 1101-1205 ● ●
265 TRANSMITTER ASM; AUTO DOOR LOCK 8-98218-236-0 02 1 1206- ● ●
352 SCREW; BRKT
M5X16 TAPPING 		0-72180-516-0 02 1 0710- ● ●
385 BOLT; CONT UNIT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710- ● ●
422 BRACKET; CONT UNIT 8-98055-281-1 01 1 0710- ● ●
540 RELAY; WIPER INTERVAL 8-98060-388-0 01 1 0710-1308 ● ●
540 RELAY; WIPER INTERVAL 8-98233-976-0 01 1 1309- ● ●
573 BRACKET; FLASHER UNIT 8-97609-984-5 01 1 0710- ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98017-258-1 01 1 0710-1012 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98181-809-0 01 1 1101-1205 ● ●
676 CONTROL UNIT; KEYLESS ENTRY 8-98218-231-0 01 1 1206- ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98078-067-0 02 1 0710-1205 ● ●
711 SCREW; TRANSMITTER
M2X5 		8-98218-239-0 02 1 1206- ● ●
761 HOLDER; BATTERY 8-98078-063-0 02 1 0710-1012 ● ●
762 BATTERY 8-98078-061-0 02 1 0710- ● ●

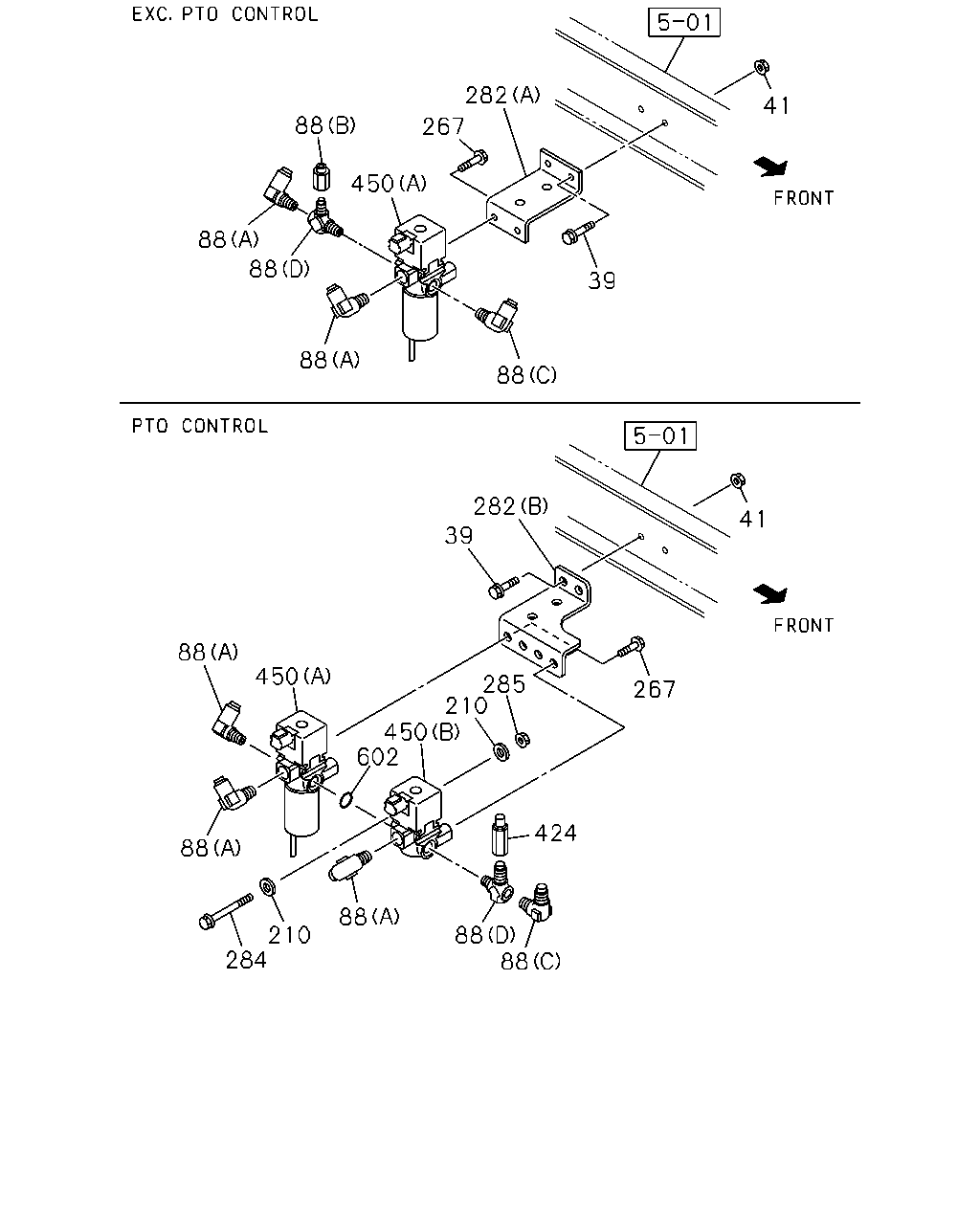

çizim 110983
282 41 88 267 450 88 88 39 88 88 282 41 39 88 450 285 210 450 602 267 424 88 88 210 284 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
39 BOLT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8X35 FLANGE 		0-28650-835-0 02 1 0710-0710 ● ●
39 BOLT; BRKT,MAG VLV
M8X35 FLANGE 		0-28650-835-0 02 1 0710- ● ●
41 NUT; BRKT,MAG VLV
EXC. PTO CONTROL<SV6> M8 FLANGE 		0-91180-108-0 02 1 0710-0710 ● ●
41 NUT; BRKT,MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> 		1-82569-266-0 02 1 0802-0802 ● ●
210 WASHER; PL,BRKT
PTO CONTROL<SV6> 		1-82569-266-0 02 1 0803- ● ●
267 BOLT; VLV TO BRKT
EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0710-0801 ● ●
267 BOLT; VLV TO BRKT
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ● ●
267 BOLT; VLV TO BRKT
EXC. PTO CONTROL<SV6> M8X20 FLANGE 		0-28650-820-0 02 1 0802-0802 ● ●
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0803- ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		8-98101-296-0 01 1 0802-0802 ● ●
282 BRACKET; MAG VLV
PTO CONTROL<SV6> (B) 		8-98101-296-0 01 1 0803- ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		1-47471-374-1 01 1 0710-1004 ● ●
282 BRACKET; MAG VLV
EXC. PTO CONTROL<SV6> (A) 		8-98154-633-0 01 1 1005- ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE 		0-28050-650-0 01 1 0802-0802 ● ●
284 BOLT; MAG VLV
PTO CONTROL<SV6> M6X50 FLANGE 		0-28050-650-0 01 1 0803- ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE 		0-91180-106-0 01 1 0802-0802 ● ●
285 NUT; MAG VLV
PTO CONTROL<SV6> M6 FLANGE 		0-91180-106-0 01 1 0803- ● ●
424 ADAPTER
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0802-0802 ● ●
424 ADAPTER
PTO CONTROL<SV6> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0803- ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0710-0801 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0803- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803- ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0801 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8 		9-09565-117-0 01 1 0802-0802 ● ●
602 GASKET; MAG VLV
PTO CONTROL<SV6> ID=16.8 		9-09565-117-0 01 1 0803- ● ●
çizim 111001
450 88 79 40 88 88
BalonParca AdiParca NoAdetTipApplied Date A B
40 BRACKET; MAG VLV 8-98057-863-0 01 1 0710- ● ●
79 BOLT; MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0710-0801 ● ●
88 CONNECTOR; MAG VLV
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0802-0802 ● ●
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 3WAY 		1-09656-586-1 01 1 0803- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710- ● ●
88 CONNECTOR; MAG VLV
EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0710- ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0710-0801 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B) 		1-82563-871-2 01 1 0802-0802 ● ●
450 VALVE; MAG
(B) 		1-82563-871-2 01 1 0803- ● ●
450 VALVE; MAG
PTO CONTROL<SV6> (B) 		1-82563-871-2 01 1 0803- ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0710-0801 ● ●
450 VALVE; MAG
PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
EXC. PTO CONTROL<SV6> (A) 		8-97376-939-3 01 1 0802-0802 ● ●
450 VALVE; MAG
(A) 		8-97376-939-3 01 1 0803-0910 ● ●
450 VALVE; MAG
(A) 		8-97633-075-0 01 1 0911- ● ●

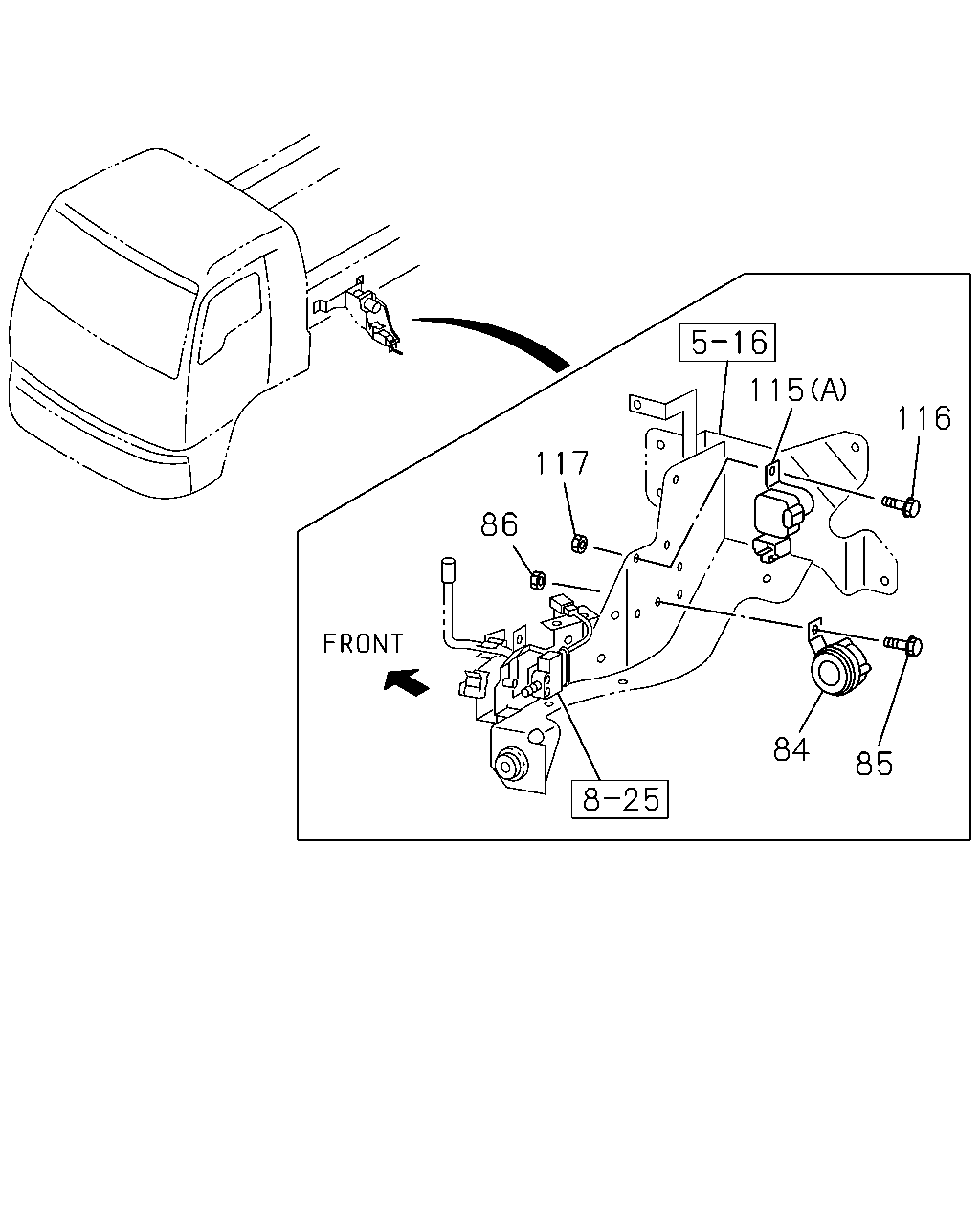

çizim 111317
115 116 117 86 84 85
BalonParca AdiParca NoAdetTipApplied Date A B
84 BUZZER; POWER CAB TILT
METRO 		8-98069-860-0 01 1 0710- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
115 RELAY; POWER CAB TILT UNIT
(B) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
115 RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO 		8-98005-631-1 01 1 0710- ● ●
116 BOLT; RELAY FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●

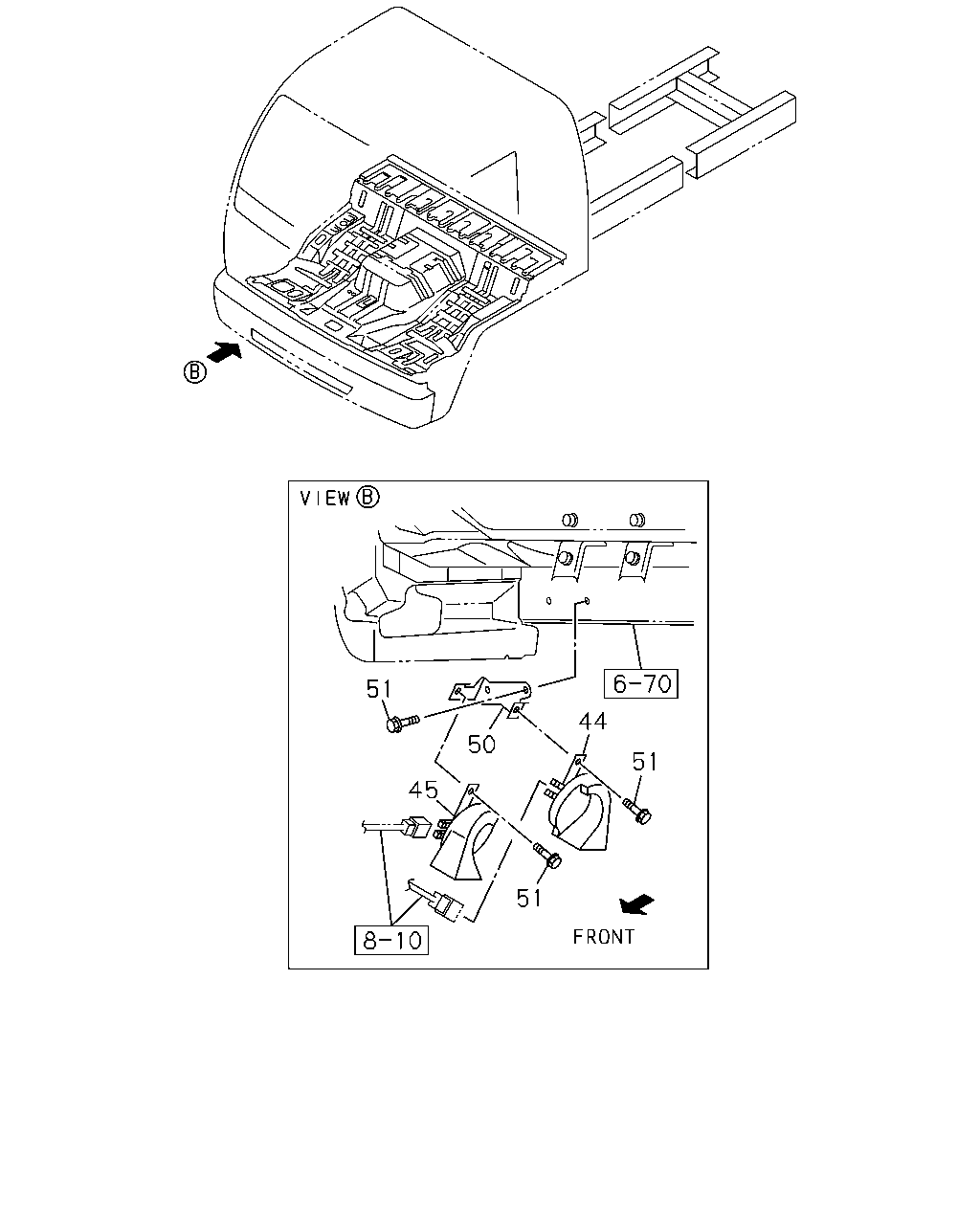

çizim 111318
51 44 50 51 45 51
BalonParca AdiParca NoAdetTipApplied Date A B
44 HORN; HIGH NOTE 8-97611-677-2 01 1 0710- ● ●
45 HORN; LOW NOTE 8-97611-676-2 01 1 0710- ● ●
50 BRACKET; HORN 8-97613-300-2 01 1 0710- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 04 1 0710-1001 ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●
51 BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1002- ● ●

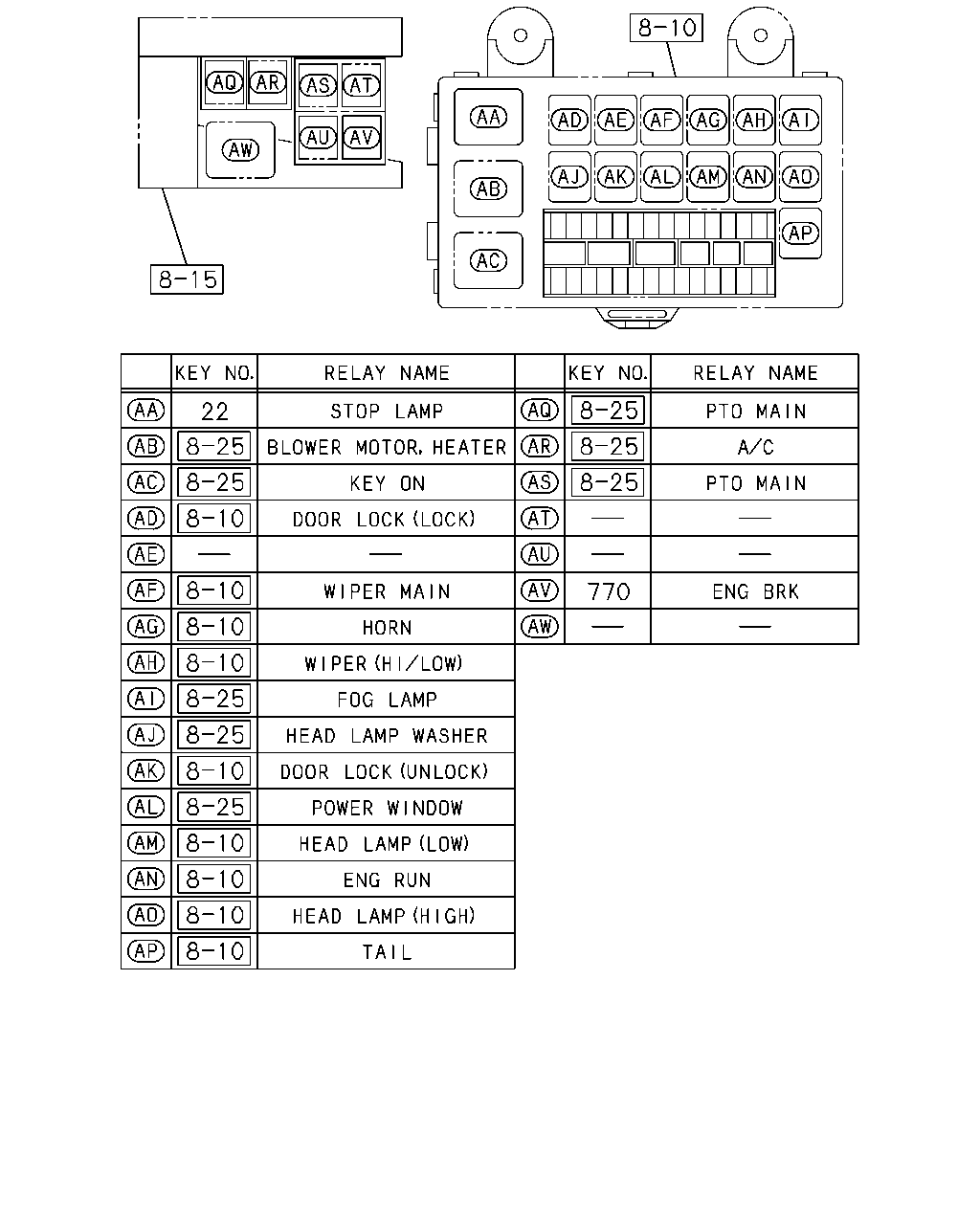

çizim 111320
22 770
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ● ●
770 RELAY; ENG BRK
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
