◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#46476) — 69 parça

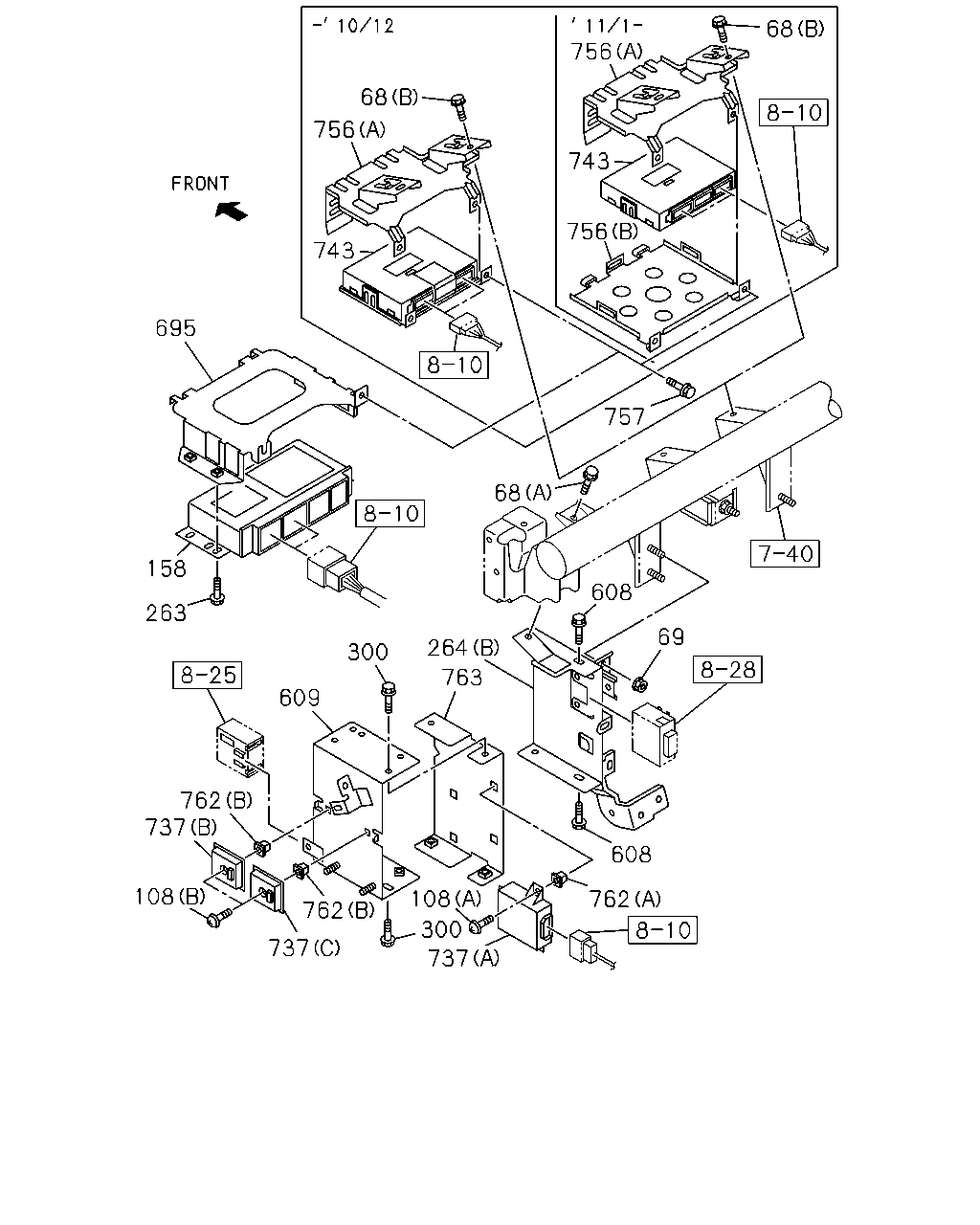

çizim 110972
756 68 68 756 743 756 743 695 757 68 158 608 263 69 264 300 763 609 762 737 608 108 108 762 762 300 737 737
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 0710- ● ●
68 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 0710- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
108 BOLT; TRANS CONT MODULE
(A) M5X16 TAPPING 		0-72180-516-0 03 1 0710- ● ●
108 BOLT; TRANS CONT MODULE
(B) M4X25 TAPPING 		0-74160-425-0 02 1 0710- ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 0710-0803 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) 		1-80119-261-0 01 1 0804-0805 ● ●
158 CONTROLLER; ABS
TIRE FRT295/80R22.5RR11R22.5-16 AUSTRALIA 6X2(5G2) ,TIRE 11R22.5-16 EXP SP AUSTRALIA DRIVE 6X2(99N) 		1-80119-261-0 01 1 0806-0912 ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 1001-1005 ● ●
158 CONTROLLER; ABS 8-98170-648-0 01 1 1006- ● ●
263 BOLT; CONT UNIT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
300 BOLT; CONT UNIT BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0710- ● ●
608 BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE 		0-28650-616-0 05 1 0710- ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98095-337-0 01 1 0710-1308 ● ●
609 BRACKET ASM; ELEC UNIT,AIR SUS 8-98169-737-1 01 1 1309- ● ●
695 BRACKET; CONT UNIT,ABS 8-98045-016-1 01 1 0710- ● ●
737 CONTROL UNIT; TRANSMISSION
(A) 		1-80111-271-0 01 1 0710- ● ●
737 CONTROL UNIT; TRANSMISSION
(B) 		8-98095-040-0 01 1 0710- ● ●
737 CONTROL UNIT; TRANSMISSION
(C) 		8-98095-041-0 01 1 0710- ● ●
743 CONTROL UNIT; BCM 8-98089-297-0 01 1 0710-0802 ● ●
743 CONTROL UNIT; BCM 8-98102-484-0 01 1 0803-0901 ● ●
743 CONTROL UNIT; BCM 8-98125-904-0 01 1 0902-1005 ● ●
743 CONTROL UNIT; BCM 8-98155-169-1 01 1 1006-1007 ● ●
743 CONTROL UNIT; BCM 8-98176-213-0 01 1 1008-1012 ● ●
743 CONTROL UNIT; BCM 8-98182-026-2 01 1 1101- ● ●
756 BRACKET; ECU,BCM
(A) 		8-98056-411-3 01 1 0710- ● ●
756 BRACKET; ECU,BCM
(B) 		8-98111-836-1 01 1 1101- ● ●
757 BOLT; BRKT,BCM
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
762 GROMMET; TRANS CONT MODULE
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 0710- ● ●
762 GROMMET; TRANS CONT MODULE
(B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 0710- ● ●
763 BRACKET; TRANS CONT MODULE 8-98085-587-0 01 1 0710- ● ●

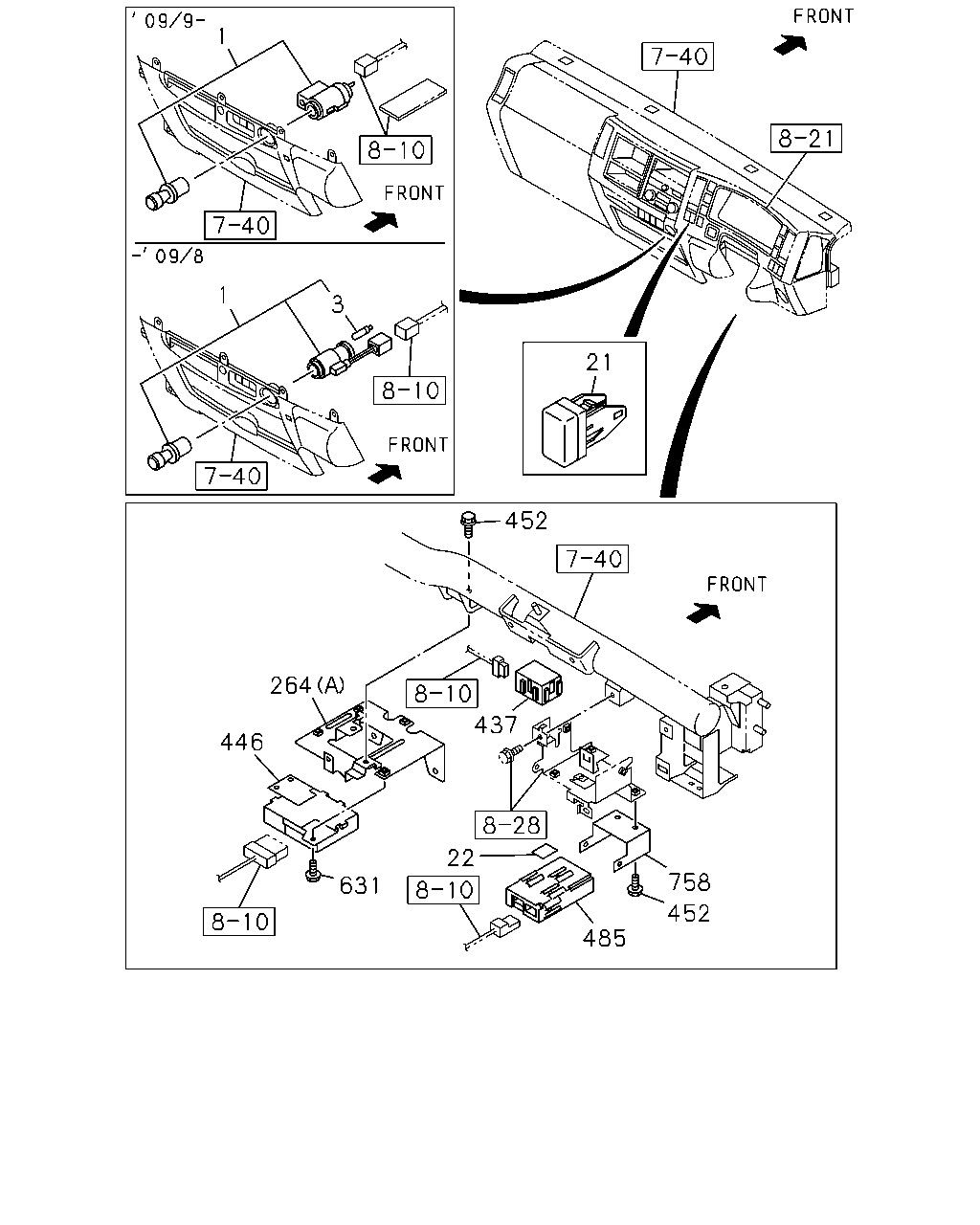

çizim 110978
1 1 3 21 452 264 437 446 22 758 631 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98076-255-0 01 1 0710-0908 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0909- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0710-0908 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0710- ● ●
22 SEAL; TAPE 1-80199-006-0 01 1 0710-1212 ● ●
22 SEAL; TAPE 8-98166-639-0 01 1 1301- ● ●
264 BRACKET; CONT UNIT
(B) 		8-97609-985-9 01 1 0710- ● ●
264 BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A) 		8-98064-901-0 01 1 0710- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 0710- ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		1-80111-116-1 01 1 0710-0812 ● ●
446 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98136-318-1 01 1 0901- ● ●
452 BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 0710- ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0710-0812 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0901-0906 ● ●
631 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE 		0-28650-616-0 02 1 0907- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 0710- ● ●

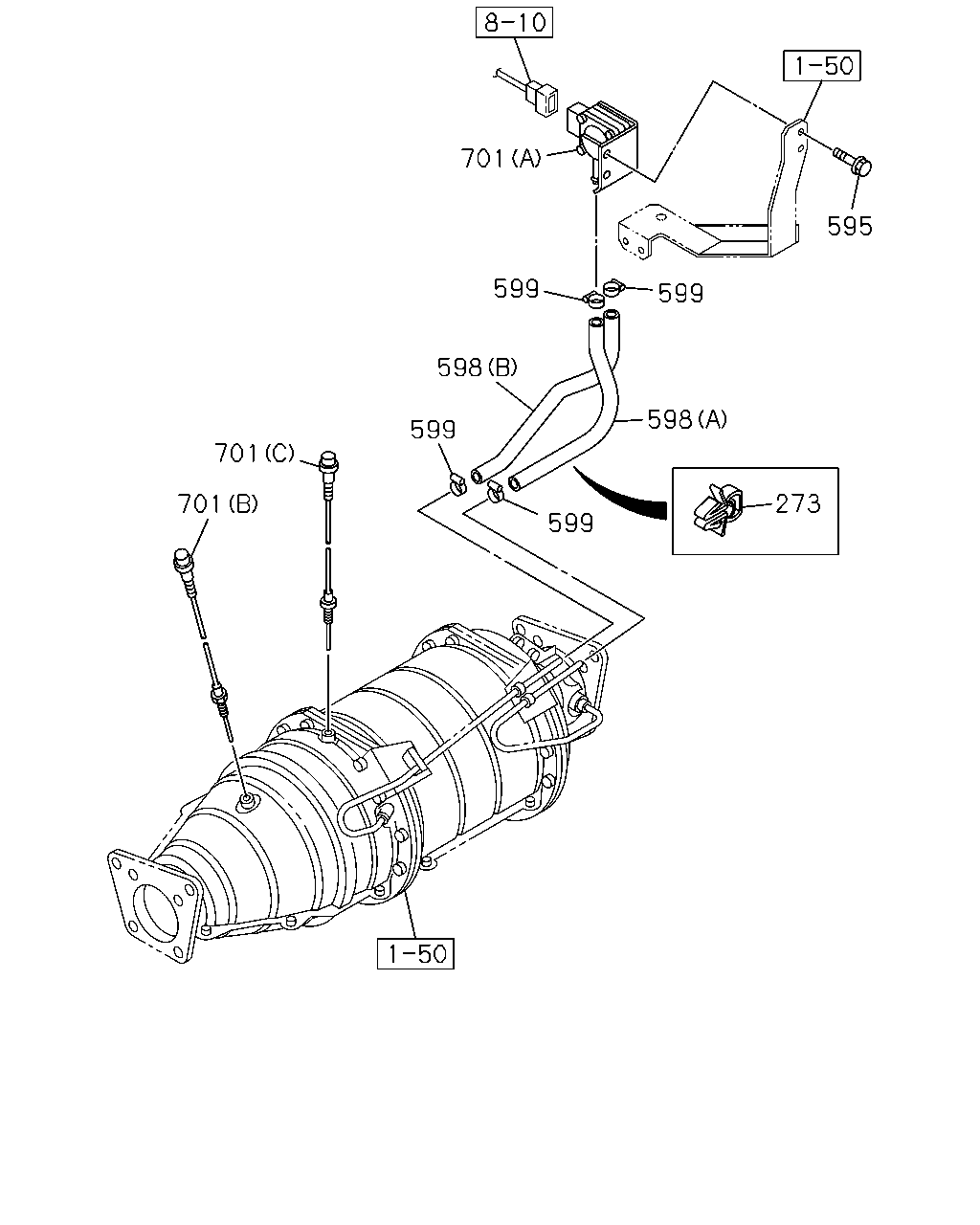

çizim 110982
701 595 599 599 598 598 599 701 273 701 599
BalonParca AdiParca NoAdetTipApplied Date A B
273 CLIP; HARNESS 8-94225-098-0 01 1 0710-0802 ● ●
595 BOLT; SENSOR
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
598 HOSE; RUBBER,SENSOR
(B) 		8-98088-940-0 01 1 0710- ● ●
598 HOSE; RUBBER,SENSOR
(A) 		8-98088-941-0 01 1 0710- ● ●
599 CLIP; HOSE
ID=13 		8-97329-627-0 04 1 0710- ● ●
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710- ● ●
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710- ● ●
701 SENSOR; DPD
(A) 		8-97360-368-2 01 1 0710- ● ●
çizim 111311
726 497 726 497 507
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT 1-82380-172-1 02 1 0711- ● ●
507 CONNECTOR
EXC. H.S.A SYSTEM<6EP> 		1-82690-666-0 01 1 1011- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0711- ● ●

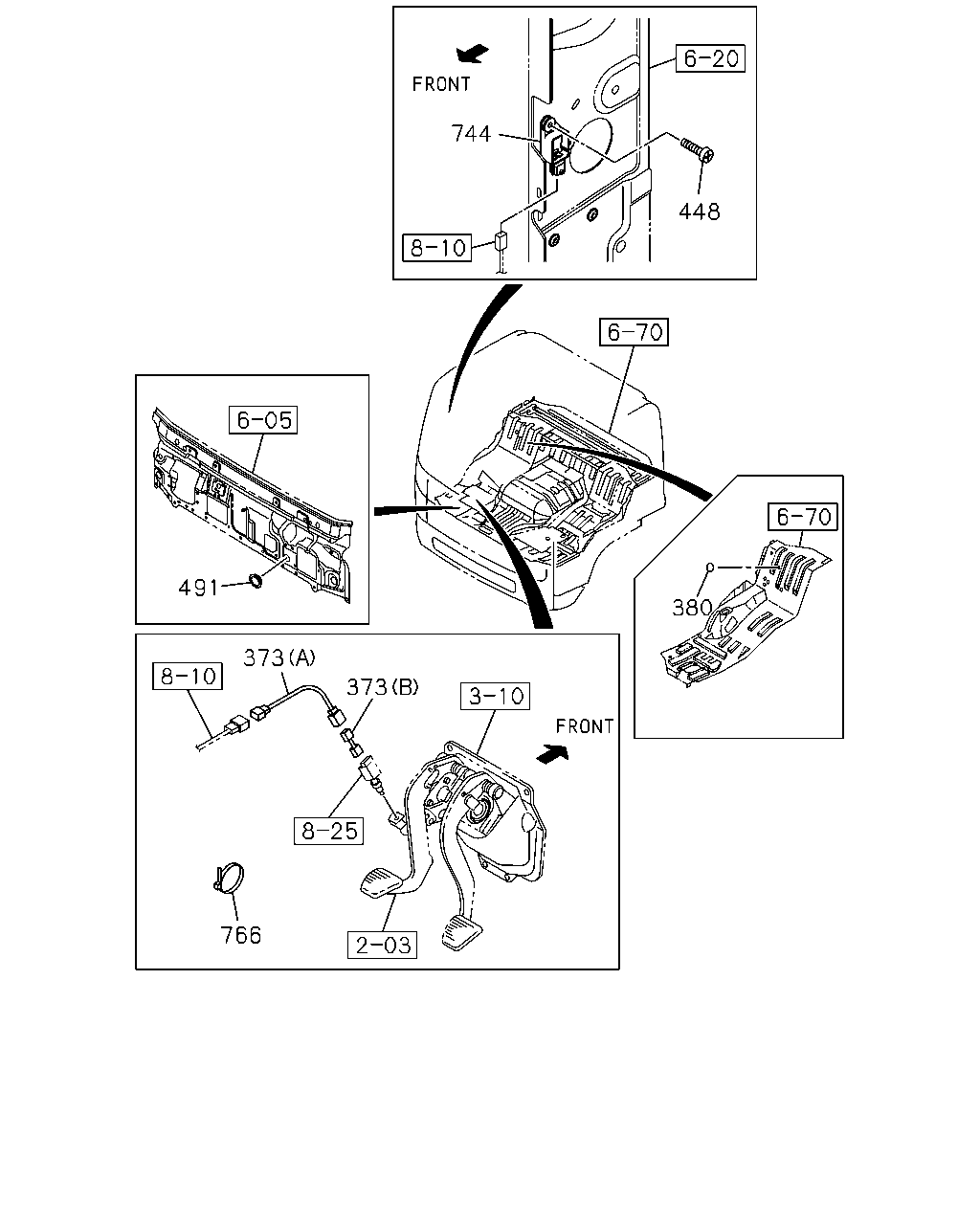

çizim 111314
744 448 491 380 373 373 766
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH
(A) 		8-98053-829-3 01 1 0710- ● ●
373 HARNESS; CLU SWITCH
(B) 		8-98105-661-0 01 1 0712-0809 ● ●
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) M6X18 W/PL WASHER 		8-97105-796-1 02 1 0710- ● ●
491 PLUG; HOLE,CONT UNIT 8-98054-651-0 01 1 0710- ● ●
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-97386-841-2 01 1 0710- ● ●
766 BAND; CLIP
EXC. H.S.A SYSTEM<6EP> L=140 		5-09707-031-1 01 1 0711- ● ●
