Sayfa 8-15 - Isuzu EPC

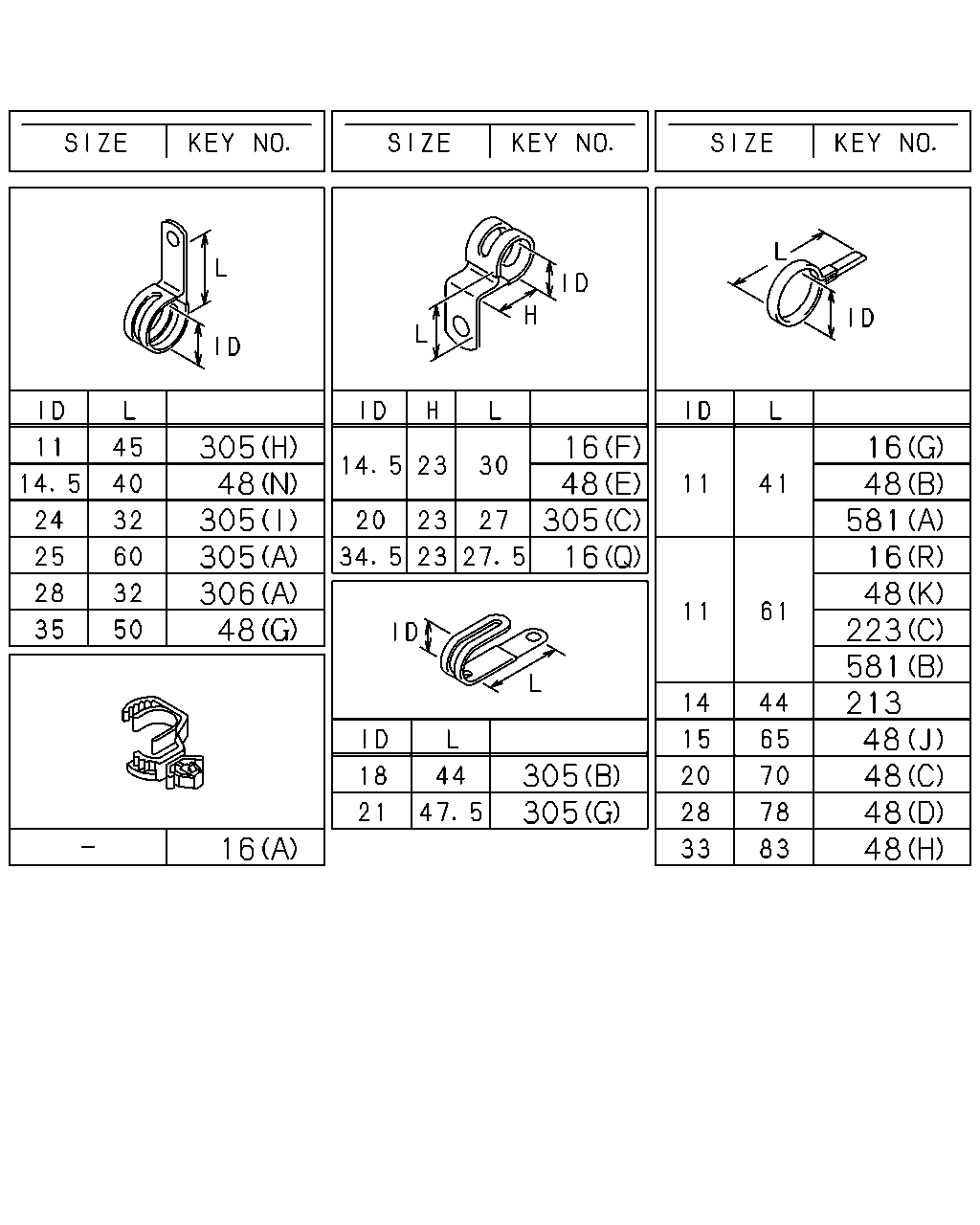

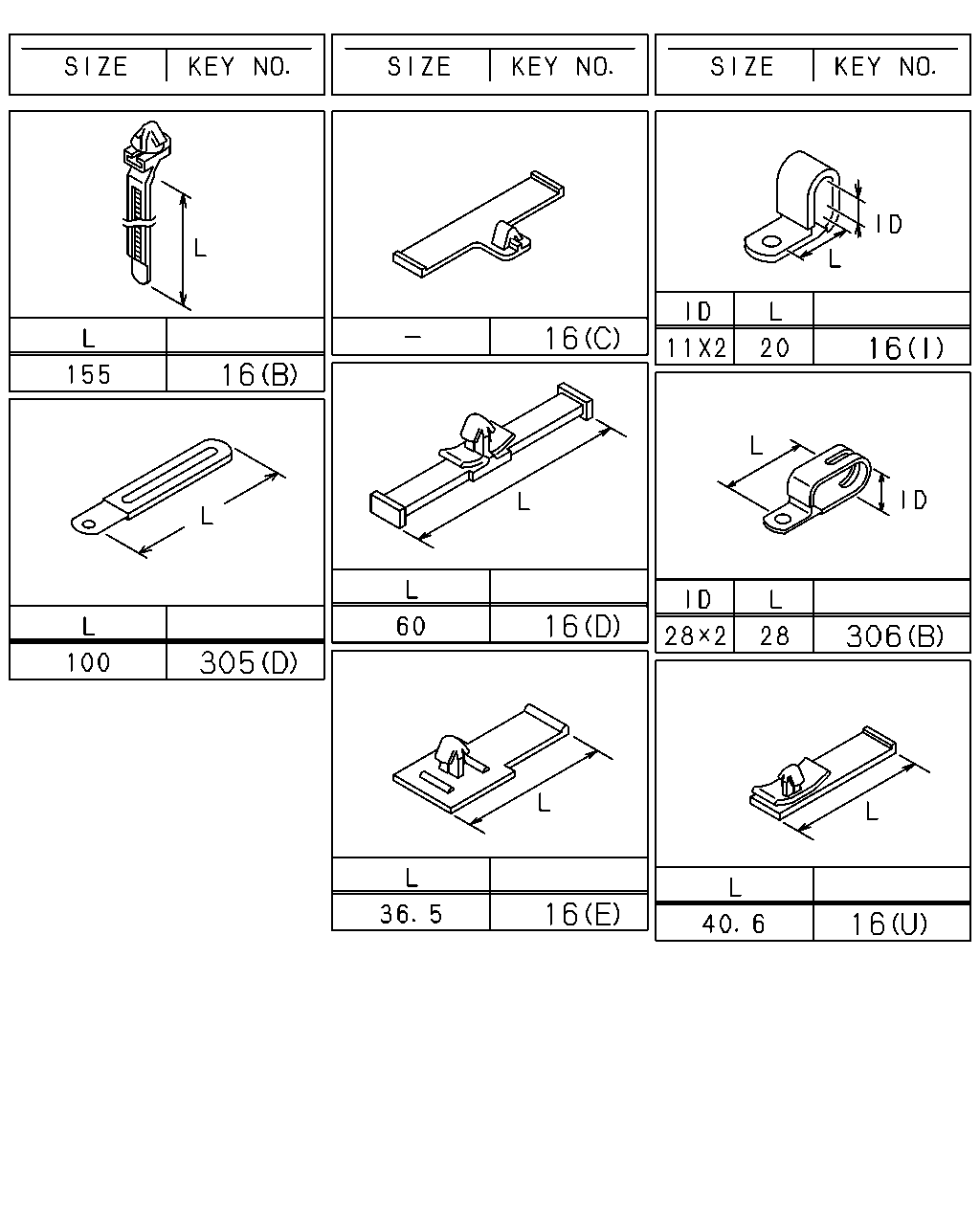

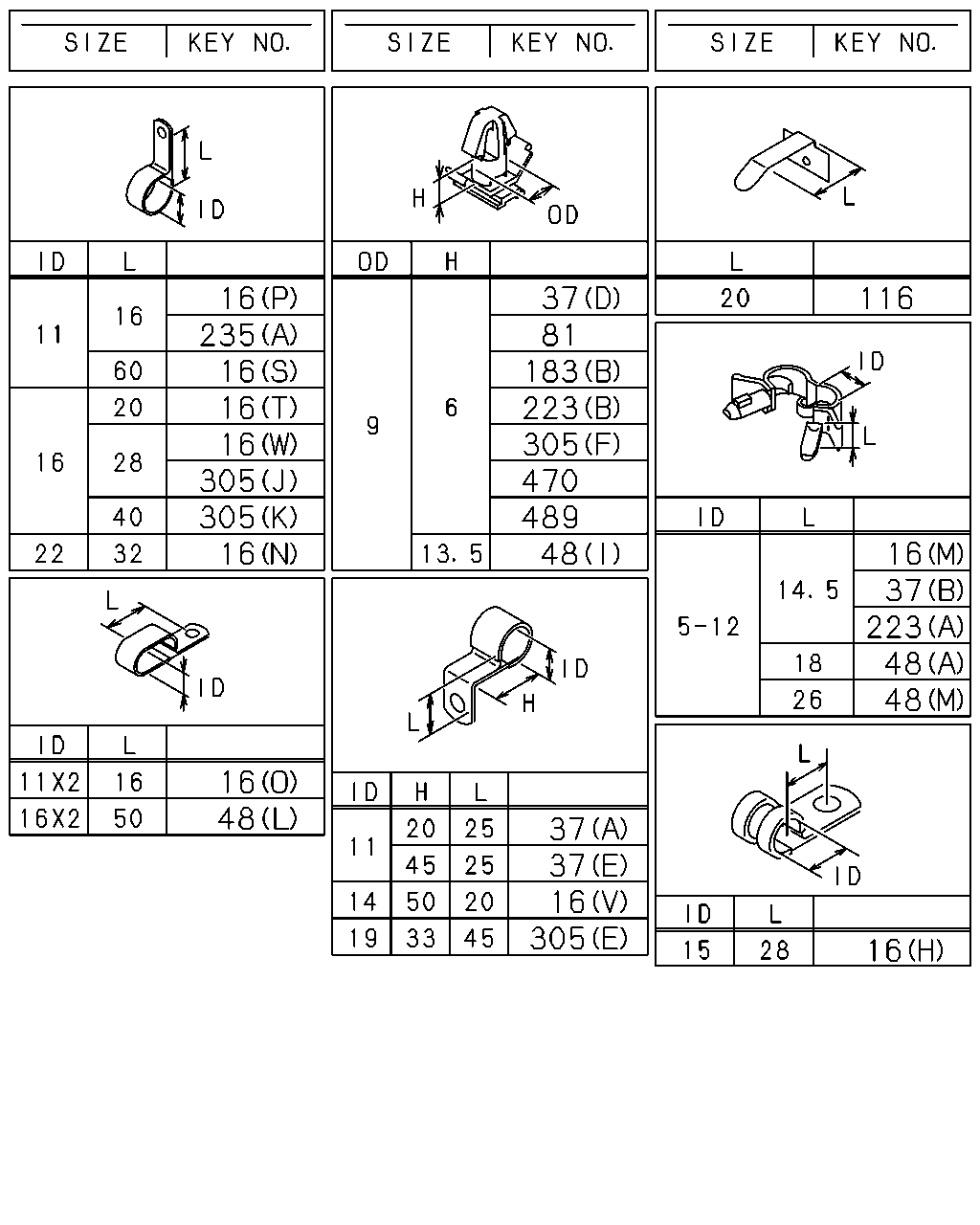

8-15 — FIXING PARTS; WIRING HARNESS (#46472) — 437 parça

16 235 16 16 16 305 305 16 37 81 183 223 305 470 489 48 116 16 37 223 48 48 16 48 37 37 16 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (I) ID=22X11 L=20	1-09700-871-0	03	1	0710-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0809		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0802	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0803-	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0710-	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	31	1	0806-1007		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0712-1010	●	●
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-	●	●
116	CLIP; ROOF HARNESS L=20	1-09987-246-2	04	1	0710-	●	●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0710-	●	●
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0710-0810	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0710-0909	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0710-1205	●	●
470	CLIP; HARNESS,LICENSE LAMP COUNTRY NEW ZEALAND(CX6) OD=9 H=6	1-09709-178-0	01	1	1206-	●	●
489	CLIP; HARNESS,OIL PRESS SW H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0710-0711	●	●

16 48 14 16 37 102 183 194 206 217 225 235 369 612 612 14 16 14 1 1 538 178 178 596 503 530 503 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0710-	●	●
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0710-	●	●
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0710-	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0710-0712	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	14	1	0801-0909	●	●
14	CLIP; BAND,HARNESS (B) L=250	5-09707-030-1	13	1	0910-1205	●	●
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	13	1	1206-	●	●
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0910-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0710-		●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (I) ID=22X11 L=20	1-09700-871-0	03	1	0710-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0809		●
37	CLIP; HARNESS,POWER TILT (A) ID=11 H=20 L=25	1-09700-848-0	01	1	0710-0802	●	●
37	CLIP; HARNESS,POWER TILT (E) ID=11 H=45 L=25	1-09700-866-0	01	1	0803-	●	●
37	CLIP; HARNESS,POWER TILT (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
37	CLIP; HARNESS,POWER TILT (C) L=250	5-09707-030-1	01	1	0710-	●	●
37	CLIP; HARNESS,POWER TILT (D) OD=9 H=6	8-97368-793-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	31	1	0806-1007		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
102	CLIP; BAND H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0710-0901	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	03	1	0710-0711	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0712-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0710-	●	●
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-	●	●
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0712-	●	●
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0710-	●	●
183	CLIP; CONNECTOR EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0710-0810	●	●
194	CLIP; BAND L=250	5-09707-030-1	02	1	0710-	●	●
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0710-	●	●
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0710-	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	04	1	0710-	●	●
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) L=250	5-09707-030-1	01	1	0710-0909	●	●
369	CLIP; BAND EDS HARNESS L=250	5-09707-030-1	02	1	0710-0802	●	●
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0710-0810	●	●
503	CONNECTOR HEATER & DEFROSTER(C41) (B)	1-82690-668-0	01	1	0710-	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-	●	●
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0710-1305	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0710-	●	●
596	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	0710-	●	●
612	CLIP; HARNESS DPD (B) L=135	1-09987-143-1	02	1	0710-	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	02	1	0710-0802	●	●
612	CLIP; HARNESS DPD (A) L=250	5-09707-030-1	01	1	0911-	●	●

38 38 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 139 304 304 139 304 38 139 304 304 313 38 516 358 377 386 524 219 294 525 294 139 38 386 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

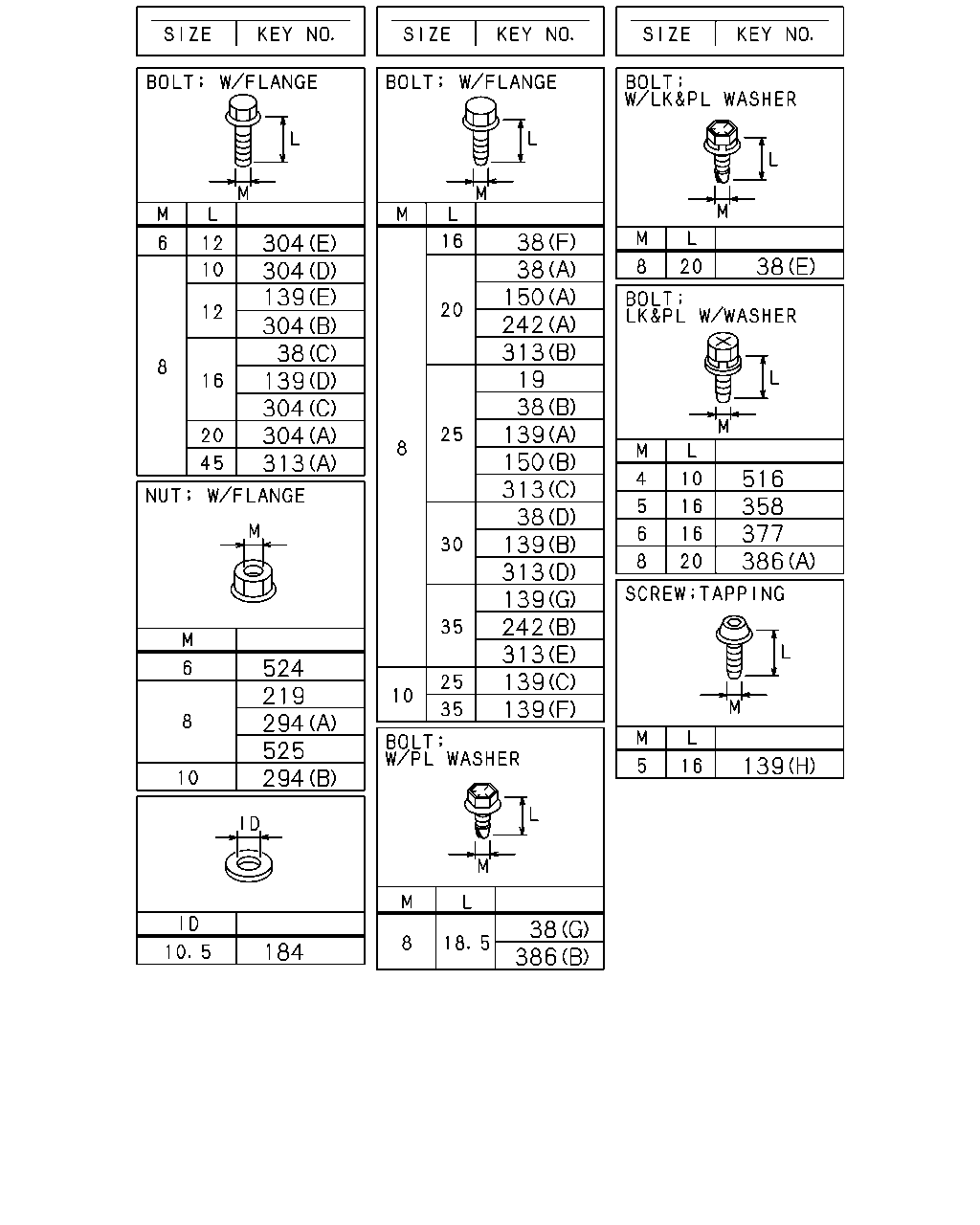

19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0710-0801	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	0712-0806	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-0711	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0712-0802	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-	●
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0710-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0710-1201	●	●
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (F) M8X16 FLANGE	8-98076-109-0	01	1	0710-0710	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-	●	●
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0803-		●
139	BOLT; BRKT (D) M8X16 FLANGE	0-28050-816-0	02	1	0710-0802	●
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-0809	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0810-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	06	1	0710-0809	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0810-0810	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-	●	●
139	BOLT; BRKT (G) M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0710-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0710-	●	●
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0811-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (H) M5X16 TAPPING	0-72180-516-0	01	1	0801-	●	●
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
150	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-	●
219	NUT M8 FLANGE	0-91180-108-0	05	1	0710-0802	●	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-		●
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
242	BOLT; BRKT,HARNESS (B) M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	07	1	0710-0710	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	09	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0712-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0810-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0710-0711	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0712-0809	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0810-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0906-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0710-	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0712-0901	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905	●	●
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-	●	●
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0710-1010	●	●
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-	●	●
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0710-	●	●
313	BOLT; BRKT (A) M8X45 FLANGE	0-28050-845-0	01	1	0710-	●	●
313	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
313	BOLT; BRKT (C) M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	0710-	●	●
313	BOLT; BRKT (E) M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0710-	●	●
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0710-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0710-1202	●	●
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-	●	●
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0710-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0710-	●	●

7 53 53 53 59 53 53 59 59 59 59 59 53 69

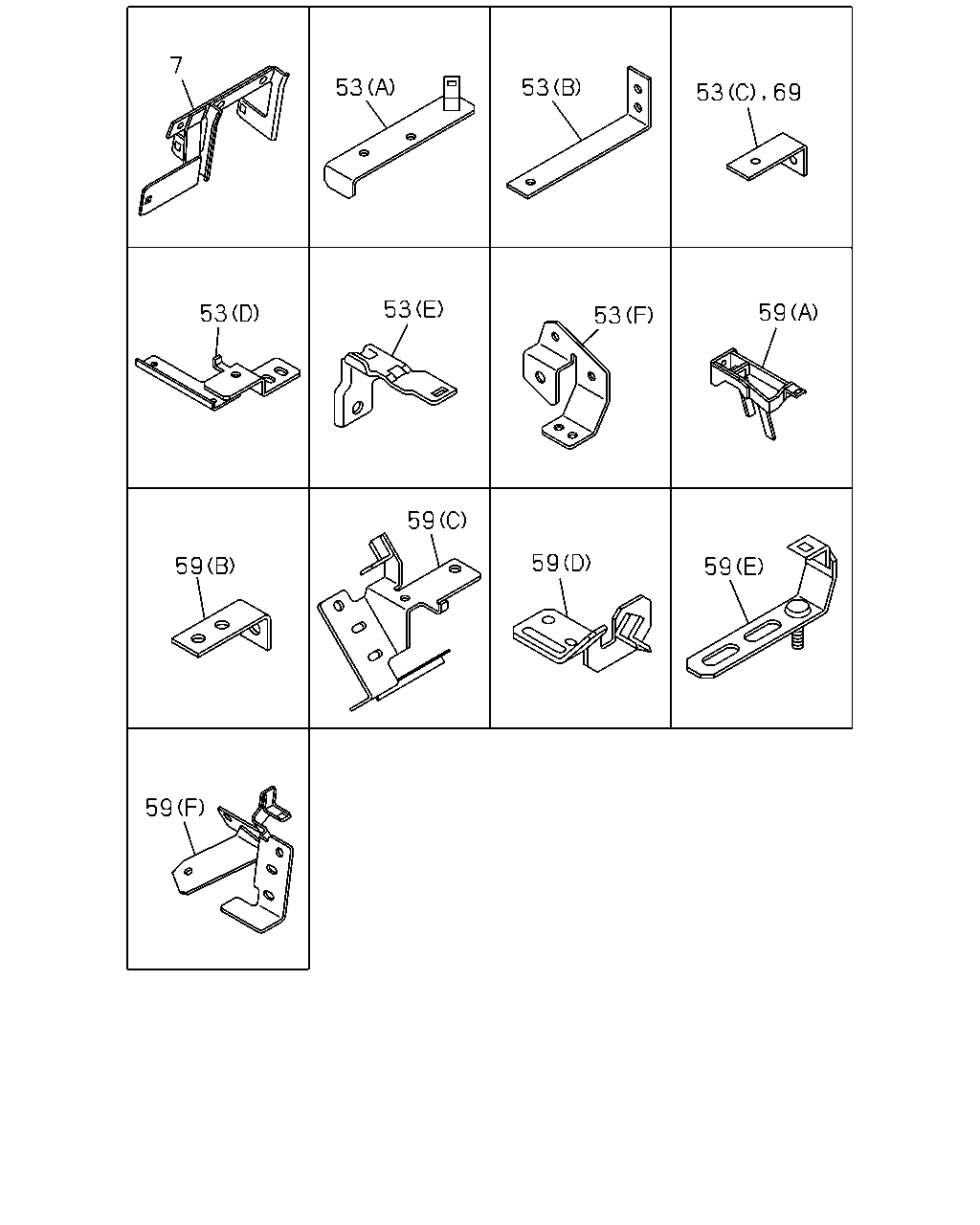

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0710-	●	●
53	BRACKET; HARNESS (C) L=55	1-47475-304-0	01	1	0710-0711	●	●
53	BRACKET; HARNESS (B)	1-47479-674-0	01	1	0710-	●	●
53	BRACKET; HARNESS (A)	8-97616-959-0	01	1	0710-	●	●
53	BRACKET; HARNESS (D)	8-97620-485-0	01	1	0710-	●	●
53	BRACKET; HARNESS (E)	8-98052-458-0	01	1	0710-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (F)	8-98084-590-0	01	1	0801-	●	●
59	BRACKET; FRAME HARNESS (B)	1-21464-170-2	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0710-	●	●
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0710-0905	●	●
59	BRACKET; FRAME HARNESS (F)	8-98107-611-0	01	1	0906-	●	●
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0710-	●	●
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0712-	●	●

305 48 305 305 306 48 16 48 305 16 16 48 581 16 48 223 581 213 48 48 48 48 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (I) ID=22X11 L=20	1-09700-871-0	03	1	0710-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0809		●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1306-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	0712-		●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0712-	●
48	CLIP; FRAME HARNESS (L) ID=16X2 L=50	0-95325-586-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0710-0710	●	●
48	CLIP; FRAME HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-0711	●	●
48	CLIP; FRAME HARNESS (M) ID=5-12 L=26	1-09709-289-0	01	1	0712-0802	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0710-0902	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	0903-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	0710-	●	●
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (E) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (N) ID=14.5 L=40	1-09701-014-0	01	1	0802-	●	●
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	0710-	●	●
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	27	1	0710-0801	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	29	1	0802-0805	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0806-1007	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	28	1	1008-	●
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	0710-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201	●	●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	02	1	1202-	●	●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	30	1	0802-0805		●
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	31	1	0806-1007		●
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	29	1	1008-		●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0710-0711	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0710-0711	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0712-0801	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=61	1-09700-484-0	02	1	0802-0802	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0803-	●

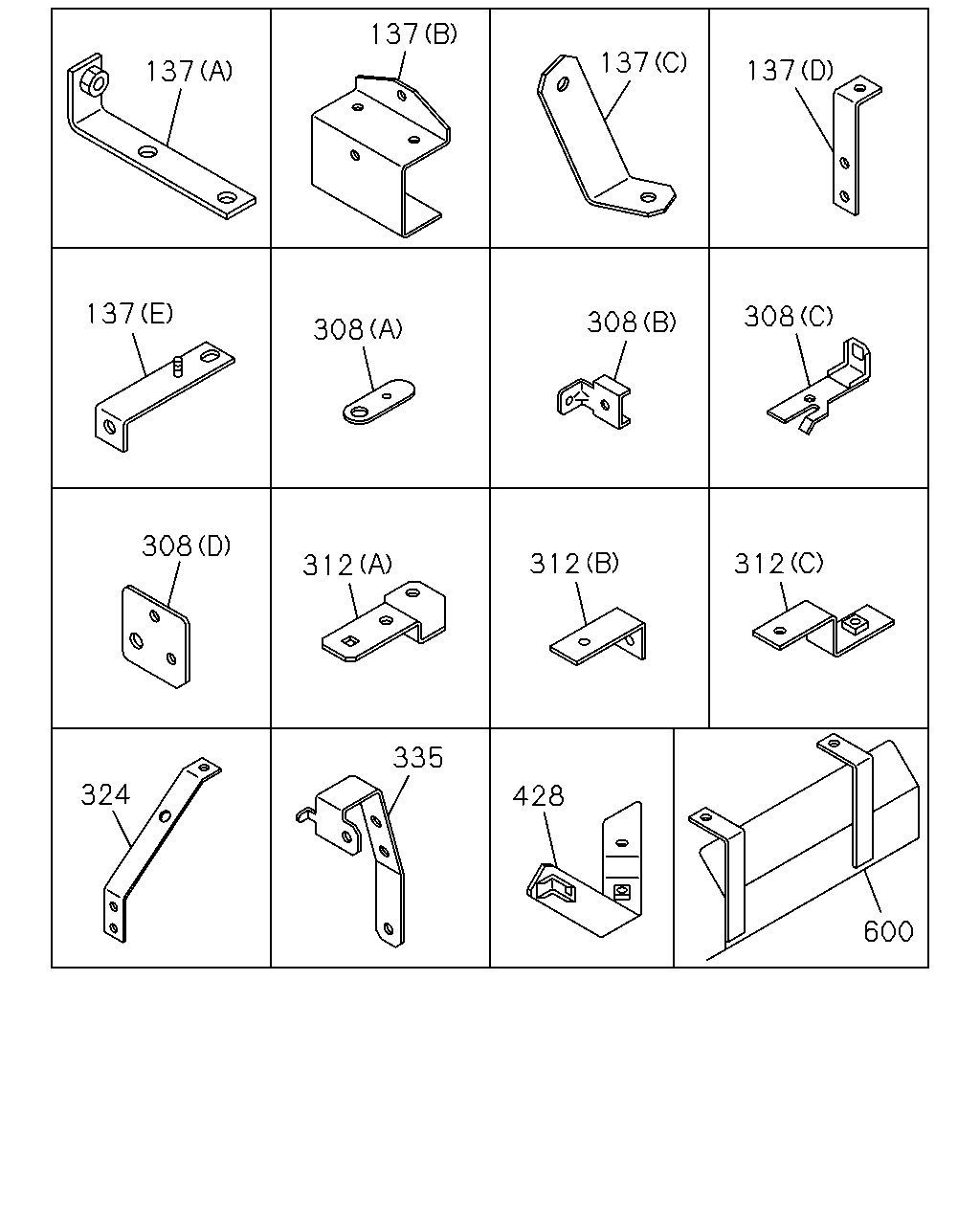

137 137 137 137 137 308 308 308 308 335 324 428 600 312 312 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP (A)	1-82698-140-0	01	1	0710-0802	●
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	0710-	●	●
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	0710-	●	●
137	BRACKET; HARNESS CLAMP (D)	8-97622-657-0	01	1	0710-0710	●	●
137	BRACKET; HARNESS CLAMP (E)	8-97624-013-0	01	1	0711-	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0710-1010	●	●
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-	●	●
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0710-	●	●
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (C)	8-97609-110-1	01	1	0710-	●	●
312	BRACKET; CLIP HARNESS (A)	8-97620-519-0	01	1	0710-	●	●
324	BRACKET; CLIP	1-47479-430-0	02	1	0710-	●	●
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0710-	●	●
428	BRACKET	8-97620-514-0	01	1	0710-	●	●
600	PROTECTOR; HEAT	8-98073-436-0	01	1	0710-0801	●	●

16 16 16 16 306 305 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	02	1	0710-0802	●
16	CLIP; HARNESS (O) ID=11X2 L=16	0-95325-025-0	01	1	0803-	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	0710-0802	●
16	CLIP; HARNESS (K) L=140	5-09707-031-1	01	1	0710-	●
16	CLIP; HARNESS (P) ID=11 L=16	0-95235-025-0	02	1	0710-	●	●
16	CLIP; HARNESS (S) ID=11 L=60	0-95235-096-0	01	1	0710-0807	●	●
16	CLIP; HARNESS (N) ID=22 L=32	1-09700-126-1	01	1	0710-0711	●	●
16	CLIP; HARNESS (G) ID=11 L=41	1-09700-403-0	01	1	0710-0802	●	●
16	CLIP; HARNESS (R) ID=11 L=61	1-09700-484-0	01	1	0710-0810	●	●
16	CLIP; HARNESS (F) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0710-0710	●	●
16	CLIP; HARNESS (V) ID=14 H=50 L=20	1-09700-843-0	02	1	0711-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0710-	●	●
16	CLIP; HARNESS (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0710-	●	●
16	CLIP; HARNESS (H) ID=15 L=28	1-09701-216-0	02	1	0710-0807	●	●
16	CLIP; HARNESS (W) ID=16 L=28	0-95235-556-0	02	1	0808-	●	●
16	CLIP; HARNESS (M) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	05	1	0710-0810	●	●
16	CLIP; HARNESS (L) L=250	5-09707-030-1	03	1	0811-	●	●
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0710-	●	●
16	CLIP; HARNESS (D) L=60	8-94449-165-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (U) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (E) L=36.5	8-97019-892-0	02	1	0710-0802	●	●
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0710-	●	●
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0710-	●	●
16	CLIP; HARNESS (T) ID=16 L=20	0-95235-536-0	01	1	0712-0806	●	●
16	CLIP; HARNESS (I) ID=22X11 L=20	1-09700-871-0	03	1	0710-		●
16	CLIP; HARNESS (J) L=250	1-09707-126-0	01	1	0710-0809		●
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0710-	●	●
305	CLIP; ENG HARNESS (K) ID=16 L=40	0-95235-576-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (E) ID=19 H=33 L=45	1-09701-045-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	0710-	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-94225-185-0	01	1	0710-0801	●	●
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0802-	●	●
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	0710-	●	●
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) ID=21 L=47.5	8-94178-108-0	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0710-	●	●
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
