Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#46471) — 332 parça

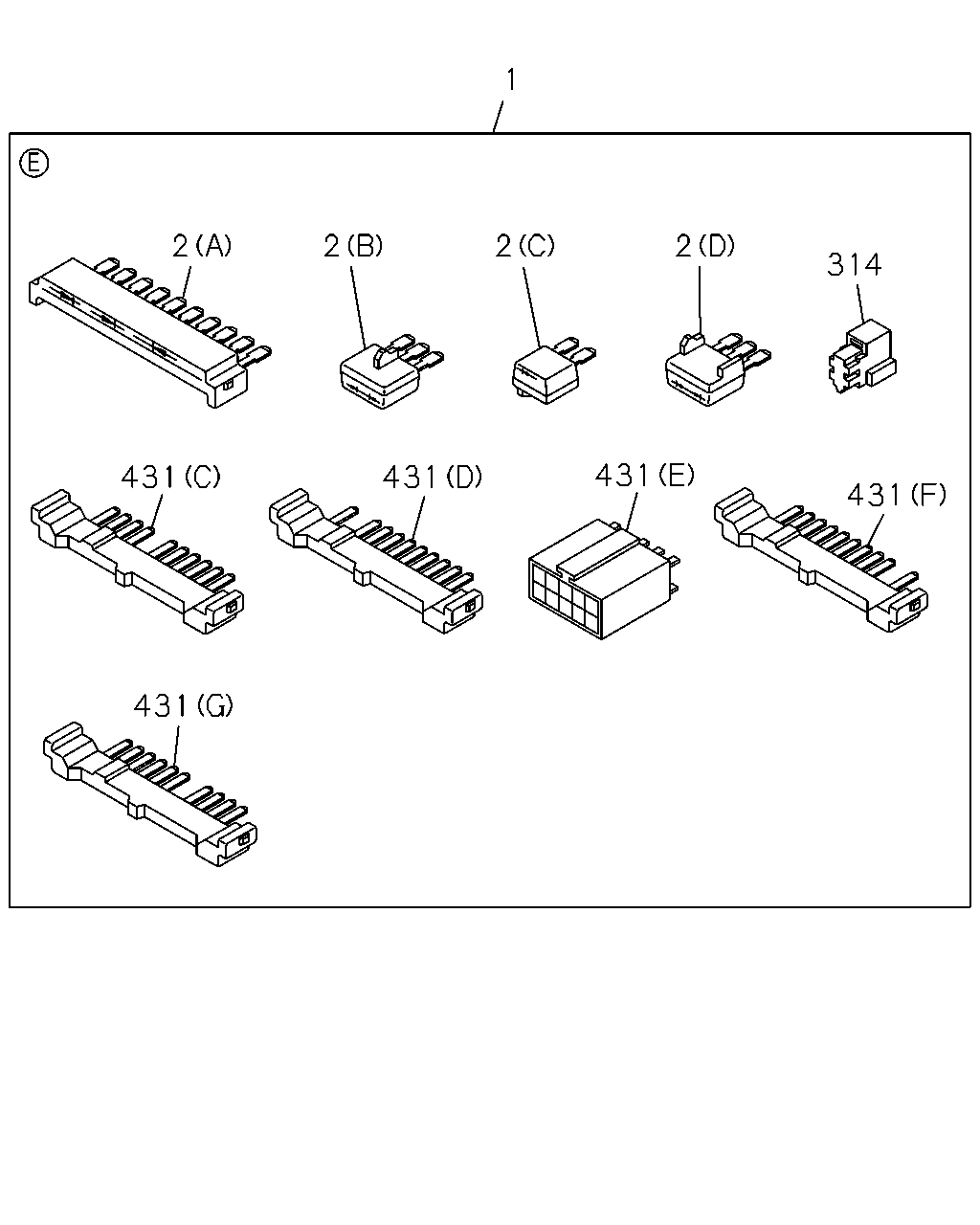

1 2 2 2 2 314 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-030-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-037-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-015-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-026-3	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-036-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-014-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>	8-98085-022-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	0710-1003		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	1004-	●	●
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003		●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	1004-	●	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-033-2	01	1	0710-1003	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-011-2	01	1	0710-1003	●
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0710-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	0710-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	03	1	0710-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	0710-	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0710-	●	●

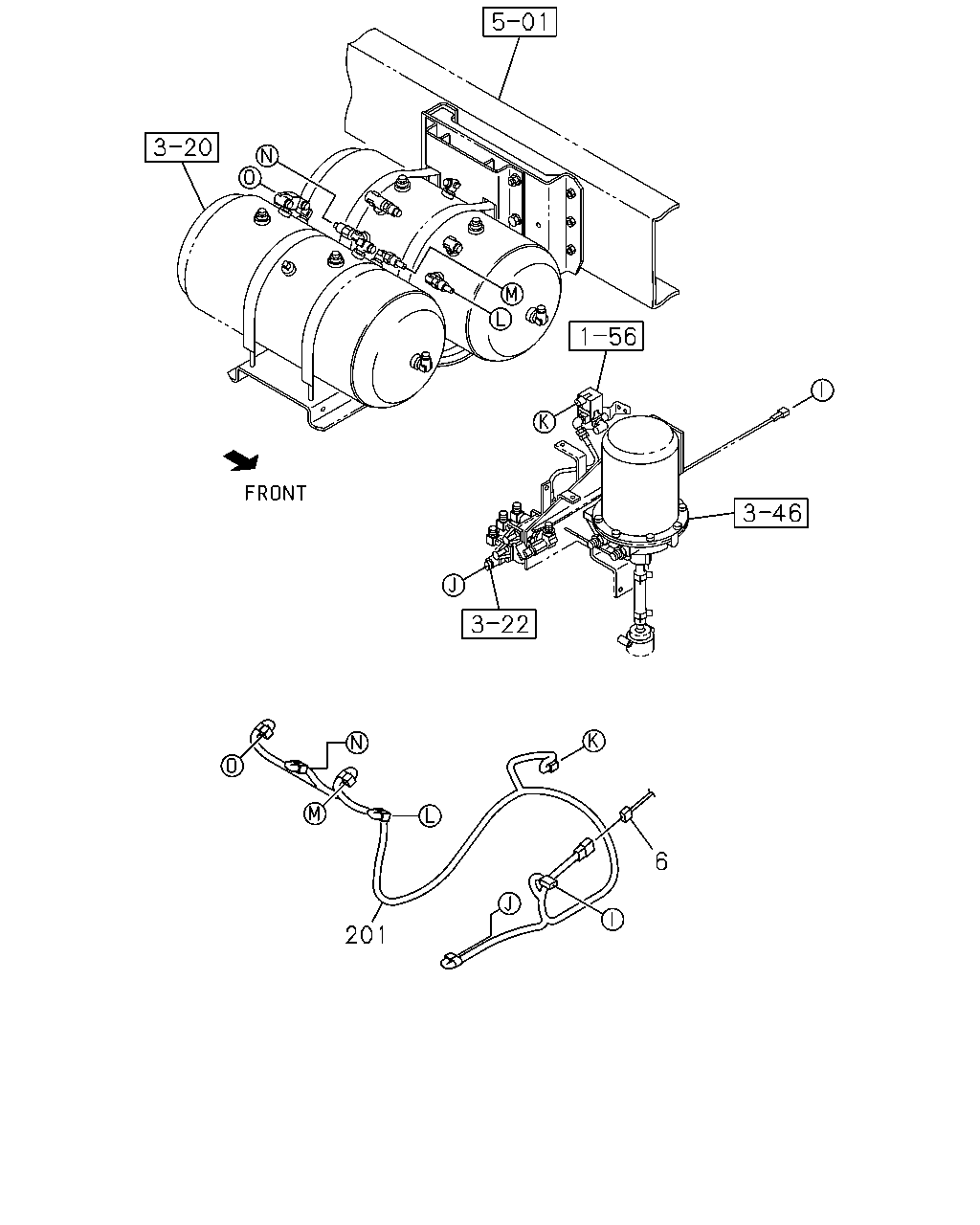

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
201	HARNESS; AIR TANK	8-98097-914-1	01	1	0710-	●	●

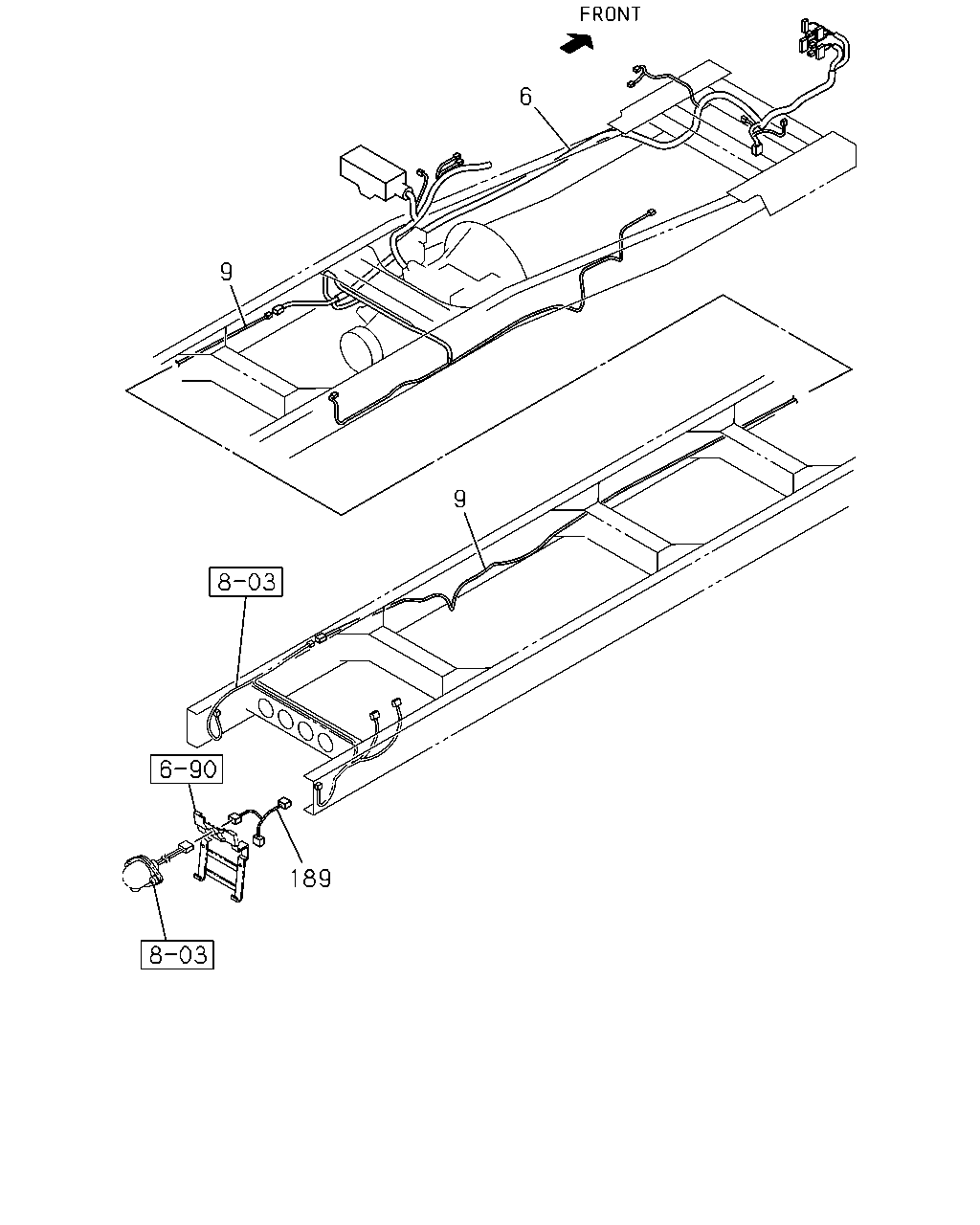

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
9	HARNESS; FRAME,RR	8-98069-209-3	01	1	0710-1007	●
9	HARNESS; FRAME,RR	8-98168-675-0	01	1	1008-	●
9	HARNESS; FRAME,RR	8-98096-441-1	01	1	0710-1007		●
9	HARNESS; FRAME,RR	8-98168-628-0	01	1	1008-		●
189	HARNESS; EXT EXC. COUNTRY NEW ZEALAND(CX6)	8-98131-066-0	01	1	1206-	●	●

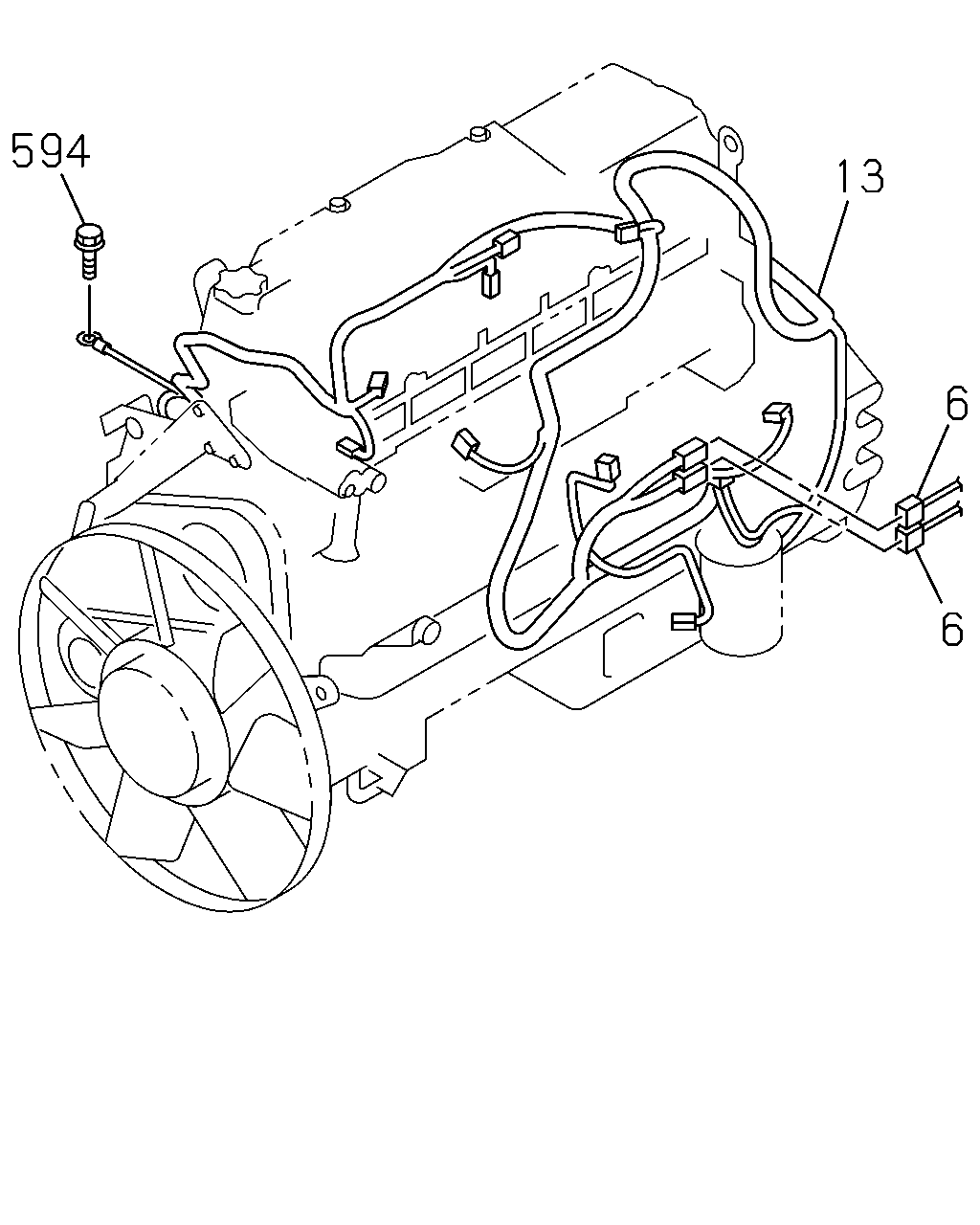

594 13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-97616-796-8	01	1	0710-0909	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98148-977-0	01	1	0910-1010	●	●
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-187-0	01	1	1011-	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-97616-797-8	01	1	0710-0909	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98148-979-0	01	1	0910-1010	●	●
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-188-0	01	1	1011-	●	●
594	BOLT; GLOW PLUG HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0710-0802	●	●

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

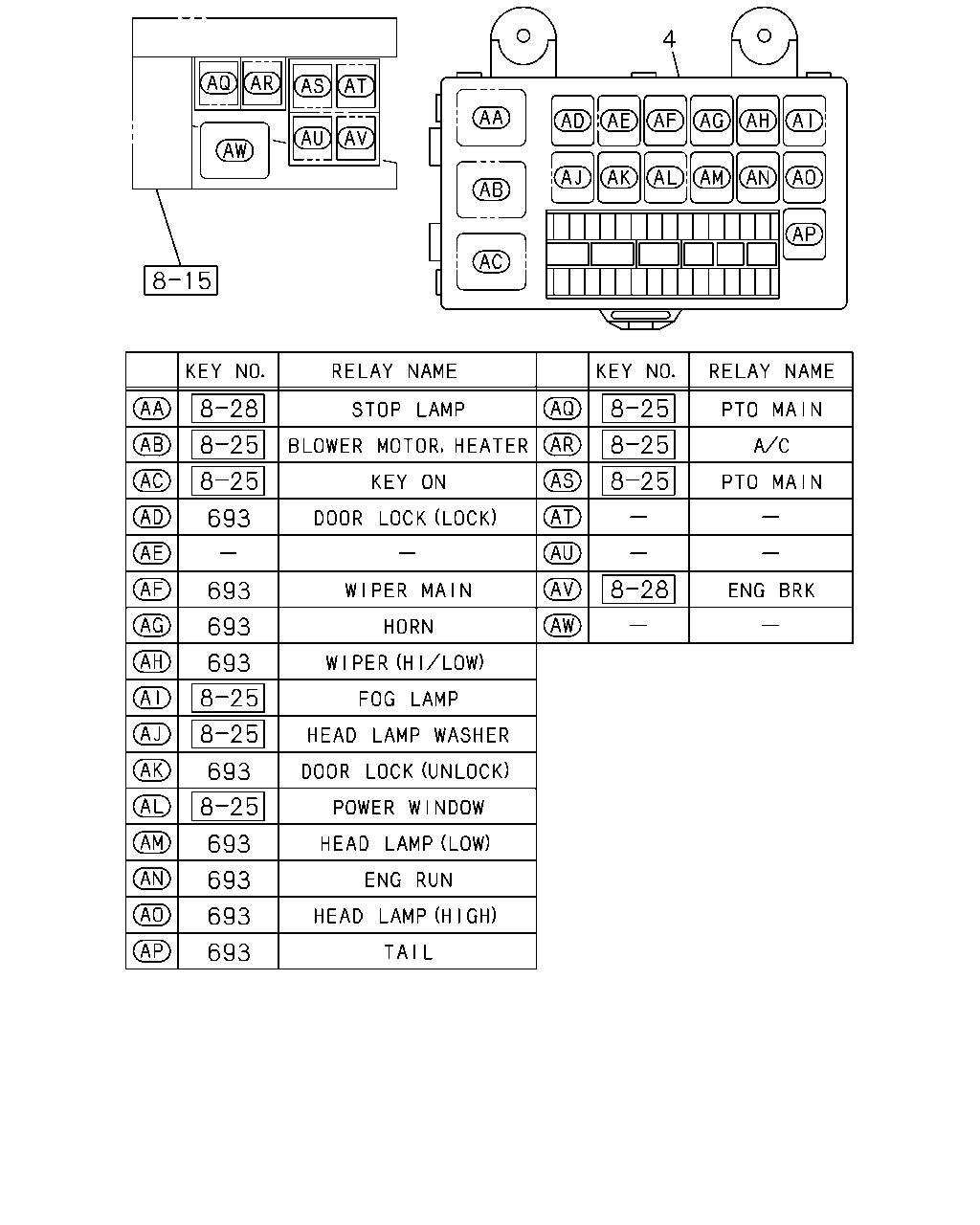

	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0710-	●	●
	693	RELAY; FUSE BOX 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0710-	●	●

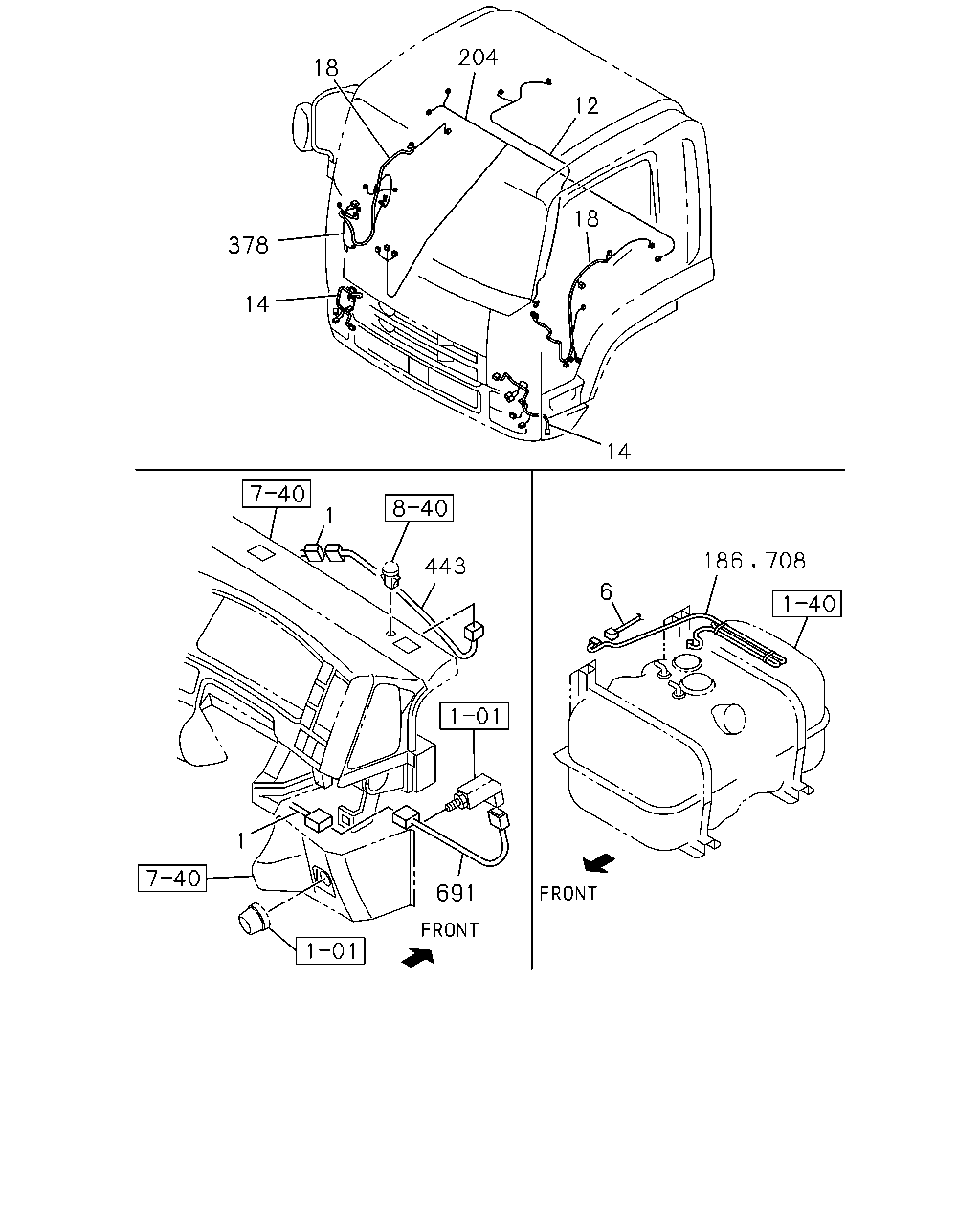

204 18 12 18 378 14 14 1 443 6 1 691 186 708

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-030-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-037-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-015-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-026-3	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-036-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-014-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>	8-98085-022-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	0710-1003		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	1004-	●	●
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003		●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	1004-	●	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-033-2	01	1	0710-1003	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-011-2	01	1	0710-1003	●
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
12	HARNESS; ROOF	8-98079-072-1	01	1	0710-	●	●
14	HARNESS; HEADLAMP	8-94270-986-0	02	1	1307-	●
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1307-		●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98069-166-0	02	1	0710-1003	●
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	0710-1003		●
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	1004-1306	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98069-166-1	02	1	1307-		●
14	HARNESS; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98069-167-0	02	1	0710-1003	●
18	HARNESS; DOOR	8-98079-076-5	01	1	0710-1202	●	●
18	HARNESS; DOOR	8-98079-076-5	01	1	1203-	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	0710-1202	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	1203-	●	●
186	HARNESS; FUEL TANK	8-98099-650-0	01	1	0711-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98085-286-1	01	1	0710-	●	●
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98085-281-2	01	1	0710-	●	●
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-276-1	01	1	0710-	●	●
378	HARNESS; EXT,MIRROR	8-98031-603-1	02	1	0710-0901	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0710-0710	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	0710-	●	●
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	0710-	●	●
708	HARNESS; EXT,FUEL TANK	8-98099-650-0	01	1	0710-0710	●	●

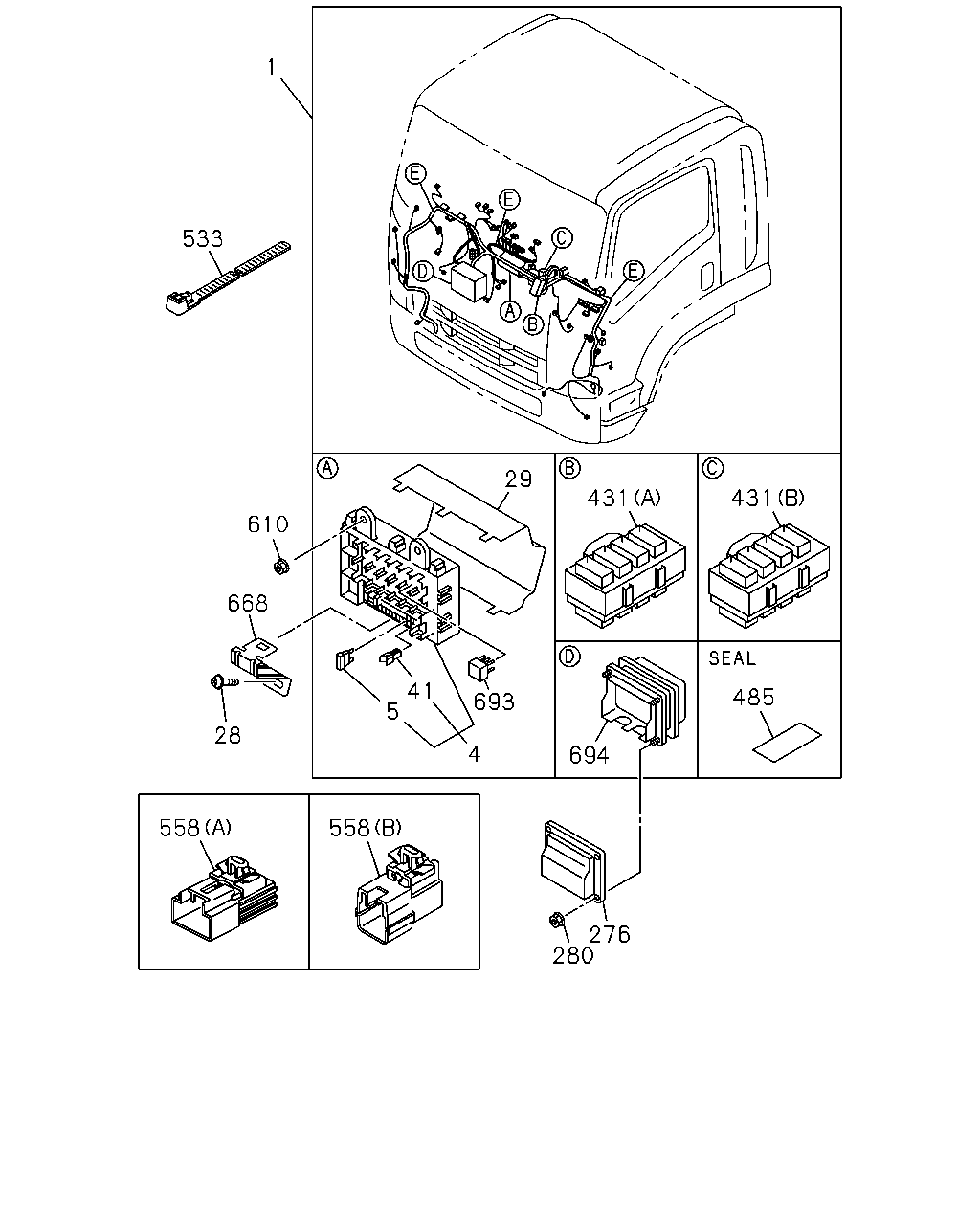

1 533 431 431 29 485 694 693 4 41 5 610 668 28 276 280 558 558

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-030-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-037-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-015-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-026-3	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-036-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-014-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>	8-98085-022-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	0710-1003		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	1004-	●	●
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003		●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	1004-	●	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-033-2	01	1	0710-1003	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-011-2	01	1	0710-1003	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0710-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0710-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0710-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0710-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	0710-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0710-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	0710-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0710-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0710-	●	●
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) L=180	1-09707-162-1	01	1	1206-	●	●
533	CLIP EXC. COUNTRY NEW ZEALAND(CX6) L=250	5-09707-030-1	01	1	1206-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0802-	●	●
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0802-	●	●
610	NUT; BRKT,FUSE BOX M6 FLANGE	0-91180-106-0	04	1	0710-0807	●	●
668	BRACKET; HARNESS	8-98095-653-2	01	1	0710-	●	●
693	RELAY; FUSE BOX 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0710-	●	●
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0710-	●	●

180 6 6 595 6 302 1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-030-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-037-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-015-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-026-3	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-036-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-014-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>	8-98085-022-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	0710-1003		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	1004-	●	●
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003		●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	1004-	●	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-033-2	01	1	0710-1003	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-011-2	01	1	0710-1003	●
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
180	HARNESS; CABLE	8-98101-067-0	01	1	0711-0802	●	●
302	HARNESS; POWER CAB TILT	8-97620-490-1	01	1	0710-	●	●
570	HARNESS; SPEED SENSOR (B)	1-82659-230-0	01	1	0710-1004	●	●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1005-	●	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	0710-	●	●
595	HARNESS; WARNING,BRK	8-97620-487-1	01	1	0710-	●	●

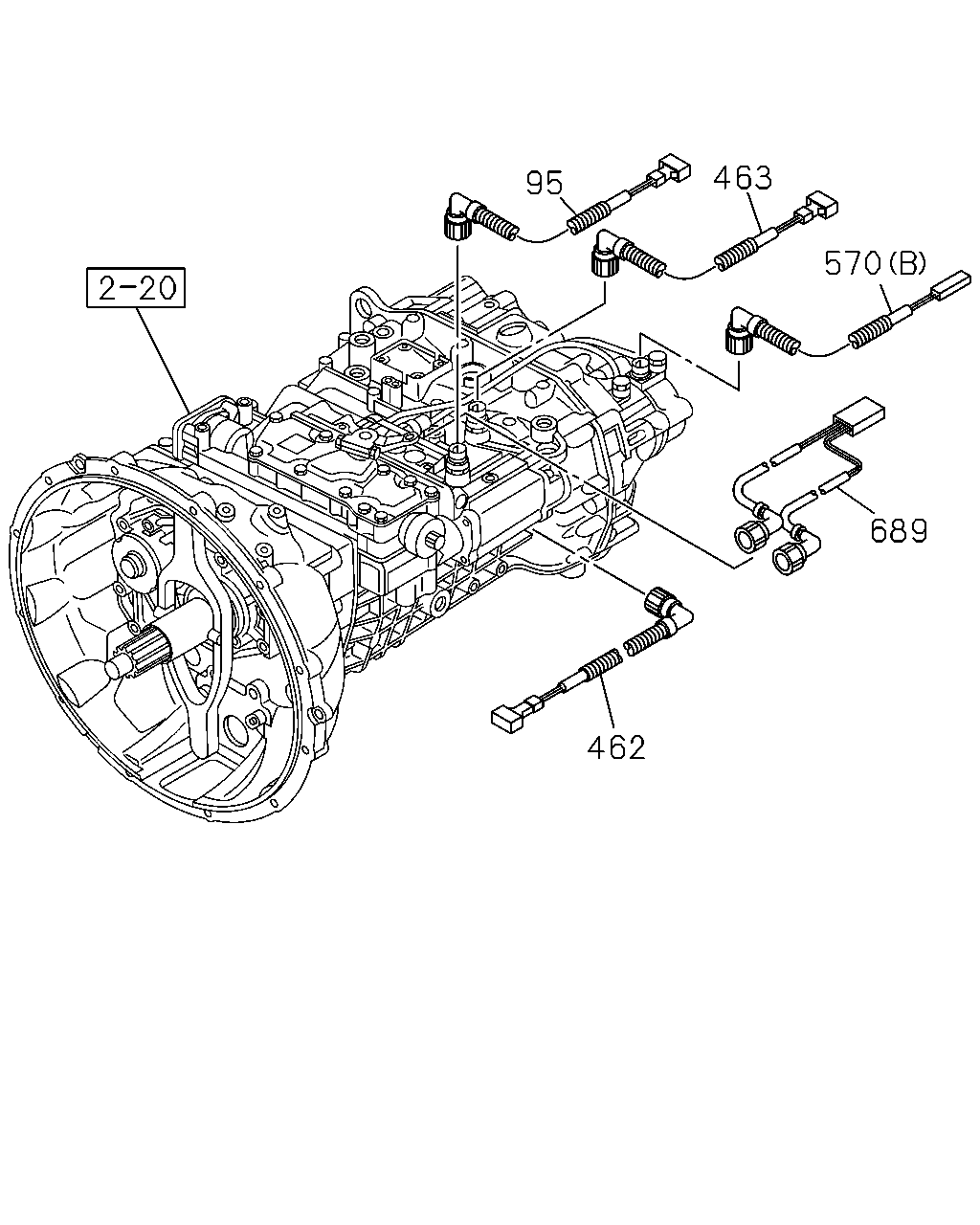

463 95 570 689 462

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
95	HARNESS; NEUTRAL SW	1-82659-226-0	01	1	0710-0905	●	●
95	HARNESS; NEUTRAL SW RED	8-98145-854-0	01	1	0906-	●	●
462	HARNESS; SW,RANGE BLUE	1-82659-228-0	01	1	0710-0905	●	●
462	HARNESS; SW,RANGE BLUE	8-98145-857-0	01	1	0906-	●	●
463	HARNESS; SW,BACK UP	1-82659-227-0	01	1	0710-0905	●	●
463	HARNESS; SW,BACK UP BLACK	8-98145-856-0	01	1	0906-	●	●
570	HARNESS; SPEED SENSOR (B)	1-82659-230-0	01	1	0710-1004	●	●
570	HARNESS; SPEED SENSOR (B)	8-98148-602-0	01	1	1005-	●	●
570	HARNESS; SPEED SENSOR (A)	8-98058-327-1	01	1	0710-	●	●
689	HARNESS; PRESSURE & ECU SWITCH	1-82659-229-1	01	1	0710-1101	●	●
689	HARNESS; PRESSURE & ECU SWITCH	8-98148-603-0	01	1	1102-	●	●

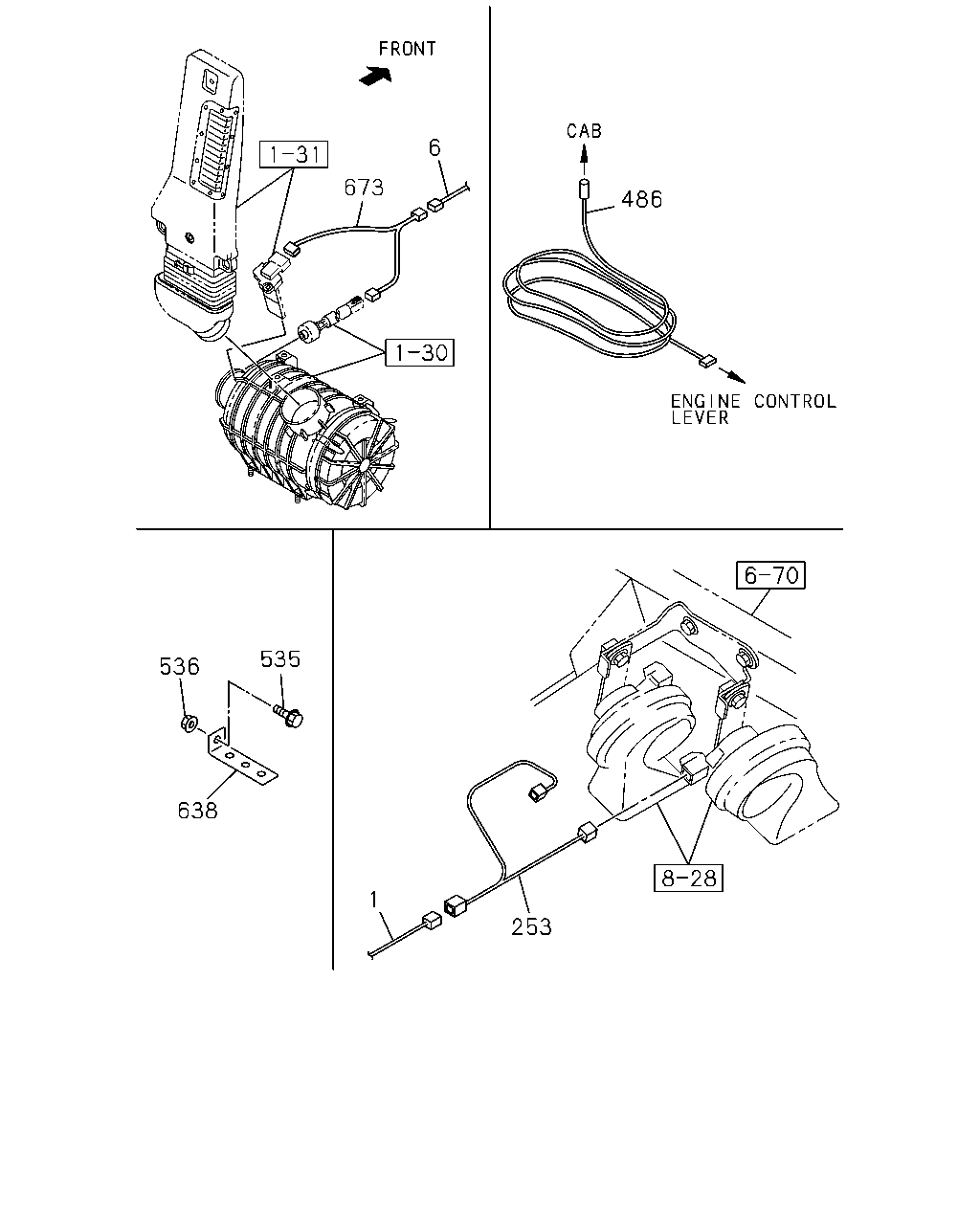

6 673 486 535 536 638 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98187-999-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98187-999-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-987-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98188-002-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98188-002-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98187-990-0	01	1	1204-	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-030-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68)	8-98085-030-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-030-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-008-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-008-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-037-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-015-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>	8-98085-026-3	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68)	8-98085-026-3	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-026-3	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HALOGEN HEADLAMPS<TT5> EXC. HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	0710-1003		●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-004-2	01	1	1004-1109	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98085-004-2	01	1	1110-1203	●	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98085-036-2	01	1	0710-1003	●
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98085-014-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>	8-98085-022-2	01	1	0710-1003	●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	0710-1003		●
1	HARNESS; CAB FULLAUTO AIR CONDITIONER(C68) EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-022-2	01	1	1004-	●	●
1	HARNESS; CAB HALOGEN HEADLAMPS<TT5> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),HEAD LAMP WASHER<CE4>,FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003	●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	0710-1003		●
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-000-2	01	1	1004-	●	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> FULLAUTO AIR CONDITIONER(C68) HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-033-2	01	1	0710-1003	●
1	HARNESS; CAB HEAD LAMP WASHER<CE4> HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),FULLAUTO AIR CONDITIONER(C68)	8-98085-011-2	01	1	0710-1003	●
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0710-	●	●
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	0710-	●	●
535	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	01	1	0710-	●	●
536	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
638	BRACKET; SPD SENSOR	1-82698-167-0	01	1	0710-	●	●
673	HARNESS; EXT,SENSOR	8-98098-510-0	01	1	0710-	●	●

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME	8-98069-263-3	01	1	0710-0910	●	●
6	HARNESS; FRAME	8-98154-154-1	01	1	0911-	●	●
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0710-	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0710-	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	03	1	0710-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	0710-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	0710-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0710-	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	03	1	0710-1106	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	02	1	1107-	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0710-	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	0710-	●	●
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	02	1	0710-	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0710-0910	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	02	1	0911-1010	●	●
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1011-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0710-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0710-	●	●
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0710-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0710-	●	●
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	0710-	●	●
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
