8-40 — HEATER SYSTEM (#4647) — 43 parça

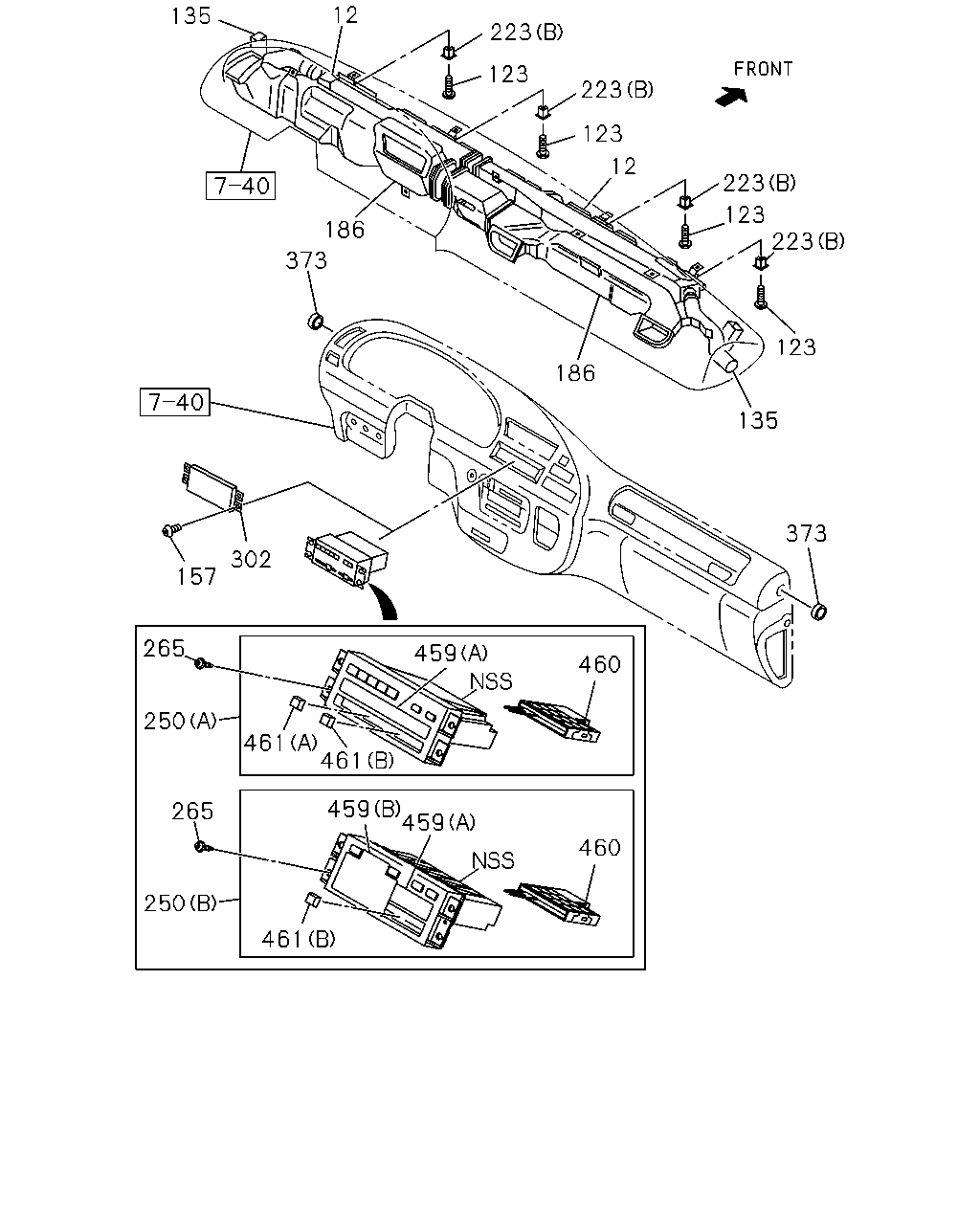

12 135 223 123 223 123 12 223 123 223 186 373 123 186 135 373 302 157 265 459 460 250 461 461 459 459 265 460 250 461

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-360-2	01	1	9603-
12	NOZZLE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-196-1	01	1	9603-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	9603-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14	8-94279-325-0	08	1	9603-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-364-3	01	1	9603-
135	HOSE; DEFROSTER EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-363-2	01	1	9603-
157	SCREW HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9603-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76378-362-4	01	1	9603-
186	DUCT; VENTILATOR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-76377-197-2	01	1	9603-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9603-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9603-
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-83543-033-2	01	1	9603-9909
250	CONTROL ASM; A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-83543-050-0	01	1	9910-
250	CONTROL ASM; A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83543-034-1	01	1	9603-
265	SCREW; A/C CONT UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X20 TAPPING W/PL WASHER	0-74110-620-0	02	1	9603-
302	COVER; AIR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-72438-140-1	01	1	9603-
373	RUBBER; JOINT	1-76378-291-0	02	1	9603-
459	PANEL; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83549-013-0	01	1	9603-
459	PANEL; CONTROL ASM,A/C VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-017-0	01	1	9905-
460	SWITCH; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82489-006-0	01	1	9603-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-83549-015-0	01	1	9603-
461	KNOB; CONTROL ASM,A/C HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ,VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83549-016-0	01	1	9603-

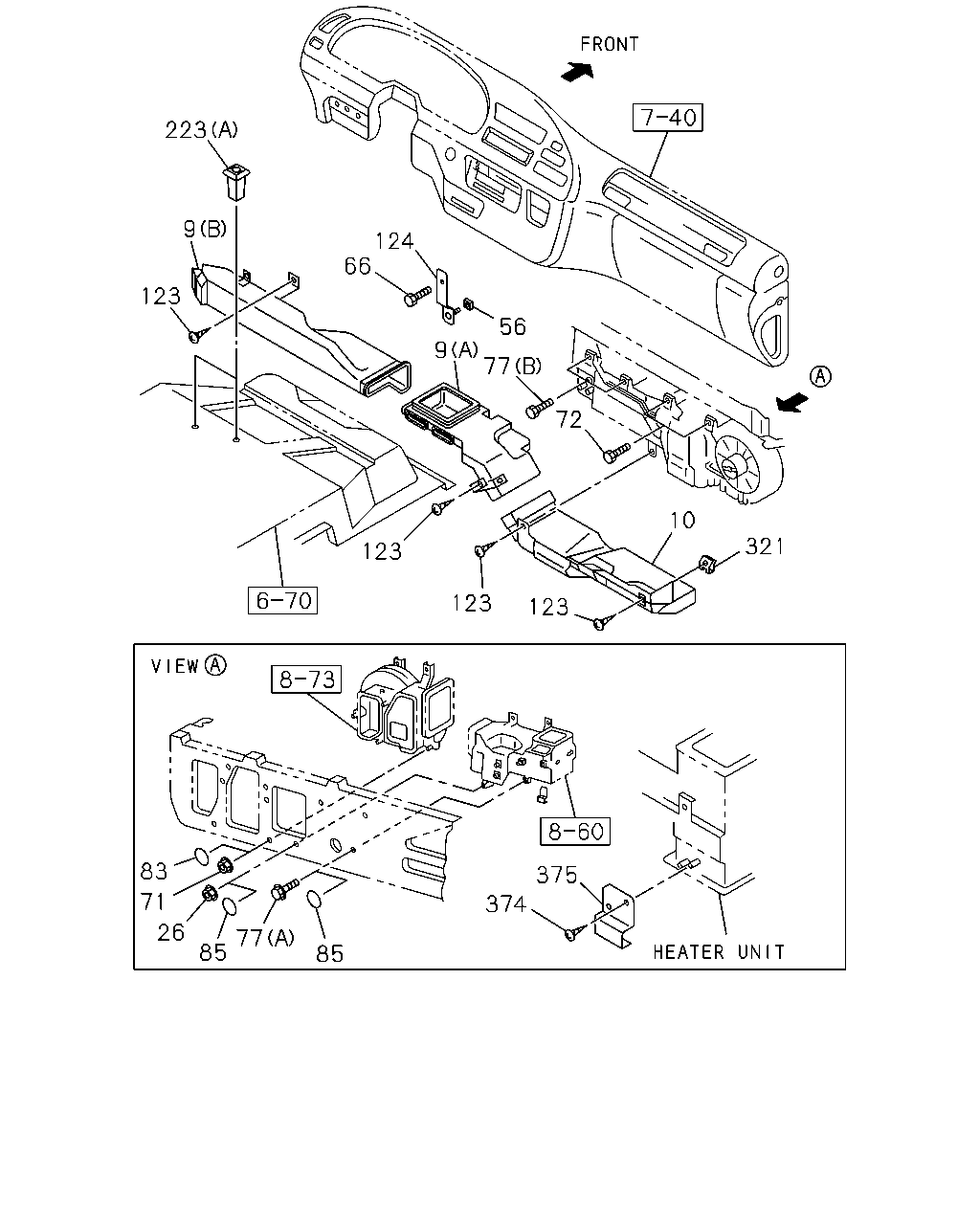

223 9 124 66 123 56 9 77 72 10 321 123 123 123 83 375 71 374 26 77 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-76377-198-2	01	1	9603-0006
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-76377-228-2	01	1	0007-
9	DUCT; HTR AIR,FOOT CENTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B)	1-76377-199-1	01	1	9603-
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-76377-200-1	01	1	9603-
26	NUT; HTR EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9603-
56	NUT; INL DUCT M6 FLANGE W/RUBBER	1-09984-180-0	01	1	9603-
66	BOLT; DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9603-
71	NUT; BLOWER UNIT TO DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9603-
72	BOLT; BLOWER UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) M6X16	1-09980-598-1	02	1	9603-
77	BOLT; HTR UNIT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
83	SEAL; COVER,HTR HOLE HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9603-
85	SEAL; HTR UNIT HEATER VENTILATION AIR CONDITIONING DELETE(TFA) OD=25 BLACK	1-76798-019-0	04	1	9603-
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M5X14	8-94279-325-0	03	1	9603-
123	SCREW; DUCT EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) M5X14	8-94279-325-0	08	1	9603-
124	BRACKET ASM; VENT DUCT	1-79738-186-1	01	1	9603-
223	GROMMET; SCREW (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	9603-
223	GROMMET; SCREW EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) D=7.8X7.8 L 13 M6 NATURAL	8-94279-084-2	04	1	9603-
321	NUT; DUCT FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M5	1-09984-150-0	01	1	9603-
374	HOLDER; DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-76398-012-1	01	1	9603-
375	SCREW; HOLDER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M5X14	8-94279-325-0	02	1	9603-
