Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#46467) — 197 parça

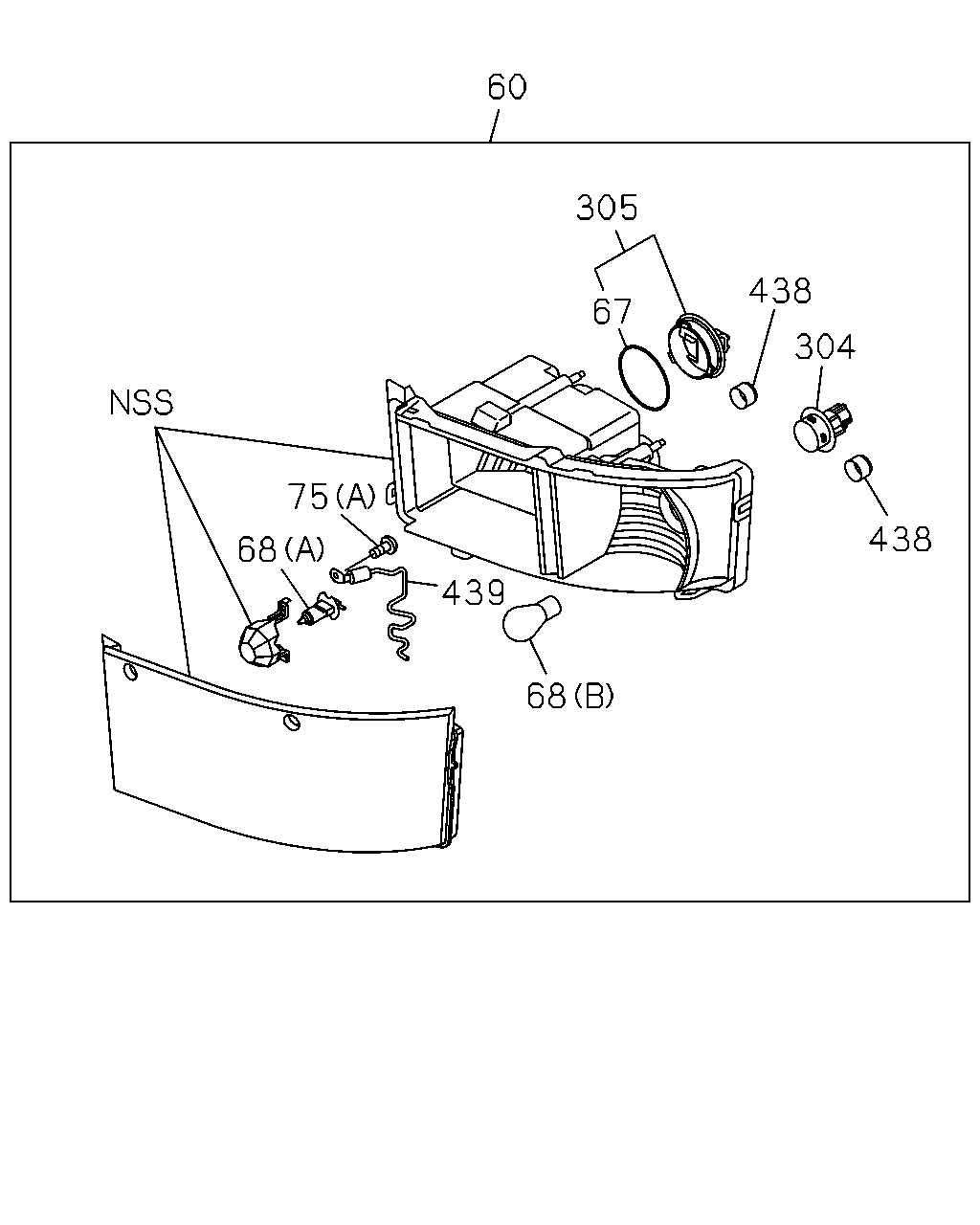

60 305 438 438 304 68 439 68 75 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
60	LAMP ASM; FRT COMB	8-98047-053-1	01	1	0710-0908	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB	8-98047-052-1	01	1	0710-0908	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-	●	●
67	GASKET; FRT COMB LAMP	8-98238-656-0	02	1	1303-	●	●
68	BULB; FRT COMB LAMP (A) 24V 70W	1-82194-106-0	02	1	0710-0908	●	●
68	BULB; FRT COMB LAMP FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	0909-	●	●
68	BULB; FRT COMB LAMP (B) 24V 21W	8-98051-495-0	02	1	0710-	●	●
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	0710-	●	●
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0710-	●	●
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	0710-0908	●	●
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	0909-	●	●
304	PLUG; SOCKET,FRT COMB LAMP	8-98051-390-0	02	1	0710-	●	●
305	COVER; FRT COMB LAMP	8-98074-440-0	02	1	0710-0908	●	●
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98074-440-0	02	1	0909-1302	●	●
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98240-559-0	02	1	1303-	●	●
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98051-392-0	02	1	0909-1302	●	●
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1303-	●	●
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	04	1	0710-1302	●	●
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	02	1	1303-	●	●
439	SPRING SET; COMB LAMP	8-98075-644-0	02	1	0710-0908	●	●
439	SPRING SET; COMB LAMP FOG LAMP<T96>	8-98075-644-0	02	1	0909-	●	●

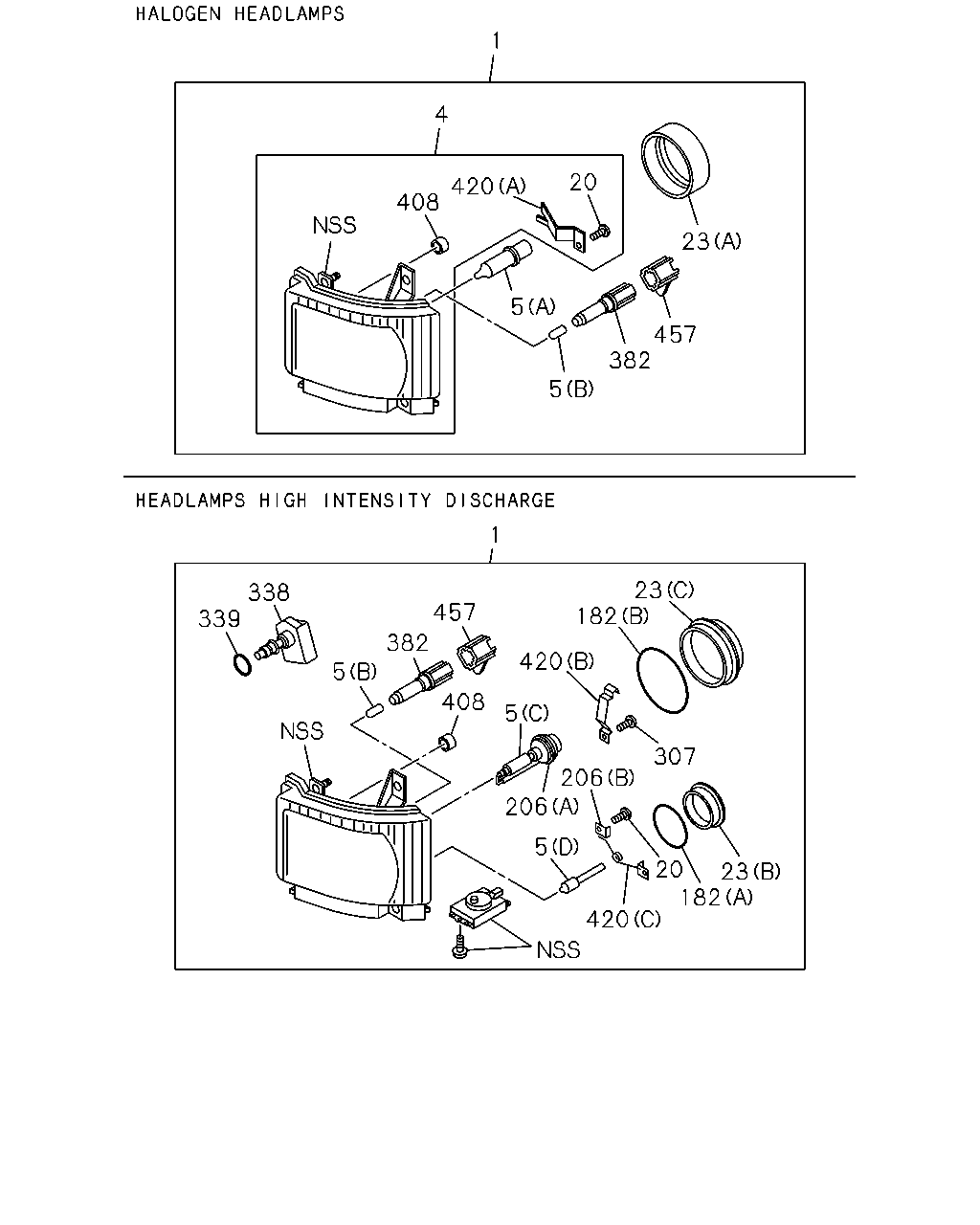

1 4 408 420 20 23 457 382 5 5 1 23 182 307 23 182 420 5 20 206 408 5 206 338 339 457 420 5 382

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98095-403-0	01	1	0710-0710	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-403-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98098-480-1	01	1	0711-1003	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0711-1003		●
1	LAMP ASM; HEAD	8-98098-480-1	01	1	1004-1108	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1004-1108		●
1	LAMP ASM; HEAD	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98095-402-0	01	1	0710-0710	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-402-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98098-479-1	01	1	0711-1003	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0711-1003		●
1	LAMP ASM; HEAD	8-98098-479-1	01	1	1004-1108	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1004-1108		●
1	LAMP ASM; HEAD	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98022-861-3	01	1	0710-0710	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98098-497-1	01	1	0711-1003	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98022-860-3	01	1	0710-0710	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98098-496-1	01	1	0711-1003	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-401-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0711-1108		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-400-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0711-1108		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5>	8-98051-401-0	01	1	0710-1003	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	0710-1003		●
4	HEADLAMP UNIT	8-98051-401-0	01	1	1004-1108	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	1004-1108		●
4	HEADLAMP UNIT	8-98199-565-0	01	1	1109-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1109-		●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5>	8-98051-400-0	01	1	0710-1003	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	0710-1003		●
4	HEADLAMP UNIT	8-98051-400-0	01	1	1004-1108	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	1004-1108		●
4	HEADLAMP UNIT	8-98199-564-0	01	1	1109-	●
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1109-		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-399-0	01	1	0710-1108		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1109-		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-398-0	01	1	0710-1108		●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1109-		●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W	1-82194-063-0	02	1	0710-1003	●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	0710-1003		●
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1004-	●	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B) 24V 5W	1-82194-042-0	02	1	0710-1003	●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	0710-1003		●
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	1004-	●	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C) 85V 35W	1-82194-092-0	02	1	0710-1003	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (D) 24V 70W	8-94405-658-0	02	1	0710-1003	●
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-871-0	06	1	0710-1003	●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	0710-1003		●
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1004-	●	●
20	SCREW; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-97378-871-0	04	1	0710-1003	●
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5> (A)	8-97232-491-0	02	1	0710-1003	●
23	COVER; BULB,HEADLAMP (A)	8-97232-491-0	02	1	0710-1003		●
23	COVER; BULB,HEADLAMP (A)	8-97232-491-0	02	1	1004-	●	●
23	COVER; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B)	8-98051-392-0	02	1	0710-1003	●
23	COVER; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C)	8-98051-393-0	02	1	0710-1003	●
182	GASKET; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A)	8-98051-391-0	02	1	0710-1003	●
182	GASKET; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B)	8-98051-394-0	02	1	0710-1003	●
206	HOLDER; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (A)	8-97378-878-0	02	1	0711-1003	●
206	HOLDER; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B)	8-97378-879-0	02	1	0710-1003	●
307	SCREW; TAPPING,HEAD LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-97378-871-0	06	1	0710-1003	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1109-		●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1109-		●
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98069-364-0	02	1	0710-1003	●
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	0710-1003		●
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	1004-1208	●	●
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-	●	●
408	CAP; BREATHER,HEADLAMP HALOGEN HEADLAMPS<TT5>,HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-97378-874-0	02	1	0710-1003	●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0710-1003		●
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1004-	●	●
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5> (A)	8-97378-875-0	02	1	0710-1003	●
420	SPRING; BULB,HEADLAMP (A)	8-97378-875-0	02	1	0710-1003		●
420	SPRING; BULB,HEADLAMP (A)	8-97378-875-0	02	1	1004-1208	●	●
420	SPRING; BULB,HEADLAMP (A)	8-98218-601-0	02	1	1209-	●	●
420	SPRING; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (B)	8-97378-876-0	02	1	0710-1003	●
420	SPRING; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TT6> (C)	8-97378-877-0	02	1	0710-1003	●
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1306-	●	●

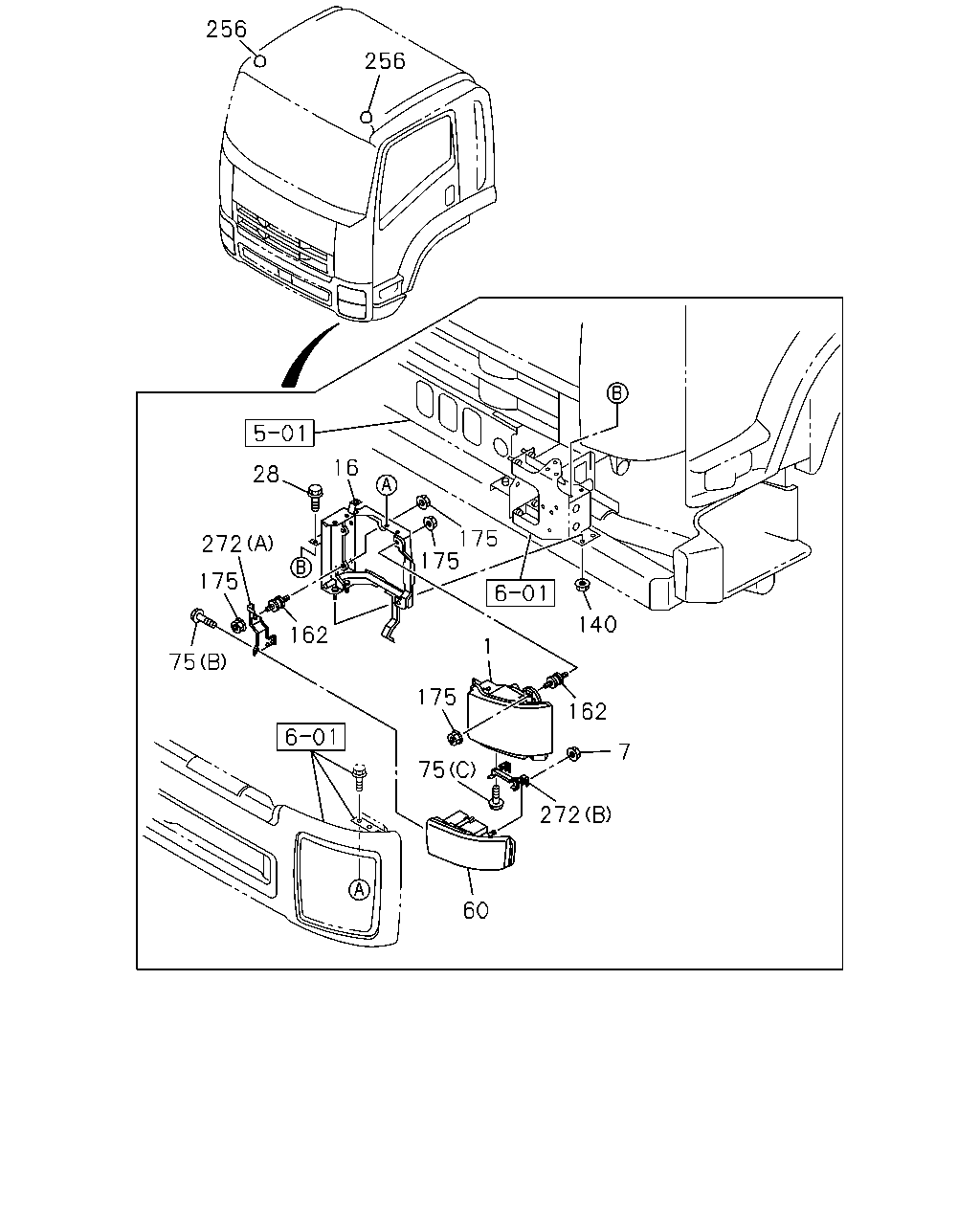

256 256 16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98095-403-0	01	1	0710-0710	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-403-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98098-480-1	01	1	0711-1003	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	0711-1003		●
1	LAMP ASM; HEAD	8-98098-480-1	01	1	1004-1108	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1004-1108		●
1	LAMP ASM; HEAD	8-98193-582-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208		●
1	LAMP ASM; HEAD	8-98225-619-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305		●
1	LAMP ASM; HEAD	8-98241-311-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98095-402-0	01	1	0710-0710	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-402-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5>	8-98098-479-1	01	1	0711-1003	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	0711-1003		●
1	LAMP ASM; HEAD	8-98098-479-1	01	1	1004-1108	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1004-1108		●
1	LAMP ASM; HEAD	8-98193-581-0	01	1	1109-1208	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208		●
1	LAMP ASM; HEAD	8-98225-618-0	01	1	1209-1305	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305		●
1	LAMP ASM; HEAD	8-98241-310-0	01	1	1306-	●
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98022-861-3	01	1	0710-0710	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98098-497-1	01	1	0711-1003	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98022-860-3	01	1	0710-0710	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TT6>	8-98098-496-1	01	1	0711-1003	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-401-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	0711-1108		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98095-400-0	01	1	0710-0710		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	0711-1108		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305		●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-		●
7	NUT; FRT COMB LAMP M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
16	BRACKET; HEADLAMP	8-98013-015-2	01	1	0710-	●	●
16	BRACKET; HEADLAMP	8-98013-016-2	01	1	0710-	●	●
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	0710-	●	●
60	LAMP ASM; FRT COMB	8-98047-053-1	01	1	0710-0908	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB	8-98047-052-1	01	1	0710-0908	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	0909-1302	●	●
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-	●	●
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE	0-28650-616-0	04	1	0710-	●	●
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0710-	●	●
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	0710-0908	●	●
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	0909-	●	●
140	NUT M10 FLANGE	0-91180-210-0	04	1	0710-	●	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0710-	●	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0710-	●	●
256	LAMP; MARKER	8-98097-467-3	01	1	0710-	●	●
256	LAMP; MARKER	8-98097-466-3	01	1	0710-	●	●
272	BRACKET; FRT COMB LAMP (A)	8-98051-935-0	01	1	0710-	●	●
272	BRACKET; FRT COMB LAMP (B)	8-98051-938-0	01	1	0710-	●	●
272	BRACKET; FRT COMB LAMP (A)	8-98051-934-0	01	1	0710-	●	●
272	BRACKET; FRT COMB LAMP (B)	8-98051-937-0	01	1	0710-	●	●

427 327 437 91 256 82 292 83 80 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
80	BULB; MARKER LAMP 24V 5W	8-94135-397-0	02	1	0710-	●	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0710-	●	●
83	LENS; MARKER LAMP	8-98057-958-0	02	1	0710-	●	●
86	NUT; MARKER LAMP M6 FLANGE	0-91180-106-0	04	1	0710-	●	●
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	0710-	●	●
256	LAMP; MARKER	8-98097-467-3	01	1	0710-	●	●
256	LAMP; MARKER	8-98097-466-3	01	1	0710-	●	●
292	WASHER; MARKER LAMP	1-82219-012-0	04	1	0710-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	0710-	●	●
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	0710-	●	●
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
