◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#46460) — 189 parça
çizim 111260
689 336
BalonParca AdiParca NoAdetTipApplied Date A B
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710- ● ●
689 SEAL; INST
OD=25 BLACK 		1-76798-019-0 01 1 0710-0710 ● ●

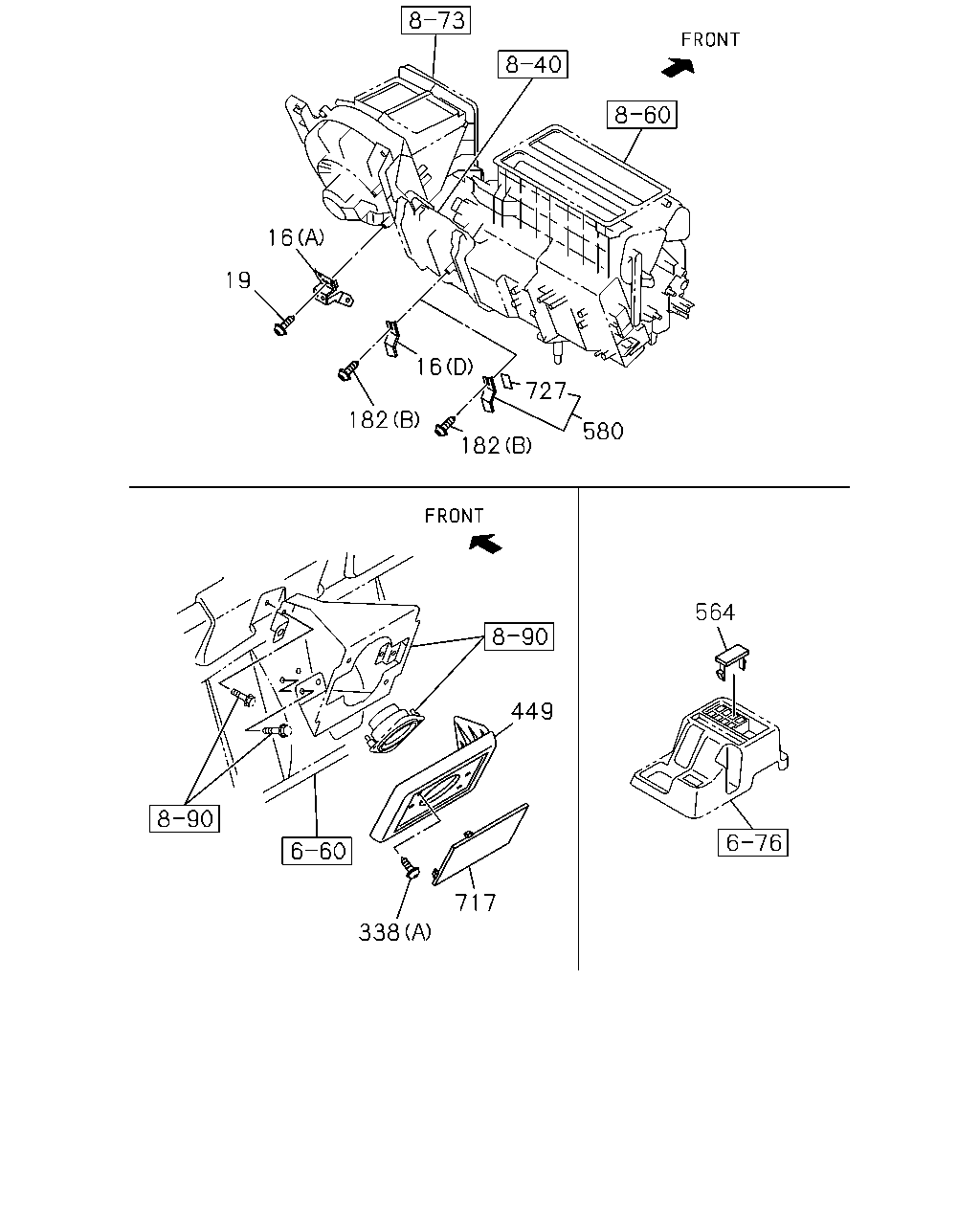

çizim 111263
16 19 16 727 182 580 182 564 449 717 338
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X16 TAPPING 		0-72180-516-0 01 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING 		0-72180-516-0 01 1 0710-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0710- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710- ● ●
449 COVER; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-978-2 01 1 0710- ● ●
564 COVER; SW 8-97043-732-1 02 1 0710- ● ●
580 BRACKET; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98017-528-1 01 1 1106- ● ●
717 GRILLE; SPEAKER
3-SPEAKER SYSTEM FRT<NNR> 		8-97613-979-1 01 1 0710- ● ●
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98186-934-0 01 1 1106- ● ●

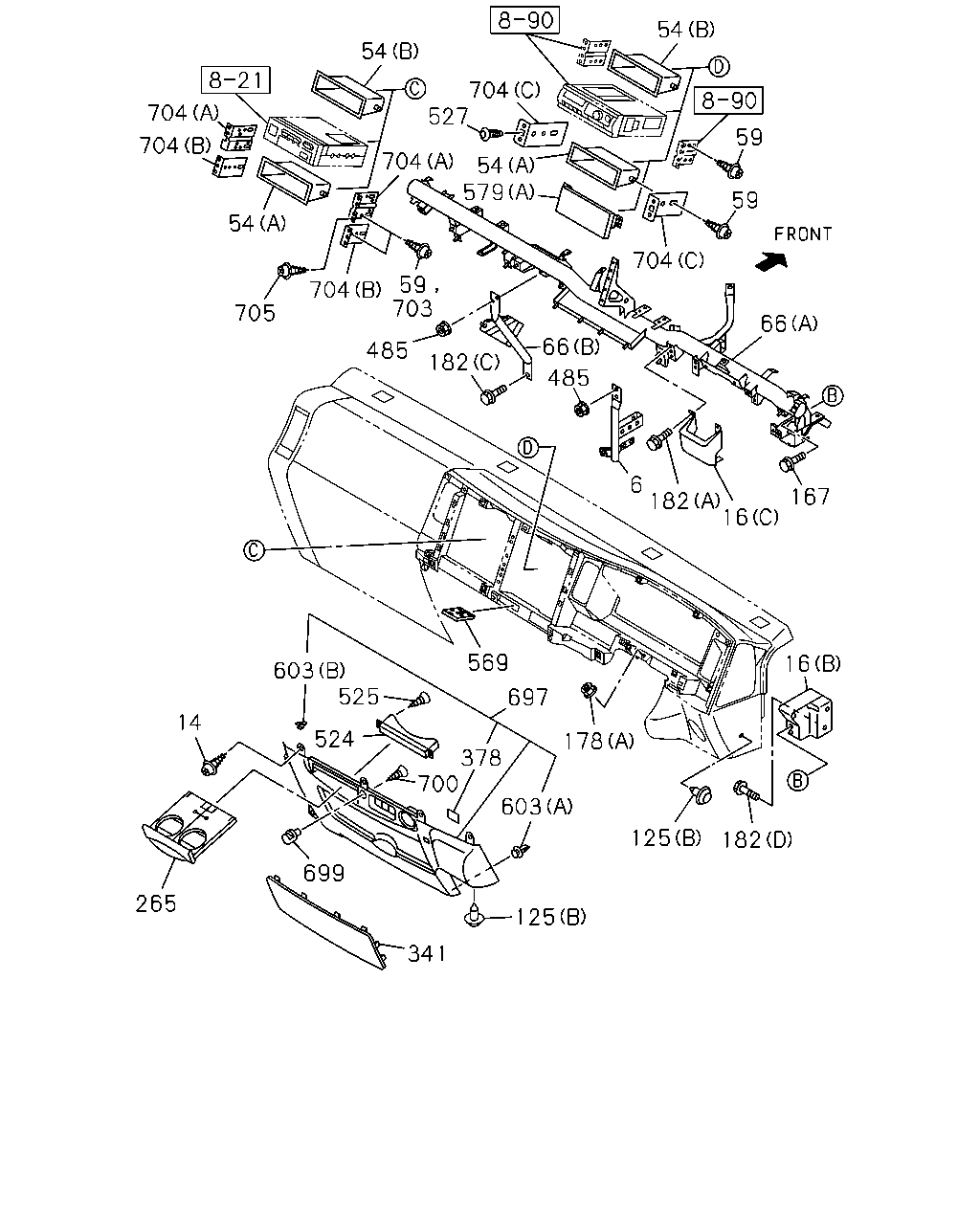

çizim 111266
704 54 704 705 704 485 704 527 54 704 54 579 182 66 485 704 59 59 54 66 167 16 182 6 16 182 125 178 697 569 378 603 125 341 700 524 525 603 14 265 699 59 703
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0710-1109 ● ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110- ● ●
14 SCREW; INST PNL
M5X16 TAPPING 		0-72180-516-0 04 1 0710- ● ●
16 BRACKET; INST PNL
(D) 		8-98017-528-0 01 1 0710-0712 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) 		8-98017-528-0 01 1 0801-1105 ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0710- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0710- ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-97585-612-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0710- ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0710-0712 ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
54 POCKET; CENTER CLUSTER
(A) H=69.8 BLACK 		8-97408-865-2 01 1 0801- ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0712 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0712 ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0710-0712 ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801-0801 ● ●
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0801- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0710-0909 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-580-2 01 1 0910- ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-97585-567-9 01 1 0710-0911 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-700-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-905-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-608-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98009-971-9 01 1 0710-0911 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98154-701-1 01 1 0912-1111 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98174-904-1 01 1 1112-1406 ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-609-0 01 1 1407- ● ●
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98151-167-0 01 1 0910- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0710- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0710- ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0710-1111 ● ●
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING 		0-72180-516-0 01 1 0710-0712 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X16 TAPPING 		0-72180-516-0 01 1 0801- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0710- ● ●
265 HOLDER; CUP
GRAY 		8-97407-897-3 01 1 0710-0909 ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0710-1010 ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0710- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 03 1 0710- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) DARK GRAY 		8-97098-326-0 01 1 0710- ● ●
569 HOLDER; CARD 8-97410-276-0 01 1 0710- ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0712 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710- ● ●
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0710-1010 ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0710- ● ●
700 BOLT; HOOK
M5X16 TAPPING 		0-72180-516-0 01 1 0710- ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB>,TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0710-0712 ● ●
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0801- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0710- ● ●
704 BRACKET; CENTER POCKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 02 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0801- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-97585-616-2 01 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98073-822-0 02 1 0710-0712 ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) 		8-98107-549-0 02 1 0801- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 08 1 0710- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0710- ● ●

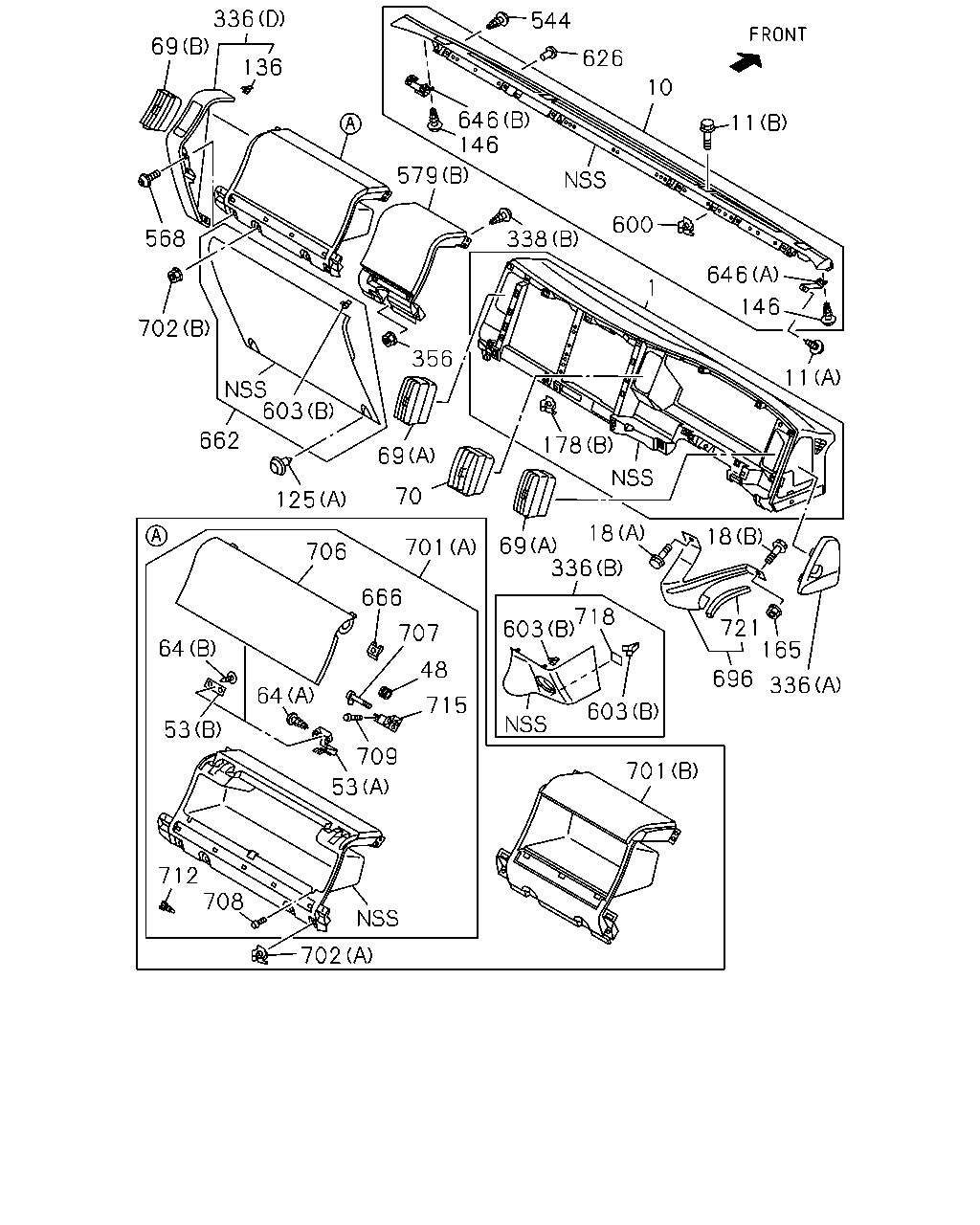

çizim 111280
336 136 69 568 702 603 662 125 70 69 356 178 11 1 146 646 600 338 579 146 646 544 10 626 11 701 706 707 666 48 715 709 53 702 708 712 53 64 64 18 69 603 603 718 721 165 336 696 18 336 701
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0710- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97414-686-0 01 1 0710-1008 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-0 01 1 1009- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING 		0-72180-516-0 08 1 0710- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0710- ● ●
18 BOLT; BRKT
(B) M6X12 FLANGE 		0-28450-612-0 01 1 0710-0710 ● ●
18 BOLT; BRKT
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0710- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0710-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0710-1005 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1006-1311 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0805-1005 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1006-1405 ● ●
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0805-1005 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1006-1405 ● ●
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0710- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0710- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0710- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0710-1007 ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0710- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 0710- ● ●
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0710- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0710- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0710-1012 ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-0 01 1 1101- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0710- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0710- ● ●
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0710- ● ●
338 SCREW; COVER
3-SPEAKER SYSTEM FRT<NNR> (A) M6X16 TAPPING 		1-09981-524-0 02 1 0710- ● ●
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0710- ● ●
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0710- ● ●
568 BOLT; COVER
M5X16 TAPPING 		0-72180-516-0 01 1 0710- ● ●
579 COVER; INST PNL
(B) GRAY 		8-97409-853-2 01 1 0710- ● ●
579 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) BLACK 		8-97408-909-0 01 1 0710-0712 ● ●
600 NUT; PANEL 8-98037-629-0 02 1 0710-1008 ● ●
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0710- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0710- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0710- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0710- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0710- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 0710- ● ●
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0710-1005 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1006-1311 ● ●
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 0710- ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97412-914-2 01 1 0710-0905 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1005 ● ●
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1006- ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97412-913-0 01 1 0710-0804 ● ●
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0805-1005 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1006-1405 ● ●
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0710- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0710- ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97405-372-2 01 1 0710-0804 ● ●
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0805-1005 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1006-1405 ● ●
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0710-1005 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1006-1311 ● ●
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0710-1005 ● ●
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1006- ● ●
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0710-1005 ● ●
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1006- ● ●
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0710-1005 ● ●
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1006- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0710-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0710-1005 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1006-1311 ● ●
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0710- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0710- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
