Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#4646) — 296 parça

275 507 387 275 174 283 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> NIKKO	1-83460-052-0	01	1	9603-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) NIKKO	1-83460-052-0	01	1	9905-
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> METRO DENSO	1-83460-088-0	01	1	9904-9904
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-0	01	1	9905-9907
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) METRO DENSO	1-83460-088-1	01	1	9908-
174	COVER FULL FLOATING CAB<W16> L=800	1-83129-031-1	01	1	9603-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
283	NUT; BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9904
283	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	9905-
283	NUT; BRKT V TYPE ENG<91L> M10	9-09110-510-0	01	1	9603-9606
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	01	1	0104-
387	CLIP; BAND FULL FLOATING CAB<W16> L=250	5-09707-030-1	01	1	9603-
507	TUBE; NYLON FULL FLOATING CAB<W16> L=1300	1-09368-930-0	01	1	9603-9904
507	TUBE; NYLON FULL FLOATING CAB<W16> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-0103
507	TUBE; NYLON FULL FLOATING CAB<W16> L=800 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	0104-

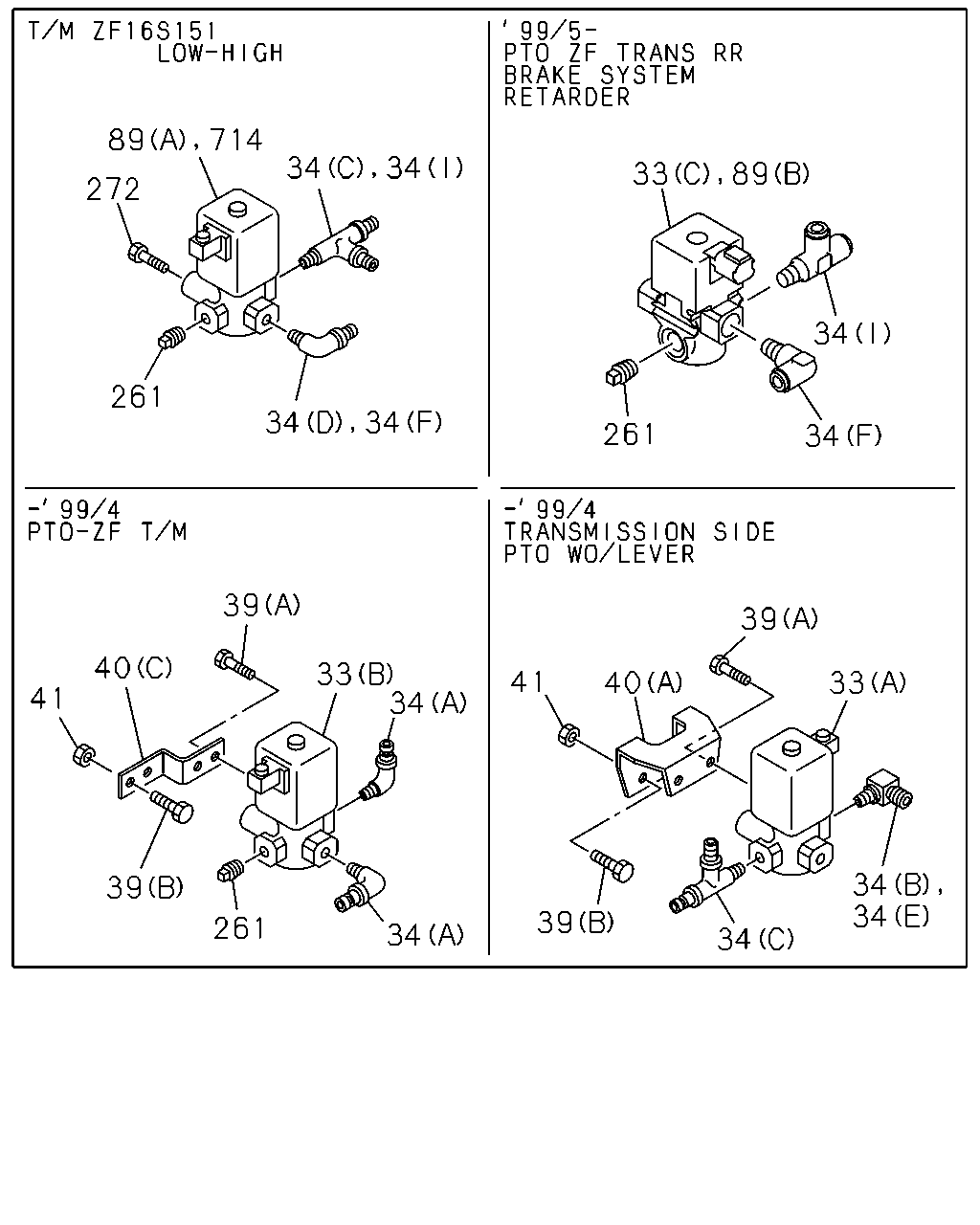

89 714 272 34 261 261 34 39 39 40 33 34 41 33 40 41 34 34 39 39 261 34 34 34 34 34 34 33 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-3	01	1	9603-9904
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-2	01	1	9905-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9908-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9603-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9603-
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9603-9802
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV FUEL TANK 400L<SDH> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	9905-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9802
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 400L<SDH> (A)	1-82569-220-0	01	1	9803-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9603-9606
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-4	01	1	9905-9907
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-82563-600-3	01	1	9603-9904
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9908-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9908-
272	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X20 FLANGE	0-28681-020-0	02	1	9603-9606
272	BOLT; MAG VLV FULL FLOATING CAB<W16> M10X30 FLANGE	0-28681-030-0	02	1	9607-
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) M8X30 FLANGE	0-28680-830-0	02	1	9607-9608
272	BOLT; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) M8X25 FLANGE	0-28680-825-0	02	1	9609-
714	VALVE; MAG,TRANS,LOW TO HIGH TRANSMISSION-ZF 16S151 OD(Y2N)	1-82563-871-2	01	1	9905-

273 282 34 267 261 89 34 39 40 33 261 34 41 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM) (B)	1-82563-600-3	01	1	9603-9904
33	VALVE; MAG,PTO CONT PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82563-871-2	01	1	9905-
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82563-598-3	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (E) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) EXC. BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	9908-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9603-9702
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9703-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 R1/4 STRAIGHT	1-09660-647-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM RETARDER<RE2> (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-09660-718-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9908-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	9905-0005
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUAL AIR GAUGE<UG2> (H) DIN8X2 & R1/4 3WAY	1-09661-004-0	01	1	0006-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9603-9904
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR(BDM) BRAKE SYSTEM RETARDER<RE2> (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9905-9907
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION-ZF 16S151 OD(Y2N) (I) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	9908-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9608
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X20 FLANGE	0-28680-820-0	02	1	9609-
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606
39	BOLT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9603-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9603-
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9603-9802
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV FUEL TANK 400L<SDH> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	9905-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9802
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 400L<SDH> (A)	1-82569-220-0	01	1	9803-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8	9-09110-508-0	02	1	9603-9606
41	NUT; BRKT,MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91150-108-0	02	1	9607-
89	VALVE; MAG,DIFF LOCK BRAKE SYSTEM RETARDER<RE2> (A)	1-82563-597-4	01	1	9905-9907
89	VALVE; MAG,DIFF LOCK TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-82563-600-3	01	1	9603-9904
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM) PT1/4	9-99204-513-0	01	1	9603-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9603-9904
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV BRAKE SYSTEM RETARDER<RE2> PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9905-9907
261	PLUG; MAG VLV TRANSMISSION-ZF 16S151 OD(Y2N) PT1/4	9-99204-513-0	01	1	9908-
261	PLUG; MAG VLV PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	9908-
267	BOLT; VLV TO BRKT BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE	0-28680-830-0	02	1	9905-9907
273	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91150-108-0	02	1	9905-9907
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9904
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9603-

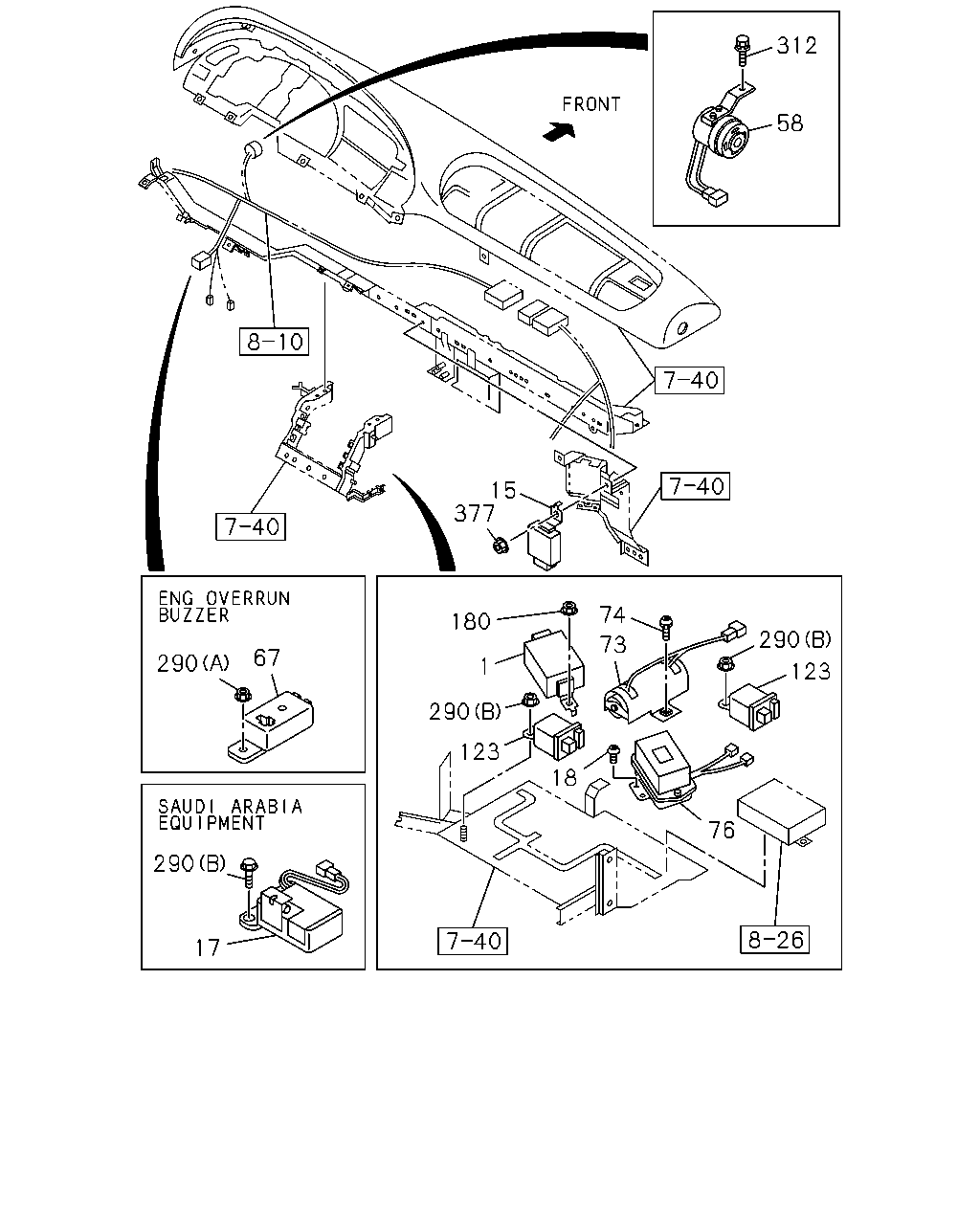

312 58 15 377 74 180 290 73 67 290 1 123 290 123 18 76 290 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-062-0	01	1	9603-
15	RELAY; STOP & TAIL WARNING 24V,25WX2,10WX2	1-82550-299-0	01	1	9603-
17	TIMER; SEAT BELT SAUDI ARABIA EQUIPMENT(WH1)	1-82550-183-1	01	1	9709-
18	SCREW; TIMER INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	03	1	9603-
58	BUZZER; AIR PRESSURE WARNING NIKKO	1-83460-056-0	01	1	9603-
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-074-0	01	1	9904-9907
58	BUZZER; AIR PRESSURE WARNING EXC. NIKKO<Y70> METRO DENSO	1-83460-074-1	01	1	9908-
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4>	1-83460-051-1	01	1	9603-0101
67	BUZZER; ENG OVERRUN ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
67	BUZZER; ENG OVERRUN L TYPE ENG<90L>	1-83460-051-1	01	1	0102-
73	RESISTOR; RELAY INTAKE HEATER<SL2>	1-81375-004-1	01	1	9603-
74	SCREW; RESISTOR INTAKE HEATER<SL2> M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9603-
76	TIMER; INT HTR INTAKE HEATER<SL2>	1-82550-132-1	01	1	9603-
123	RELAY; HTR INTAKE HEATER<SL2>	8-94128-857-0	02	1	9603-
180	NUT; FLASHER UNIT M6 FLANGE	0-91150-106-0	01	1	9603-
290	NUT ENGINE OVERRUN BUZZER<SK4> (A) M6 FLANGE	0-91150-106-0	01	1	9603-0101
290	NUT ENGINE OVERRUN BUZZER<SK4> EXC. L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-
290	NUT L TYPE ENG<90L> (A) M6 FLANGE	0-91150-106-0	01	1	0102-
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9603-9708
290	NUT INTAKE HEATER<SL2> (B) M6 FLANGE	0-91150-106-0	02	1	9709-
290	NUT SAUDI ARABIA EQUIPMENT(WH1) (B) M6 FLANGE	0-91150-106-0	02	1	9709-
312	BOLT; BUZZER M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	9603-
377	NUT; RELAY M6 FLANGE	0-91150-106-0	01	1	9603-

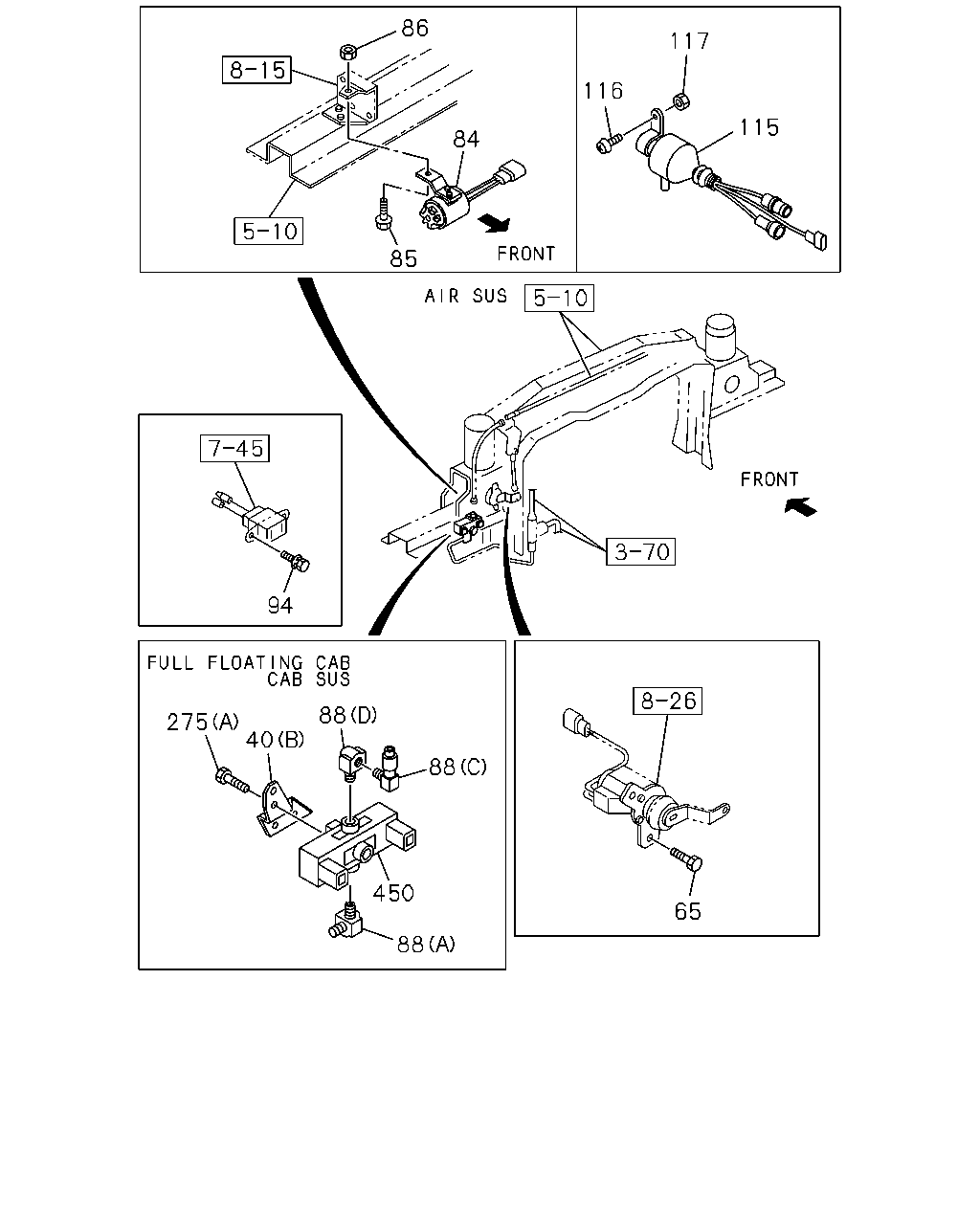

86 117 116 115 84 85 94 88 275 40 88 450 65 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9603-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9603-
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9603-9802
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV FUEL TANK 400L<SDH> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	9905-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9802
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 400L<SDH> (A)	1-82569-220-0	01	1	9803-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
65	BOLT; SOCKET FIX FULL FLOATING CAB<W16> M6X16 FLANGE	0-28080-616-0	02	1	9603-
84	BUZZER; POWER CAB TILT NIKKO	1-83460-054-0	01	1	9603-
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-096-1	01	1	9904-9907
84	BUZZER; POWER CAB TILT EXC. NIKKO<Y70> METRO DENSO	1-83460-096-2	01	1	9908-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
85	BOLT; BUZZER,POWER CAB TILT M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9607-
86	NUT; BUZZER M8	9-09110-408-0	01	1	9603-9609
86	NUT; BUZZER M8 FLANGE	0-91150-108-0	01	1	9610-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9603-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	9603-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-071-0	01	1	9603-9606
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	9607-
115	RELAY; POWER CAB TILT UNIT HITACHI	1-81171-087-0	01	1	9904-9907
115	RELAY; POWER CAB TILT UNIT EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28080-816-0	02	1	9603-
117	NUT; RELAY FIX M8	9-09110-408-0	02	1	9603-9609
117	NUT; RELAY FIX M8 FLANGE	0-91150-108-0	02	1	9610-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
450	VALVE; MAG FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9603-

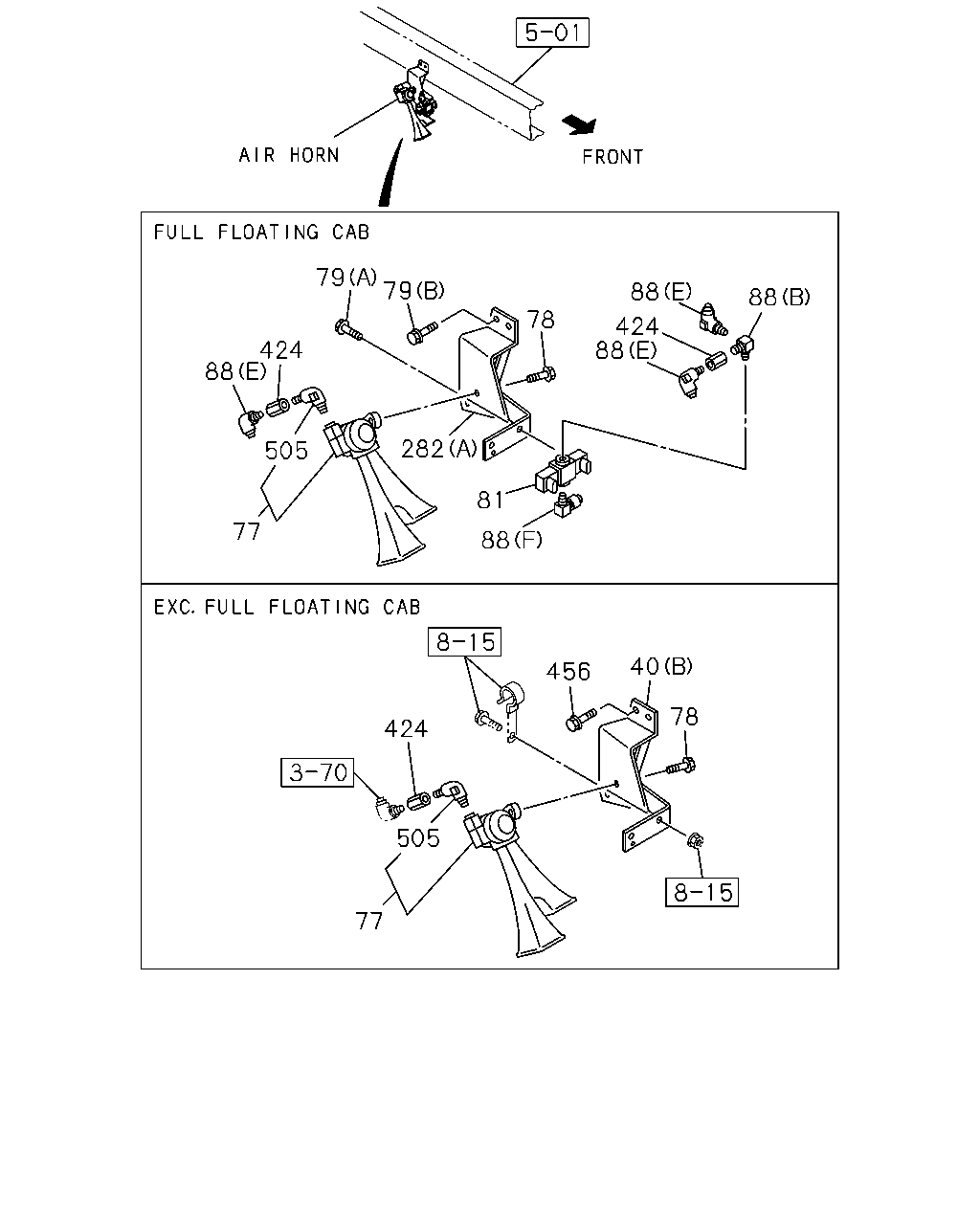

79 79 88 88 78 424 88 424 88 282 505 81 77 88 40 456 78 424 505 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	BRACKET; MAG VLV FULL FLOATING CAB<W16> (B)	1-53458-380-0	01	1	9603-
40	BRACKET; MAG VLV EXC. FULL FLOATING CAB<W16> (B)	1-53458-742-2	01	1	9603-
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9603-9802
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV FUEL TANK 400L<SDH> TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-82569-175-1	01	1	9803-9904
40	BRACKET; MAG VLV PTO ZF TRANS RR(BDM) (C)	1-82569-278-0	01	1	9905-
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-82569-220-0	01	1	9603-9802
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. FUEL TANK 400L<SDH> (A)	1-82569-220-0	01	1	9803-9904
40	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (D)	1-82569-279-0	01	1	9905-
77	HORN ASM	1-83430-038-1	01	1	9603-9710
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-038-1	01	1	9711-9904
77	HORN ASM	1-83430-041-1	01	1	9905-0002
77	HORN ASM EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83430-041-1	01	1	0003-
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-1	01	1	9711-9904
77	HORN ASM CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83430-039-2	01	1	0003-
78	BOLT; AIR HORN M8X20 FLANGE	0-28080-820-0	02	1	9603-9606
78	BOLT; AIR HORN M8X20 FLANGE	0-28680-820-0	02	1	9607-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-0103
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (A) M8X12 FLANGE	0-28080-812-0	01	1	0104-
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606
79	BOLT; MAG VLV FULL FLOATING CAB<W16> (B) M10X35 FLANGE	0-28681-035-0	02	1	9607-
81	VALVE; MAG,HORN FULL FLOATING CAB<W16>	1-53458-378-2	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (B) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-649-1	03	1	9603-9904
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (E) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	9905-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-0	02	1	9603-0103
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	0104-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (D) PT1/8 ELBOW	8-94338-418-1	01	1	9603-
88	CONNECTOR; MAG VLV FULL FLOATING CAB<W16> (F) DIN6 & R1/8 ELBOW	1-09661-066-0	01	1	0104-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9904
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9603-
424	ADAPTER FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	02	1	9603-
424	ADAPTER EXC. FULL FLOATING CAB<W16> M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9603-
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X30 FLANGE	0-28080-830-0	02	1	9603-9606
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M8X35 FLANGE	0-28680-835-0	02	1	9607-9709
456	BOLT; BRKT EXC. FULL FLOATING CAB<W16> M10X35 FLANGE	0-28681-035-0	02	1	9710-
505	JOINT; AIR HORN	1-83439-005-0	01	1	9709-9710
505	JOINT; AIR HORN EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-83439-005-0	01	1	9711-9904
505	JOINT; AIR HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-83439-006-0	01	1	9711-9904
505	JOINT; AIR HORN	1-83439-006-0	01	1	9905-

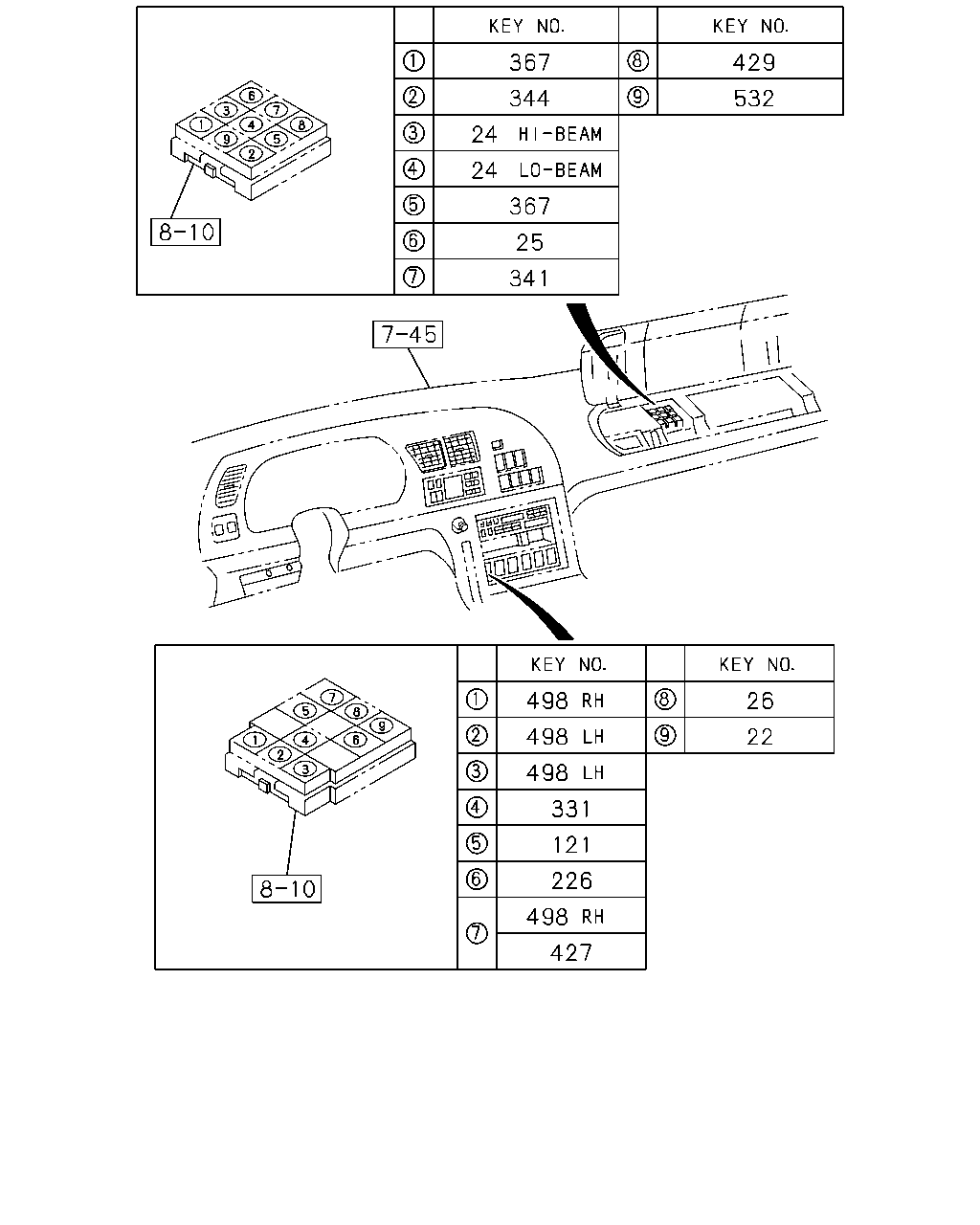

367 429 344 532 24 24 367 25 341 498 26 498 22 498 331 121 226 498 427

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
24	RELAY; LIGHTING 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-
25	RELAY; TAIL LAMP 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
26	RELAY; CONSENT 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
121	RELAY; PARKING BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
226	RELAY; EXH BRK 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
331	RELAY; A/C AIR CON MANUAL CONTROL(C60) 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-
341	RELAY FULL FLOATING CAB<W16> 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
344	RELAY; LAMP CORNARING LAMP<TDS> 24V 12.5A MITUBA	8-97062-815-1	01	1	9603-
367	RELAY; NEUTRAL 24V 12.5A MITUBA	8-97062-815-1	02	1	9603-
427	RELAY; RETARDER BRAKE SYSTEM RETARDER<RE2> 24V 12.5A MITUBA	8-97062-815-1	02	1	9905-9907
429	RELAY; POWER CUT ELECTRONIC GOV RED3(KG5) 24V 12.5A MITUBA	8-97062-815-1	01	1	9610-9904
429	RELAY; POWER CUT 6WA1 TC-C(55L) 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-
498	RELAY; CURTAIN AUTO ROUND CURTAIN<TAR> 24V 12.5A MITUBA	8-97062-815-1	04	1	9603-
532	RELAY; SEAT BELT WARNING SAUDI ARABIA EQUIPMENT(WH1) 24V 12.5A MITUBA	8-97062-815-1	01	1	9709-

283 284 282 282 275 499 42 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	BRACKET; RELAY DELUXE CAB(W14)	1-82698-054-0	01	1	9905-
275	BOLT; BRKT EURO2 SPECIFICATION<THN> (D) M8X25 FLANGE	0-28680-825-0	02	1	9610-9904
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X25 FLANGE	0-28680-825-0	01	1	9905-0103
275	BOLT; BRKT 6WA1 TC-C(55L) (D) M8X20 FLANGE	0-28680-820-0	01	1	0104-
275	BOLT; BRKT FULL FLOATING CAB<W16> (A) M8X14 FLANGE	0-28080-814-0	01	1	9603-
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-0103
275	BOLT; BRKT V TYPE ENG<91L> (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT 6WA1 TC-C(55L) (B) M10X25 FLANGE	0-28681-025-0	01	1	0104-
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X20	0-28090-820-0	01	1	9603-9606
275	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28690-825-0	01	1	9607-
282	BRACKET; MAG VLV BRAKE SYSTEM RETARDER<RE2> (C)	1-82569-248-0	01	1	9905-9907
282	BRACKET; MAG VLV EURO2 SPECIFICATION<THN> (B)	1-82569-174-2	01	1	9610-9904
282	BRACKET; MAG VLV 6WA1 TC-C(55L) (D)	1-82569-277-2	01	1	9905-
282	BRACKET; MAG VLV FULL FLOATING CAB<W16> (A)	1-53458-742-2	01	1	9603-
283	NUT; BRKT EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9610-9904
283	NUT; BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	9905-
283	NUT; BRKT V TYPE ENG<91L> M10	9-09110-510-0	01	1	9603-9606
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	9607-0103
283	NUT; BRKT V TYPE ENG<91L> M10 FLANGE	0-91150-210-0	01	1	0104-
283	NUT; BRKT 6WA1 TC-C(55L) M10 FLANGE	0-91150-210-0	01	1	0104-
284	BOLT; MAG VLV EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	9609-9904
284	BOLT; MAG VLV 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	02	1	9905-
368	SCREW; RELAY FIX DELUXE CAB(W14) M5X14	8-94279-325-0	03	1	9905-
499	CLIP; SWITCH OD=9 H=6	1-09709-178-0	01	1	9603-9604

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
