Sayfa 7-30 - Isuzu EPC

7-30 — LOCK CYLINDER SET (#46459) — 24 parça

1 20 20 1 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CYLINDER SET; CAR LOCK (A)	8-98029-406-1	01	1	0710-0710	●	●
1	CYLINDER SET; CAR LOCK (B)	8-98041-686-1	01	1	0710-1203	●	●
1	CYLINDER SET; CAR LOCK (B)	8-98201-160-0	01	1	1204-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0710-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0710-	●	●

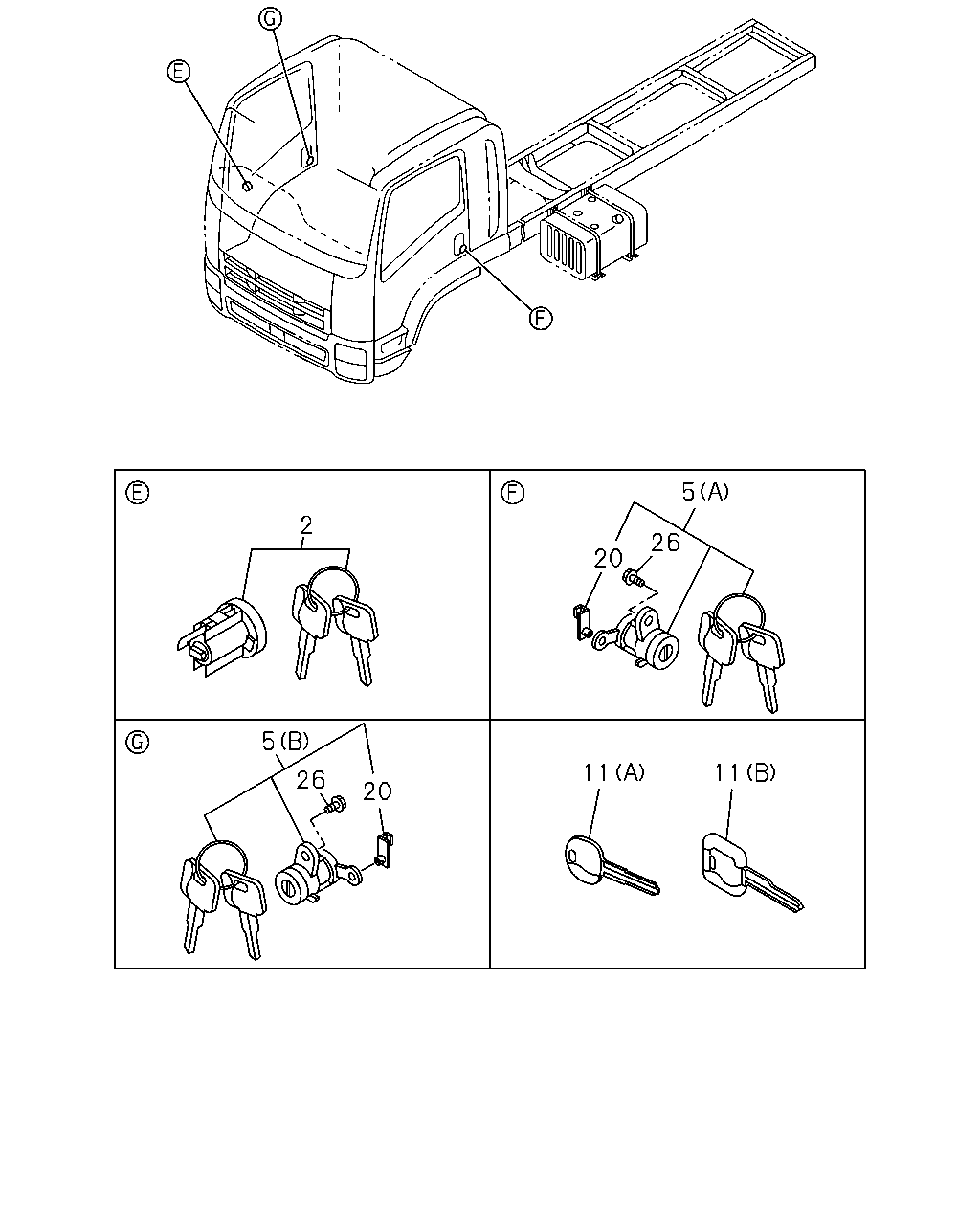

5 2 26 20 5 11 11 26 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0710-1203	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	0710-	●	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	0710-	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0710-	●	●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	0710-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0710-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0710-	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0710-	●	●

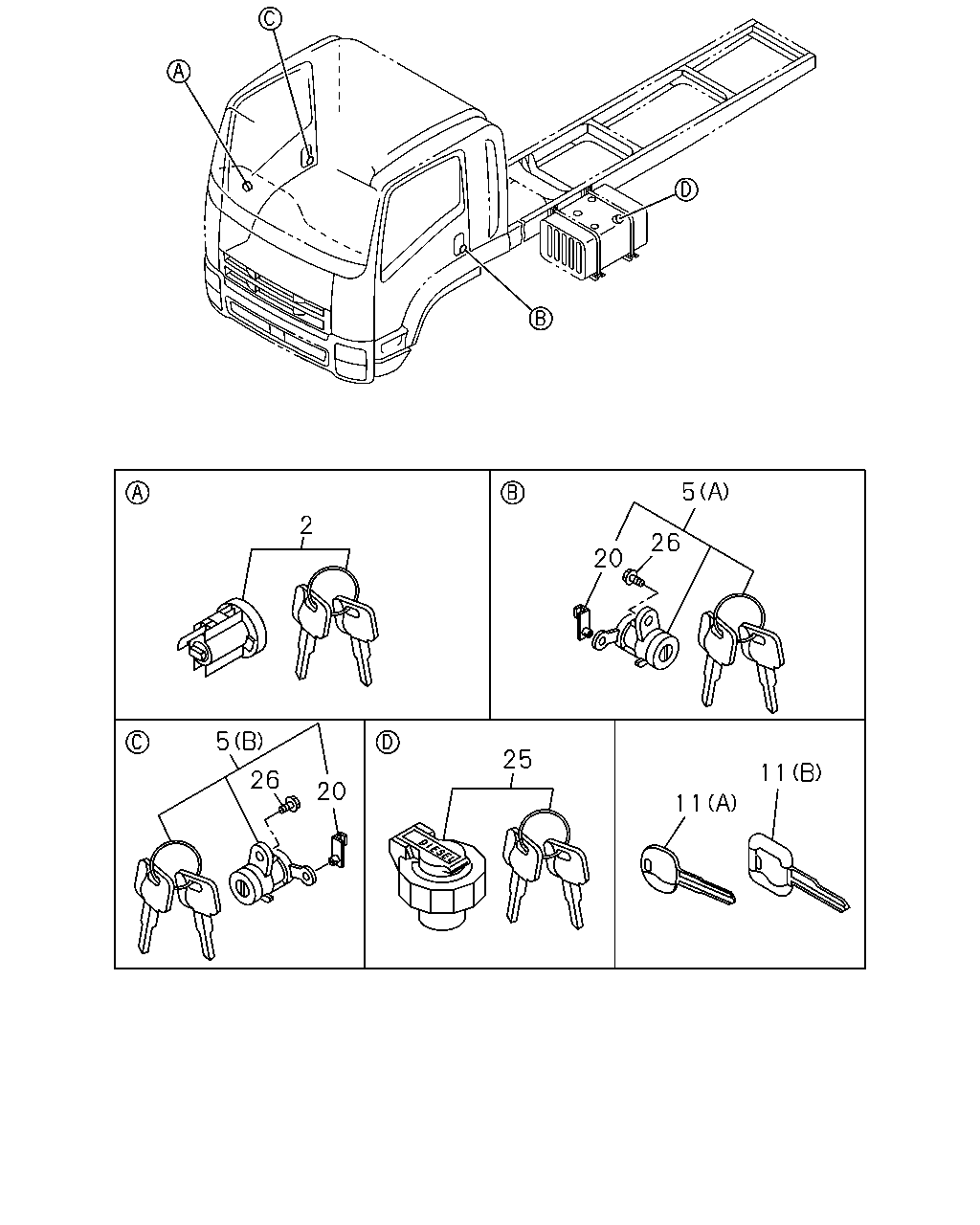

5 2 26 20 5 25 11 26 20 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BARREL ASM; W/KEY,STRG LOCK	8-98055-147-0	01	1	0710-1203	●	●
2	BARREL ASM; W/KEY,STRG LOCK	8-98201-341-0	01	1	1204-	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	0710-	●	●
5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	0710-	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98055-168-0	AR	1	0710-	●	●
11	KEY; BLANK (A)	8-98055-170-0	AR	1	0710-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	0710-	●	●
20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	0710-	●	●
25	CAP; FUEL TANK,W/KEY	8-98033-157-0	01	1	0710-0710	●	●
26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	0710-	●	●
