◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#46457) — 12 parça

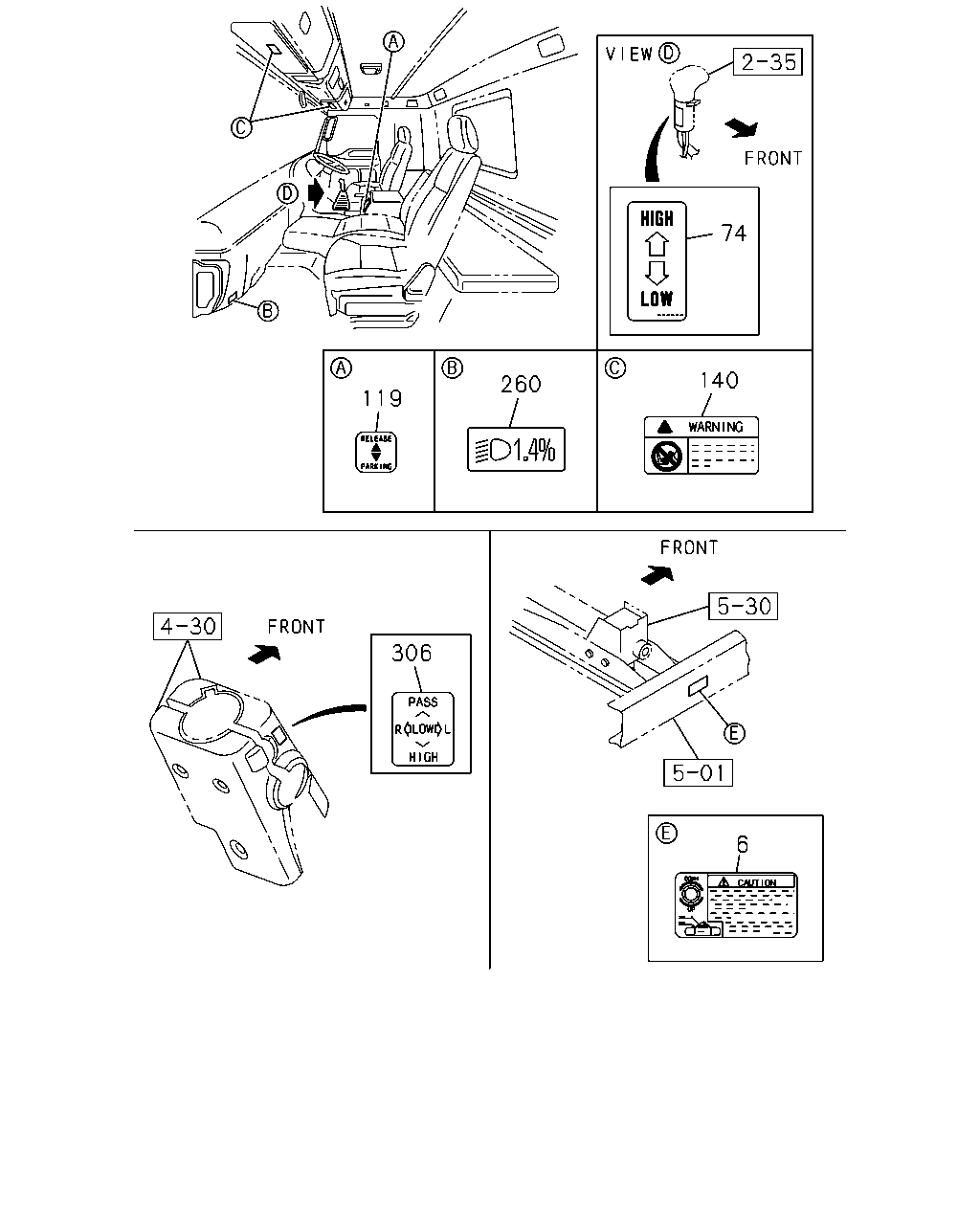

çizim 111255
74 140 260 119 306 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> 		8-98082-437-0 01 1 0710- ● ●
74 PLATE; CAUTION,CHANGE LEV 1-85881-736-1 01 1 0710-0805 ● ●
74 PLATE; CAUTION,CHANGE LEV 8-98118-493-0 01 1 0806- ● ●
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710- ● ●
140 PLATE; CAUTION,SRS
AIR BAG DRIVER & PASSENGER(AK5) 		8-98080-839-0 02 1 0710- ● ●
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 0710- ● ●
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 0710- ● ●

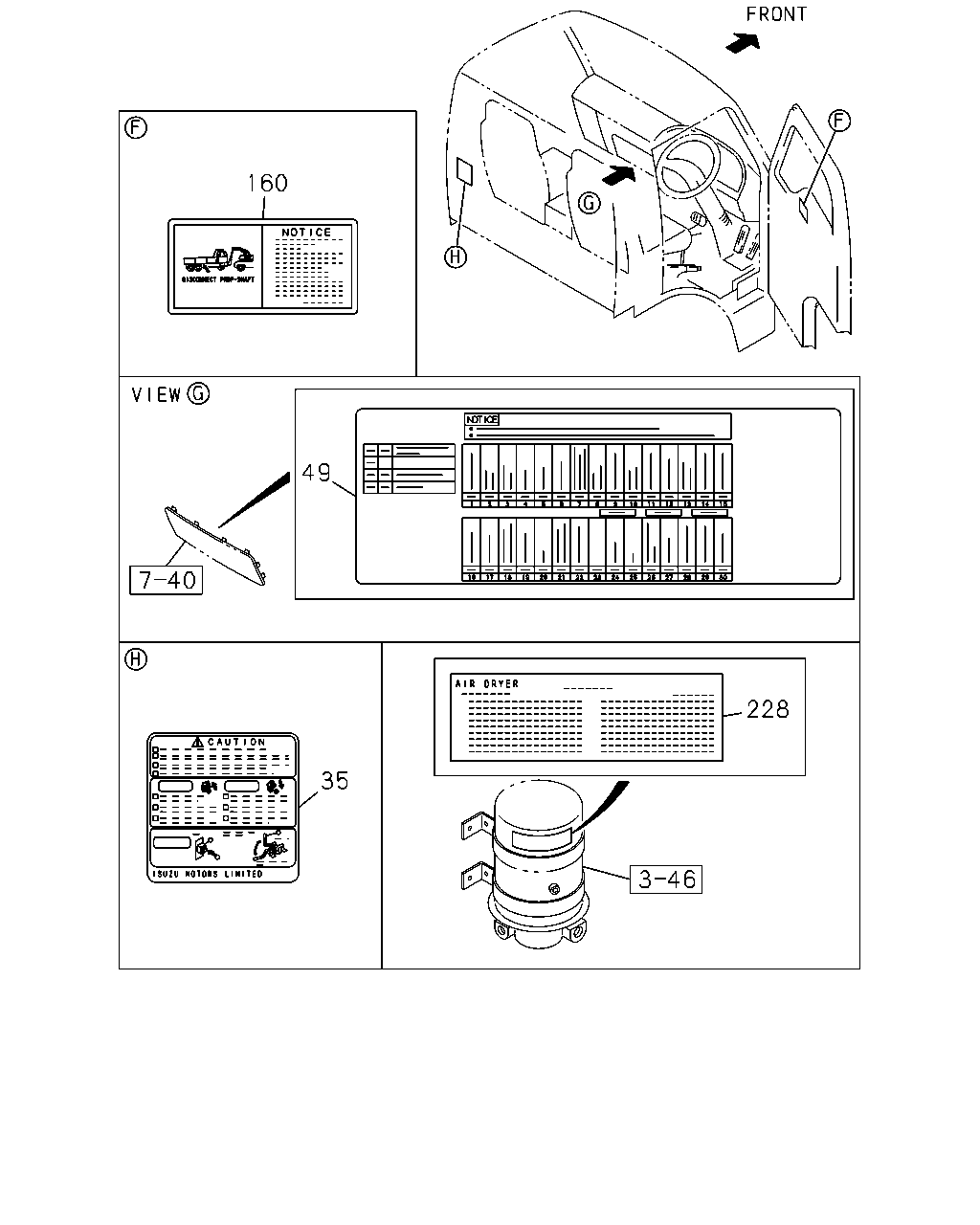

çizim 111274
160 49 228 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 PLATE; CAUTION,CAB 8-98017-667-1 01 1 0710- ● ●
49 PLATE; CAUTION,FUSE BOX 8-98060-853-0 01 1 0710-0805 ● ●
49 PLATE; CAUTION,FUSE BOX 8-98122-353-0 01 1 0806- ● ●
160 PLATE; CAUTION,TOWING 1-85888-737-1 01 1 0710- ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0710-1001 ● ●
