◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#4645) — 50 parça
çizim 10983
329 328
BalonParca AdiParca NoAdetTipApplied Date
328 NUT
(A) M16 		9-99111-416-0 02 1 9603-
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603-
329 WASHER
INTAKE HEATER<SL2> 		1-09503-100-0 01 1 9603-
çizim 10985
244 603
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
603 COVER; CONT UNIT,SEAT STAND 1-75558-535-3 01 1 9905-

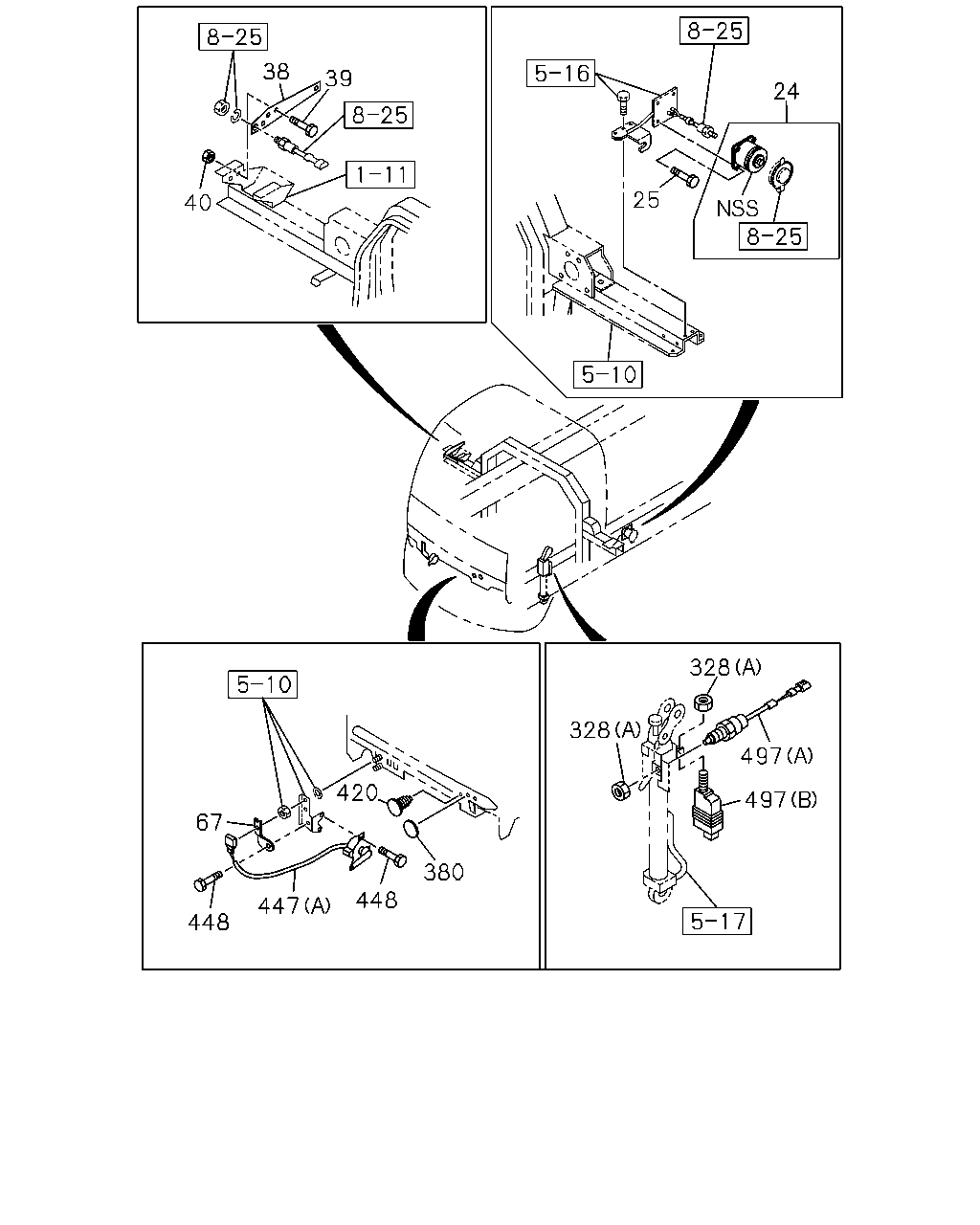

çizim 41122
38 39 24 25 40 328 328 497 420 497 67 380 448 447 448
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9603-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 04 1 9603-9606
25 BOLT; SW BOX
M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9607-9609
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9610-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9603-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28080-820-0 02 1 9603-9606
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9607-
40 NUT; BRKT,STARTER SUB SWITCH
M8 		9-09110-408-0 02 1 9603-9606
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9607-
67 BRACKET; CONT UNIT
FULL FLOATING CAB<W16> 		1-82699-355-1 01 1 9603-
328 NUT
(A) M16 		9-99111-416-0 02 1 9603-
328 NUT
INTAKE HEATER<SL2> (B) 		1-09449-037-1 01 1 9603-
380 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 9603-9612
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9612-9804
380 SEAL
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 02 1 9805-
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=15 BLACK 		8-94279-804-0 01 1 9612-9803
420 PLUG; SWITCH
EXC. ELECTRONIC GOV RED3(KG5) OD=25 BLACK 		1-76798-019-0 01 1 9804-9804
447 SENSOR; HEIGHT
FULL FLOATING CAB<W16> (A) 		1-81541-067-4 01 1 9603-
447 SENSOR; HEIGHT
FULL FLOATING CAB<W16> (B) 		1-81541-069-3 01 1 9603-
448 BOLT; SENSOR
FULL FLOATING CAB<W16> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9603-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9603-

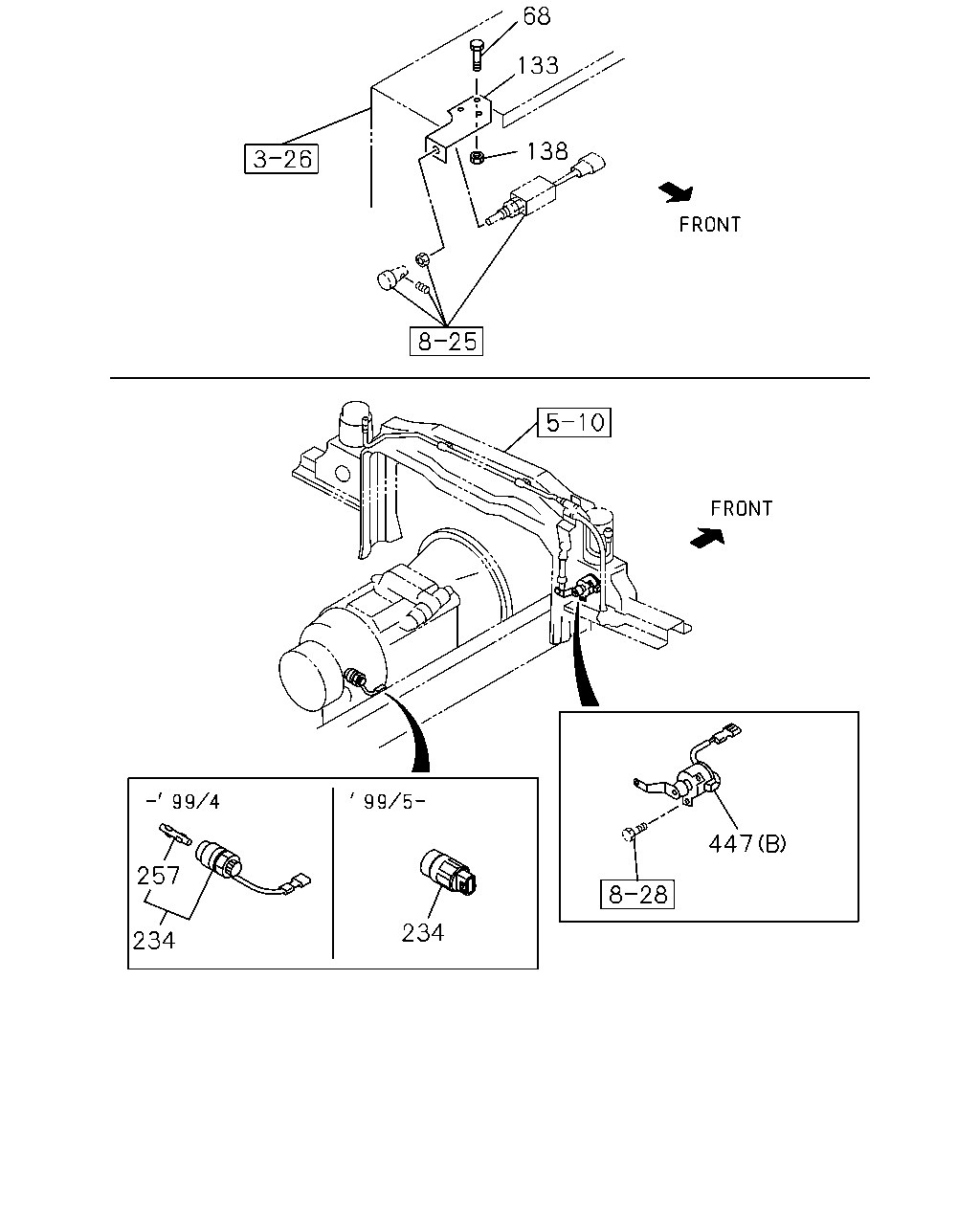

çizim 41294
68 133 138 447 257 234 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M8X25 FLANGE 		0-28080-825-0 02 1 9603-9606
68 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 9607-0104
68 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0105-
133 BRACKET; SWITCH 1-82699-874-0 01 1 9603-
138 NUT; BRKT
M8 		9-09110-408-0 02 1 9603-9606
138 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9607-
234 SENSOR; VEHICLE SPD 1-83127-254-3 01 1 9603-9904
234 SENSOR; VEHICLE SPD 1-80240-001-0 01 1 9905-0004
234 SENSOR; VEHICLE SPD
ISUZU M/T<X9A>,ZF M/T<X9E> 		1-80240-001-1 01 1 0005-
257 KEY; SPEED SENSOR 1-83129-125-0 01 1 9603-9904
447 SENSOR; HEIGHT
FULL FLOATING CAB<W16> (A) 		1-81541-067-4 01 1 9603-
447 SENSOR; HEIGHT
FULL FLOATING CAB<W16> (B) 		1-81541-069-3 01 1 9603-

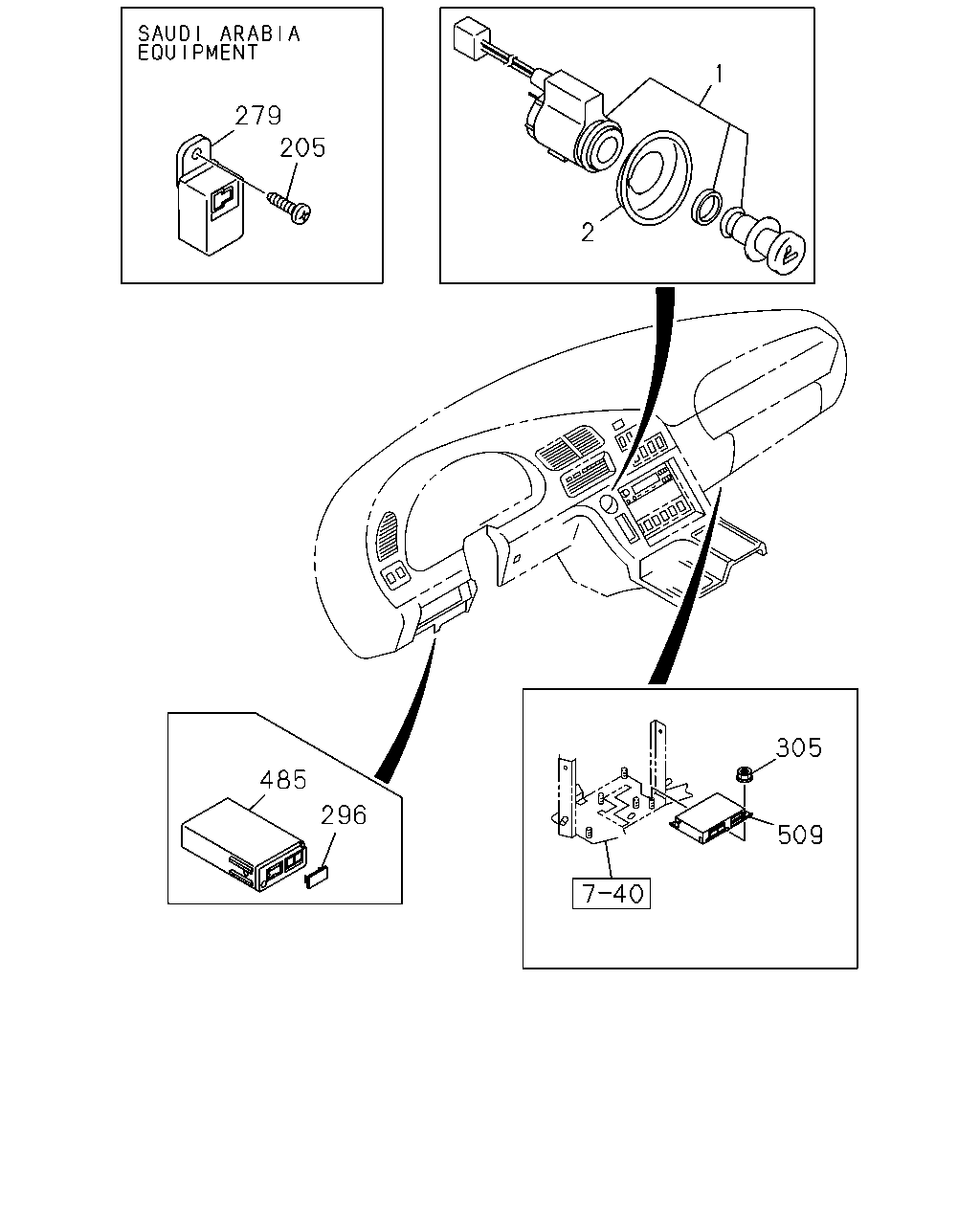

çizim 42548
1 279 205 2 305 485 296 509
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9603-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9603-
205 SCREW; BUZZER
SAUDI ARABIA EQUIPMENT(WH1) M5X14 		8-94279-325-0 01 1 9709-
279 BUZZER ASM; SEAT BELT WARNING
SAUDI ARABIA EQUIPMENT(WH1) 12V 		5-83460-004-1 01 1 9709-
296 COVER; CONT UNIT 1-82549-010-0 01 1 9603-9904
305 NUT; CONT UNIT
FULL FLOATING CAB<W16> M6 FLANGE 		0-91150-106-0 02 1 9603-
485 CONTROL UNIT; SPEED SENSOR 1-82540-065-0 01 1 9603-9904
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905-
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB<W16> 		1-82505-228-0 01 1 9603-9701
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB<W16> 		1-80150-030-0 01 1 9702-9904
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB<W16> 		1-80150-032-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
