◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#4644) — 61 parça

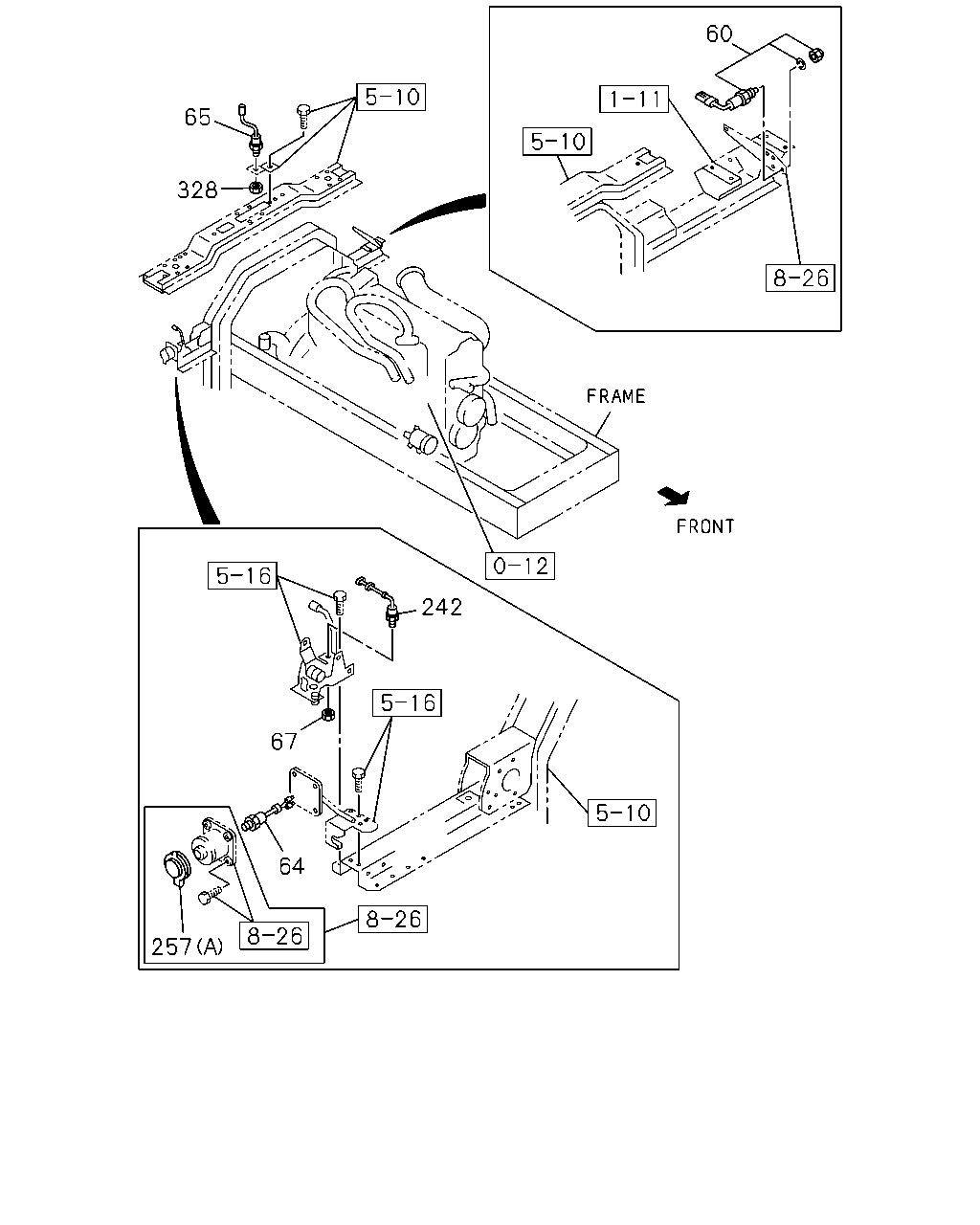

çizim 10982
60 65 328 242 67 64 257
BalonParca AdiParca NoAdetTipApplied Date
60 SWITCH; STARTER SUB 1-82380-107-1 01 1 9603-
64 SWITCH; CAB TILT MAIN 1-82380-108-0 01 1 9603-
65 SWITCH; CAB TILT LK
STAMP NC 		1-82380-125-1 01 1 9603-
67 NUT; SW,CAB TILT
M16 H=18.5 		1-09409-013-0 01 1 9603-
242 SWITCH
STAMP NO 		1-82380-126-0 01 1 9603-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603-
328 NUT; SW
M16 		9-99110-416-0 01 1 9603-
çizim 40963
255 258 356 131
BalonParca AdiParca NoAdetTipApplied Date
131 CLIP; BAND
BRAKE REGULATION HONG KONG<TCZ> OD=9 H=6 		1-09709-178-0 01 1 9603-
255 SWITCH; SEARCH LIGHT 1-82340-360-1 01 1 9603-
258 SWITCH; FLASHER UNIT 1-82410-137-0 01 1 9603-
356 SWITCH; TRAILER,LOW PRESS
BRAKE REGULATION HONG KONG<TCZ> 		1-48340-057-1 01 1 9603-

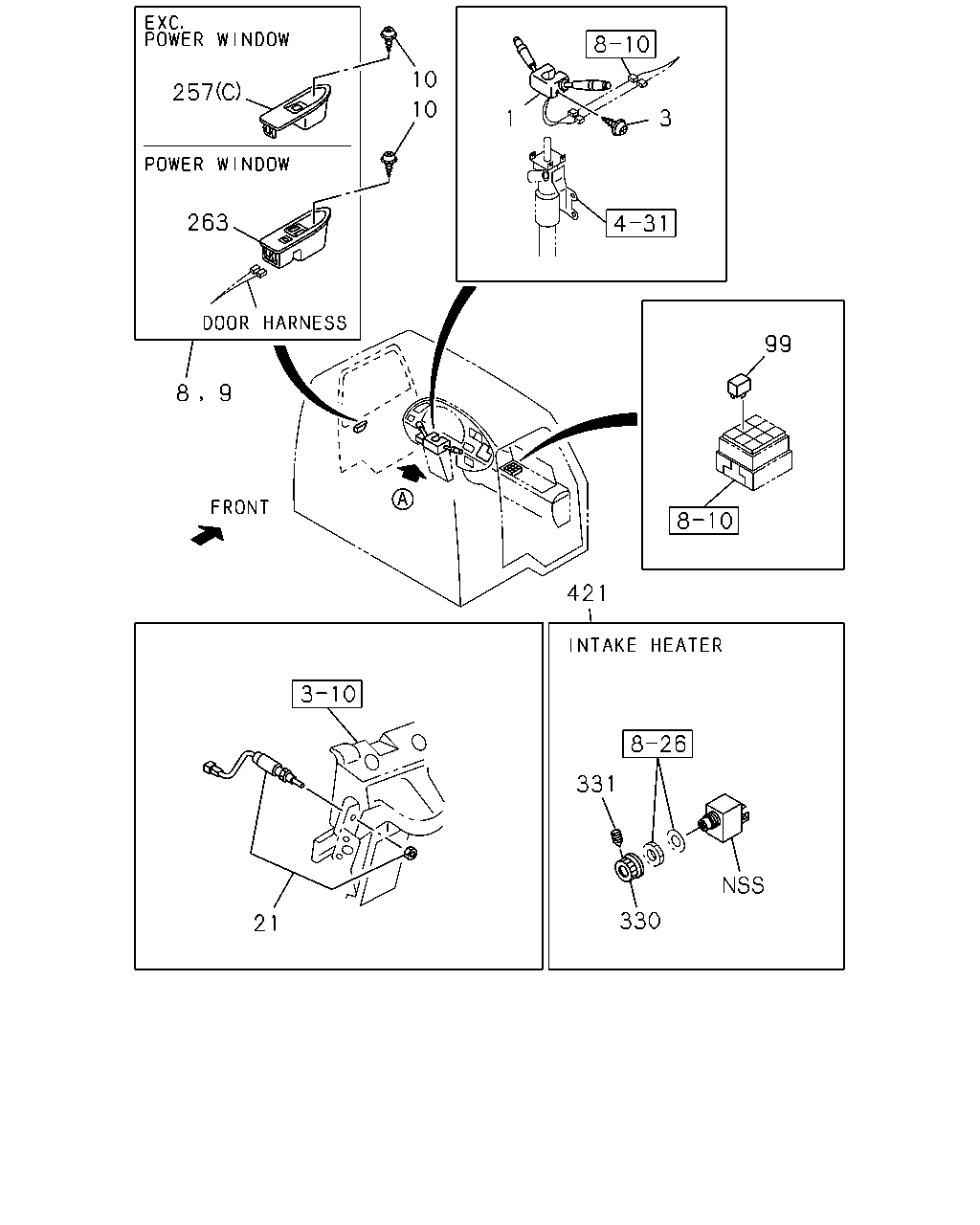

çizim 42510
10 257 10 3 1 263 99 8 9 421 331 330 21
BalonParca AdiParca NoAdetTipApplied Date
1 SWITCH; COMB
BRAKE SYSTEM RETARDER<RE2> 		1-82360-411-2 01 1 9905-9907
1 SWITCH; COMB
FOG LAMP REAR<NHD> 		1-82360-539-0 01 1 0002-0103
1 SWITCH; COMB
FOG LAMP REAR<NHD> 		1-82360-654-0 01 1 0104-
1 SWITCH; COMB
FOG LAMP<T96> 		1-82360-405-3 01 1 9603-9611
1 SWITCH; COMB 1-82360-405-4 01 1 9612-9904
1 SWITCH; COMB
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-82360-405-4 01 1 9905-9907
1 SWITCH; COMB 1-82360-405-4 01 1 9908-0001
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD> 		1-82360-405-4 01 1 0002-0103
1 SWITCH; COMB
EXC. FOG LAMP REAR<NHD> 		1-82360-647-0 01 1 0104-
1 SWITCH; COMB
EXC. FOG LAMP<T96> 		1-82360-371-3 01 1 9603-9611
3 SCREW; COMB SW
M5X12 TAPPING W/PL WASHER 		0-74105-512-0 04 1 9603-
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER DRIVER 		1-82380-142-1 01 1 9603-9709
8 SWITCH; POWER WINDOW
POWER WINDOW<A30> DRIVER 		1-82380-157-3 01 1 9710-
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSNGER PASSENGER 		1-82380-143-0 01 1 9603-9709
9 SWITCH; POWER WINDOW
POWER WINDOW<A30> PASSNGER 		1-82380-158-3 01 1 9710-
10 SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-
21 SWITCH; CLU 1-82380-114-2 01 1 9603-
21 SWITCH; CLU
ZF M/T<X9E> 		1-82380-114-2 01 1 9603-
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 12.5A MITUBA 		8-97062-815-0 01 1 9603-9611
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 9612-0001
99 RELAY; FOG LAMP
24V 12.5A MITUBA 		8-97062-815-1 01 1 0002-
99 RELAY; FOG LAMP
FOG LAMP REAR<NHD> 24V 12.5A MITUBA 		8-97062-815-1 01 1 0002-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603-
263 COVER; SW
POWER WINDOW<A30> DRIVER SIDE 		1-82385-007-0 01 1 9603-
263 COVER; SW
POWER WINDOW<A30> PASSENGER SIDE 		1-82385-008-0 01 1 9603-
330 KNOB; INT HTR
INTAKE HEATER<SL2> 		1-82336-003-1 01 1 9603-
331 SCREW
INTAKE HEATER<SL2> 		1-09106-002-0 01 1 9603-
421 SWITCH ASM; INT HTR
INTAKE HEATER<SL2> 		1-82330-030-0 01 1 9603-

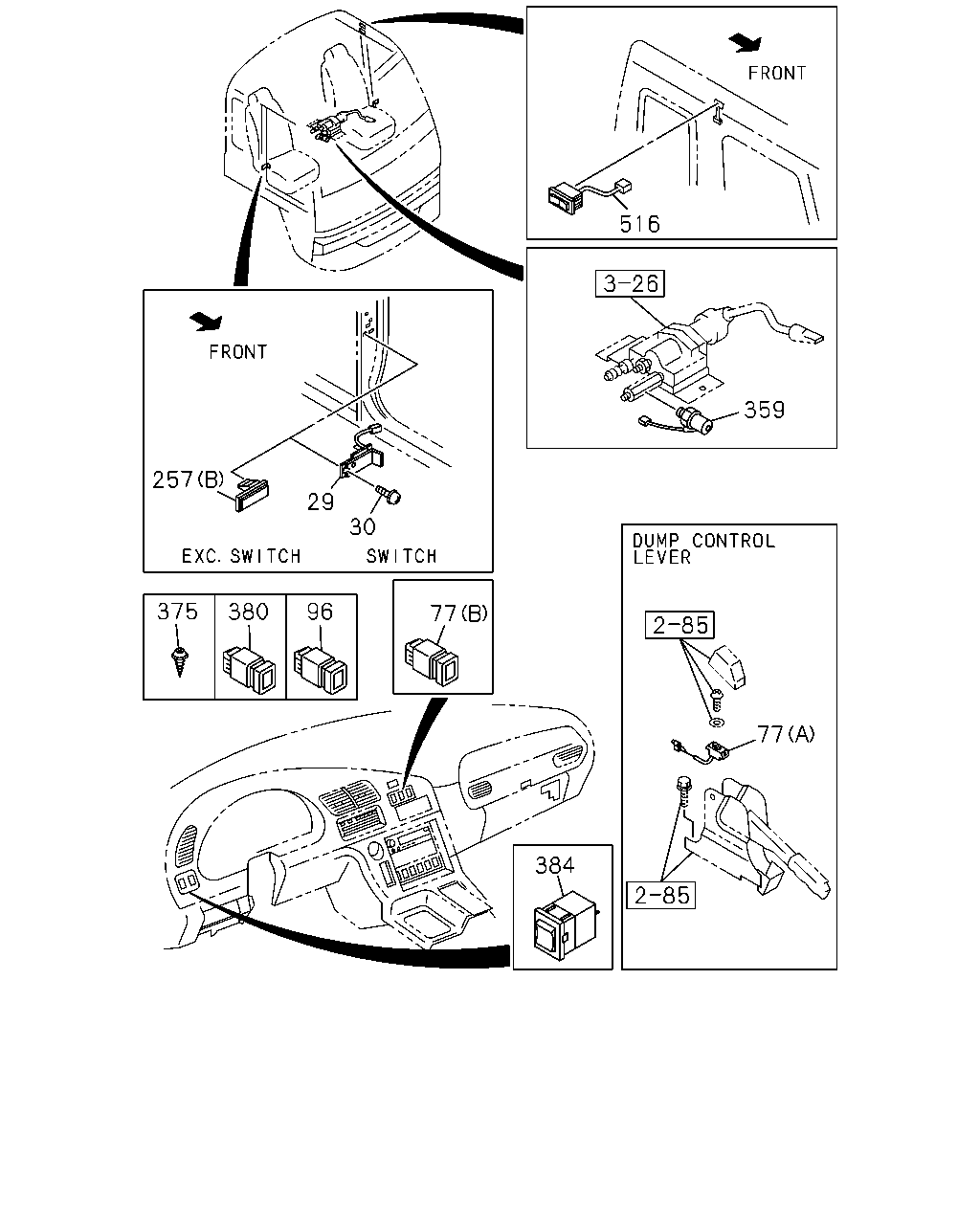

çizim 42547
516 359 257 29 30 375 380 96 77 77 384
BalonParca AdiParca NoAdetTipApplied Date
29 SWITCH; DOOR 8-97855-032-3 01 1 9603-
30 SCREW; DOOR SW
M5X16 		8-94279-341-0 01 1 9603-9906
30 SCREW; DOOR SW
M5X11 		1-09981-536-1 01 1 9907-
77 SWITCH; PTO
DUMP CONTROL LEVER<RC4> (A) 		1-82380-112-0 01 1 9603-
77 SWITCH; PTO
PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		1-82340-413-0 01 1 9603-
96 SWITCH; FOG LAMP
FOG LAMP REAR<NHD> 		1-82340-676-0 01 1 0002-
257 COVER; HOLE,SW
(A) 		1-82389-008-0 01 1 9603-
257 COVER; HOLE,SW
(B) 		8-94229-914-1 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-012-2 01 1 9603-
257 COVER; HOLE,SW
EXC. POWER WINDOW<A30> (C) 		1-82389-011-2 01 1 9603-
359 SWITCH; TRAILER BRAKE
GREEN 		1-82410-176-0 01 1 9603-
375 SCREW; A/C SW
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9603-9604
380 SWITCH; MARKER LAMP
MARKER LAMP THREE AMBER<WD9> 		1-82340-405-0 01 1 9603-9904
384 SWITCH; IDLING CONT,ELEC
ELECTRONIC GOV RED3(KG5) 		1-82350-213-1 01 1 9610-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> PASSENGER 		1-82350-274-0 01 1 9603-
516 SWITCH; CURTAIN
AUTO ROUND CURTAIN<TAR> DRAIVER 		1-82350-275-0 01 1 9603-
