Isuzu WW
▶
TRUCKS
▶
FVM
▶
11423 - FVM(AUST)EURO4
▶
5 - Frame, Cab Mounting
▶

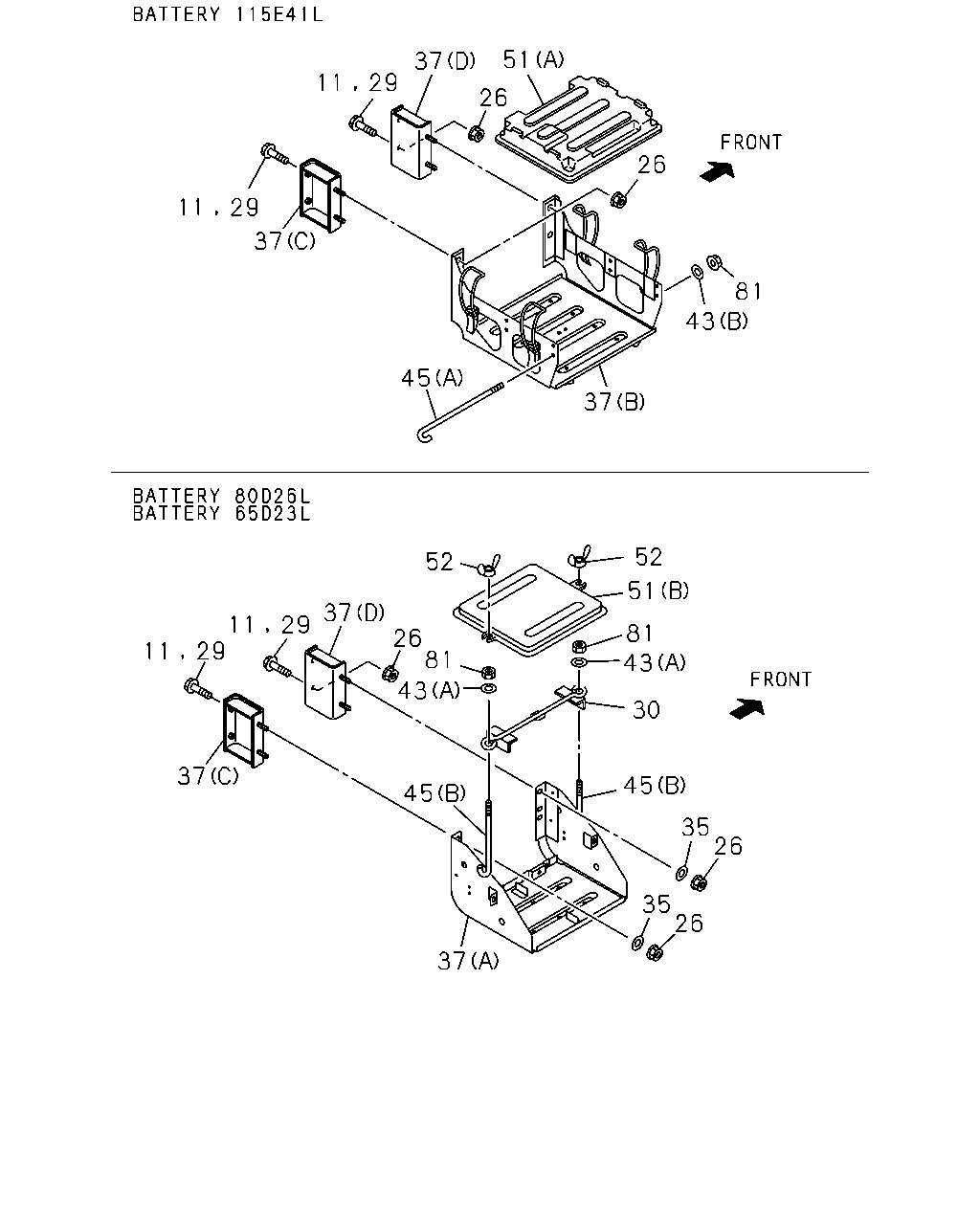

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#46433) — 22 parça
Tümü
A - FGL5MV
B - FGM5MV
51
37
29
11
26
26
29
11
37
81
43
45
37
52
52
51
37
26
81
29
11
29
81
43
11
43
30
37
45
45
35
26
35
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1008-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0711-
●
●
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0711-
●
●
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0710-1007
●
●
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
0710-
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0710-0711
●
●
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
0712-
●
●
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0710-0905
●
●
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0906-
●
●
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
0710-
●
●
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0710-0710
●
●
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
0710-
●
●
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0710-
●
●
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
0710-0710
●
●
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
0710-
●
●
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A)
8-97134-740-0
02
1
0710-0710
●
●
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
9-53616-615-0
02
1
0710-
●
●
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
0710-0710
●
●
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
0710-
●
●
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
0710-
●
●
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0710-0805
●
●
81
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE
0-91180-108-0
02
1
0806-
●
●
