◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#4643) — 149 parça

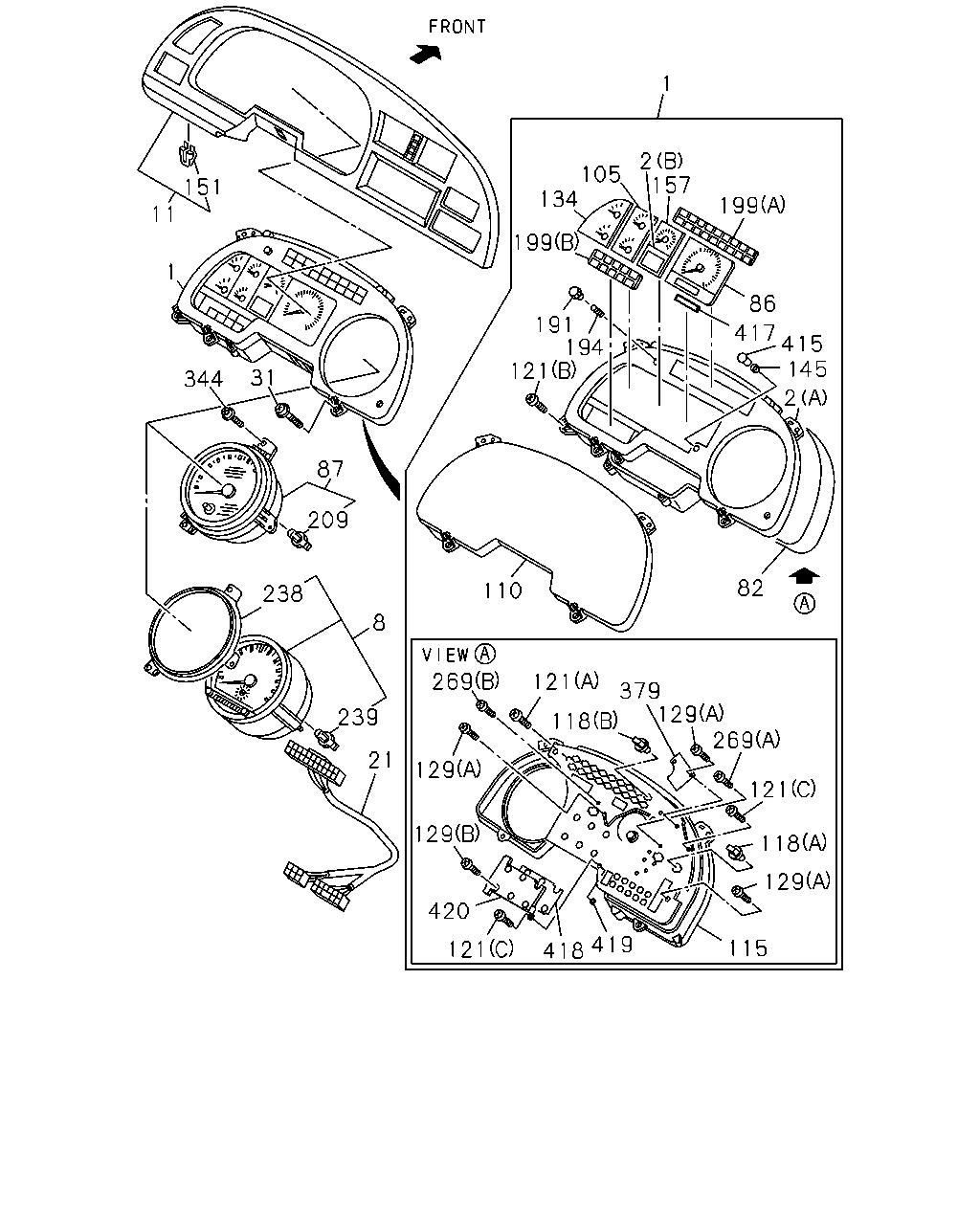

çizim 10885
1 2 157 105 134 151 199 11 199 1 86 191 194 417 415 145 31 121 344 2 87 209 82 110 238 8 269 121 379 129 239 118 269 21 129 121 129 118 129 420 419 418 115 121
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-101-0 01 1 9709-9904
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> 10PE1S(60L),10PE1N(61L) 		1-83115-172-2 01 1 9905-9910
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> 10PE1S(60L),10PE1N(61L) 		1-83115-689-1 01 1 9911-
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83114-798-3 01 1 9603-9704
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-043-0 01 1 9705-9708
1 METER COMPL; CLUSTER
10PE1S(60L) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-043-2 01 1 9709-9904
1 METER COMPL; CLUSTER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,FULL FLOATINGCAB<W16> 		1-83114-801-3 01 1 9603-9704
1 METER COMPL; CLUSTER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,FULL FLOATINGCAB<W16> 		1-83115-046-0 01 1 9705-9708
1 METER COMPL; CLUSTER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-046-1 01 1 9709-9904
1 METER COMPL; CLUSTER
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> 		1-83114-799-3 01 1 9603-9704
1 METER COMPL; CLUSTER
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> 		1-83115-044-0 01 1 9705-9708
1 METER COMPL; CLUSTER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-044-2 01 1 9709-9904
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83114-797-3 01 1 9603-9704
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> 		1-83115-042-0 01 1 9705-9708
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9709-9810
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WA1 TC-S(56L) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-042-2 01 1 9811-9904
1 METER COMPL; CLUSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-167-2 01 1 9905-9910
1 METER COMPL; CLUSTER
6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-684-0 01 1 9911-
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB<W16> 		1-83114-800-3 01 1 9603-9704
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB<W16> 		1-83115-045-0 01 1 9705-9708
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-045-1 01 1 9709-9810
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-045-1 01 1 9811-9904
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-171-2 01 1 9905-9910
1 METER COMPL; CLUSTER
10PE1S(60L),10PE1N(61L) EXC. DUAL AIR GAUGE<UG2> 		1-83115-688-0 01 1 9911-
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DUAL AIR GAUGE<UG2> 		1-83114-796-3 01 1 9603-9704
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DUAL AIR GAUGE<UG2> 		1-83115-041-0 01 1 9705-9708
1 METER COMPL; CLUSTER
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9709-9810
1 METER COMPL; CLUSTER
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83115-041-2 01 1 9811-9904
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-83115-168-2 01 1 9905-9910
1 METER COMPL; CLUSTER
DUAL AIR GAUGE<UG2> 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-R(93L) 		1-83115-685-1 01 1 9911-
2 PANEL; CLUSTER
(A) 		1-83119-499-0 01 1 9603-9904
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-662-1 01 1 9603-9706
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-806-0 01 1 9707-9904
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-856-0 01 1 9905-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-857-0 01 1 9905-
11 CLUSTER ASM; METER 1-72418-022-6 01 1 9603-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-82624-665-1 01 1 9603-9904
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 9603-9904
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905-
86 TACHOMETER; CLUSTER METER
SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9603-9904
86 TACHOMETER; CLUSTER METER
10PE1S(60L) TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9603-9904
86 TACHOMETER; CLUSTER METER
10PE1S(60L) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-692-0 01 1 9603-9904
86 TACHOMETER; CLUSTER METER
L TYPE ENG<90L> 		1-83120-879-0 01 1 9905-
86 TACHOMETER; CLUSTER METER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,FULL FLOATINGCAB<W16> 		1-83120-694-0 01 1 9603-9708
86 TACHOMETER; CLUSTER METER
10PE1S(60L) MJA7U M/T(X6G),MJA6A M/T(X6V) DUAL AIR GAUGE<UG2> EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-694-0 01 1 9709-9904
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5),ENGINE OVERRUN BUZZER<SK4>,DUAL AIR GAUGE<UG2>,FULL FLOATING CAB<W16> 		1-83120-695-0 01 1 9603-9708
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-695-0 01 1 9709-9810
86 TACHOMETER; CLUSTER METER
6WA1 TC-C(55L),6WA1 TC-S(56L) MJA7U M/T(X6G),MJA6A M/T(X6V) EXC. DUAL AIR GAUGE<UG2>,SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-695-0 01 1 9811-9904
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) 		1-83120-693-0 01 1 9603-9708
86 TACHOMETER; CLUSTER METER
6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-693-0 01 1 9709-9810
86 TACHOMETER; CLUSTER METER
6WA1 TC-C(55L),6WA1 TC-S(56L) TRANSMISSION-ZF 16S151 OD(Y2N) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-83120-693-0 01 1 9811-9904
86 TACHOMETER; CLUSTER METER
V TYPE ENG<91L> 		1-83120-880-0 01 1 9905-
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 		1-83120-490-1 01 1 9603-9904
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83120-844-0 01 1 9905-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-211-0 01 1 9603-9704
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-275-0 01 1 9705-9904
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-317-0 01 1 9603-9904
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-372-0 01 1 9905-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 AR 1 9603-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 AR 1 9603-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 08 1 9603-9904
121 SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING 		1-83119-442-0 05 1 9905-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M3 TAPPING 		1-83119-084-0 01 1 9905-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-676-0 02 1 9905-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-052-0 10 1 9603-9904
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-657-0 09 1 9905-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-675-0 06 1 9905-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-224-0 01 1 9603-9904
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905-
151 CLIP; METER CLUSTER 8-97853-939-4 10 1 9603-9812
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9901-
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-190-0 01 1 9603-9608
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-187-0 01 1 9609-9904
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-214-0 01 1 9905-9910
157 METER; AIR PRESSURE,CLUSTER METER
DUAL AIR GAUGE<UG2> 		1-83150-235-0 01 1 9911-
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-178-0 01 1 9603-9904
157 METER; AIR PRESSURE,CLUSTER METER
EXC. DUAL AIR GAUGE<UG2> 		1-83150-217-0 01 1 9905-
191 KNOB; BULB CHECK 1-83119-500-0 01 1 9603-9904
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905-
199 LENS; WARNING LAMP
(A) 		1-83119-538-0 01 1 9603-9904
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905-
199 LENS; WARNING LAMP
(B) 		1-83119-539-1 01 1 9603-9904
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9905-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 9603-9904
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905-
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 		1-83129-311-0 01 1 9603-9904
238 PANEL; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 		1-83129-311-0 01 1 9905-
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8> 24V 1.8W 		1-82194-076-0 03 1 9603-9904
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		5-82194-034-0 03 1 9905-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 04 1 9603-9904
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 9603-9904
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905-
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 11 1 9603-9904
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9603-
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905-
418 CIRCUIT; CONTROL,METER
L TYPE ENG<90L> 		1-83189-376-0 01 1 9905-
418 CIRCUIT; CONTROL,METER
V TYPE ENG<91L> 		1-83189-377-0 01 1 9905-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905-
420 HEAT SINK; METER 1-83119-679-0 01 1 9905-

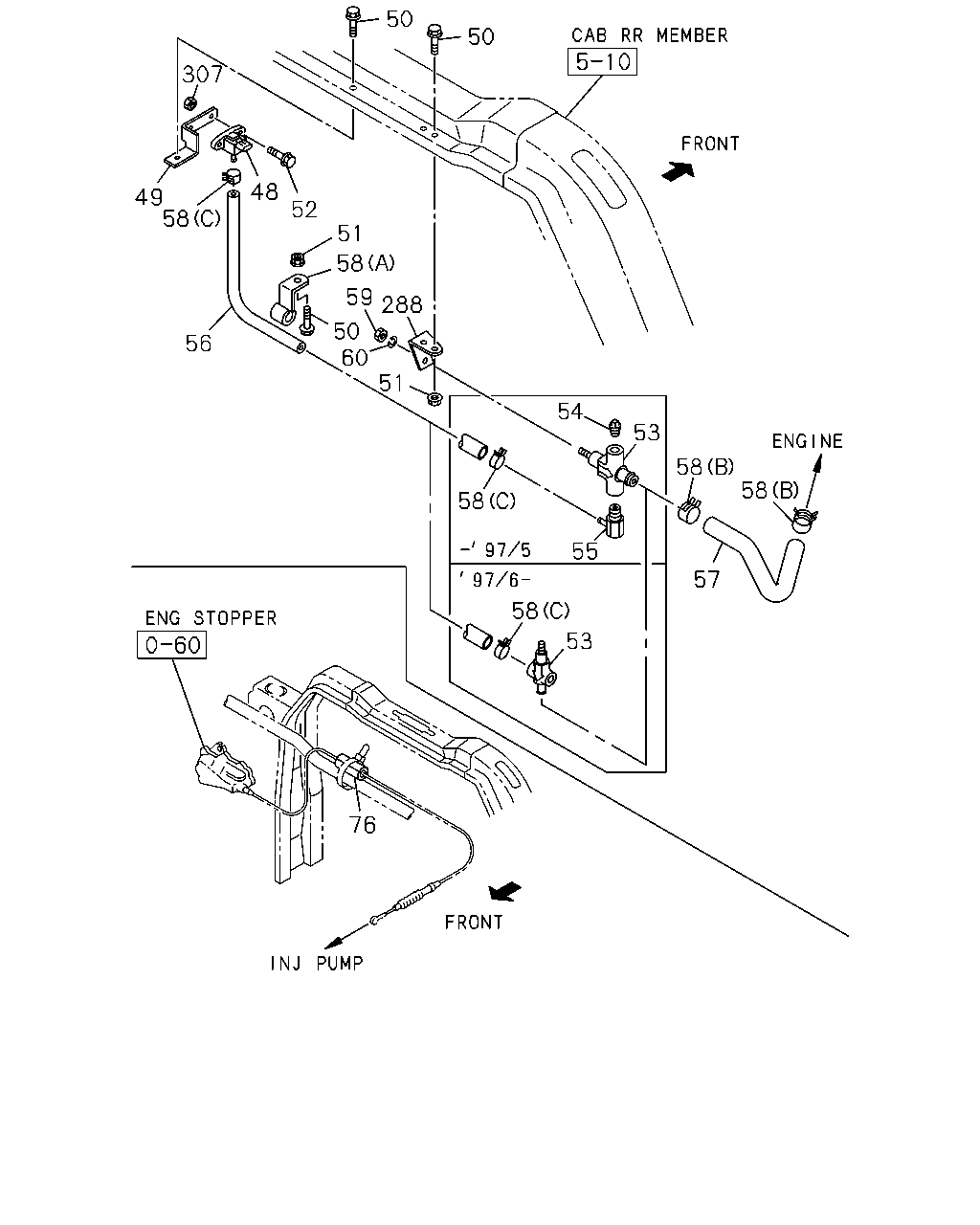

çizim 42475
50 50 307 48 49 58 52 51 58 59 288 50 60 56 51 54 53 58 58 58 55 57 58 53 76
BalonParca AdiParca NoAdetTipApplied Date
48 SENSOR; BOOST
6WA1 TC-S(56L) EURO2 SPECIFICATION<THN> 		1-81531-011-0 01 1 9610-9904
48 SENSOR; BOOST
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9905-9910
48 SENSOR; BOOST
ELECTRONIC GOV RED3(KG5) 		1-81531-011-0 01 1 9911-
49 BRACKET; SENSOR
EURO2 SPECIFICATION<THN> 		1-83129-307-1 01 1 9610-9904
50 BOLT; FIX
EURO2 SPECIFICATION<THN> M8X25 FLANGE 		0-28680-825-0 05 1 9610-9904
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 04 1 9905-9909
50 BOLT; FIX
ELECTRONIC GOV RED3(KG5) M8X25 FLANGE 		0-28680-825-0 03 1 9910-
51 NUT; FIX
EURO2 SPECIFICATION<THN> M8 FLANGE 		0-91150-108-0 05 1 9610-9904
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 04 1 9905-9909
51 NUT; FIX
ELECTRONIC GOV RED3(KG5) M8 FLANGE 		0-91150-108-0 03 1 9910-
52 BOLT; SENSOR
EURO2 SPECIFICATION<THN> M6X16 FLANGE 		0-28680-616-0 02 1 9610-9904
52 BOLT; SENSOR
ELECTRONIC GOV RED3(KG5) M6X16 FLANGE 		0-28680-616-0 02 1 9905-
53 UNION; BOOST UNIT
EURO2 SPECIFICATION<THN> 		1-09660-152-1 01 1 9610-9705
53 UNION; BOOST UNIT
EURO2 SPECIFICATION<THN> 		1-09661-017-0 01 1 9706-9904
53 UNION; BOOST UNIT
ELECTRONIC GOV RED3(KG5) 		1-09661-017-0 01 1 9905-
54 PLUG; UNION
EURO2 SPECIFICATION<THN> PT1/4 		9-99204-513-0 01 1 9610-9705
55 NIPPLE; UNION TO HOSE
EURO2 SPECIFICATION<THN> 		1-09660-268-0 01 1 9610-9705
56 HOSE; NIPPLE TO SENSOR
EURO2 SPECIFICATION<THN> L=580 SERVICED BY L=3000 		0-04740-300-0 01 1 9610-9705
56 HOSE; NIPPLE TO SENSOR
EURO2 SPECIFICATION<THN> L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9706-9904
56 HOSE; NIPPLE TO SENSOR
ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9905-
57 HOSE; BOOST
EURO2 SPECIFICATION<THN> 		1-83159-017-0 01 1 9610-9904
57 HOSE; BOOST
ELECTRONIC GOV RED3(KG5) 		1-83159-017-0 01 1 9905-
58 CLIP; HOSE
EURO2 SPECIFICATION<THN> (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9610-9904
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9905-9909
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9910-
58 CLIP; HOSE
EURO2 SPECIFICATION<THN> (B) ID=20.8 		8-94125-862-0 02 1 9610-9904
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (B) ID=20.8 		8-94125-862-1 02 1 9905-
58 CLIP; HOSE
EURO2 SPECIFICATION<THN> (C) ID=7.8 		8-94246-958-0 02 1 9610-9904
58 CLIP; HOSE
ELECTRONIC GOV RED3(KG5) (C) ID=7.8 		8-94246-958-0 02 1 9905-
59 NUT; UNION
EURO2 SPECIFICATION<THN> M10 		9-09111-410-0 01 1 9610-9904
59 NUT; UNION
ELECTRONIC GOV RED3(KG5) M10 		9-09111-410-0 01 1 9905-
60 WASHER; LK,UNION
EURO2 SPECIFICATION<THN> ID=10.2 		9-09150-510-0 01 1 9610-9904
60 WASHER; LK,UNION
ELECTRONIC GOV RED3(KG5) ID=10.2 		9-09150-510-0 01 1 9905-
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 02 1 9603-9910
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 L=30 		5-09360-352-0 01 1 9911-
76 SLEEVE; RUBBER,FLEX SHAFT,METER
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) ID=6 OD=10 L=70 		1-09376-512-0 01 1 9911-
288 BRACKET
EURO2 SPECIFICATION<THN> 		1-47477-379-0 01 1 9610-9904
288 BRACKET
ELECTRONIC GOV RED3(KG5) 		1-47477-379-0 01 1 9905-
307 NUT
EURO2 SPECIFICATION<THN> M6 		9-09110-406-0 02 1 9610-9904
307 NUT
ELECTRONIC GOV RED3(KG5) M6 		9-09110-406-0 02 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
