5-01 — FRAME AND OTHER PARTS (#46428) — 100 parça

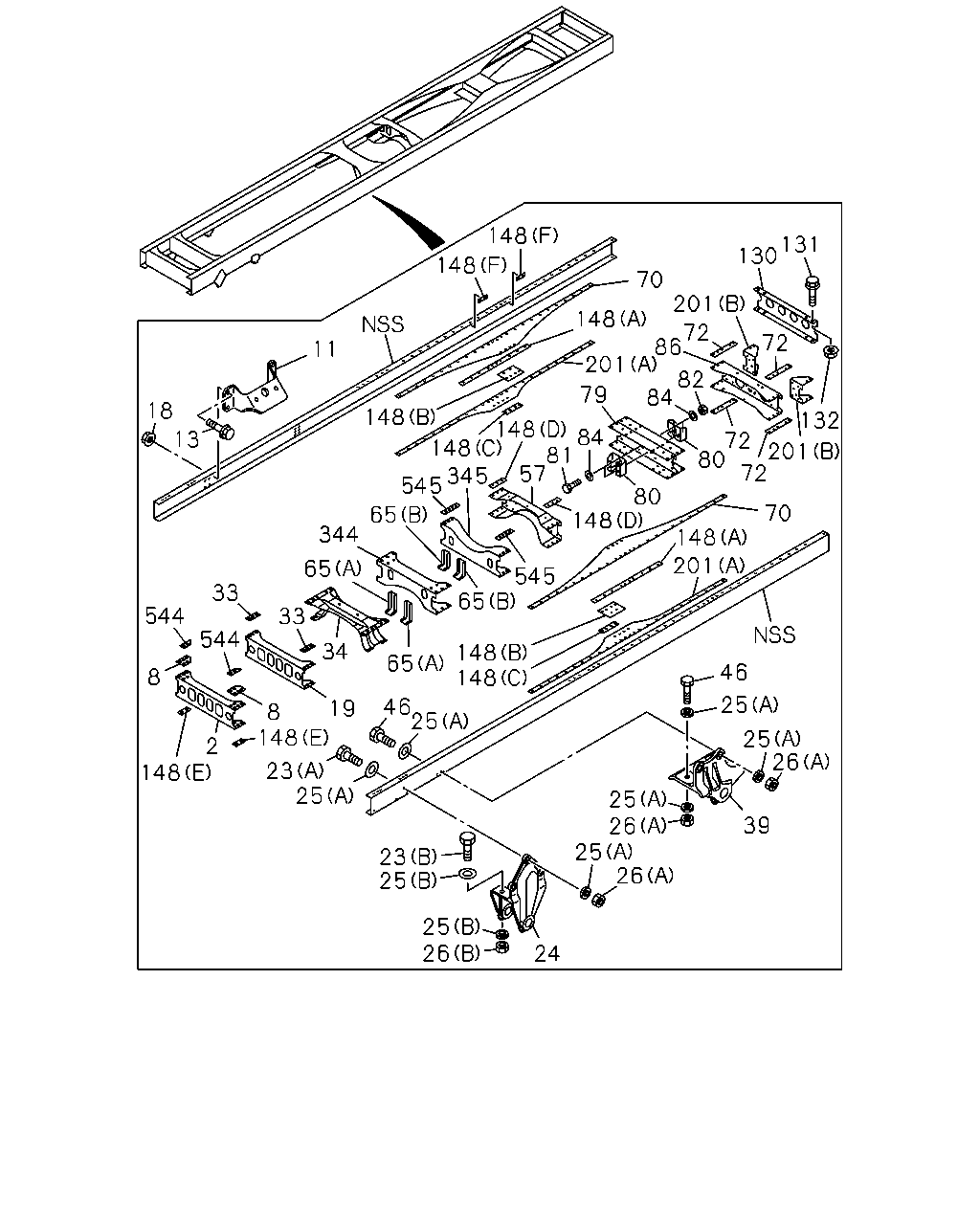

148 131 130 148 70 201 148 148 84 545 80 148 148 545 65 201 148 72 86 82 84 72 11 79 132 18 201 72 13 72 80 70 65 344 201 148 148 65 33 33 544 544 34 65 46 8 25 46 25 19 8 148 25 26 2 148 23 25 25 26 25 26 39 23 25 25 26 24 345 57 81 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0710-0910
65	BRACKET; CENTER BRG AIR SUS(FGL***) (E)	8-97614-132-0	04	1	0911-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0710-0910
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (A)	8-97614-134-0	02	1	0710-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97623-393-0	02	1	0710-
70	GUSSET; TRUNNION,UPR LEAF SUS(FGM***)	8-97612-106-0	02	1	0710-
72	SPACER; TRUNNION LEAF SUS(FGM***)	8-97612-110-0	04	1	0710-
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGM***)	8-97612-484-1	01	1	0710-
80	BRACKET; C/MBR LEAF SUS(FGM***)	1-53363-068-0	02	1	0710-
81	BOLT; BRKT LEAF SUS(FGM***) M14X50	0-10956-450-0	02	1	0710-
82	NUT; BRKT LEAF SUS(FGM***) M14	0-91110-514-0	02	1	0710-
84	WASHER; PL,BRKT LEAF SUS(FGM***) ID=15	8-98010-627-1	04	1	0710-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0710-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	0710-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0710-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	0710-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-
545	SPACER; 5TH C/MBR	8-97611-245-0	02	1	0710-

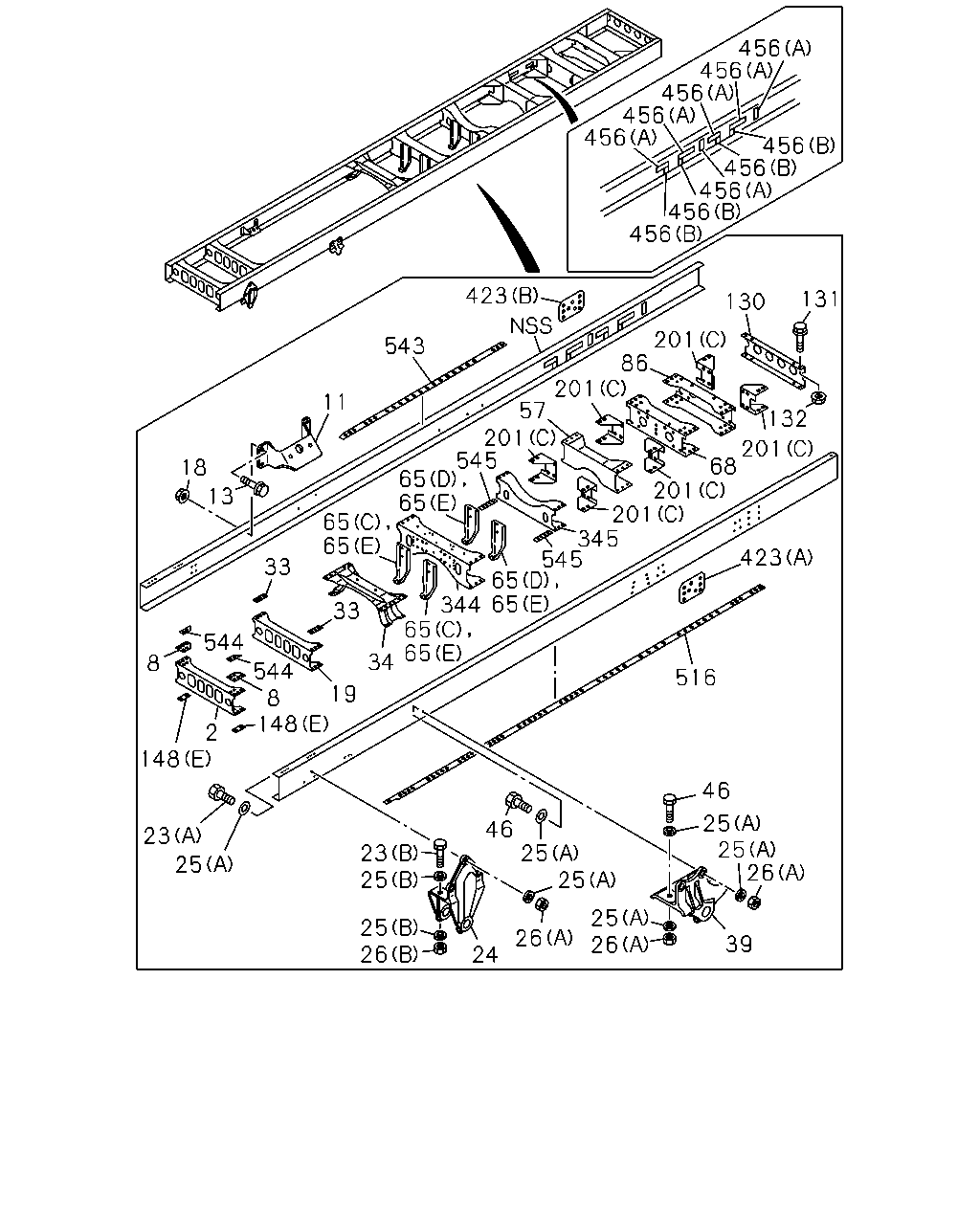

456 456 456 456 456 456 456 456 456 456 423 131 130 201 86 201 57 201 545 65 65 543 201 68 201 201 345 545 65 65 132 11 13 18 65 65 423 33 544 8 148 344 65 65 33 544 34 8 516 19 2 148 46 25 25 26 46 25 25 23 2 25 25 25 26 25 26 26 39 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (C)	8-97612-486-0	02	1	0710-0910
65	BRACKET; CENTER BRG AIR SUS(FGL***) (E)	8-97614-132-0	04	1	0911-
65	BRACKET; CENTER BRG AIR SUS(FGL***) (D)	8-97614-125-0	02	1	0710-0910
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (A)	8-97614-134-0	02	1	0710-
65	BRACKET; CENTER BRG LEAF SUS(FGM***) (B)	8-97623-393-0	02	1	0710-
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGL***)	8-97612-105-4	01	1	0710-
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (D)	8-97612-109-0	04	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (F)	8-97612-111-0	04	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (A)	8-97612-112-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (B)	8-97612-113-0	02	1	0710-
148	SPACER; C/MBR LEAF SUS(FGM***) (C)	8-97612-115-0	02	1	0710-
201	GUSSET; C/MBR AIR SUS(FGL***) (C)	8-97619-807-3	06	1	0710-
201	GUSSET; C/MBR LEAF SUS(FGM***) (B)	8-97612-108-2	02	1	0710-
201	GUSSET; C/MBR LEAF SUS(FGM***) (A)	8-97620-295-2	02	1	0710-
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-
423	PATCH AIR SUS(FGL***) (A)	8-97619-809-0	01	1	0710-
423	PATCH AIR SUS(FGL***) (B)	8-97619-810-0	01	1	0710-
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97611-248-0	12	1	0710-1201
456	PATCH; STOPPER AIR SUS(FGL***) (A)	8-97642-212-0	12	1	1202-
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97611-249-0	08	1	0710-1201
456	PATCH; STOPPER AIR SUS(FGL***) (B)	8-97642-213-0	08	1	1202-
516	GUSSET; LWR AIR SUS(FGL***)	8-97620-293-3	02	1	0710-
543	GUSSET; UPR AIR SUS(FGL***)	8-97620-007-0	02	1	0710-
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-
545	SPACER; 5TH C/MBR	8-97611-245-0	02	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
