1-41 — FUEL PIPING; CHASSIS (#46421) — 68 parça

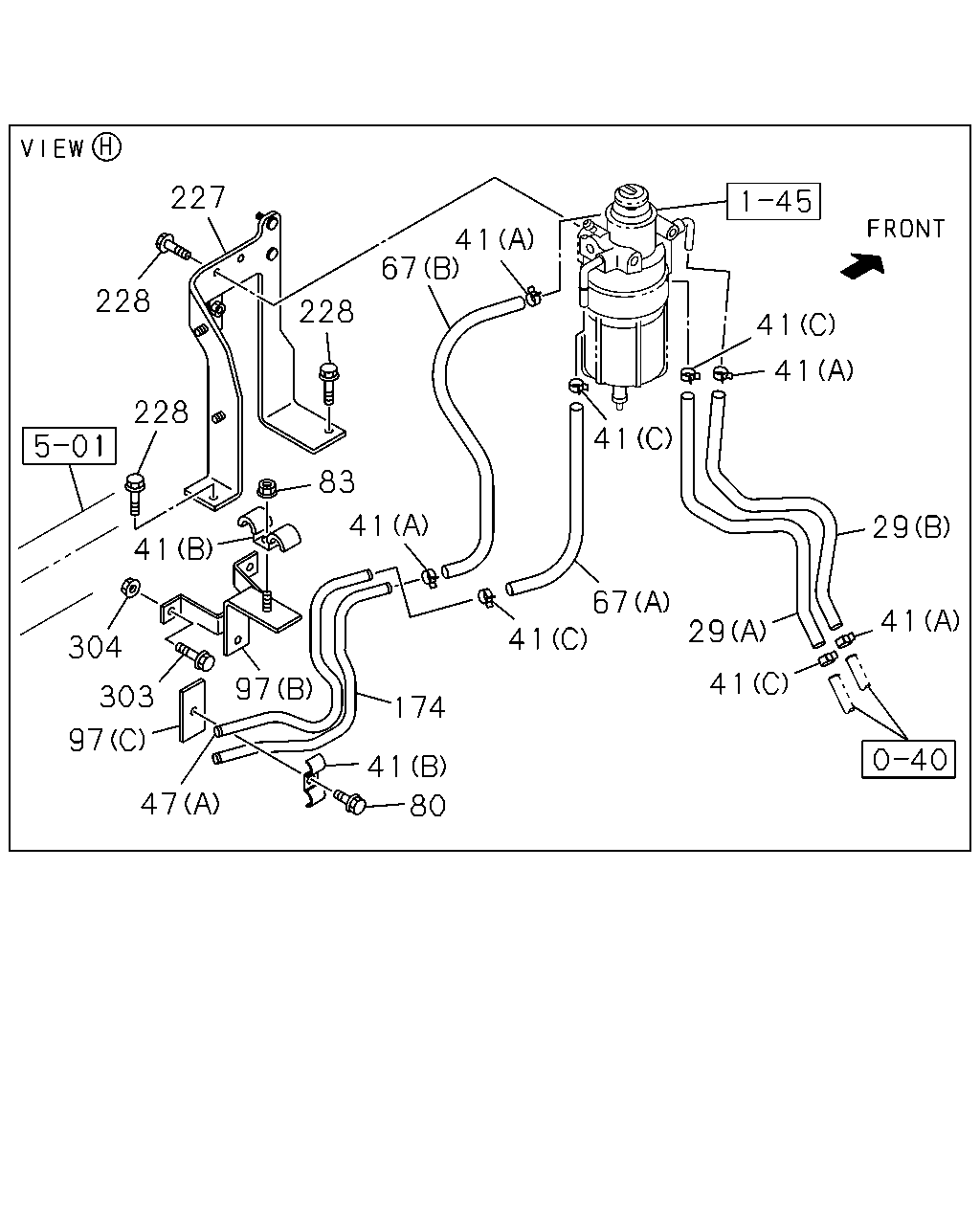

çizim 111073
228 227 228 41 304 303 97 47 97 174 41 80 41 83 228 67 41 41 67 41 29 41 41 29 41 41
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 0710- ● ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0710 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0804- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 0710- ● ●
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 0710- ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98097-500-0 01 1 0710-0807 ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98127-647-0 01 1 0808- ● ●
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0710- ● ●
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 0710- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 0710- ● ●
97 BRACKET; CLIP
(B) 		8-98076-024-0 01 1 0710- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0710- ● ●
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0710- ● ●
228 BOLT; BRKT,SEDIMENTER
M8X25 FLANGE 		0-28050-825-0 02 1 0710- ● ●
228 BOLT; BRKT,SEDIMENTER
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-0710 ● ●
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0711-1008 ● ●
303 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1009- ● ●
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●

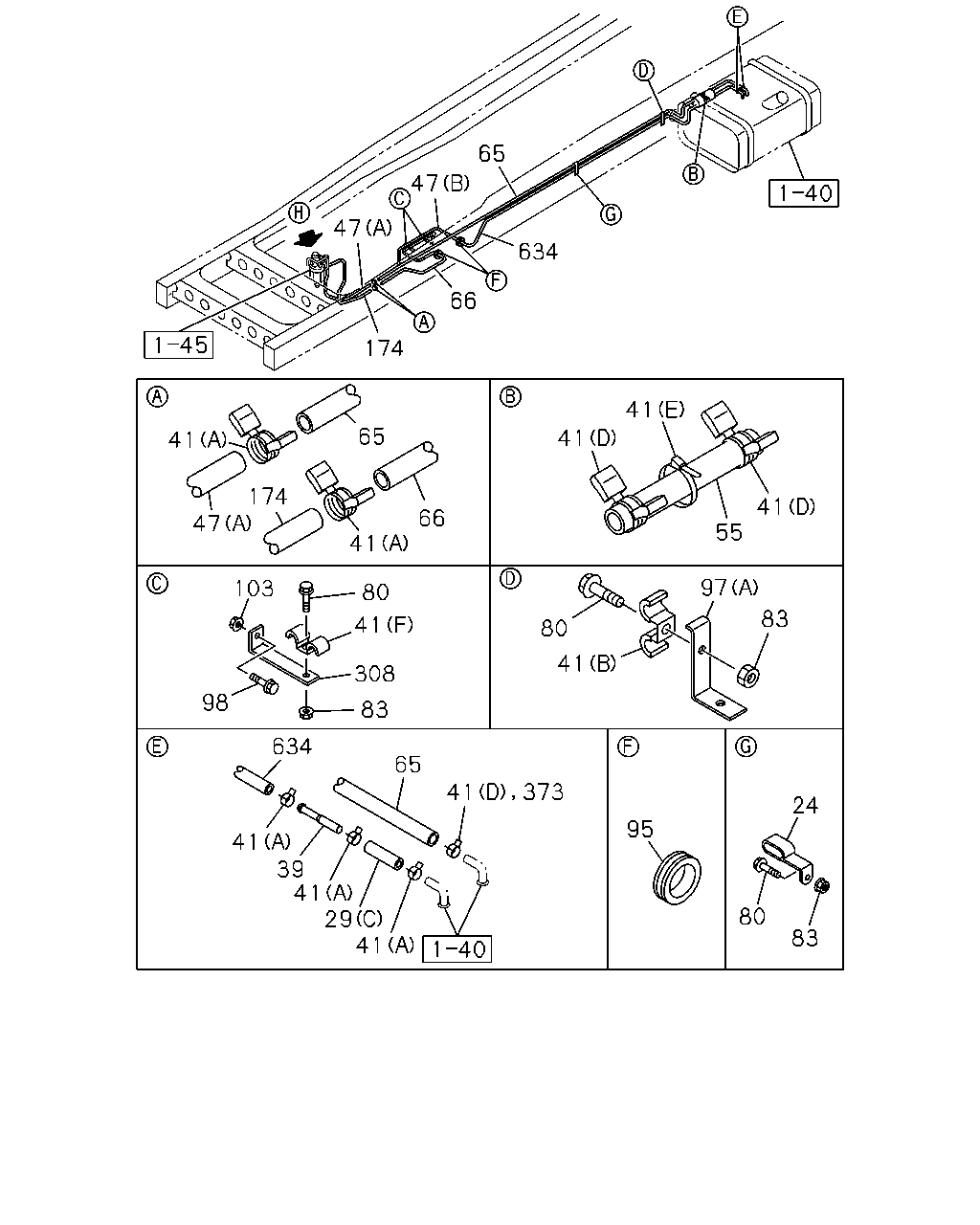

çizim 111079
65 47 47 634 66 174 41 65 41 41 174 41 66 47 55 41 97 103 80 83 41 80 41 308 98 83 634 65 24 95 41 39 41 29 41 80 83 41 373
BalonParca AdiParca NoAdetTipApplied Date A B
24 CLIP; FUEL HOSE
ID=20 L=70 		1-09701-033-0 01 1 0801-0808 ● ●
29 HOSE; FUEL
(C) L=60 SERVICED BY L=3000 		0-01259-300-0 01 1 0710- ● ●
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0710- ● ●
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0710- ● ●
39 PIPE; FUEL 8-98009-438-1 01 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(F) ID=9 & 9 L=17 & 17 		1-09700-651-0 02 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 04 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0710- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0710 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 01 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0804- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0710-0803 ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 08 1 0710- ● ●
47 PIPE; FUEL,RETURN
(A) L=717 		8-98086-241-0 01 1 0710- ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98097-500-0 01 1 0710-0807 ● ●
47 PIPE; FUEL,RETURN
(B) 		8-98127-647-0 01 1 0808- ● ●
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0710- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 0710- ● ●
66 HOSE; FUEL,RETURN PIPE
L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 0710- ● ●
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710- ● ●
97 BRACKET; CLIP
(C) L=50 		1-47475-299-2 01 1 0710- ● ●
97 BRACKET; CLIP
(A) 		8-98053-654-0 01 1 0710- ● ●
97 BRACKET; CLIP
(B) 		8-98076-024-0 01 1 0710- ● ●
98 BOLT; BRKT,FUEL PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
174 PIPE; FUEL,FEED,FRT
L=724 		8-98086-240-0 01 1 0710- ● ●
308 BRACKET; FUEL PIPE
L=75 		1-47478-323-0 02 1 0710- ● ●
373 CLAMP; HOSE,FUEL
ID=16 		8-94238-568-0 02 1 0804- ● ●
634 HOSE; RUBBER RETURN
L=900 SERVICED BY L=3000 		0-01558-300-0 01 1 0710- ● ●
