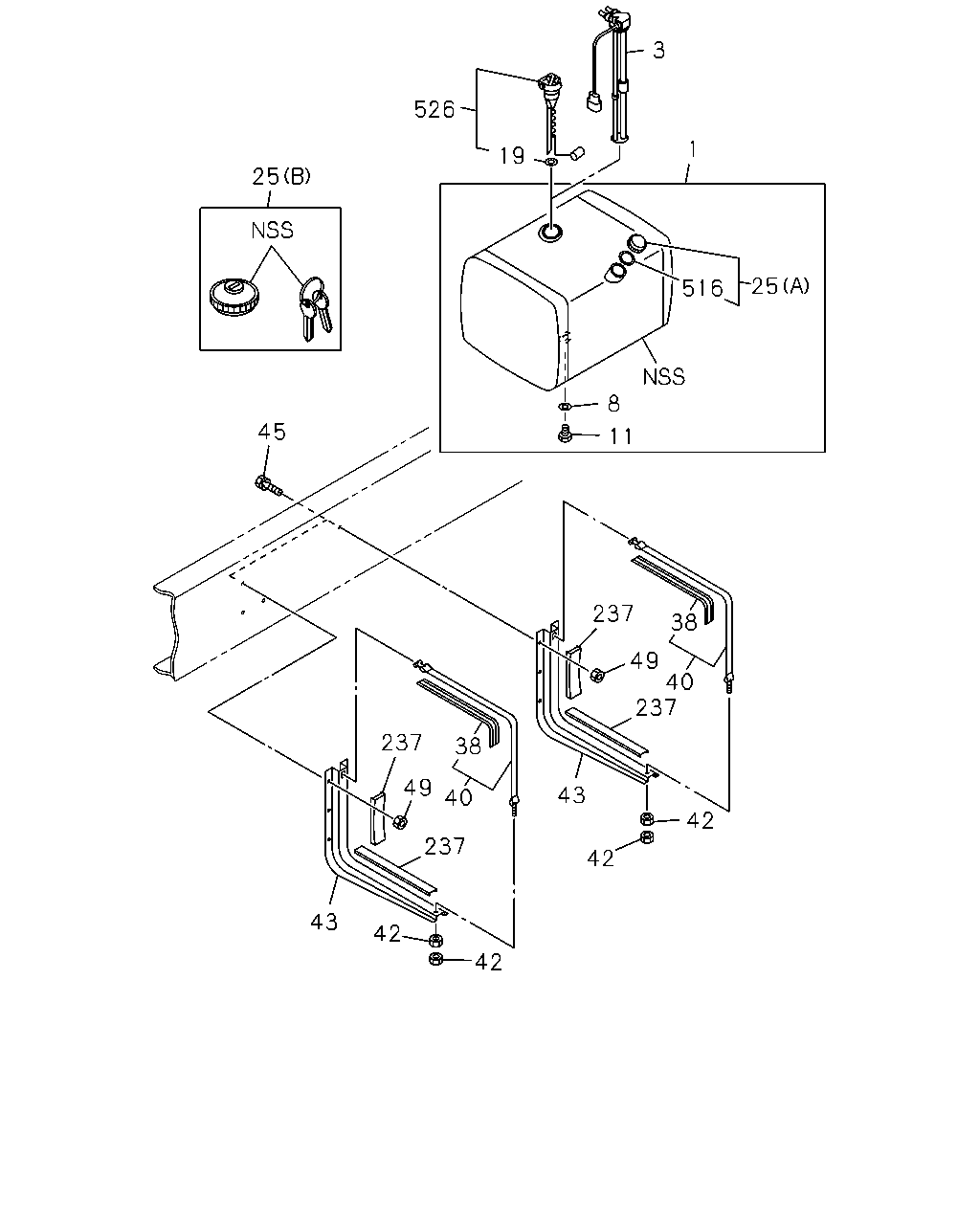

1-40 — FUEL TANK
(#46420) — 18 parça
Tümü
A - FGL5MV
B - FGM5MV
38
40
237
49
237
11
8
516
25
1
3
19
526
25
45
237
38
40
237
49
43
42
42
42
43
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; FUEL
1020X680X625 400L
1-87411-168-0
01
1
0710-1003
●
●
1
TANK; FUEL
1020X685X625 400L
1-87412-052-0
01
1
1004-
●
●
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1211-
●
●
8
GASKET; DRAIN PLUG,FUEL TANK
T=1.60
8-98030-453-0
01
1
0710-
●
●
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
0710-
●
●
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
0710-1210
●
●
25
CAP; FILLER,FUEL TANK
(A)
1-22440-056-0
01
1
0710-
●
●
25
CAP; FILLER,FUEL TANK
(B)
1-22440-057-2
01
1
0906-
●
●
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
0710-
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
0710-1110
●
●
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
●
●
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
0710-
●
●
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
0710-
●
●
45
BOLT; BRKT,FUEL TANK
M12X40 FLANGE
0-28051-240-0
12
1
0710-
●
●
49
NUT; BRKT
M12
0-91110-512-0
12
1
0710-
●
●
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
0710-
●
●
516
GASKET; CAP
ID=78
8-98259-383-0
01
1
0710-
●
●
526
SENDER; FUEL TANK
1-83141-132-0
01
1
0710-1210
●
●
