◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶
8-20 — METER CABLE (#4642) — 14 parça

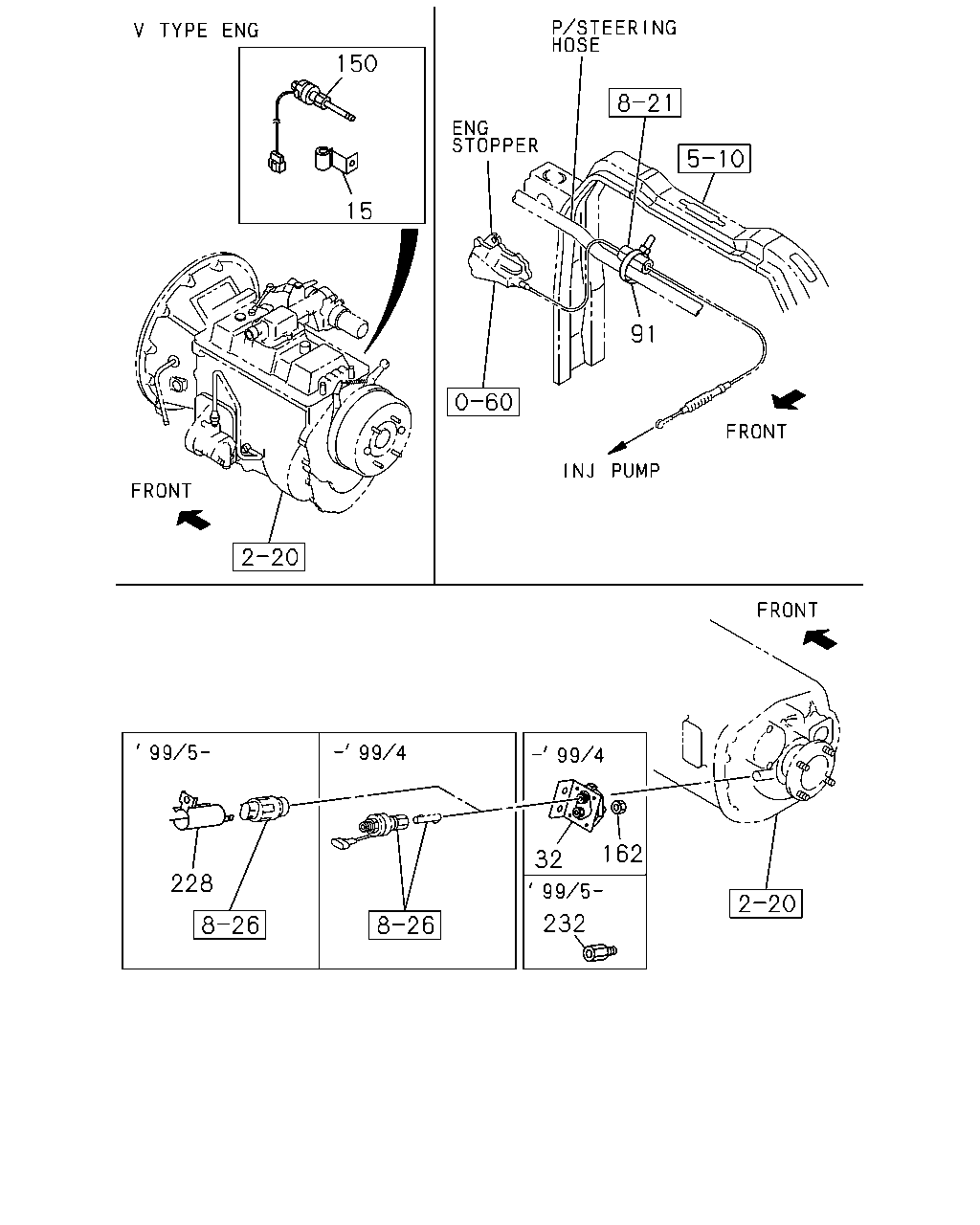

çizim 41086
150 15 91 162 32 228 232
BalonParca AdiParca NoAdetTipApplied Date
15 CLIP; BAND,HARNESS
10PE1S(60L) ID=6 H=25 L=21 		1-09700-432-0 01 1 9603-9904
15 CLIP; BAND,HARNESS
V TYPE ENG<91L> ID=6 H=25 L=21 		1-09700-432-0 01 1 9905-
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-83126-262-0 01 1 9603-9702
32 BOX; GEAR,FLEX SHAFT
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-83126-409-0 01 1 9703-9904
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 02 1 9603-9910
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=140 		5-09707-031-1 01 1 9911-
91 CLIP; BAND
V TYPE ENG<91L> EXC. RLD GOVERNOR(SD7) L=250 		1-09707-126-0 01 1 9911-
132 SENSOR; SPD,SPEEDOMETER
10PE1S(60L) 		1-83127-115-0 01 1 9603-9904
132 SENSOR; SPD,SPEEDOMETER
V TYPE ENG<91L> 		1-83127-115-0 01 1 9905-
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		9-83111-951-0 01 1 9603-9809
162 NUT; GEAR BOX
TRANSMISSION-ZF 16S151 OD(Y2N) M22 		1-80249-005-0 01 1 9810-9904
228 PROTECTOR; SENSOR 8-97168-308-0 01 1 9905-0004
228 PROTECTOR; SENSOR
ISUZU M/T<X9A>,ZF M/T<X9E> 		8-97168-308-0 01 1 0005-
232 ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) 		1-80249-006-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
