Isuzu WW
▶
TRUCKS
▶
FVM
▶
11423 - FVM(AUST)EURO4
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#46418) — 45 parça
◀

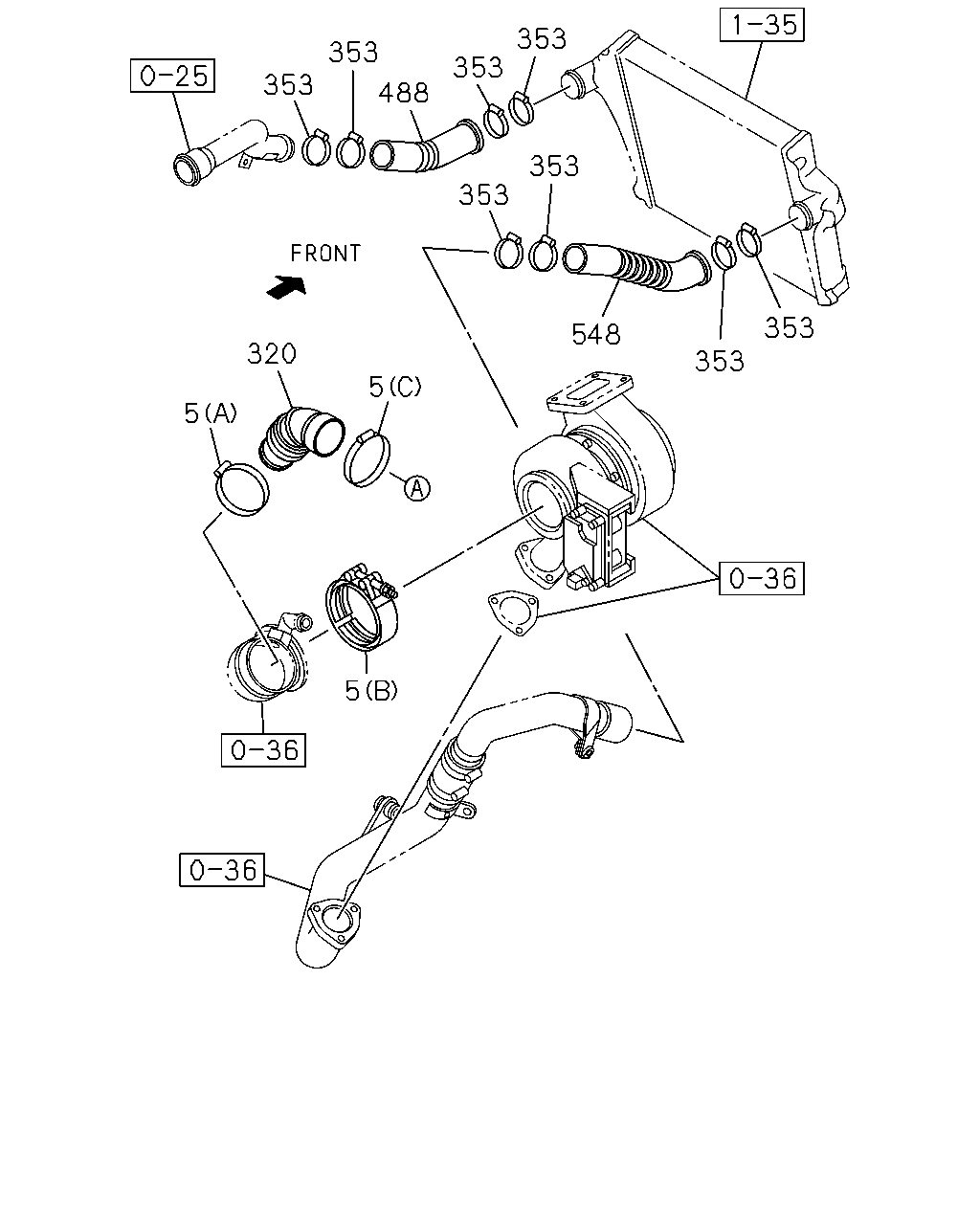

[131A] PIPING (13 parça)
[131A] DUCT FIXING (32 parça)
▶
353
353
353
353
488
353
353
353
548
320
353
5
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=104-139
1-09707-200-0
01
1
0710-0812
5
CLIP; AIR DUCT
(A) ID=100-120
8-98133-366-0
01
1
0901-1001
5
CLIP; AIR DUCT
(C) ID=130-169
8-98155-950-0
01
1
1002-
5
CLIP; AIR DUCT
(C) ID=130-165
1-09707-201-0
01
1
0710-0810
5
CLIP; AIR DUCT
(C) ID=130-150
8-98133-360-0
01
1
0811-1001
5
CLIP; AIR DUCT
(A) ID=104-142
1-09707-139-0
01
1
1002-
5
CLIP; AIR DUCT
(B) ID=114
8-15178-030-0
01
1
0710-
320
HOSE; CONN,ACL
8-98021-990-2
01
1
0710-
353
CLIP; RUBBER HOSE
ID=58-76
1-09707-203-0
08
1
0710-0811
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
0812-1001
353
CLIP; RUBBER HOSE
ID=58-79
1-09707-136-0
08
1
1002-
488
HOSE; RUBBER,PIPE
8-98012-936-1
01
1
0710-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98065-044-0
01
1
0710-
49
242
58
49
56
56
58
56
56
49
242
242
58
245
61
58
48
560
49
26
252
450
316
543
174
71
558
357
379
357
209
296
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
0710-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
0710-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
0710-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0710-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
0710-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
0710-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
0710-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0710-
58
SUPPORT; AIR INL DUCT
(B)
1-14119-452-0
01
1
0710-0810
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
0811-
61
BOLT; BRKT,AIR DUCT
M8X20 FLANGE
8-98061-920-0
02
1
0710-0807
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0808-
71
CLIP; AIR DUCT
ID=130-165
1-09707-201-0
01
1
0710-0810
71
CLIP; AIR DUCT
ID=140-160
8-98133-368-0
01
1
0811-
174
SENSOR; AIR FLOW CONT
8-97601-967-0
01
1
0710-
209
BRACKET; ACL
8-98021-995-1
01
1
0710-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
0710-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
0710-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
0710-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
0710-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
0710-
252
DUCT; AIR INT
8-98021-989-1
01
1
0710-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0710-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
0908-
357
CLIP; RUBBER HOSE
ID=26
1-09707-091-0
02
1
0710-
379
HOSE; RUBBER
8-98077-470-0
01
1
0710-
450
CLAMP; HOSE
9-09915-504-1
01
1
0710-
543
SCREW; SENSOR
M4X10 W/LK&PL WASHER
0-36230-410-0
02
1
0710-
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
03
1
0710-0711
558
CLIP; AIR FLOW SENSOR
L=600
1-09707-107-1
01
1
0712-
558
CLIP; AIR FLOW SENSOR
L=250
5-09707-030-1
02
1
0712-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
0710-
