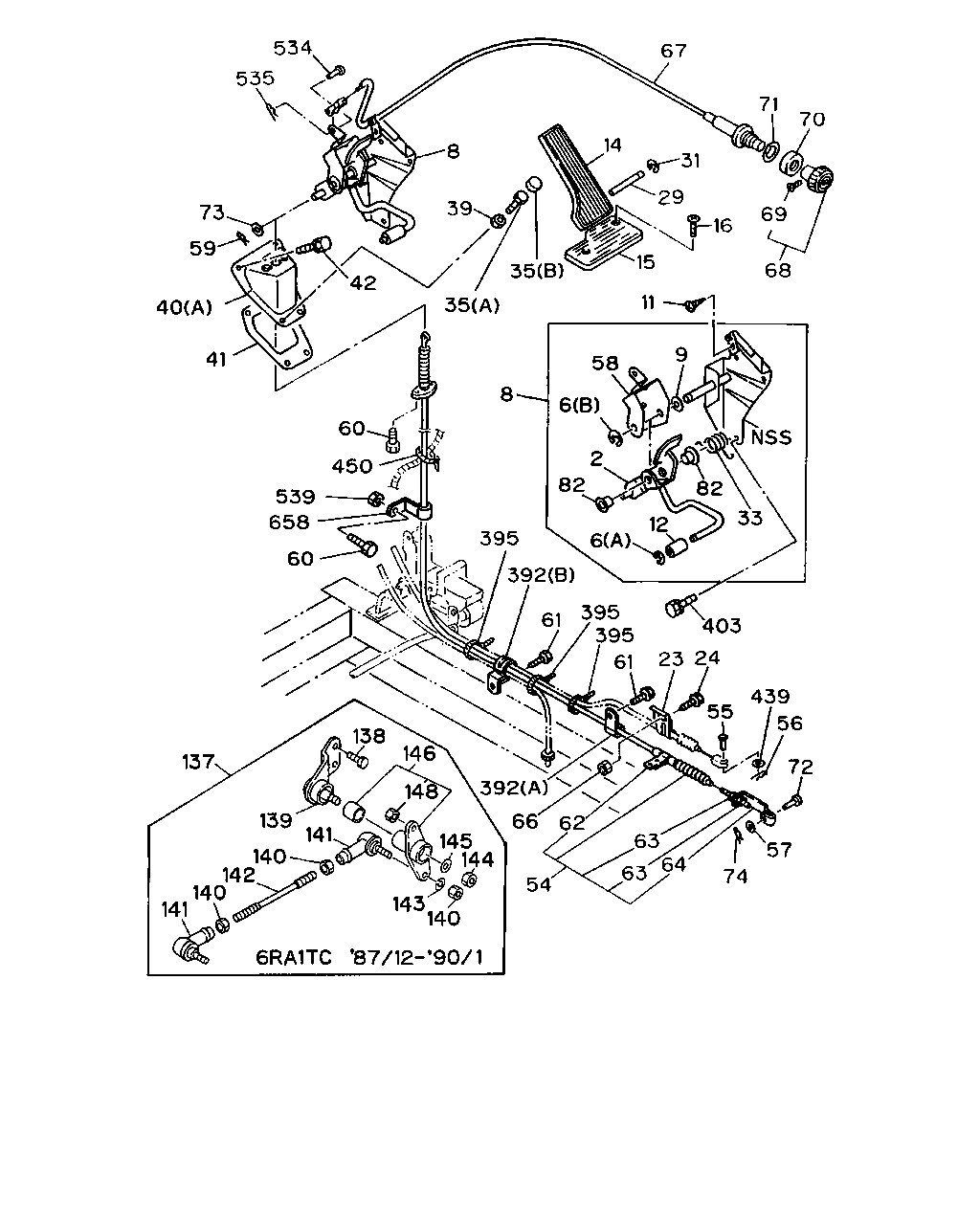

1-01A — ACCELERATOR PEDAL AND CONTROL (#464) — 80 parça

67 71 70 69 68 16 29 31 14 15 11 9 82 33 58 6 2 8 82 12 6 395 392 395 61 395 61 403 23 24 55 439 56 72 57 74 64 63 63 54 62 66 392 146 138 148 145 144 140 143 141 139 140 142 140 141 137 60 658 539 450 60 42 41 40 59 73 535 534 8 39 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	LEVER; ENG CONT	1-73997-904-1	01	1	8712-	●	●	●
6	RING; SNAP,LINK TO LINK (A) ID=6	9-09185-406-0	01	1	8712-	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=9	9-09185-409-0	01	1	8712-9306	●	●	●
6	RING; SNAP,LINK TO LINK (B) ID=8	9-09185-408-0	01	1	9307-		●
8	LINK ASM; ENG CONT	1-23240-067-2	01	1	8712-	●	●	●
9	WASHER; PL,CONT LINK ID=10.5 OD=16	9-09855-178-0	01	1	8712-	●	●	●
11	SCREW; IDLE CONT CABLE M5X12 W/LK&PL WASHER	9-03920-512-0	01	1	8712-	●	●	●
12	ROLLER; ENG CONT LEVER	1-09989-007-0	01	1	8712-	●	●	●
14	PAD; PEDAL,ACCEL	1-23241-021-0	01	1	8712-	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73997-675-3	01	1	8712-9305	●	●	●
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	9306-	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24	1-09981-421-0	02	1	8712-8911	●	●	●
16	SCREW; HEEL STAND,ACCEL PEDAL M6X24 W/PL WASHER	1-09981-504-0	02	1	8912-	●	●	●
23	BRACKET; FUEL CUT CABLE	1-14319-082-0	01	1	8712-	●	●	●
24	BOLT; BRKT	5-09030-026-0	01	1	8712-	●	●	●
29	SHAFT; ACCEL PEDAL	1-23124-001-0	01	1	8712-9001	●	●	●
29	SHAFT; ACCEL PEDAL OD=8 L=74	1-09987-206-0	01	1	9002-	●	●
31	RING; SNAP,ACCEL PEDAL ID=6	9-09185-406-0	01	1	8712-	●	●	●
33	SPRING; IDLING CONT LEVER	1-73997-906-0	01	1	8712-	●	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-412-0	01	1	8712-9001	●	●	●
35	STOPPER; ACCEL PEDAL (B) RUBBER	1-23249-009-0	01	1	8712-	●	●	●
35	STOPPER; ACCEL PEDAL (A)	1-09980-582-0	01	1	9002-	●	●
39	NUT; ACCEL PEDAL STOPPER M8 FLANGE	8-94279-060-0	01	1	8712-	●	●	●
40	BRACKET; ENG CONT CABLE (A)	1-73997-632-1	01	1	8712-	●	●	●
41	SEAL; BRKT,ENG CONT CABLE	1-73998-451-0	01	1	8712-	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●	●
42	BOLT; BRKT,ENG CONT CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
54	CABLE; ENG CONT L=2495	1-23210-866-2	01	1	8712-	●	●	●
55	PIN; JAW JOINT	9-08223-511-0	01	1	8712-8903	●	●	●
55	PIN; JAW JOINT L=11	1-09744-102-0	01	1	8904-	●	●	●
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	8712-	●	●	●
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	8712-	●	●	●
58	LEVER; IDLING CONT	1-73997-905-1	01	1	8712-	●	●	●
59	PIN; SNAP,ENG CONT CABLE L=27.7	1-09747-005-0	01	1	8712-	●	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9302-	●	●
60	BOLT; CABLE M6X16 W/LK&PL WASHER	1-09980-586-0	02	1	9302-	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	8712-9001	●	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	9-01900-816-0	01	1	9002-9204	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 W/LK WASHER	0-50040-816-0	01	1	9205-9302	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	01	1	9303-9306	●	●
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X16 FLANGE	0-28080-816-0	03	1	9307-		●
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	8712-	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	8712-9001	●	●	●
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9002-	●	●
64	BRACKET; ENG CONT CABLE	1-09768-018-1	01	1	8712-	●	●	●
66	NUT; BRKT M8	9-09110-408-0	01	1	9002-	●	●	●
67	CABLE ASM; IDLE CONT L=422	1-73997-647-0	01	1	8712-	●	●	●
68	KNOB; IDLE CONT W/SCREW	8-94134-716-0	01	1	8712-	●	●	●
69	SCREW; KNOB,IDLE CONT	5-09120-004-0	01	1	8712-	●	●	●
70	NUT; CONT CABLE M18 RING NUT	5-09409-004-1	01	1	8712-	●	●	●
71	WASHER; WAVE,CONT CABLE ID=18.5	5-09550-005-0	01	1	8712-	●	●	●
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	8712-	●	●	●
73	WASHER; PL,ACCEL CONT CABLE ID=8.4	9-09160-508-0	01	1	8712-	●	●	●
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	8712-	●	●	●
82	BUSHING; ENG CONT LVR	8-94206-569-0	02	1	8712-	●	●	●
137	ROD ASM; LINK,FUEL CUT	1-23310-465-0	01	1	8712-9001	●
138	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	8712-9001	●
139	BRACKET; LINK ROD	1-23335-226-0	01	1	8712-9001	●
140	NUT; BALL JOINT M5	9-99110-405-0	03	1	8712-9001	●
141	JOINT ASM; BALL RH THREAD	1-09760-002-0	02	1	8712-9001	●
142	ROD; LINK,SHAFT TO LEVER	9-08400-532-0	01	1	8712-9001	●
143	WASHER; LK,BALL JOINT,LINK ROD ID=5.1	9-09150-505-0	02	1	8712-9001	●
144	NUT; LEVER M10	9-09110-410-0	01	1	8712-9001	●
145	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	8712-9001	●
146	LEVER; LINK ROD	1-23311-267-0	01	1	8712-9001	●
148	NUT; BALL JOINT,LINK ROD M5	9-99110-405-0	01	1	8712-9001	●
392	CLIP; ACCEL CONT CABLE (A) ID=9	9-09524-825-0	01	1	8712-9306	●	●	●
392	CLIP; ACCEL CONT CABLE (A) ID=9 L=20	9-09524-835-0	01	1	9307-		●
392	CLIP; ACCEL CONT CABLE NYLON TUBE AIR PIPING<Z29> (A) ID=9 L=20	9-09524-835-0	01	1	9307-		●
392	CLIP; ACCEL CONT CABLE EXC. NYLON TUBE AIR PIPING<Z29> (B) ID=19 L=24 H=21	1-09700-109-1	01	1	9307-		●
395	CLIP; BAND,ACCEL CONT CABLE L=100	5-09707-036-0	03	1	8712-	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-497-0	03	1	8712-9301	●	●	●
403	BOLT; BRKT,ACCEL PEDAL M6X16 W/LK&PL WASHER	1-09980-586-0	03	1	9302-	●	●
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	8712-	●	●	●
450	CLIP; BAND L=140	5-09707-031-0	01	1	9008-	●	●
534	PIN; JAW JOINT,IDLING CONT CABLE	1-09987-034-1	01	1	8712-	●	●	●
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	8712-	●	●	●
539	NUT; CLIP M6 FLANGE	1-09984-141-0	01	1	8712-	●	●	●
658	CLIP; ENG CONT CABLE ID=13 H=24 L=20	9-09527-012-0	02	1	8712-	●	●	●
