Isuzu WW
▶
TRUCKS
▶
FVM
▶
11423 - FVM(AUST)EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#46398) — 49 parça
◀

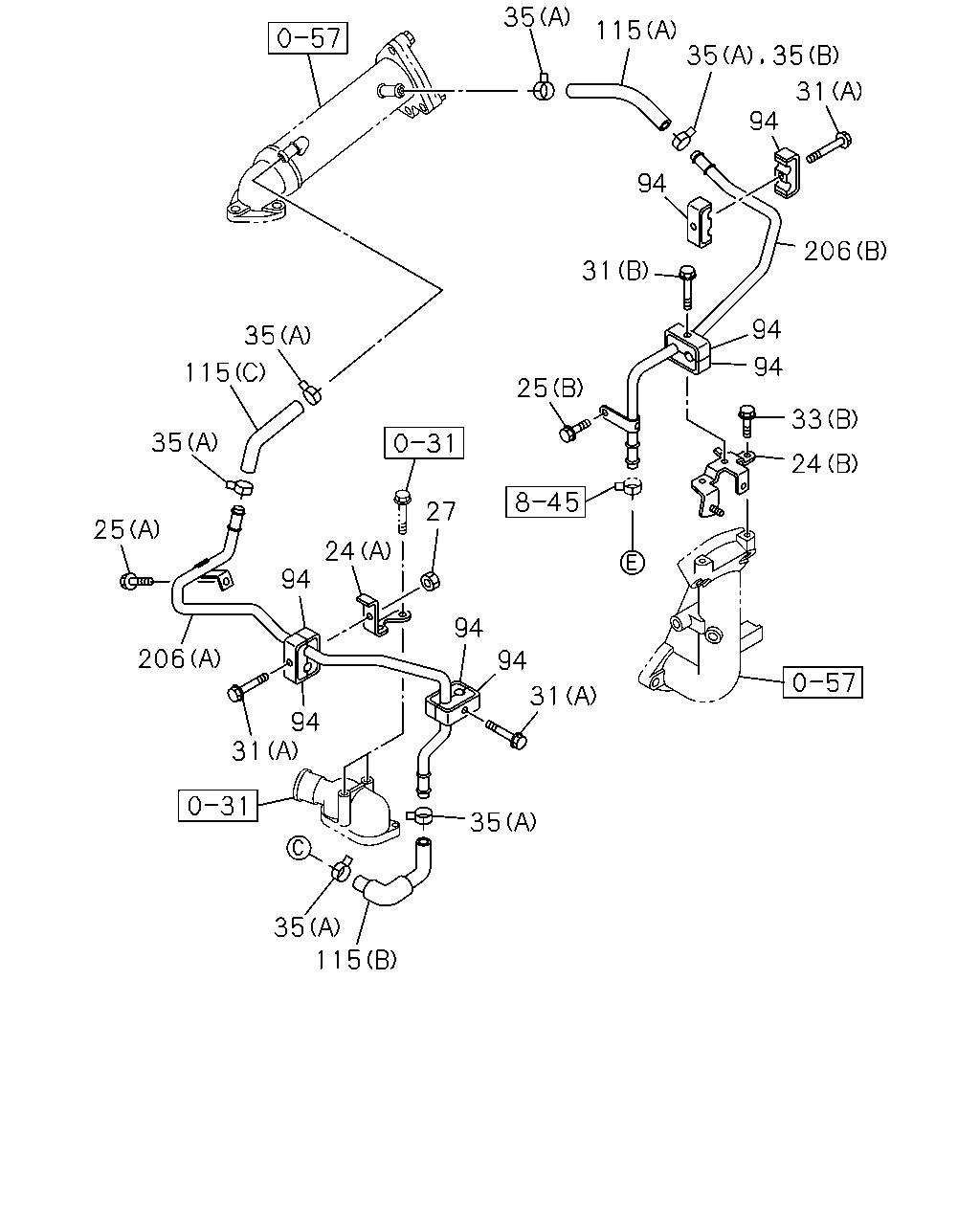

[032A] EGR COOLER WATER PIPE AND HOSE (20 parça)

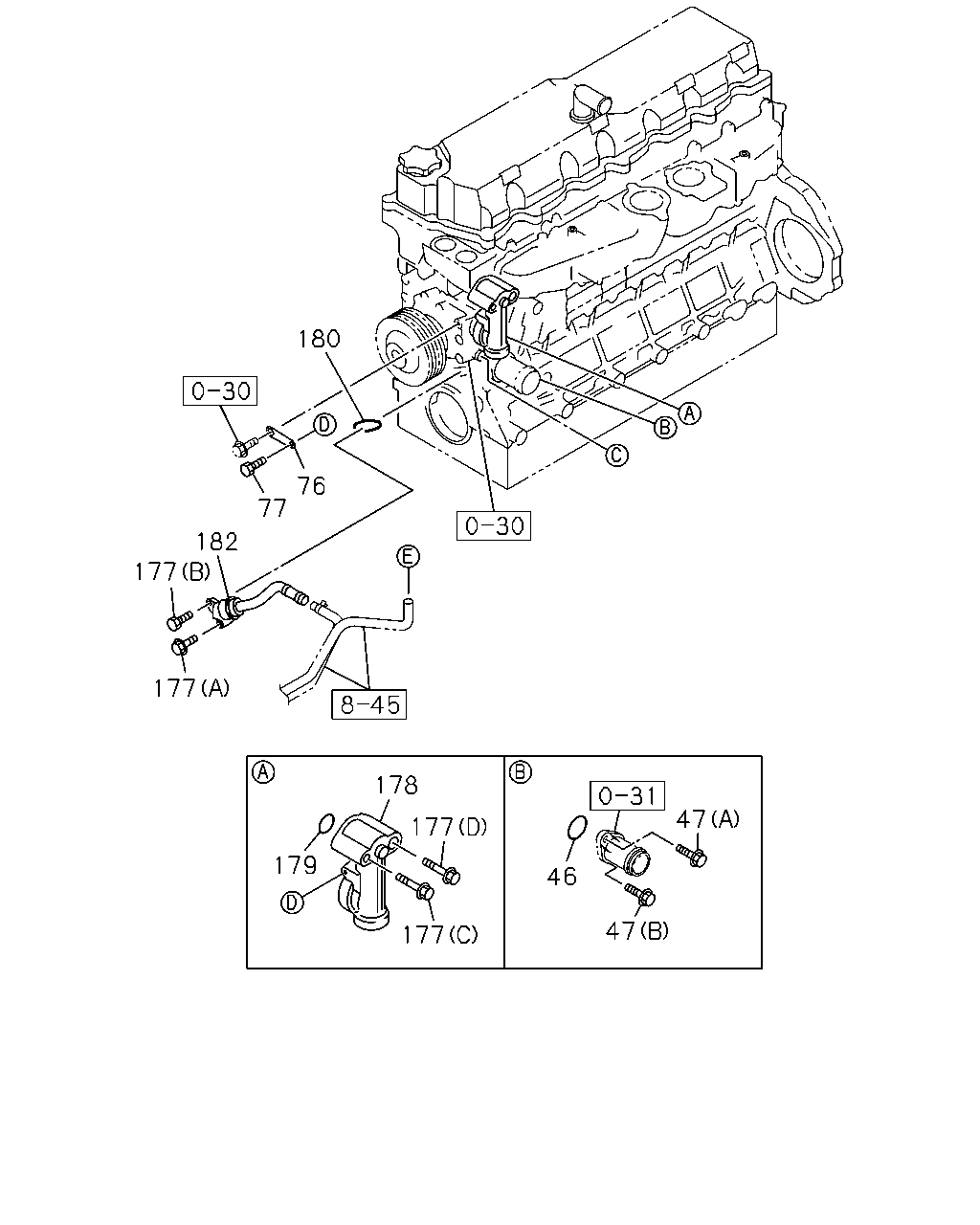

[032A] WATER DUCT (14 parça)

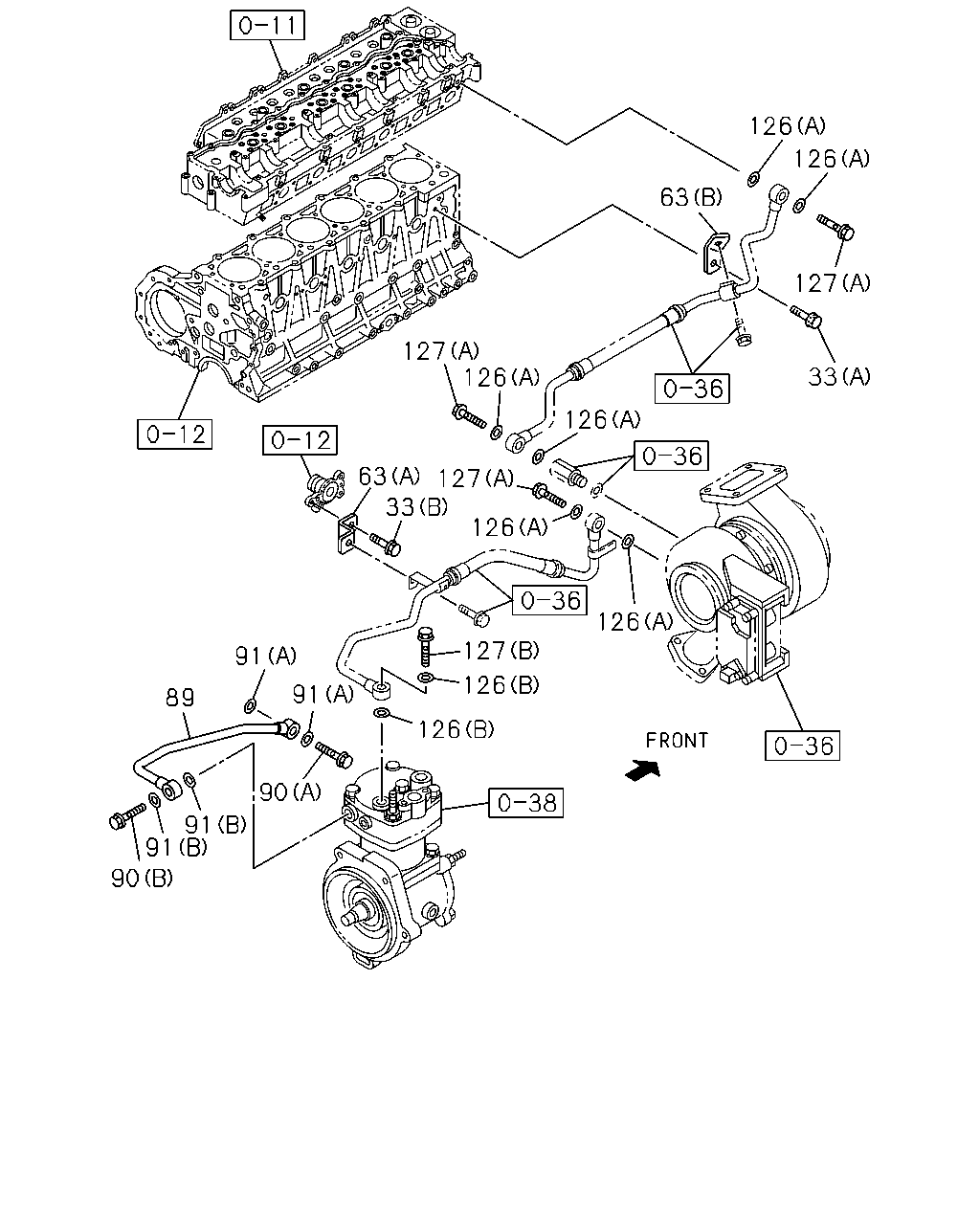

[032A] TURBOCHARGER AND AIR CMPR PIPING (15 parça)
▶
35
115
35
35
31
94
94
206
31
94
35
94
115
25
33
35
24
27
25
24
94
94
206
94
31
94
31
35
35
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BRACKET; WATER PIPE
(A)
8-98000-557-2
01
1
0710-
24
BRACKET; WATER PIPE
(B)
8-98051-626-1
01
1
0710-
25
BOLT; WATER PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
0710-
25
BOLT; WATER PIPE
(B) M8X20 FLANGE
0-28650-820-0
01
1
0710-
27
NUT; PIPE FIX
M6 FLANGE
0-91180-106-0
01
1
0710-
31
BOLT; CLIP
(B) M6X45 FLANGE
0-28050-645-0
01
1
0710-
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
02
1
0710-1106
31
BOLT; CLIP
(A) M6X40 FLANGE
0-28650-640-0
03
1
1107-
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0710-
33
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
03
1
0710-
35
CLIP; RUBBER HOSE
(A) ID=20
1-09707-084-1
05
1
0710-0810
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
05
1
0811-1104
35
CLIP; RUBBER HOSE
(A) ID=20
8-98127-648-0
06
1
1105-
35
CLIP; RUBBER HOSE
(B) ID=20.8
8-94125-862-1
01
1
0710-0810
94
CLIP; WATER PIPE
8-97605-129-1
08
1
0710-
115
HOSE; RUBBER
(A) L=320 SERVICED BY L=3000
0-03566-300-0
01
1
0710-
115
HOSE; RUBBER
(B)
8-97606-735-1
01
1
0710-
115
HOSE; RUBBER
(C)
8-98043-192-0
01
1
0710-
206
PIPE; WATER,EGR COOLER
(A)
8-97604-928-2
01
1
0710-
206
PIPE; WATER,EGR COOLER
(B)
8-98000-480-1
01
1
0710-
180
76
77
182
177
177
178
47
177
179
46
47
177
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3
8-94396-680-2
01
1
0710-
47
BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE
0-28050-845-0
01
1
0710-
47
BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE
0-28650-825-0
01
1
0710-
76
BRACKET; WATER DUCT,PUMP
8-94394-784-0
01
1
0710-
77
BOLT; BRKT,WATER DUCT
M8X50 FLANGE
0-28050-850-0
01
1
0710-
177
BOLT; WATER DUCT
(C) M8X80 FLANGE
0-28050-880-0
01
1
0710-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0710-
177
BOLT; WATER DUCT
(A) M8X65 FLANGE
1-09044-072-1
01
1
0710-
177
BOLT; WATER DUCT
(D) M16X75 FLANGE
8-94397-360-1
01
1
0710-
178
DUCT; WATER,BYPASS
8-94396-627-3
01
1
0710-
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-94396-679-0
01
1
0710-1408
179
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2
8-98276-756-0
01
1
1409-
180
GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94396-720-1
01
1
0710-
182
DUCT; WATER,HTR
8-94394-348-5
01
1
0710-
126
126
63
127
127
126
33
126
63
127
33
126
126
127
91
126
91
89
126
90
91
91
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
BOLT; BRKT
(A) M8X16 FLANGE
0-28050-816-0
01
1
0710-
33
BOLT; BRKT
(B) M8X20 FLANGE
0-28650-820-0
03
1
0710-
63
BRACKET; WATER PIPE
(B)
8-98046-784-0
01
1
0710-
63
BRACKET; WATER PIPE
(A)
8-98153-457-0
01
1
1002-1004
89
PIPE; WATER,AIR CMPR,IN
8-97610-086-0
01
1
0710-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT
1-09675-193-0
01
1
0710-
90
BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28
8-94383-489-0
01
1
0710-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
1-09630-085-0
02
1
0710-1312
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2
1-09630-086-0
02
1
0710-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
1-09630-085-0
06
1
0710-1312
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2
8-98251-345-0
06
1
1401-
126
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2
1-09630-086-0
02
1
0710-
127
BOLT; EYE
(A) M14X27 EYE-BOLT
1-09675-193-0
03
1
0710-
127
BOLT; EYE
(B) M16X28
8-94383-489-0
01
1
0710-
