0-13 — OIL PAN AND LEVEL GAUGE
(#46388) — 21 parça
◀

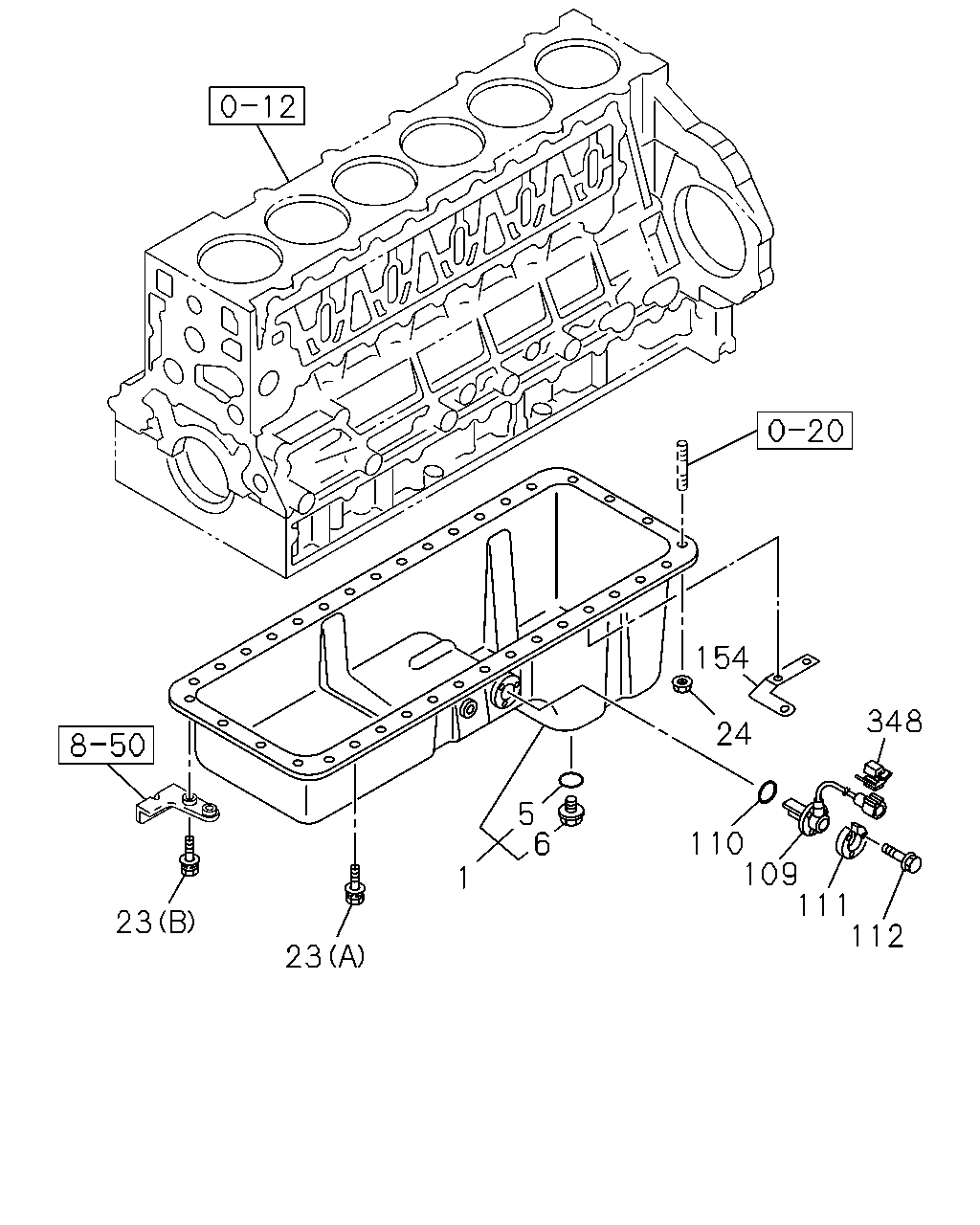

[013A] OIL PAN (12 parça)

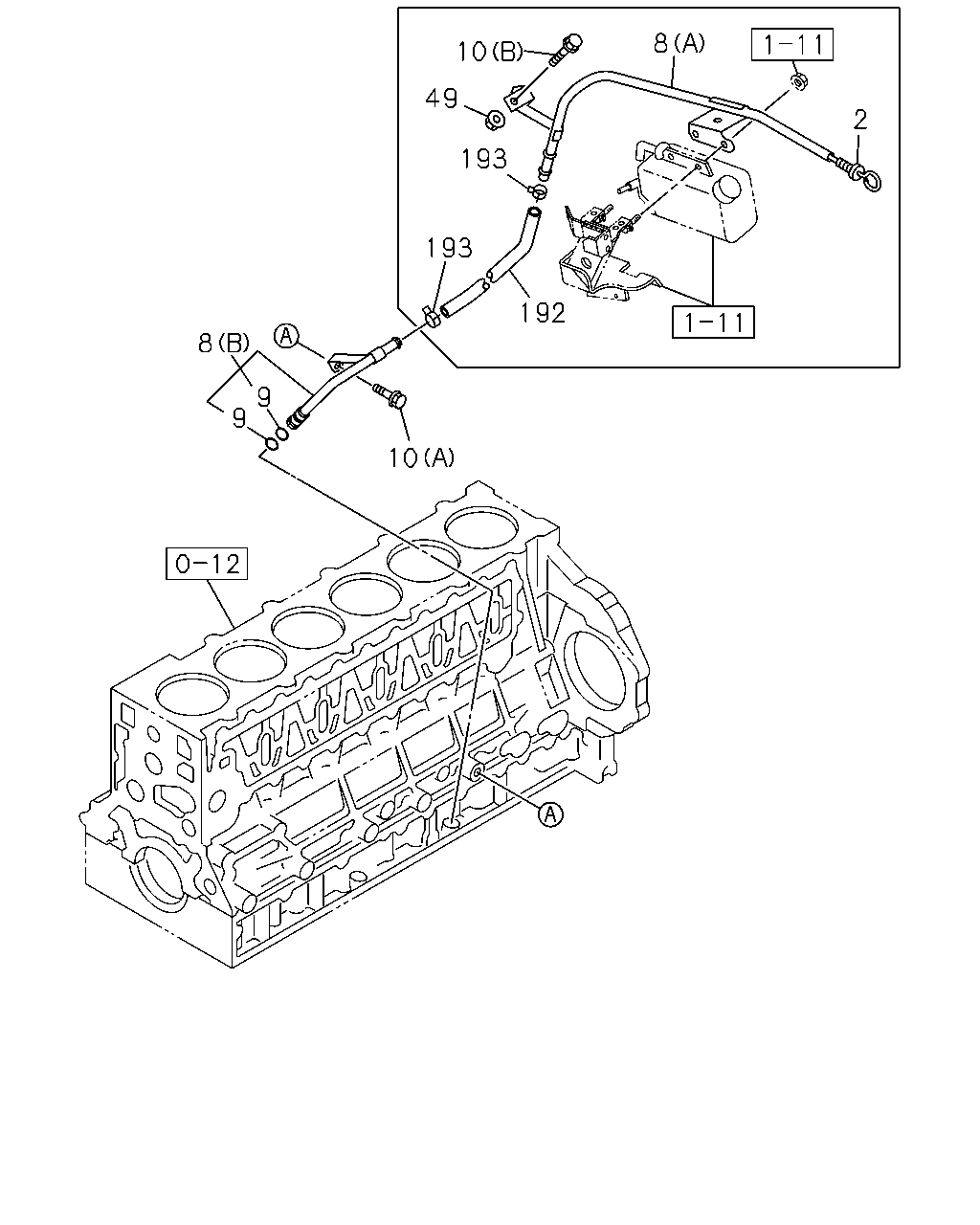

[013A] OIL LEVEL GAUGE (9 parça)
▶
154
348
24
5
6
110
109
111
112
1
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98061-544-0
01
1
0710-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4
1-09623-057-0
01
1
0710-
6
PLUG; OIL DRAIN
9-09662-012-0
01
1
0710-
23
BOLT; OIL PAN
(A) M8X18 FLANGE
0-28080-818-0
28
1
0710-
23
BOLT; OIL PAN
(B) M8X28 FLANGE
8-97329-626-0
02
1
0710-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
04
1
0710-
109
SWITCH; OIL LEVEL
8-97601-121-0
01
1
0710-
110
GASKET; SW,OIL LEVEL
ID=27
8-98056-488-0
01
1
0710-
111
SPACER; SW,OIL LEVEL
5-11369-072-0
01
1
0710-
112
BOLT; SW,OIL LEVEL
M6X25 FLANGE
0-28050-625-0
03
1
0710-
154
BRACKET; CLIP,ENG HARNESS
8-98064-103-0
01
1
0710-
348
CONNECTOR
OD=9 H=6
1-09709-178-0
01
1
0710-
8
10
49
2
193
193
192
8
9
9
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98092-600-0
01
1
0710-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98063-554-0
01
1
0710-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98084-773-0
01
1
0710-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0710-
10
BOLT; GUIDE TUBE
(A) M10X35 FLANGE
0-28151-035-0
01
1
0710-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE
0-28650-820-0
01
1
0710-
49
NUT; GUIDE TUBE
M8 FLANGE
0-91180-108-0
01
1
0710-
192
HOSE; GUIDE TUBE
L=463
8-98054-844-1
01
1
0710-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
0710-
