◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11423 - FVM(AUST)EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#46384) — 19 parça

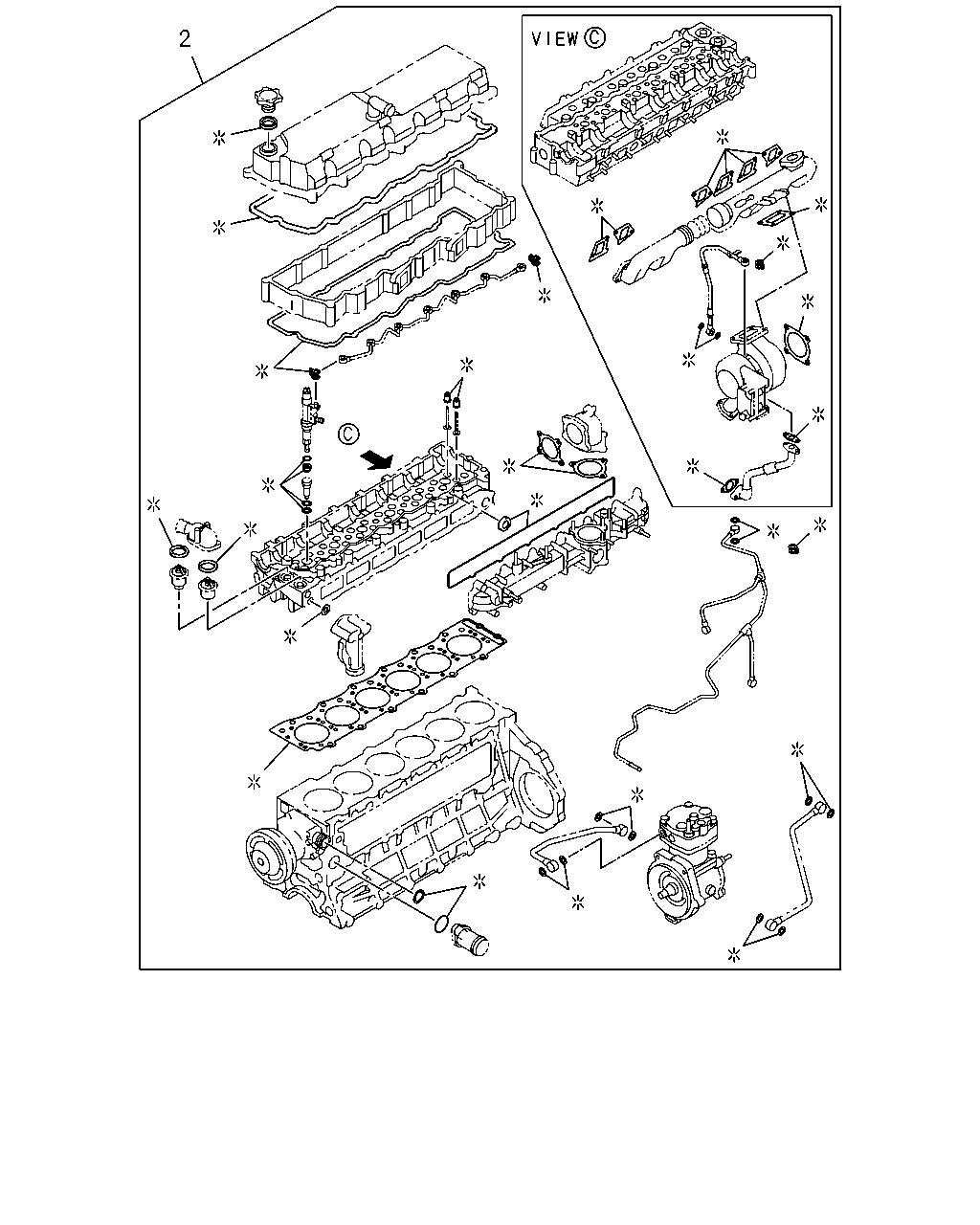

çizim 111016
2
BalonParca AdiParca NoAdetTipApplied Date
2 GASKET SET; ENG HD OVERHAUL 1-87813-251-1 01 1 0710-0907
2 GASKET SET; ENG HD OVERHAUL 1-87813-434-4 01 1 0908-1301
2 GASKET SET; ENG HD OVERHAUL 1-87814-056-0 01 1 1302-1312
2 GASKET SET; ENG HD OVERHAUL 1-87814-274-0 01 1 1401-1408
2 GASKET SET; ENG HD OVERHAUL 1-87814-782-0 01 1 1409-

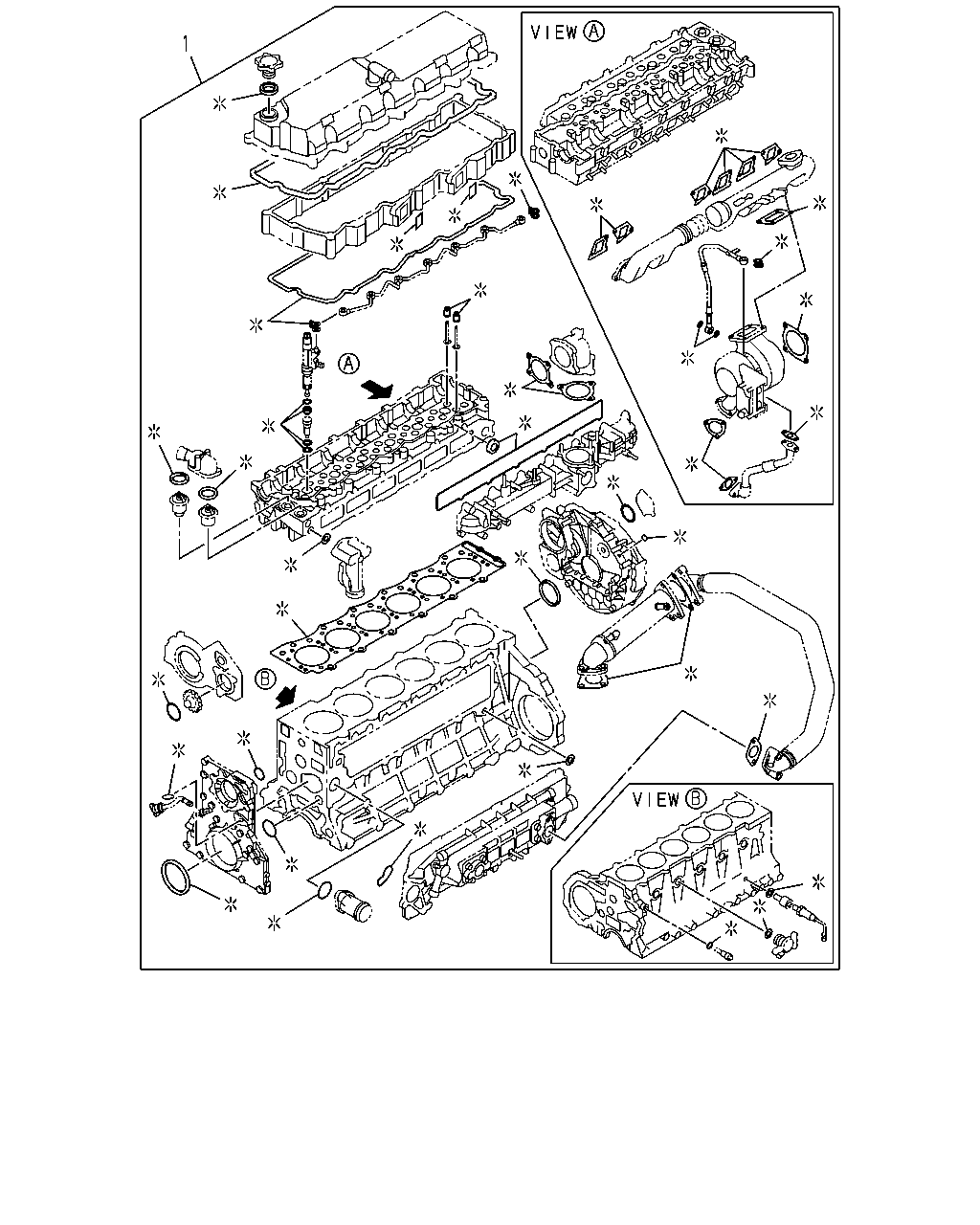

çizim 111018
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-250-3 01 1 0710-0907
1 GASKET SET; ENG OVERHAUL 1-87813-433-0 01 1 0908-0910
1 GASKET SET; ENG OVERHAUL 1-87813-541-3 01 1 0911-1106
1 GASKET SET; ENG OVERHAUL 1-87813-754-0 01 1 1107-1301
1 GASKET SET; ENG OVERHAUL 1-87814-057-0 01 1 1302-1312
1 GASKET SET; ENG OVERHAUL 1-87814-334-0 01 1 1401-1408
1 GASKET SET; ENG OVERHAUL 1-87814-781-0 01 1 1409-

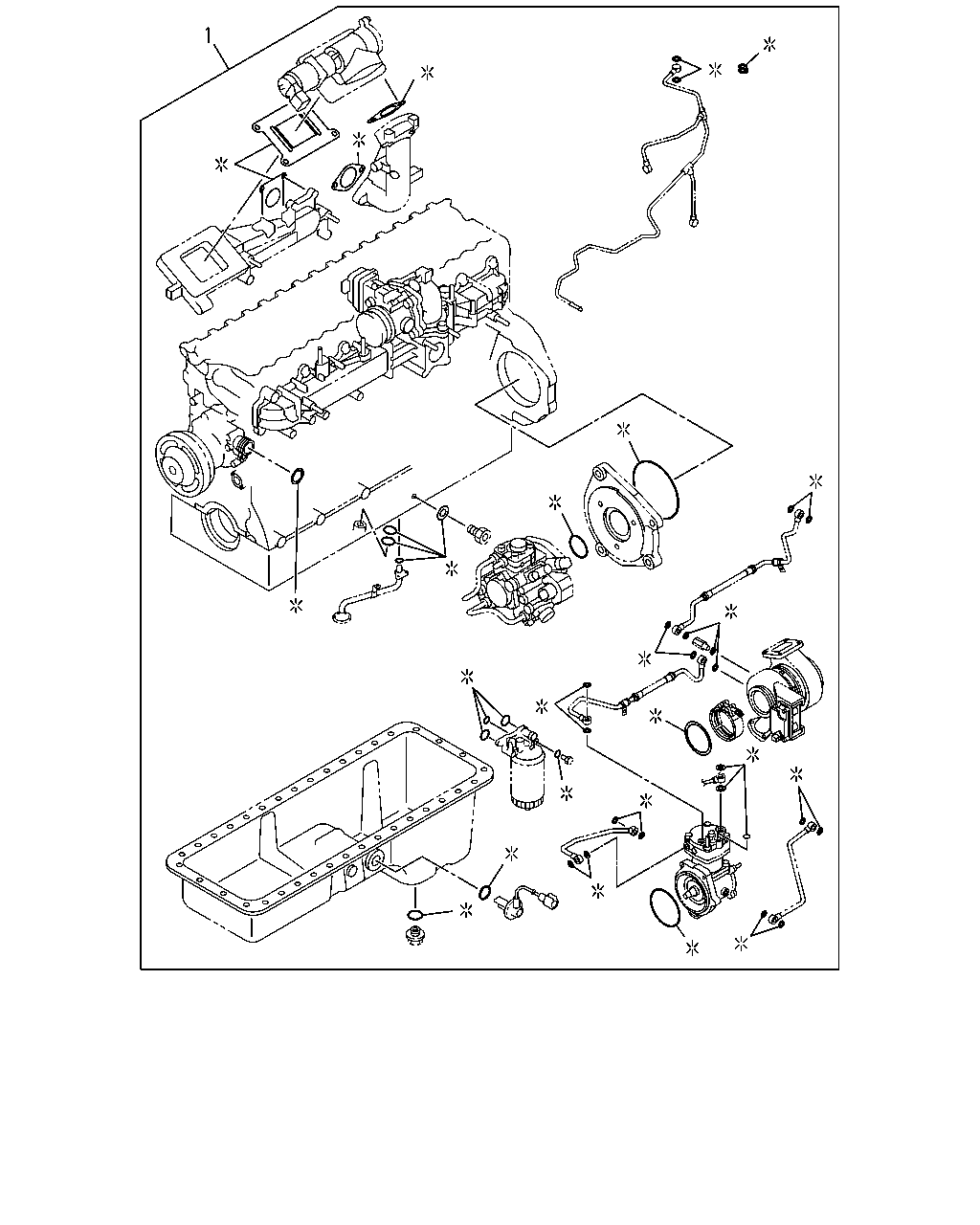

çizim 111025
1
BalonParca AdiParca NoAdetTipApplied Date
1 GASKET SET; ENG OVERHAUL 1-87813-250-3 01 1 0710-0907
1 GASKET SET; ENG OVERHAUL 1-87813-433-0 01 1 0908-0910
1 GASKET SET; ENG OVERHAUL 1-87813-541-3 01 1 0911-1106
1 GASKET SET; ENG OVERHAUL 1-87813-754-0 01 1 1107-1301
1 GASKET SET; ENG OVERHAUL 1-87814-057-0 01 1 1302-1312
1 GASKET SET; ENG OVERHAUL 1-87814-334-0 01 1 1401-1408
1 GASKET SET; ENG OVERHAUL 1-87814-781-0 01 1 1409-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
