◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11422 - FTS(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#46376) — 16 parça

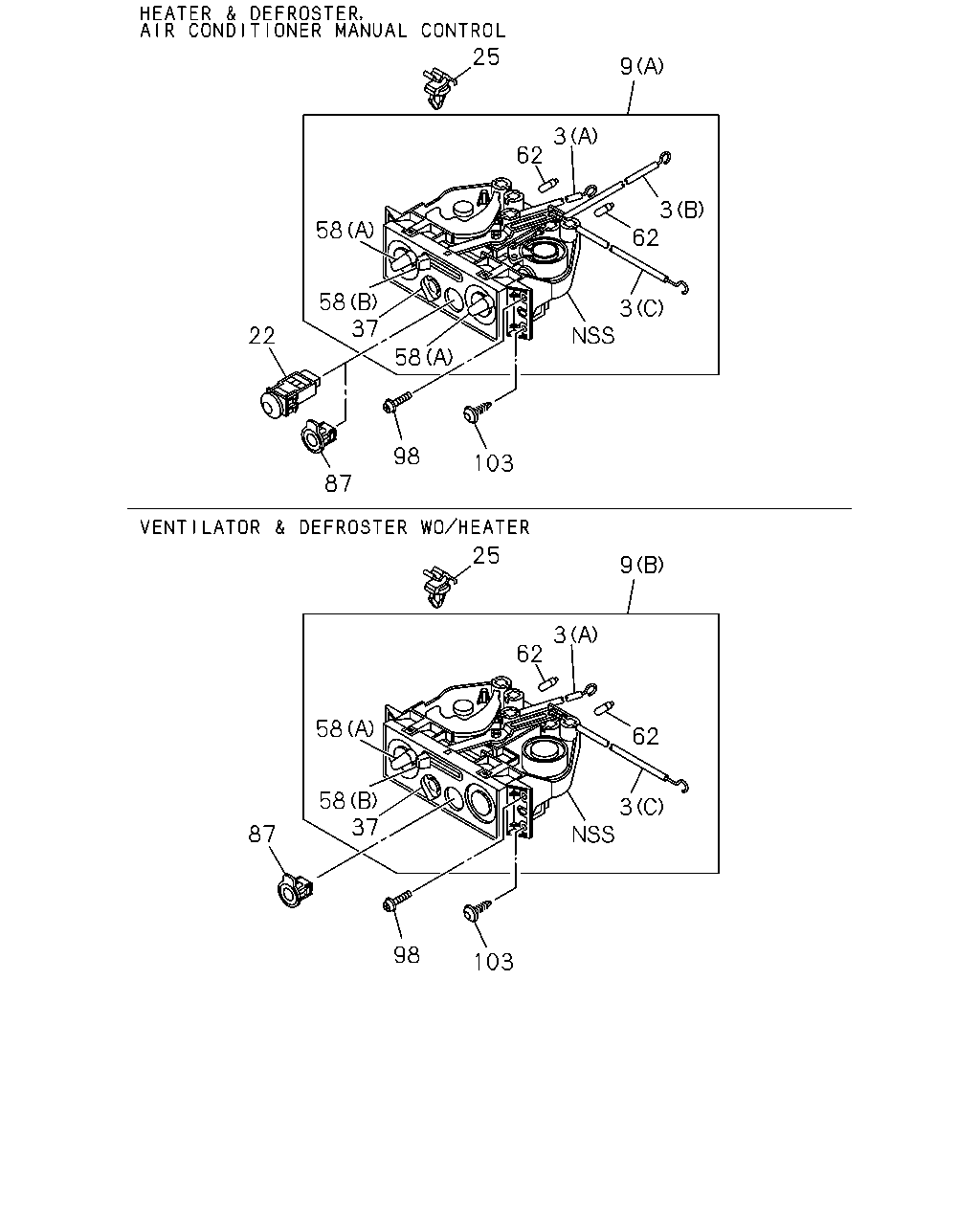

çizim 110953
25 9 3 62 3 62 58 58 37 58 3 22 98 103 87 25 9 3 62 58 62 58 37 3 87 98 103
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) A/M 		8-98065-644-0 01 1 0812-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) R/F 		8-98063-316-2 01 1 0812-
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) MODE 		8-98065-643-0 01 1 0812-
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98062-747-2 01 1 0812-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98062-805-2 01 1 0812-
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONTROL(C60) 		8-98021-982-0 01 1 0812-
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8 		8-94128-483-0 02 1 0812-1001
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) ID=4.8 		8-94128-483-0 03 1 0812-
37 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98037-368-0 01 1 0812-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-98037-369-0 02 1 0812-
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98037-370-0 01 1 0812-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98037-369-0 01 1 0812-
62 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 24V 1.1W 		8-98037-371-0 02 1 0812-
87 CAP; A/C SWITCH
HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98006-089-0 01 1 0812-
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0812-
103 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 0812-
