Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-50 - AIR CONDITIONING SYSTEM; FRONT
▶

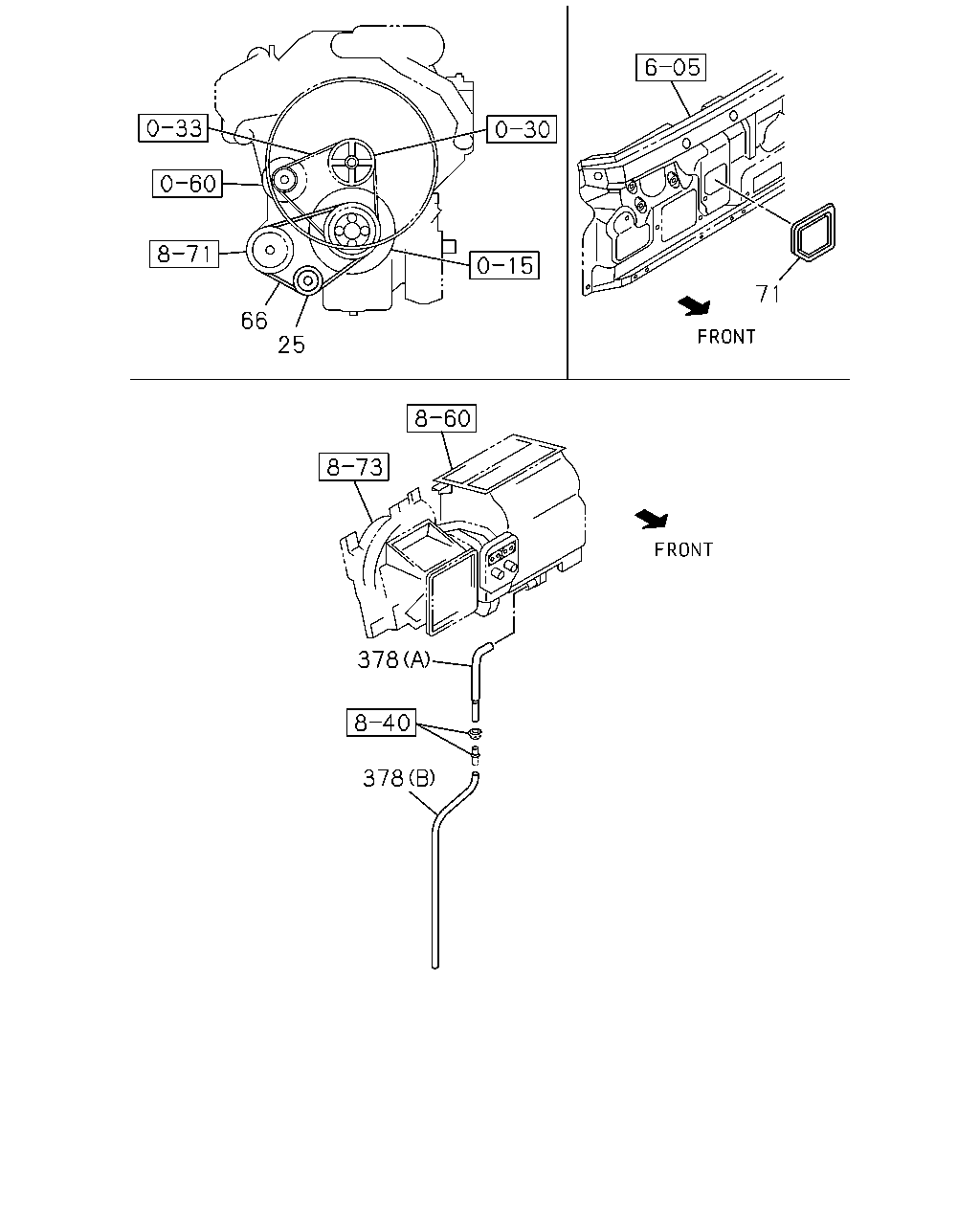

8-50 — AIR CONDITIONING SYSTEM; FRONT
(#46373) — 21 parça
◀
[850A] NO.2 (8 parça)
[850A] NO.1 (13 parça)
▶
71
66
25
378
378
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-079-0
01
1
0812-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) BEST VALUE PARTS
1-87610-104-0
01
1
0812-
66
BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=1114
8-97605-102-0
01
1
0812-
71
COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)
8-98017-235-1
01
1
0812-1301
71
COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
8-98017-235-1
01
1
1302-
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98041-759-0
01
1
0812-1111
378
HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98204-846-0
01
1
1112-
378
HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98062-954-0
01
1
0812-
222
14
529
25
131
112
25
31
29
27
29
34
33
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
BOLT; CMPR
AIR CONDITIONER MANUAL CONTROL(C60) M8X78 W/LK WASHER
5-09000-228-1
04
1
0812-
25
PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-079-0
01
1
0812-
27
PULLEY; IDLE,A/C
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-323-0
01
1
0812-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-97605-329-0
01
1
0812-
29
COVER; DUST,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-97605-330-0
01
1
0812-
30
COLLAR; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-328-0
01
1
0812-
31
BOLT; ADJ,IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-325-0
01
1
0812-
33
NUT; IDLER PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-326-0
01
1
0812-
34
SHAFT; IDLE PULLEY
AIR CONDITIONER MANUAL CONTROL(C60)
8-97605-327-0
01
1
0812-
112
BOLT; STAY
M8X16 FLANGE
0-28050-816-0
02
1
0812-
131
STAY; CMPR BRKT
8-97601-869-1
01
1
0812-
222
GASKET; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) ID=8.2
8-94312-733-0
02
1
0812-
529
SPACER
AIR CONDITIONER MANUAL CONTROL(C60)
1-83573-271-0
01
1
0812-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
