Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#46366) — 260 parça

127 304 516 304 304 139 304 38 139 139 313 139 38 313 38 139 516 38 377 386 524 219 294 525 294 47 139 38 386 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0812-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0812-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0812-1201
38	BOLT; CLIP,HARNESS (E) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0812-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0812-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0812-0901
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0812-0901
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0902-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0812-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0812-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0812-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0812-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0812-
139	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	01	1	0812-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0812-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0812-
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0812-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0903-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0812-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0812-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0903-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0812-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	0812-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	1012-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0812-1011
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE	0-28050-816-0	03	1	1012-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1012-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0812-0902
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0812-0902
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0812-0902
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	04	1	0903-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0812-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0812-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0812-
516	BOLT; HARNESS MLD6W M/T(Y2C) (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0812-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0812-
525	NUT; CLIP EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1012-

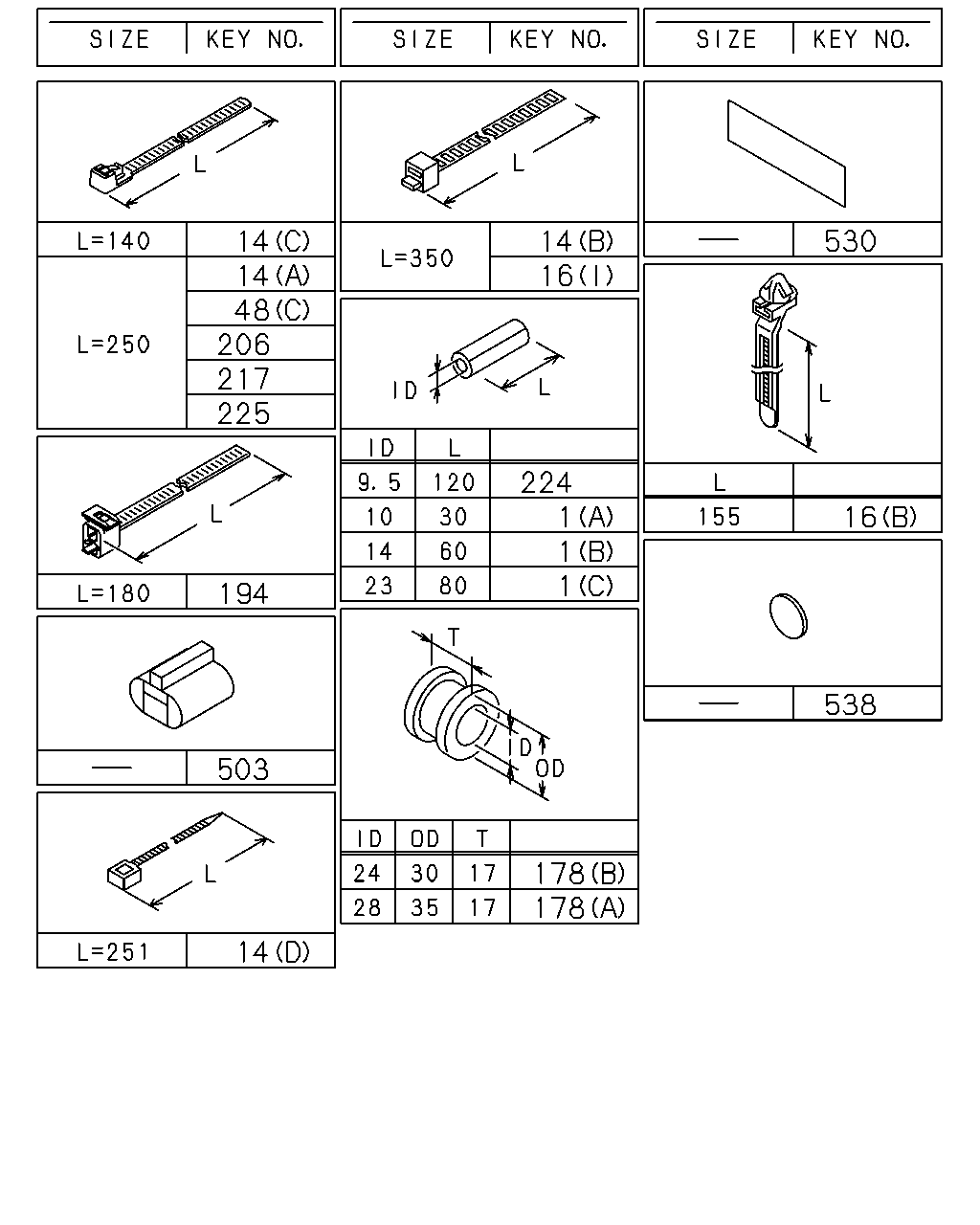

14 14 48 206 217 225 14 16 530 224 1 1 1 16 194 538 503 178 178 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0812-1011
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0812-1011
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0812-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	08	1	0812-1011
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	08	1	1012-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (C) L=140	5-09707-031-1	01	1	0812-0908
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	13	1	1012-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	1012-
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	0812-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	0812-0905
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	02	1	0812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	13	1	1008-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0812-0902
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0903-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-0905
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0812-0905
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
194	CLIP; BAND L=180	1-09707-162-1	01	1	0812-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0812-0901
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0812-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0812-
224	SLEEVE; RUBBER,HARNESS ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	1005-1010
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	0812-0910
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	0812-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60)	1-82690-668-0	01	1	0812-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0812-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0812-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0909-

308 308 308 308 335 312 308 308 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0812-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	0812-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	0812-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	0812-1011
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	1012-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	0812-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0812-
428	BRACKET (B)	1-47475-519-0	01	1	0812-
428	BRACKET (C)	8-98049-870-2	01	1	0812-
428	BRACKET (A)	8-98090-953-1	01	1	0812-

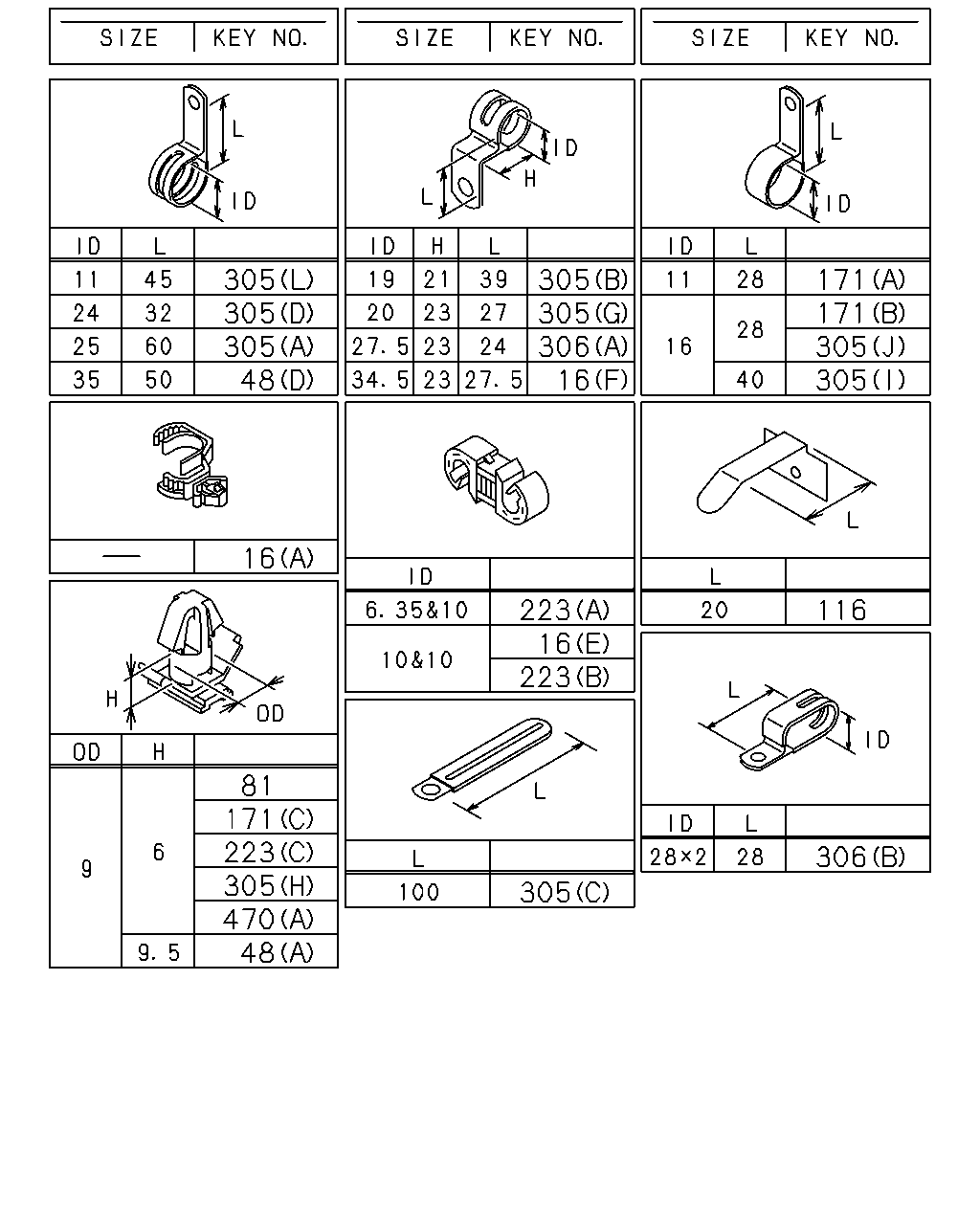

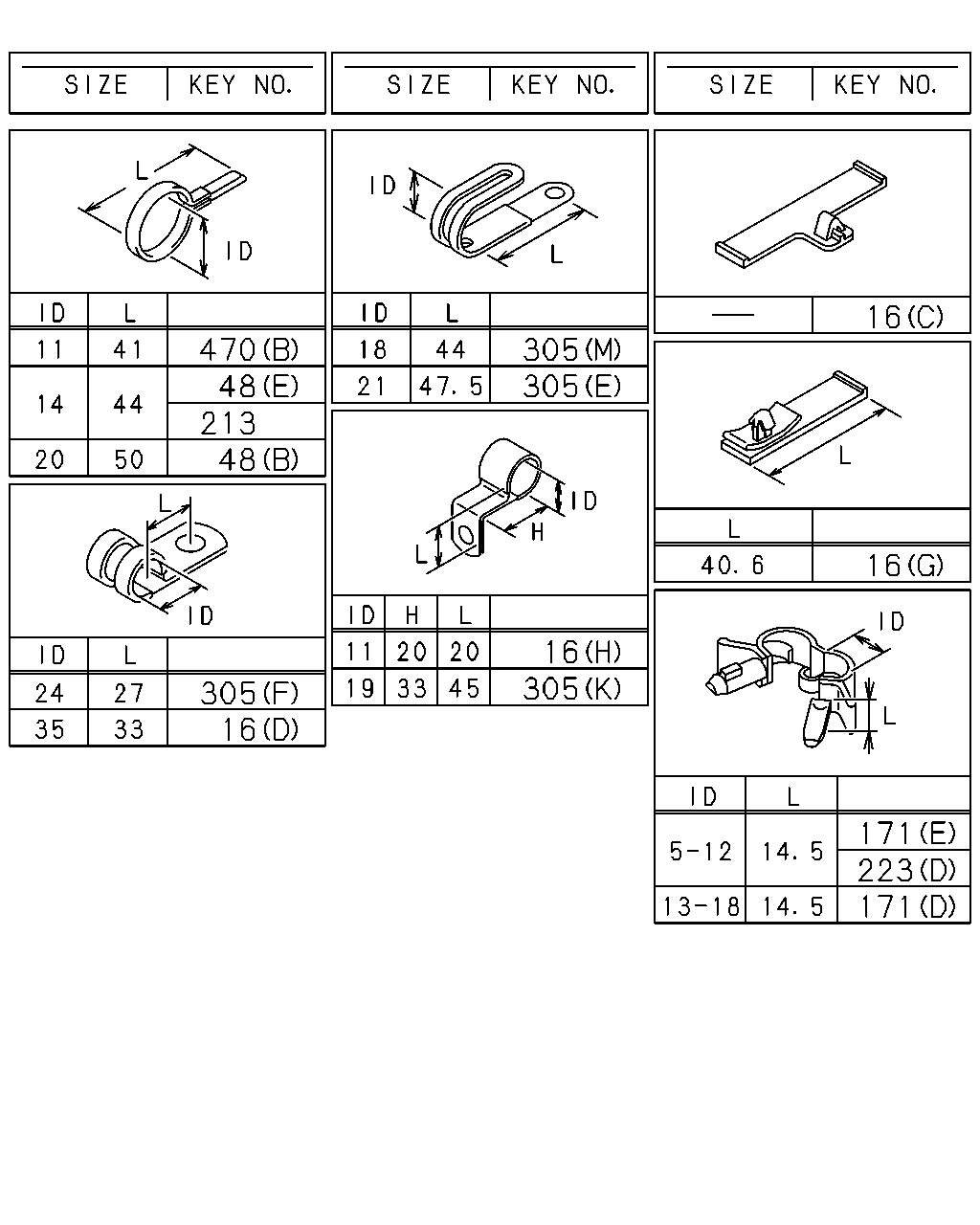

16 470 48 213 48 305 305 16 16 305 305 16 171 223 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	0812-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	0812-0905
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	02	1	0812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	13	1	1008-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0812-
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) OD=9 H=6	1-09709-178-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. EURO3 SPECIFICATION<NT3> (C) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0812-
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. EURO3 SPECIFICATION<NT3> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0812-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0812-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0812-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	0812-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0812-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	0812-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0812-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1012-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0812-
470	CLIP; HARNESS,LICENSE LAMP EURO3 SPECIFICATION<NT3> (B) ID=11 L=41	1-09700-403-0	01	1	1012-

305 305 305 48 305 305 306 16 171 171 305 305 16 223 16 223 116 81 171 223 305 470 48 306 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (F) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (I) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (E) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
16	CLIP; HARNESS (H) ID=11 H=20 L=20	8-98033-780-0	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (G) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
48	CLIP; FRAME HARNESS (D) ID=35 L=50	1-09701-214-0	01	1	0812-
48	CLIP; FRAME HARNESS (A) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	0812-0905
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	02	1	0812-
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0812-0902
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (C) L=250	5-09707-030-1	01	1	1005-
48	CLIP; FRAME HARNESS (E) ID=14 L=44	9-09917-427-0	13	1	1008-
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	0812-0901
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0812-1201
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1202-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (C) OD=9 H=6	1-09709-178-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. EURO3 SPECIFICATION<NT3> (C) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS (A) ID=6.35 & 10.0	1-09709-274-1	01	1	0812-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0812-
223	CLIP; AIR TANK HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1011
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. EURO3 SPECIFICATION<NT3> (D) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0812-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0812-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0812-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (G) ID=20 H=23 L=27	1-09700-861-0	01	1	0812-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0812-
305	CLIP; ENG HARNESS (H) OD=9 H=6	1-09709-178-0	01	1	0812-
305	CLIP; ENG HARNESS (E) ID=21 L=47.5	8-94178-108-0	01	1	0812-1011
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (E) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0812-1310
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	1012-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	1012-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0812-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0812-
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0812-
470	CLIP; HARNESS,LICENSE LAMP EURO3 SPECIFICATION<NT3> (B) ID=11 L=41	1-09700-403-0	01	1	1012-

7 53 53 59 246 59 59 59 59 59 137 137 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0909-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	0812-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-699-0	01	1	0812-
59	BRACKET; FRAME HARNESS (A) L=95	1-82699-085-0	01	1	0812-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	0812-
59	BRACKET; FRAME HARNESS (D)	8-98118-500-0	01	1	0812-
59	BRACKET; FRAME HARNESS (F)	8-98126-562-0	01	1	0812-0906
59	BRACKET; FRAME HARNESS (F)	8-98152-281-0	01	1	0907-
59	BRACKET; FRAME HARNESS (E)	8-97616-305-0	01	1	0812-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0812-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (B)	8-97609-264-2	01	1	0812-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	0907-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0812-0901
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	0812-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0812-
246	BRACKET; CLIP,SPD SENSOR L=95	1-82699-085-0	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
