8-01 — LAMP; FRONT AND FRONT SIDE (#46362) — 80 parça
çizim 110894
1 4 420 23 457 382 5 5 20 408 338 339
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0812-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0812-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-405-0 01 1 0812-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-569-0 01 1 1109-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-404-0 01 1 0812-1108
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-568-0 01 1 1109-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 0812-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-571-0 01 1 1109-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 0812-1108
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98199-570-0 01 1 1109-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0812-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0812-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0812-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0812-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1109-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1109-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0812-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0812-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0812-1208
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1209-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-
çizim 110898
327 437 91 427 331 124 125 127 129
BalonParca AdiParca NoAdetTipApplied Date
91 BULB; SIDE TURN SIGNAL
24V 21W 		8-98051-495-0 02 1 0812-
124 BULB; FRT TURN SIGNAL
24V 21W 		8-98051-496-0 02 1 0812-
125 GASKET; FRT TURN SIGNAL 8-94334-881-0 02 1 0812-
127 LENS; FRT TURN SIGNAL 8-94117-030-0 01 1 0812-
127 LENS; FRT TURN SIGNAL 8-94112-723-0 01 1 0812-
129 SCREW; FRT TURN SIGNAL 0-91190-435-0 04 1 0812-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-181-3 01 1 0812-
327 LAMP ASM; SIDE TURN SIGNAL 8-97410-180-4 01 1 0812-
331 LAMP; TURN SIGNAL 8-98079-896-0 01 1 0812-
331 LAMP; TURN SIGNAL 8-98079-895-0 01 1 0812-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0812-
437 SOCKET; SIDE,TURN 8-98051-390-0 02 1 0812-

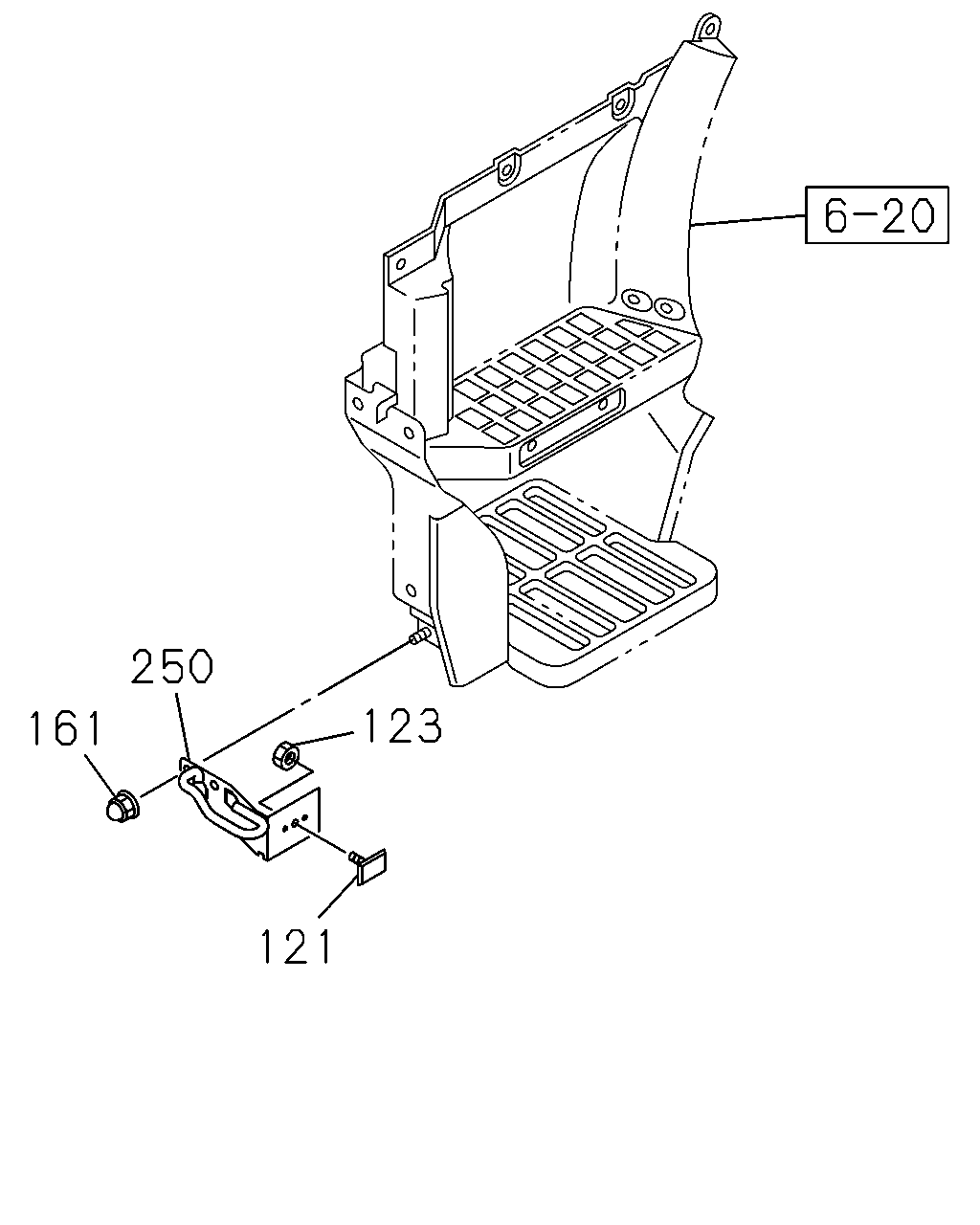

çizim 110901
250 123 161 121
BalonParca AdiParca NoAdetTipApplied Date
121 REFLECTOR; REFLEX 1-82290-066-0 02 1 0812-
123 NUT; REFLECTOR
M6 FLANGE 		0-91180-106-0 02 1 0812-
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-97372-242-0 04 1 0812-1312
161 NUT; BRKT
M8 CAP NUT FLANGE 		8-98261-347-0 04 1 1401-
250 BRACKET ASM 8-98070-243-1 01 1 0812-
250 BRACKET ASM 8-98070-242-1 01 1 0812-

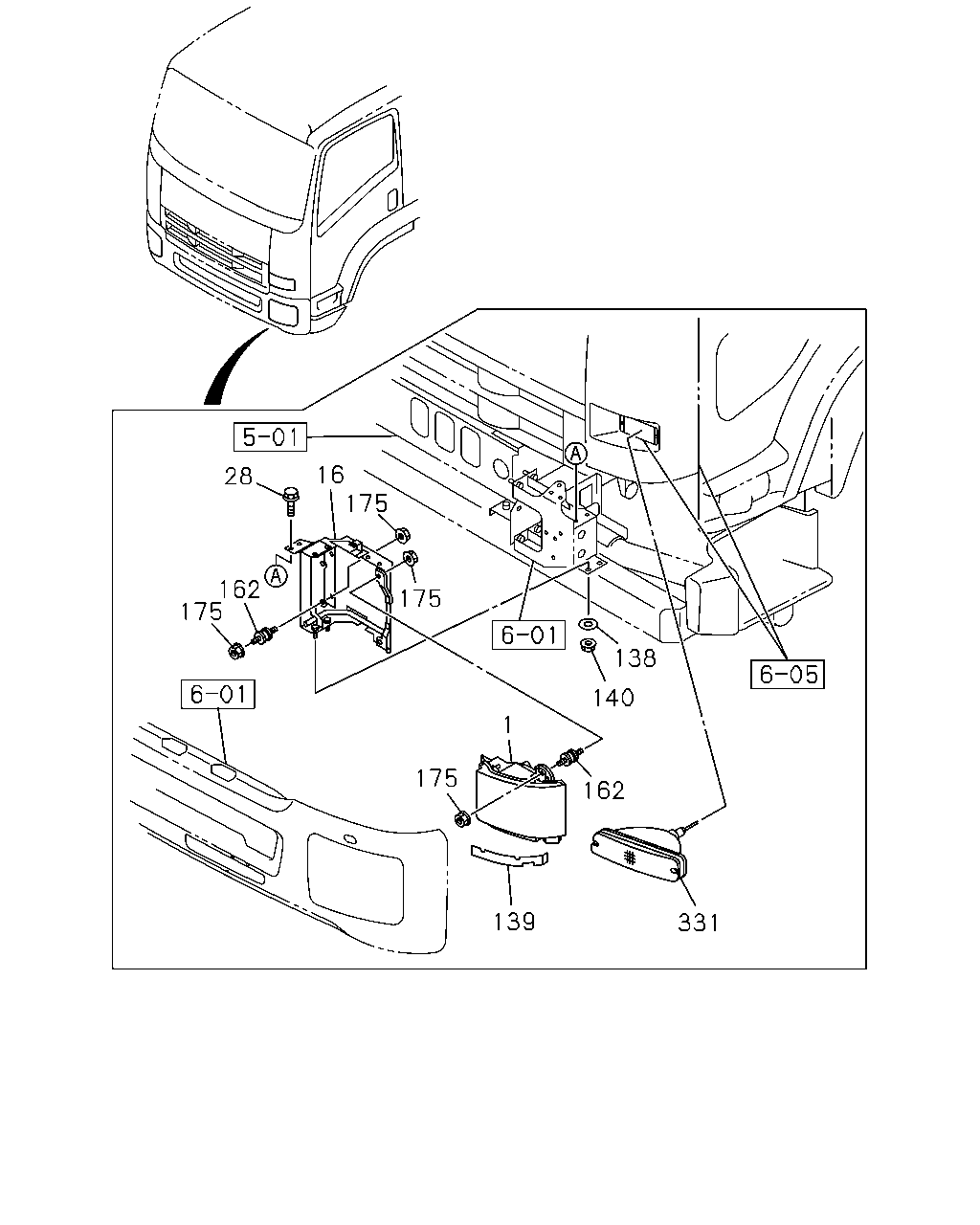

çizim 110904
16 175 28 162 175 175 138 140 1 175 162 139 331
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-584-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-623-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-315-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0812-1108
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-583-0 01 1 1109-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-622-0 01 1 1209-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-314-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0812-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-586-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-625-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-317-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0812-1108
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98193-585-0 01 1 1109-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-624-0 01 1 1209-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-316-0 01 1 1306-
16 BRACKET; HEADLAMP 8-98086-432-1 01 1 0812-
16 BRACKET; HEADLAMP 8-98086-431-1 01 1 0812-
28 BOLT; HEADLAMP
M10X25 FLANGE 		0-28651-025-0 04 1 0812-
138 WASHER; LK BRKT HD LAMP
ID=10.5 OD=26 		0-91614-710-0 04 1 0812-
139 COVER; HEADLAMP 8-98054-342-0 02 1 0812-
140 NUT
M10 FLANGE 		0-91180-210-0 08 1 0812-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0812-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0812-
331 LAMP; TURN SIGNAL 8-98079-896-0 01 1 0812-
331 LAMP; TURN SIGNAL 8-98079-895-0 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
