Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

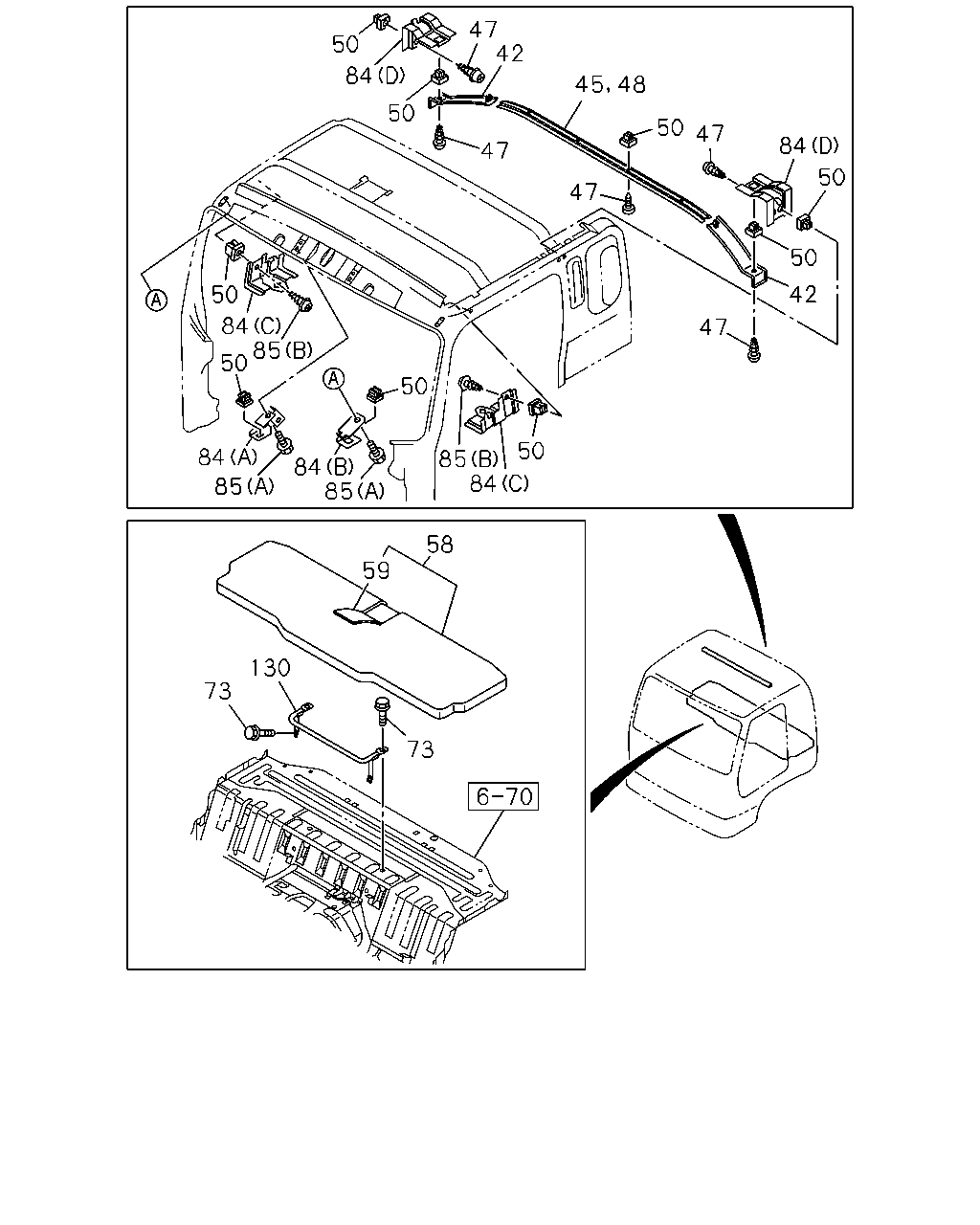

7-70 — SEPARATER AND BED
(#46361) — 25 parça
47
42
50
84
50
50
47
84
47
50
47
50
42
50
84
85
50
47
50
50
84
85
84
84
85
85
58
59
130
73
73
45
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
0812-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
0812-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
0909-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
0812-
48
RAIL; CURTAIN,BACK
DARK GRAY
8-97407-486-0
01
1
0812-0908
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1406-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0812-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0812-1405
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1406-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-894-1
01
1
0812-0912
58
BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-894-1
01
1
1001-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97407-384-2
01
1
1001-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-135-0
01
1
0812-0912
59
COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-135-0
01
1
1001-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97412-043-1
01
1
1001-
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
0812-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-289-1
01
1
0812-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98074-739-0
01
1
0812-
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
0812-1405
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
04
1
0812-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
06
1
0812-1405
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1406-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
01
1
0812-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
01
1
0812-
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
0812-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
