◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11422 - FTS(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#46359) — 381 parça

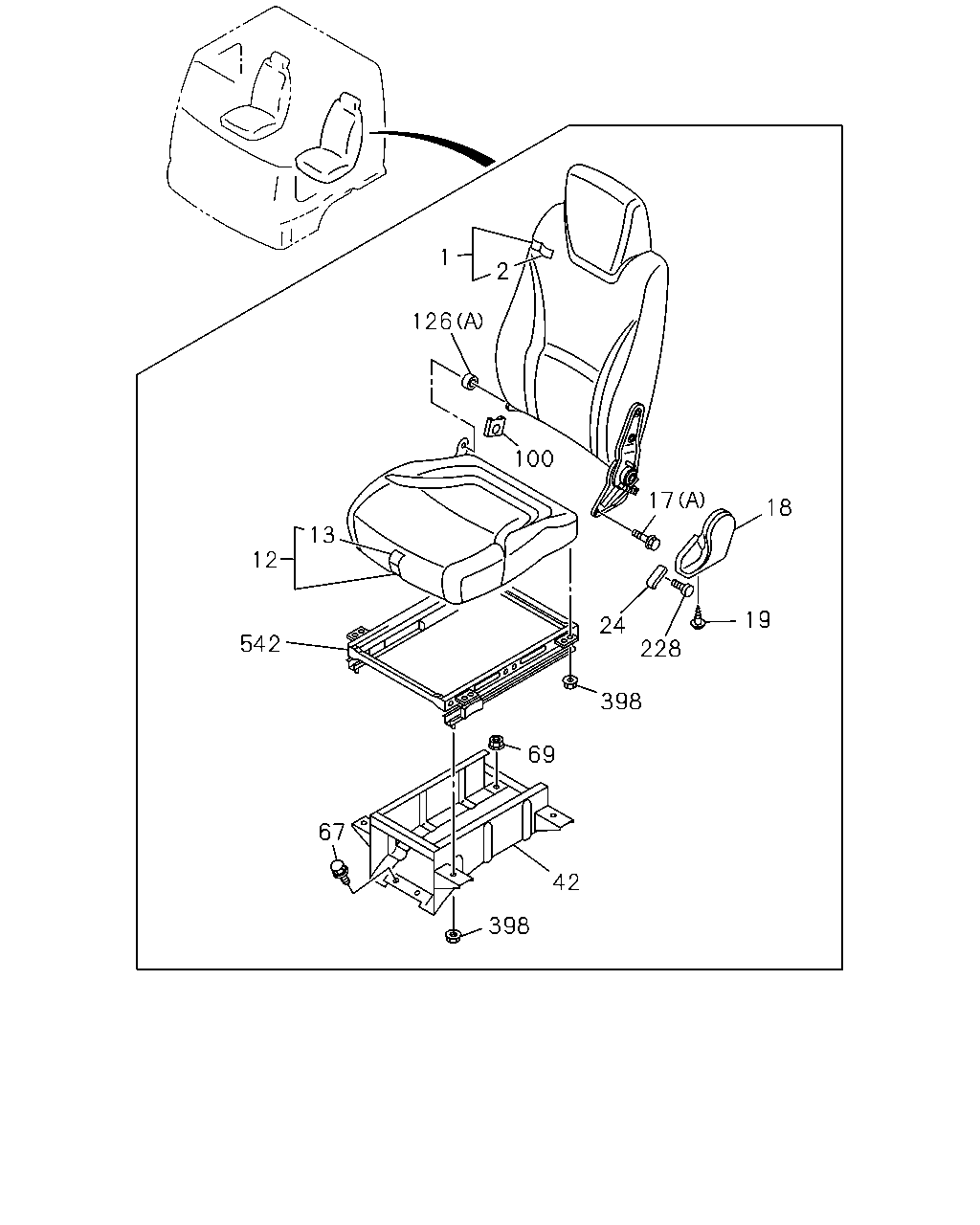

çizim 110884
1 2 126 100 17 18 13 12 19 24 542 228 398 69 67 42 398
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1510-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-116-2 01 1 0812-0902
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-203-0 01 1 0903-1009
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1010-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-204-0 01 1 1001-1009
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1010-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-037-5 01 1 0812-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-117-1 01 1 0812-0902
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-208-0 01 1 0903-1009
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1010-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-209-0 01 1 1001-1009
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1010-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-038-2 01 1 0812-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-114-0 01 1 0812-0902
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-213-1 01 1 0903-0912
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97416-213-1 01 1 1001-1009
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-213-1 01 1 1001-1009
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-399-1 01 1 1010-1506
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-1 01 1 1010-1506
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1507-1509
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-399-2 01 1 1510-
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1510-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-035-2 01 1 0812-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-115-0 01 1 0812-0902
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-218-0 01 1 0903-0912
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97416-218-0 01 1 1001-1009
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-218-0 01 1 1001-1009
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-403-1 01 1 1010-1506
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-1 01 1 1010-1506
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1507-1509
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-403-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-036-1 01 1 0812-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0812-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 0812-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0812-1506
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-361-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 0812-1506
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0812-1506
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-362-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1510-
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-2 01 1 0812-
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0812-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0812-
100 COVER; HINGE 8-98203-070-0 01 1 1110-1506
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0812-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 0812-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0812-1506
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		1-75538-207-0 04 1 0812-

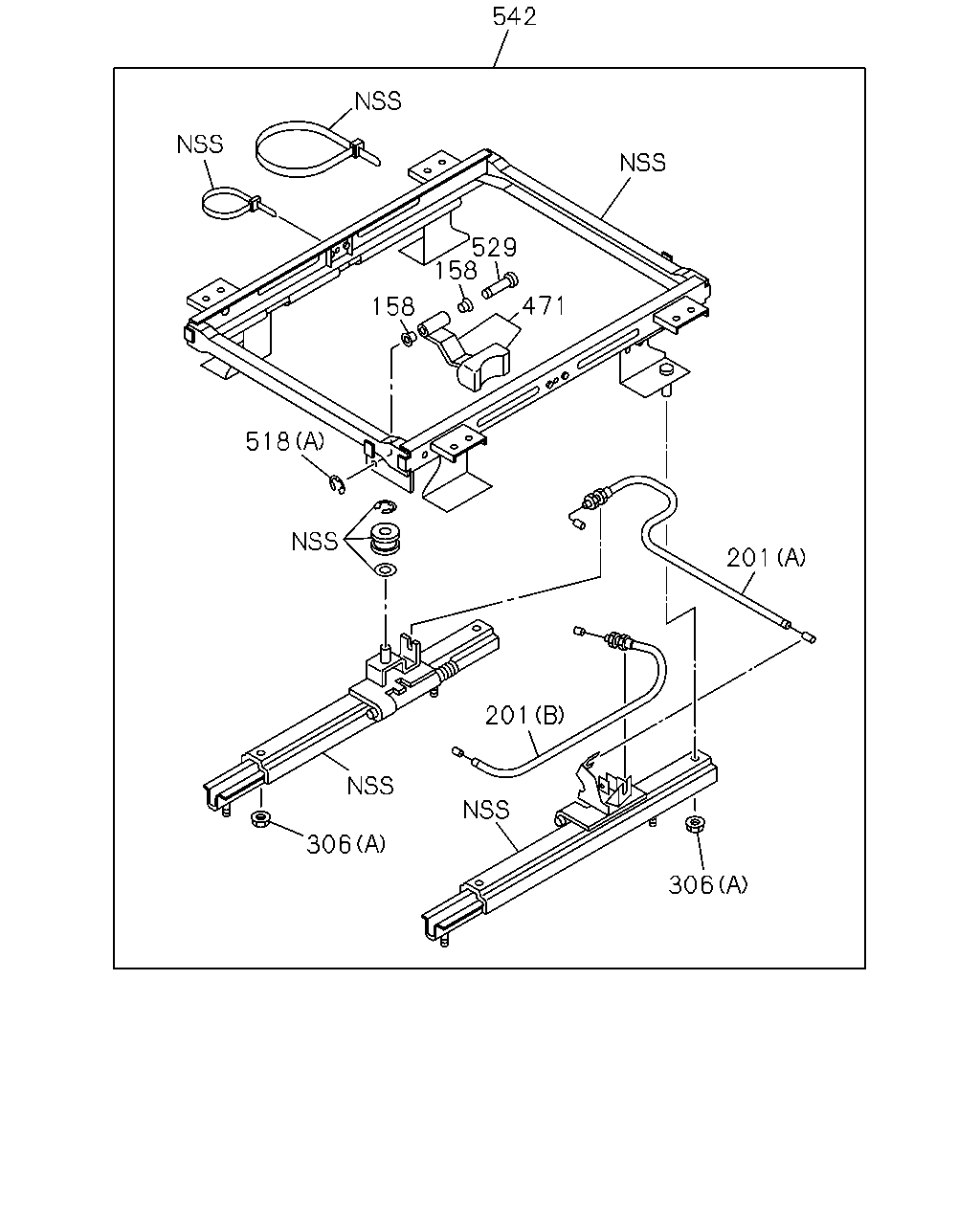

542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 0812-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-

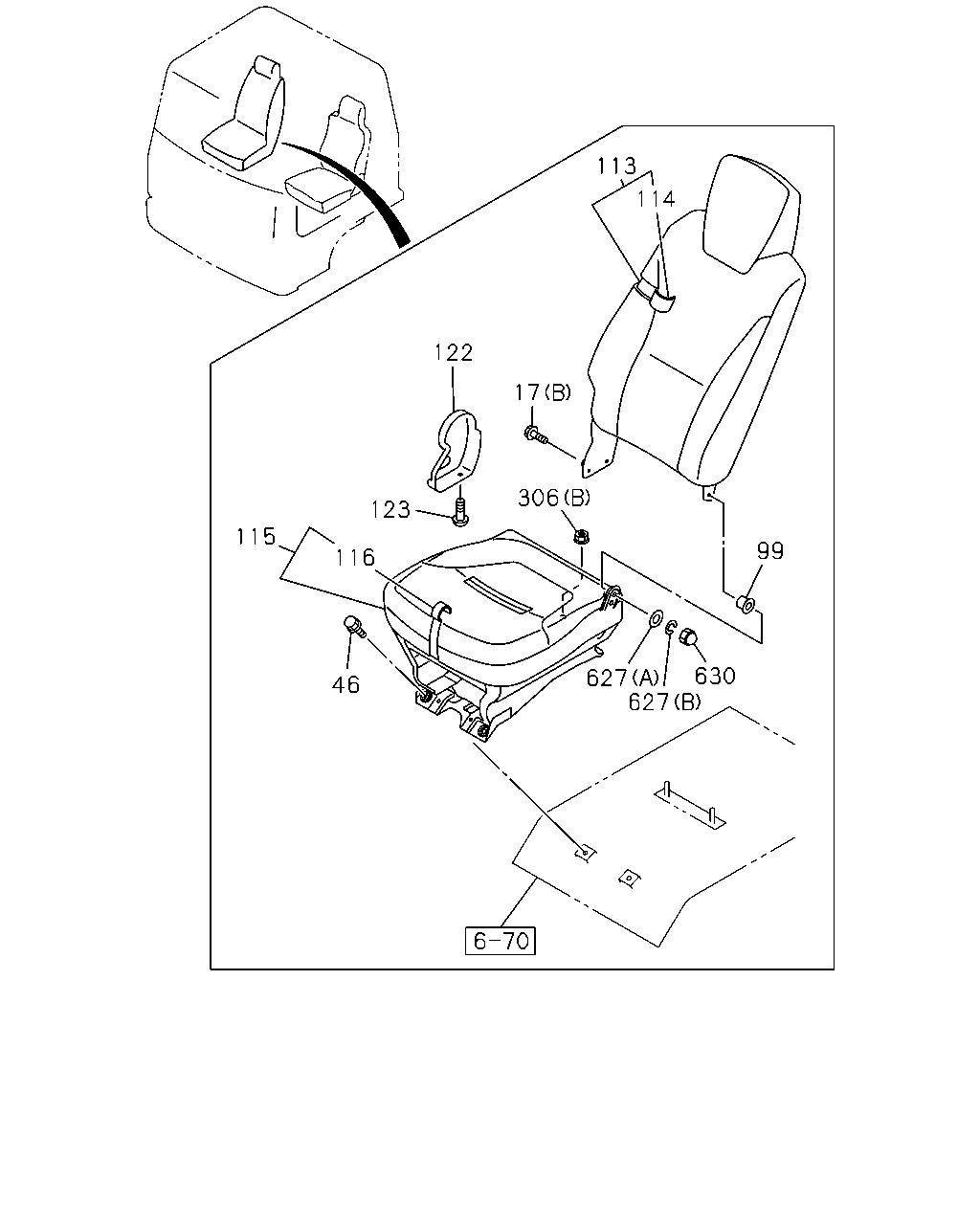

çizim 110886
113 114 122 17 306 123 115 99 116 627 630 627 46
BalonParca AdiParca NoAdetTipApplied Date
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0812-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 0812-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0812-
99 BUSHING; SEAT BACK 8-98063-219-0 01 1 0812-1009
99 BUSHING; SEAT BACK 8-98112-751-0 01 1 1010-
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97414-126-0 01 1 0812-0902
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-222-0 01 1 0903-1009
113 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-423-0 01 1 1010-
113 BACK ASM; SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-041-1 01 1 0812-
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97414-127-0 01 1 0812-0902
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97416-224-0 01 1 0903-1009
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97421-425-0 01 1 1010-
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT<A83> DARK GRAY 		8-97414-042-0 01 1 0812-
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97414-124-0 01 1 0812-0902
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97416-226-0 01 1 0903-1009
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97421-419-1 01 1 1010-
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT<A83> DARK GRAY 		8-97414-039-1 01 1 0812-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97414-125-0 01 1 0812-0902
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97416-228-0 01 1 0903-1009
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97421-421-0 01 1 1010-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT<A83> DARK GRAY 		8-97414-040-0 01 1 0812-
122 COVER; ADJ,RECLINING
GRAY 		8-97414-043-0 01 1 0812-
123 SCREW; COVER,RECLINING 8-98070-026-0 01 1 0812-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0812-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0812-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0812-
627 WASHER; FRT SEAT
(A) 		8-98063-223-0 01 1 0812-
627 WASHER; FRT SEAT
(B) 		8-98063-224-0 01 1 0812-
630 NUT; CAP
M8 		8-98063-225-0 01 1 0812-

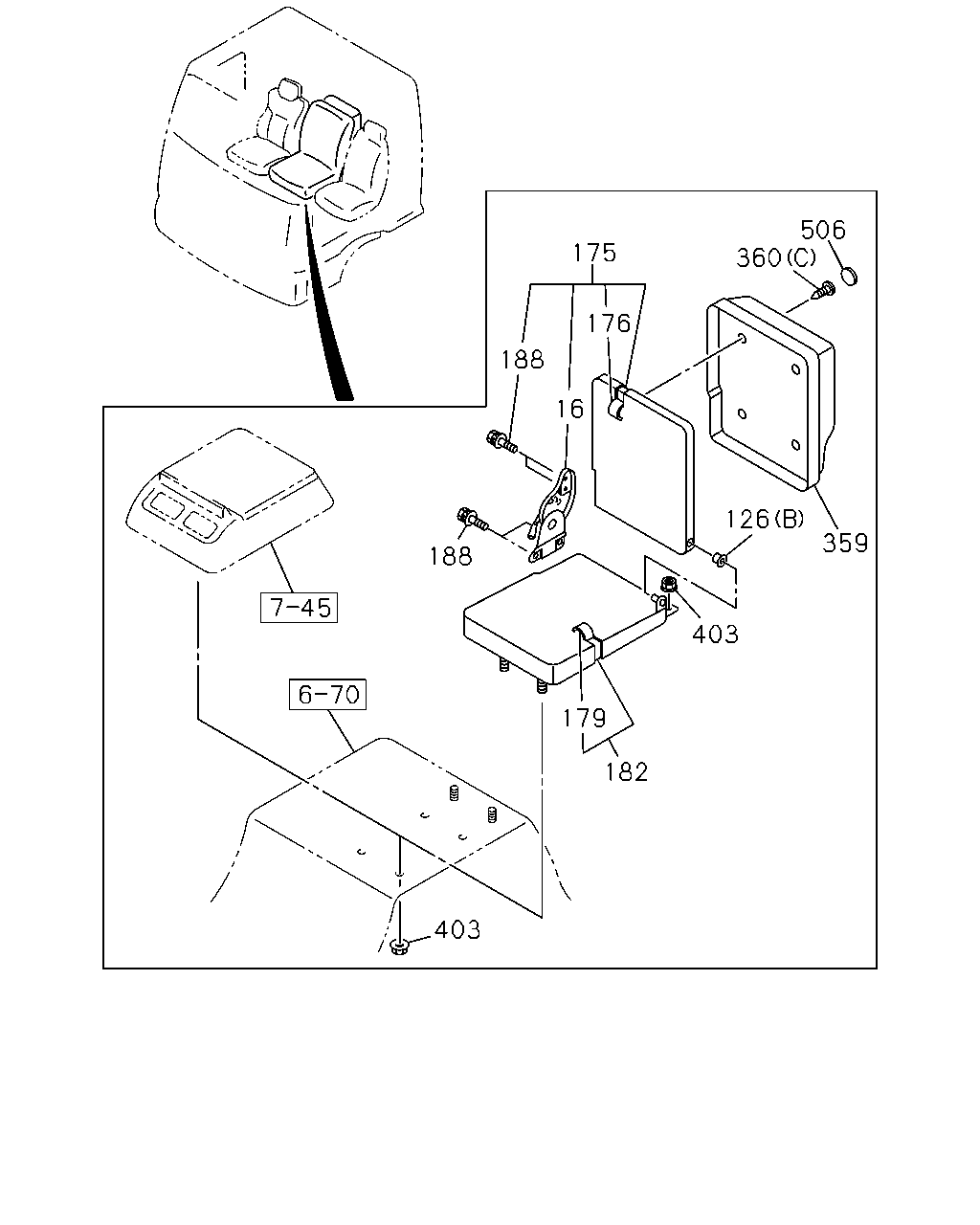

çizim 110891
506 360 175 176 188 16 126 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> 		1-75418-062-1 01 1 0812-
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0812-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 0812-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-984-0 01 1 0812-0902
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-233-0 01 1 0903-1009
175 BACK ASM; PASSENGER CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-434-1 01 1 1010-
175 BACK ASM; PASSENGER CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-975-1 01 1 0812-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97409-985-0 01 1 0812-0902
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-234-0 01 1 0903-1009
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-435-1 01 1 1010-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97409-976-1 01 1 0812-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97414-691-0 01 1 0812-0902
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-238-0 01 1 0903-1009
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-433-1 01 1 1010-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-690-1 01 1 0812-
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97414-131-0 01 1 0812-0902
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97416-236-0 01 1 0903-1009
182 CUSHION ASM; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY 		8-97421-431-3 01 1 1010-
182 CUSHION ASM; CENTER SEAT
VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY 		8-97414-129-3 01 1 0812-
188 BOLT; BACK TO CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE 		1-75198-053-0 04 1 0812-

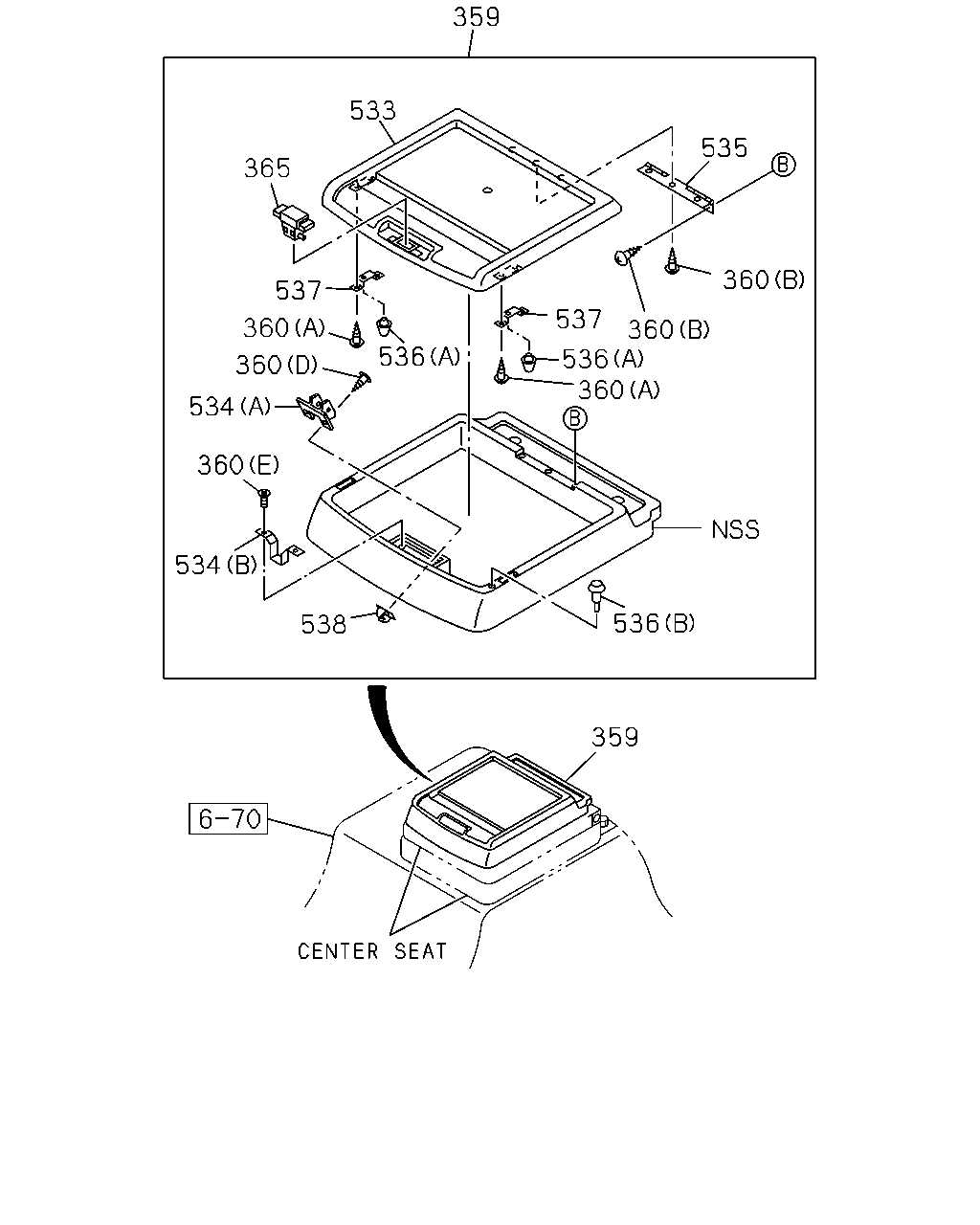

359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0812-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0812-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0812-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0812-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0812-1009
403 NUT; CENTER SEAT
SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE 		0-91180-108-0 04 1 0909-
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 04 1 0812-1006
506 CAP; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-980-1 02 1 1007-
çizim 110892
542 529 158 471 158 518 201 201 306 306
BalonParca AdiParca NoAdetTipApplied Date
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0812-1506
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0812-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0812-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0812-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0812-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0812-
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0812-1506
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 0812-1506
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0812-1506
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
529 PIN; LINK 1-75518-262-0 01 1 0812-1506
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98092-333-0 01 1 0812-1502
542 ADJUSTER ASM; SEAT SLIDE
RIGID SEAT WO/ARM REST<TAZ> 		8-98291-654-0 01 1 1503-

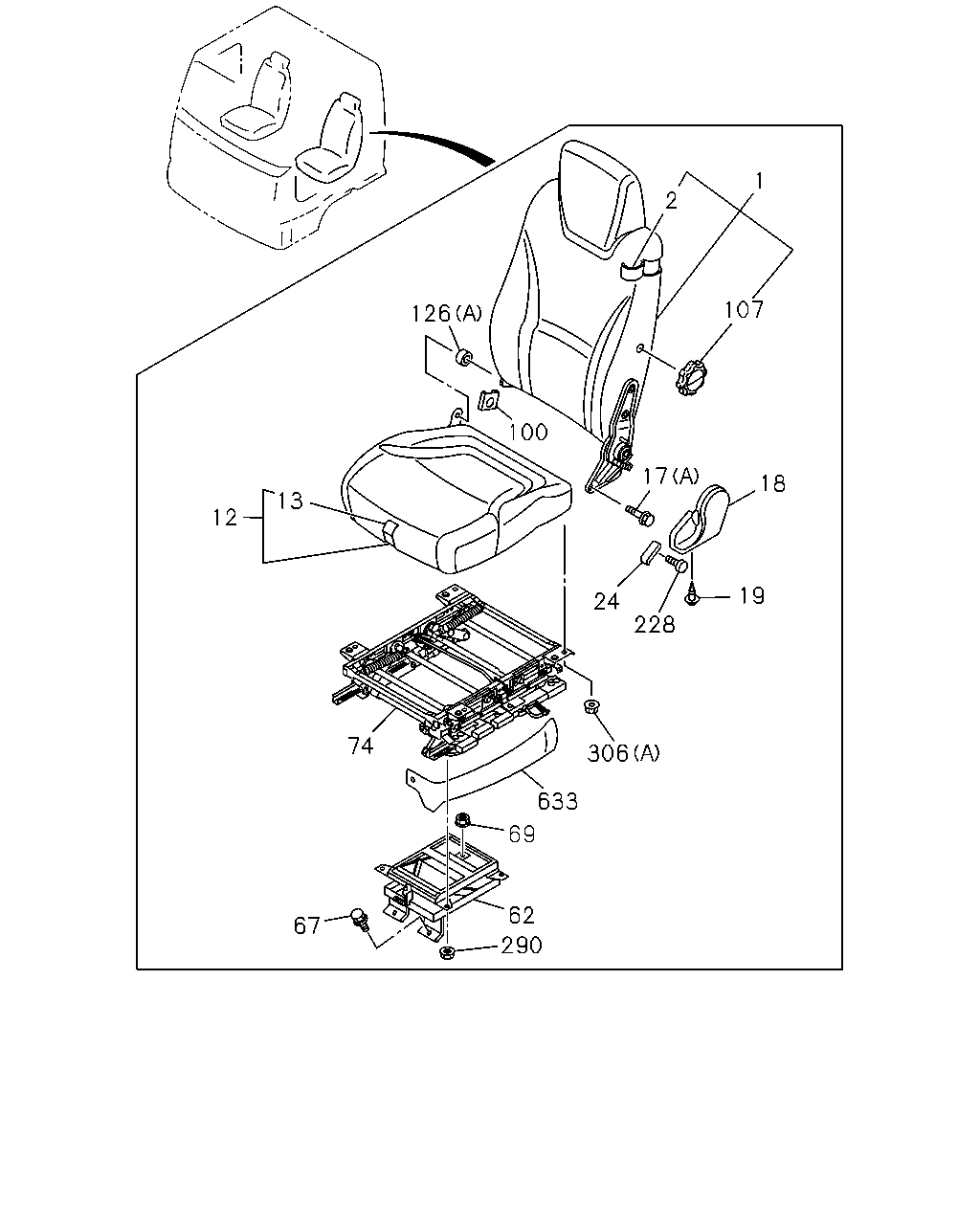

çizim 110897
1 2 107 126 100 17 18 13 12 19 24 228 74 306 633 69 62 67 290
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1510-
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-116-2 01 1 0812-0902
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-203-0 01 1 0903-1009
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-408-1 01 1 1010-1506
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-204-0 01 1 1001-1009
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-409-1 01 1 1010-
1 BACK ASM; SEAT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-037-5 01 1 0812-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1510-
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-117-1 01 1 0812-0902
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-208-0 01 1 0903-1009
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97421-413-0 01 1 1010-1506
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-209-0 01 1 1001-1009
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-414-0 01 1 1010-
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-038-2 01 1 0812-
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-114-0 01 1 0812-0902
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-213-1 01 1 0903-0912
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97416-213-1 01 1 1001-1009
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-213-1 01 1 1001-1009
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-399-1 01 1 1010-1506
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-1 01 1 1010-1506
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1507-1509
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-399-2 01 1 1510-
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-399-2 01 1 1510-
12 CUSHION; SEAT,FRT
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-035-2 01 1 0812-
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97414-115-0 01 1 0812-0902
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> DARK GRAY 		8-97416-218-0 01 1 0903-0912
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97416-218-0 01 1 1001-1009
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97416-218-0 01 1 1001-1009
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-403-1 01 1 1010-1506
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-1 01 1 1010-1506
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1507-1509
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> DARK GRAY 		8-97421-403-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> DARK GRAY 		8-97421-403-2 01 1 1510-
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT<A83> RIGID SEAT WO/ARM REST<TAZ> DARK GRAY 		8-97414-036-1 01 1 0812-
17 BOLT; RECLINING
(B) M8X20 		8-98092-334-0 02 1 0812-
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 0812-1506
17 BOLT; RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) M10X20 		8-98062-661-0 02 1 1507-1509
17 BOLT; RECLINING
(A) M10X20 		8-98062-661-0 02 1 1510-
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 0812-1506
18 COVER; RECLINING
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-361-0 01 1 1507-1509
18 COVER; RECLINING
GRAY 		8-97409-361-0 01 1 1510-
19 SCREW; COVER
M5 		8-98062-663-0 01 1 0812-1506
19 SCREW; COVER
RIGID SEAT WO/ARM REST<TAZ> M5 		8-98062-663-0 01 1 1507-1509
19 SCREW; COVER
M5 		8-98062-663-0 01 1 1510-
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 0812-1506
24 KNOB; RECLINING,FRT,SEAT
RIGID SEAT WO/ARM REST<TAZ> GRAY 		8-97409-362-0 01 1 1507-1509
24 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97409-362-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-185-8 01 1 0812-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1404-1506
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE 		0-28451-020-0 02 1 0812-
69 NUT; FRT SEAT
M10 FLANGE 		0-91180-110-0 02 1 0812-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98093-429-0 01 1 0812-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1506
100 COVER; HINGE 8-98203-070-0 01 1 1110-1506
100 COVER; HINGE
RIGID SEAT WO/ARM REST<TAZ> 		8-98203-070-0 01 1 1507-1509
100 COVER; HINGE 8-98203-070-0 01 1 1510-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 1510-
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98063-174-0 01 1 0812-1506
126 BUSHING; HINGE,RECLINING
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		8-97854-900-0 01 1 0812-
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 0812-1506
126 BUSHING; HINGE,RECLINING
RIGID SEAT WO/ARM REST<TAZ> (A) 		8-98063-218-0 01 1 1507-1509
126 BUSHING; HINGE,RECLINING
(A) 		8-98063-218-0 01 1 1510-
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0812-1506
228 SCREW; KNOB
RIGID SEAT WO/ARM REST<TAZ> M4 		8-98062-662-0 01 1 1507-1509
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 1510-
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M8 FLANGE 		1-75538-207-0 04 1 0812-1506
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 1510-
306 NUT; SEAT ADJ
(B) M10 FLANGE 		0-91180-110-0 02 1 0812-
306 NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M8 FLANGE 		1-75538-207-0 06 1 0812-1506
306 NUT; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		1-75538-207-0 08 1 0812-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97414-118-0 01 1 1510-
633 COVER; ADJ,TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> GRAY 		8-97414-118-0 01 1 0812-1506
çizim 110899
359 533 535 365 360 537 537 360 360 536 360 536 360 534 360 534 536 538 359
BalonParca AdiParca NoAdetTipApplied Date
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-977-2 01 1 0812-1006
359 BOX; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-261-0 01 1 1007-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0812-1009
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1010-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16 		0-70040-416-0 06 1 0812-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0812-1110
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (C) M5 		8-98062-663-0 04 1 1111-
360 SCREW; PARCEL
SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 		9-09829-324-1 02 1 0812-1009
365 LOCK ASM; SEAT
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72538-312-0 01 1 0812-
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-979-1 01 1 0812-1006
533 LID; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97417-263-0 01 1 1007-
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		1-72538-181-0 01 1 0812-1009
534 STRIKER; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-190-0 01 1 1010-
535 HINGE; PARCEL BOX
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72447-391-1 01 1 0812-
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (A) 		5-09983-002-1 02 1 0812-1009
536 RUBBER; CUSHION
SEAT ASM - WITH CENTER SEAT<7BC> (B) 		1-72538-187-0 02 1 1010-
537 BRACKET; RUBBER
SEAT ASM - WITH CENTER SEAT<7BC> 		1-72548-057-1 02 1 0812-1009
538 GROMMET; SCREW
SEAT ASM - WITH CENTER SEAT<7BC> 		1-09983-165-0 02 1 0812-1009

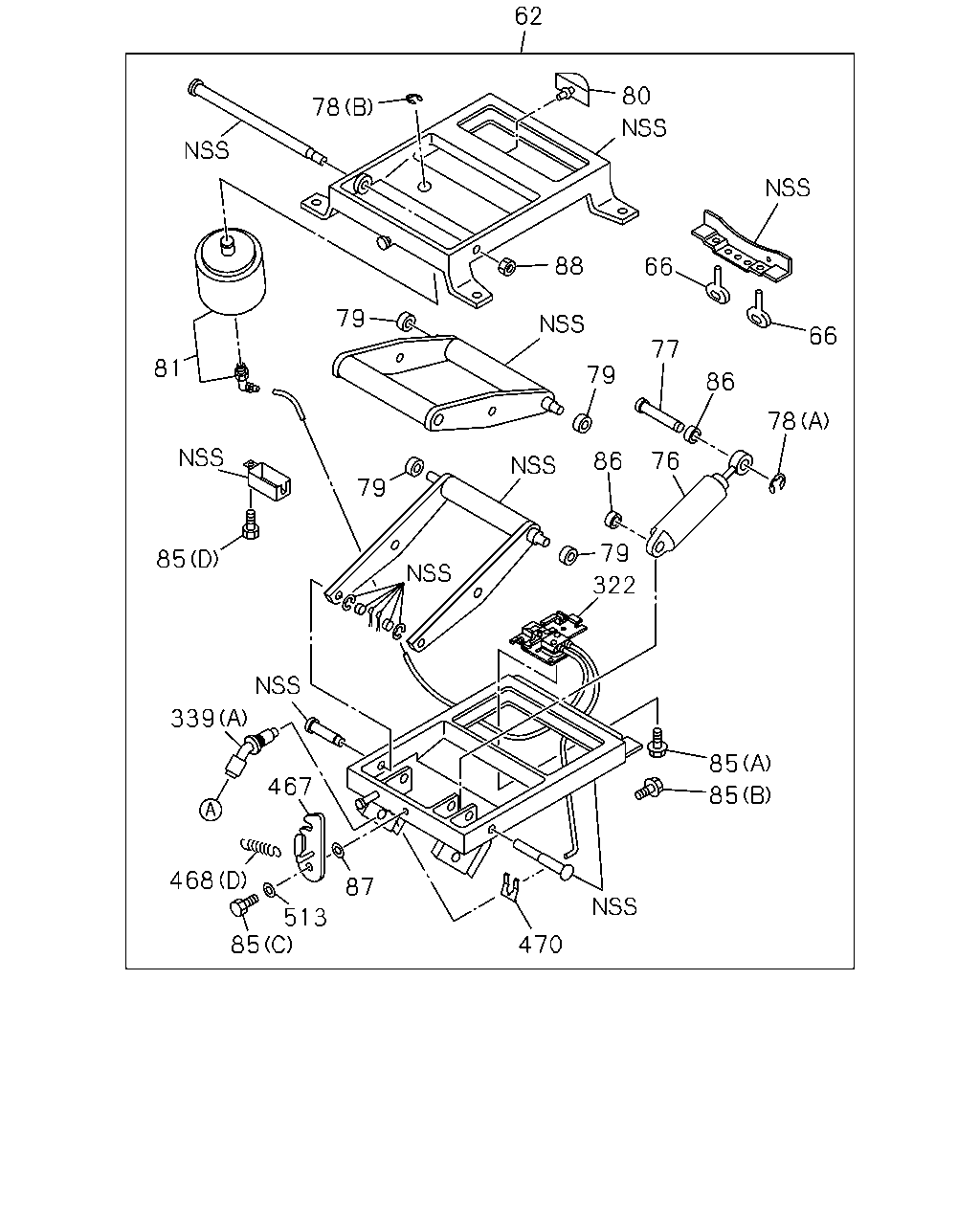

çizim 110900
470 85 85 87 513 85 468 467 339 85 81 79 78 62 80 66 77 66 78 86 76 86 79 88 79 79 322
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1510-
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-185-8 01 1 0812-1403
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-451-0 01 1 1404-1506
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 1510-
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-145-0 02 1 0812-1506
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 1510-
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-139-0 01 1 0812-1506
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 1510-
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-138-2 01 1 0812-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 1510-
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=8 		9-09185-408-0 01 1 0812-1506
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=15 		9-09185-415-0 01 1 0812-1506
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1510-
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-159-0 04 1 0812-1403
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98261-489-0 04 1 1404-1506
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 1510-
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-09987-123-0 01 1 0812-1506
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1510-
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-151-2 01 1 0812-1312
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98242-816-0 01 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1510-
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-09980-577-1 01 1 0812-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) M6X12 		1-75538-208-1 02 1 0812-1506
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0812-1312
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-1506
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 1510-
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0812-1506
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 1510-
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> ID=8.2 		0-91510-508-0 01 1 0812-1506
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 1510-
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> M10 		1-75537-273-1 01 1 0812-1506
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-187-3 01 1 1510-
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-187-3 01 1 0812-1506
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 0812-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0812-1506
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 1510-
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-134-0 01 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0812-1506
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 1510-
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-137-0 01 1 0812-1506
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 1510-
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75538-133-0 01 1 0812-1506
çizim 110910
595 339 632
BalonParca AdiParca NoAdetTipApplied Date
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 1510-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 0812-
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75538-131-3 01 1 0812-1506
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98041-300-0 01 1 0812-
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 0812-

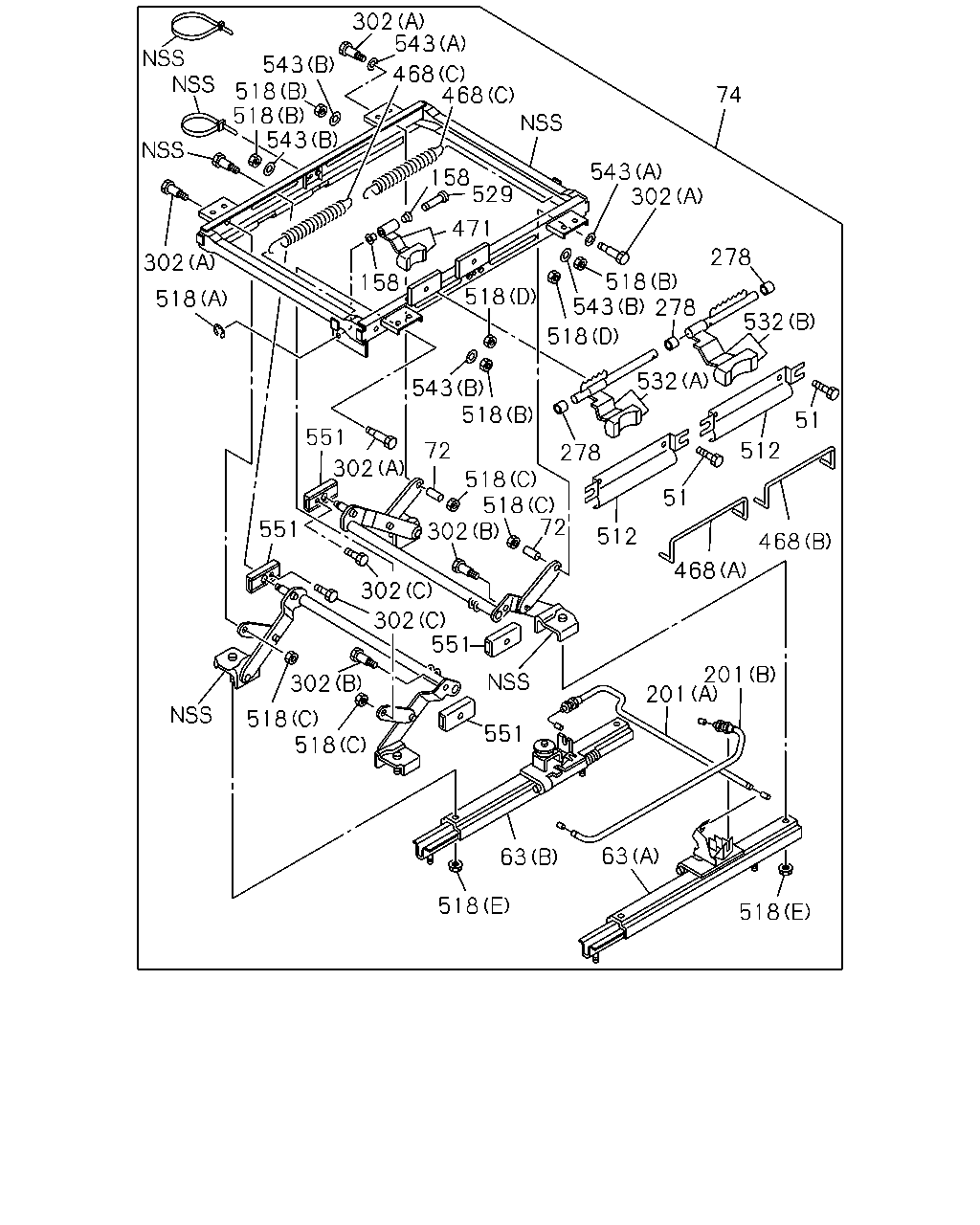

çizim 110919
302 543 543 518 518 543 468 468 74 158 529 543 302 471 278 302 518 158 518 518 532 518 543 518 532 51 278 551 512 72 302 518 518 302 51 551 512 468 468 302 302 551 201 201 302 518 518 551 63 63 518 518 543 278 72
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 1510-
51 SCREW; COVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-325-1 04 1 0812-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-227-1 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-324-0 01 1 1510-
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-227-1 01 1 0812-1506
63 ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-324-0 01 1 0812-1506
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1510-
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-334-1 02 1 0812-1502
72 SPACER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-668-0 02 1 1503-1506
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1510-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98093-429-0 01 1 0812-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		8-98291-641-0 01 1 1503-1506
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0812-1506
158 BUSHING; LINK ARM
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-209-0 02 1 1507-1509
158 BUSHING; LINK ARM 1-75518-209-0 02 1 1510-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0812-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) L=667 		1-75518-288-0 01 1 1507-1509
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 1510-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0812-1506
201 CABLE; ADJ
RIGID SEAT WO/ARM REST<TAZ> (B) L=605 		1-75518-289-1 01 1 1507-1509
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 1510-
278 COLLAR; FRT SEAT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-244-0 03 1 0812-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1510-
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-266-2 02 1 0812-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-270-1 04 1 0812-1502
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		8-98291-667-0 04 1 1503-1506
302 BOLT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-336-1 02 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 1510-
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-206-0 01 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-207-0 01 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) 		1-75518-208-0 02 1 0812-1506
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) 		1-75538-132-0 01 1 0812-1506
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0812-1506
471 LEVER; SEAT ADJ
RIGID SEAT WO/ARM REST<TAZ> 		8-98107-870-0 01 1 1507-1509
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-245-1 02 1 1510-
512 COVER; LEVER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-245-1 02 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 1510-
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (C) M8 		1-75518-264-0 04 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (E) M8 FLANGE 		1-75538-207-0 04 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (D) M6 LOCK NUT 		5-09984-020-0 02 1 0812-1506
518 NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) M8 FLANGE 		8-94152-886-0 04 1 0812-1506
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0812-1506
518 NUT; TILT ADJ
RIGID SEAT WO/ARM REST<TAZ> (A) 		1-75518-263-0 01 1 1507-1509
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 1510-
529 PIN; LINK 1-75518-262-0 01 1 0812-1506
529 PIN; LINK
RIGID SEAT WO/ARM REST<TAZ> 		1-75518-262-0 01 1 1507-1509
529 PIN; LINK 1-75518-262-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-221-0 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-222-1 01 1 1510-
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-221-0 01 1 0812-1506
532 LEVER ASM; TILT
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) 		1-75518-222-1 01 1 0812-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 1510-
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) 		1-75518-335-0 02 1 0812-1502
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-1506
543 WASHER; HEIGHT ADJUSTER
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> (B) ID=8.4 		9-09160-508-0 04 1 0812-1506
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 1510-
551 SLIDER; HEIGHT ADJ
AIR SUSP DRIVER SEAT<A56> SEAT CLOTH<7FL> 		1-75518-265-0 04 1 0812-1506
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
