7-20 — MIRROR AND MIRROR STAY (#46353) — 99 parça

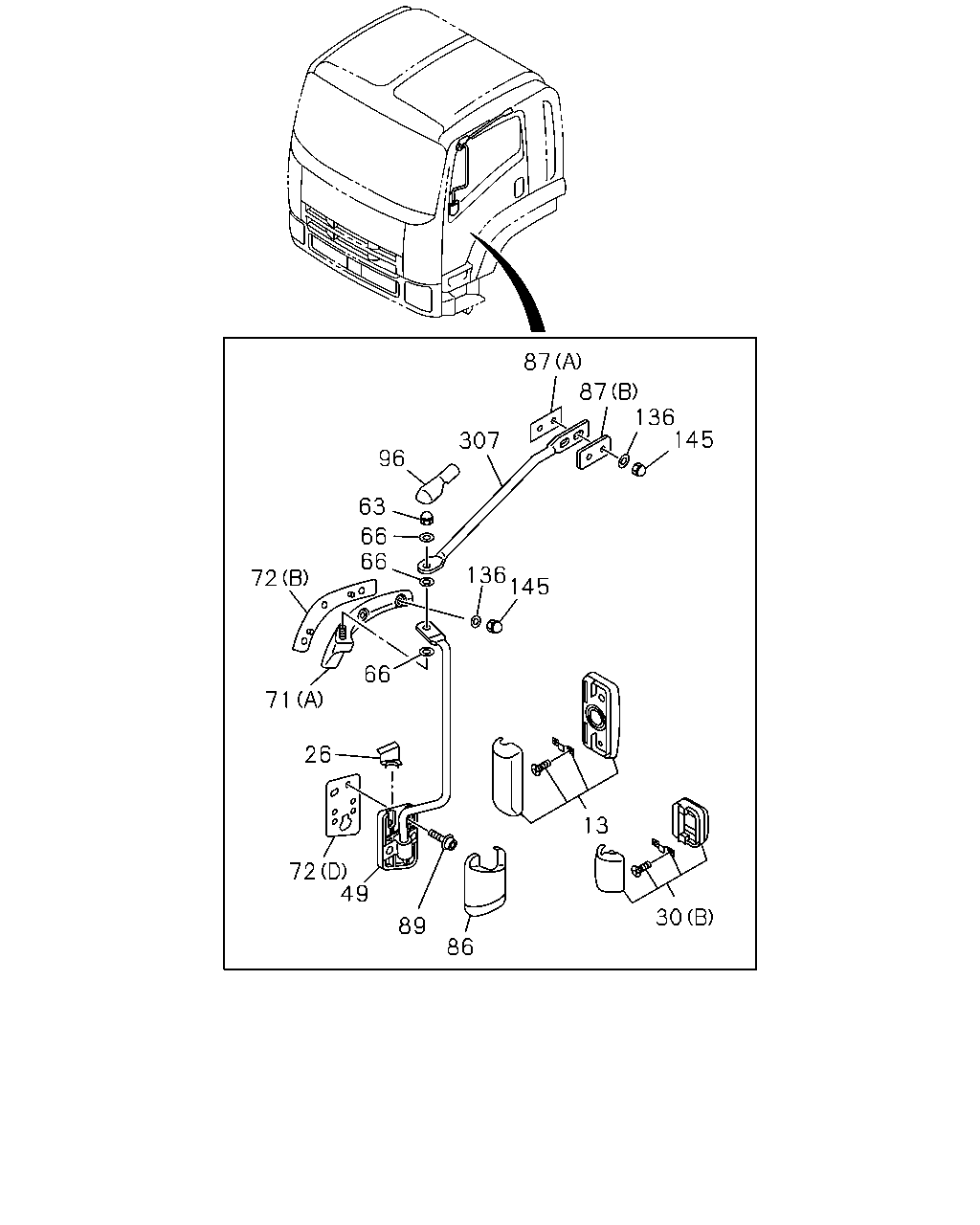

çizim 110870
87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 30 89 86
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-172-2 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-056-2 01 1 0812-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0812-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0812-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0812-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0812-
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0812-1504
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505-
49 STAY; MIRROR SIDE 8-98096-942-0 01 1 0812-1202
49 STAY; MIRROR SIDE 8-98166-203-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98096-941-0 01 1 0812-1202
49 STAY; MIRROR SIDE 8-98166-202-0 01 1 1203-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0812-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0812-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0812-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (E) 		8-98092-491-3 01 1 0812-
72 SHEET
(B) 		8-98031-797-0 01 1 0812-
72 SHEET
(D) 		8-98101-865-0 01 1 0812-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(C) 		8-98031-796-0 01 1 0812-
72 SHEET
(D) 		8-98101-864-0 01 1 0812-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (E) 		8-98060-225-1 01 1 0812-
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (A) 		8-98064-773-0 01 1 0812-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0812-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0812-
87 SPACER
(A) 		8-98063-786-0 02 1 0812-
87 SPACER
(B) 		8-98063-789-0 01 1 0812-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0812-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0812-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0812-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0812-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0812-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0812-

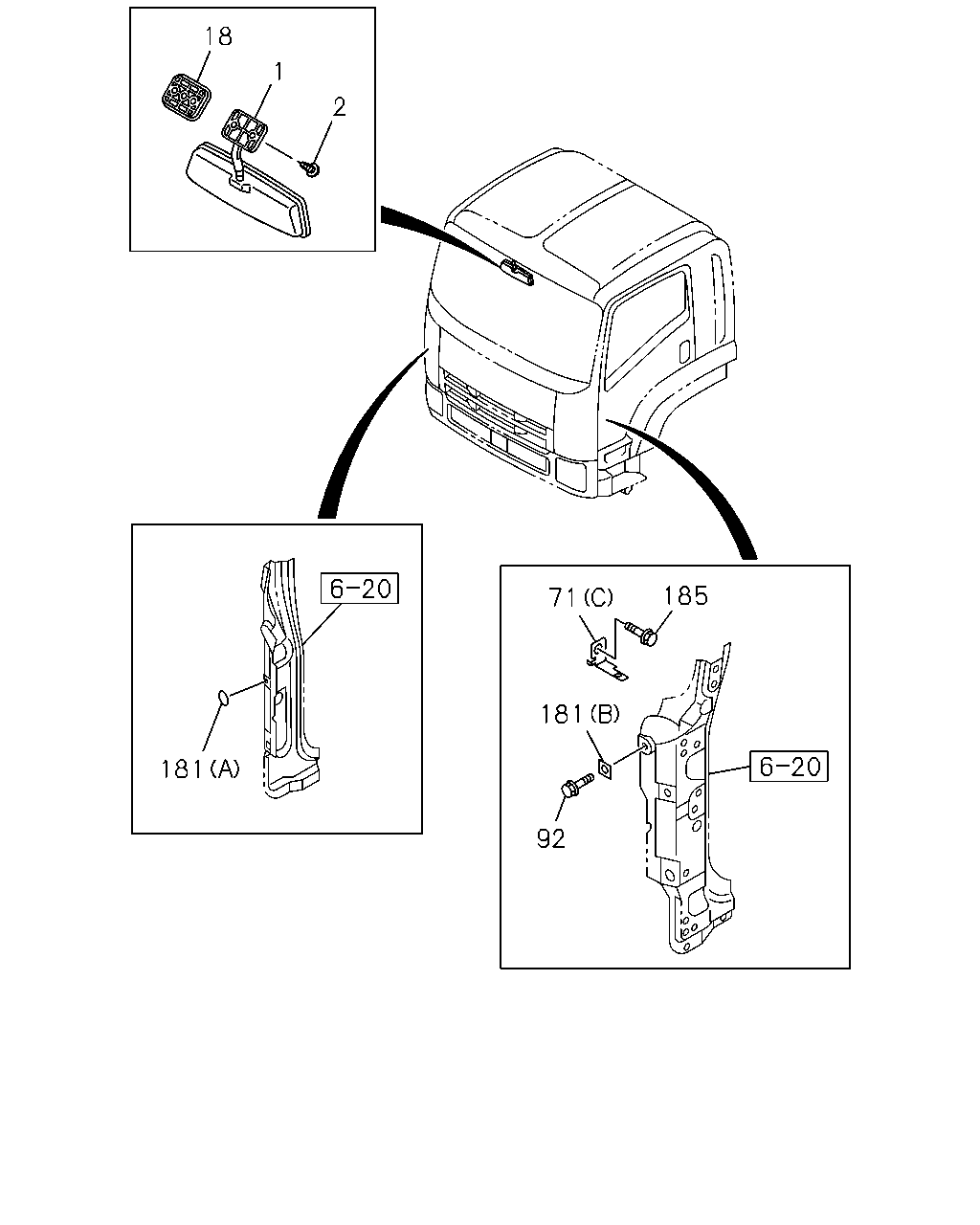

çizim 110885
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0812-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 0812-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0812-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (E) 		8-98092-491-3 01 1 0812-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 0812-
181 SEAL; BRKT
(A) OD=25 BLACK 		1-76798-019-0 02 1 0812-
181 SEAL; BRKT
(B) 25X25 		8-94272-533-0 01 1 0812-
185 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0812-1202

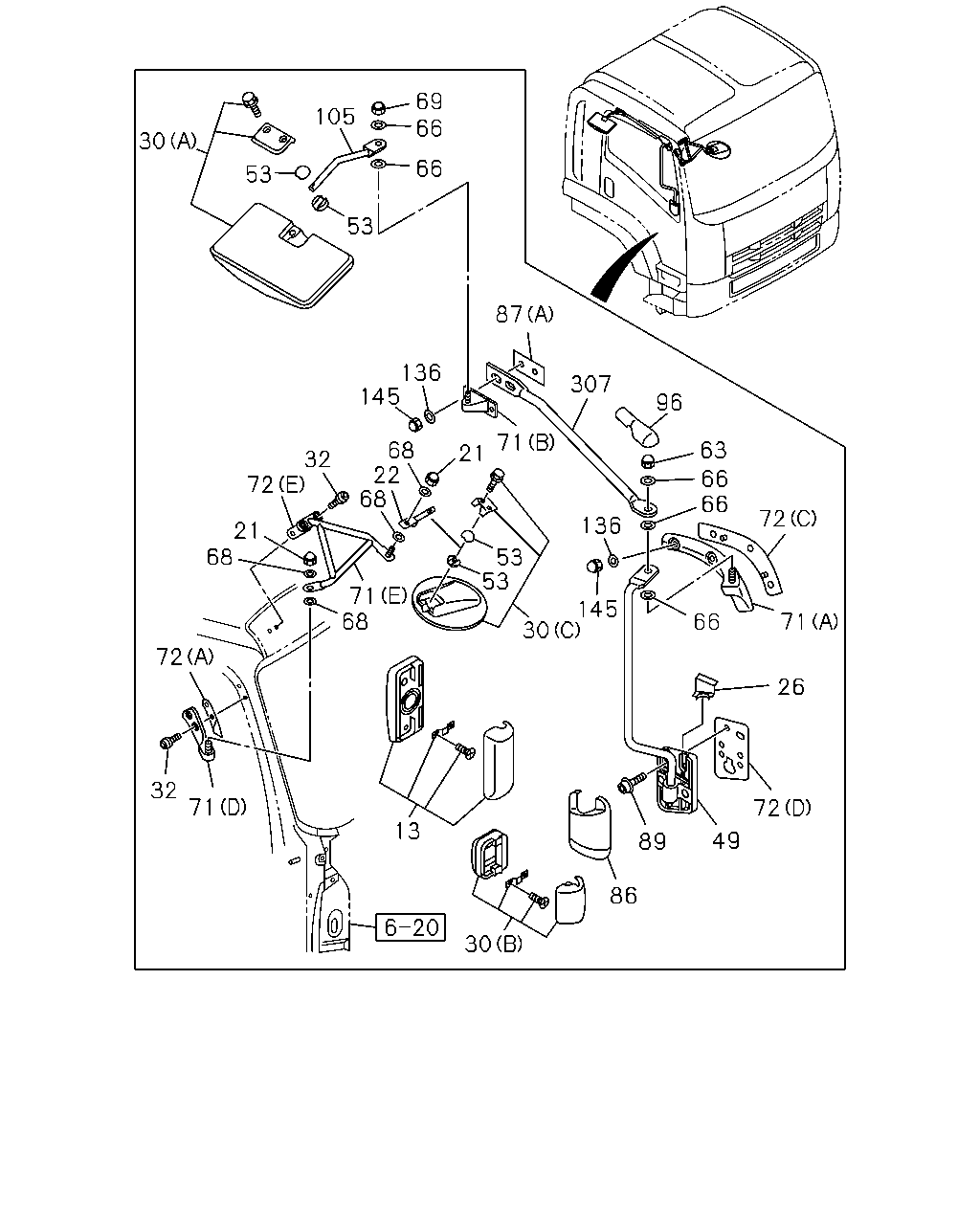

çizim 110896
69 66 105 30 66 53 53 87 136 145 307 96 71 63 68 22 68 21 32 72 66 66 72 136 21 68 53 53 71 68 145 30 71 66 72 26 32 71 72 13 49 89 86 30
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-172-2 01 1 0812-
13 MIRROR ASM; OUTSIDE RR VIEW 8-98043-056-2 01 1 0812-
21 NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT 		1-09984-134-0 02 1 0812-
22 STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-493-0 01 1 0812-
26 COVER; OUTSIDE MIRROR 8-98031-806-0 01 1 0812-
26 COVER; OUTSIDE MIRROR 8-98031-805-0 01 1 0812-
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 0812-
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 0812-
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98055-994-0 01 1 0812-1504
30 MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9> (C) 		8-98309-725-0 01 1 1505-
32 SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER 		8-98067-249-2 04 1 0812-
49 STAY; MIRROR SIDE 8-98096-942-0 01 1 0812-1202
49 STAY; MIRROR SIDE 8-98166-203-0 01 1 1203-
49 STAY; MIRROR SIDE 8-98096-941-0 01 1 0812-1202
49 STAY; MIRROR SIDE 8-98166-202-0 01 1 1203-
53 PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> ID=19.1 		1-71737-633-2 02 1 0812-
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 02 1 0812-
63 NUT; STAY
M10 CAP NUT 		1-09984-134-0 02 1 0812-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 02 1 0812-
66 WASHER; PL
ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0812-
68 WASHER; STAY
MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0812-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(C) 		8-98039-277-2 02 1 0812-1202
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-794-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71798-484-1 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98031-793-2 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (D) 		8-98064-775-0 01 1 0812-
71 BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9> (E) 		8-98092-491-3 01 1 0812-
72 SHEET
(B) 		8-98031-797-0 01 1 0812-
72 SHEET
(D) 		8-98101-865-0 01 1 0812-1202
72 SHEET
(D) 		8-98116-605-0 01 1 1203-
72 SHEET
(C) 		8-98031-796-0 01 1 0812-
72 SHEET
(D) 		8-98101-864-0 01 1 0812-1202
72 SHEET
(D) 		8-98116-604-0 01 1 1203-
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (E) 		8-98060-225-1 01 1 0812-
72 SHEET
MIRROR O/S UNDER VIEW<RR9> (A) 		8-98064-773-0 01 1 0812-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-803-2 01 1 0812-
86 COVER; STAY,OUTSIDE MIRROR 8-98031-802-2 01 1 0812-
87 SPACER
(A) 		8-98063-786-0 02 1 0812-
87 SPACER
(B) 		8-98063-789-0 01 1 0812-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 		8-97310-216-1 08 1 0812-
96 CAP; MIRROR STAY 8-98080-173-0 02 1 0812-
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 0812-
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0812-
145 NUT; CAP,SUB STAY
M8 CAP NUT 		8-98059-914-0 10 1 0812-
307 STAY; MIRROR SUPPORT 8-98063-785-2 01 1 0812-
307 STAY; MIRROR SUPPORT 8-98063-784-2 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
