◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#4635) — 24 parça

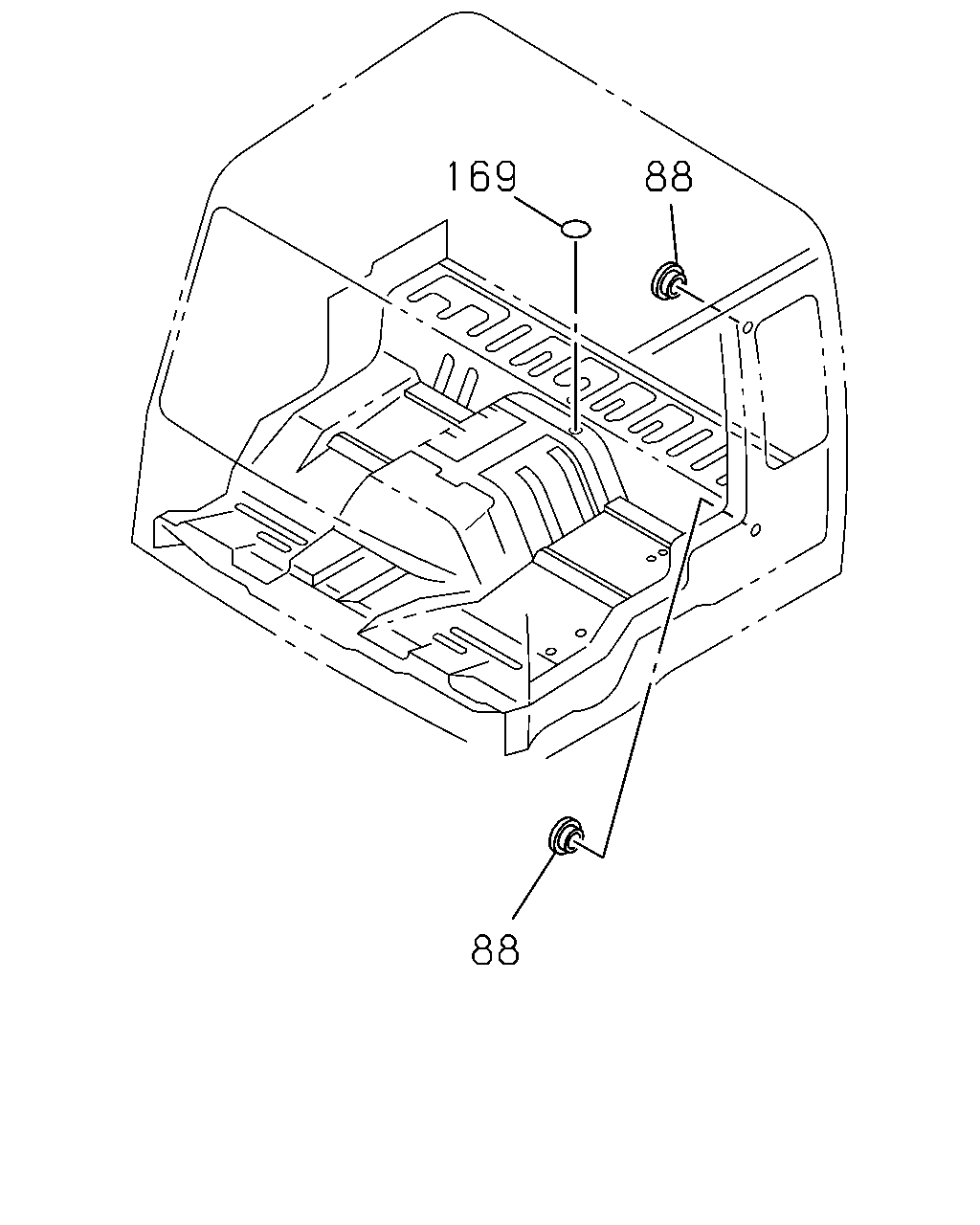

çizim 8860
169 88 88
BalonParca AdiParca NoAdetTipApplied Date
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9603-9709
88 PLUG; HOLE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=31.6 		8-94198-177-0 02 1 9603-9709
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 9710-
169 SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 9905-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 9603-

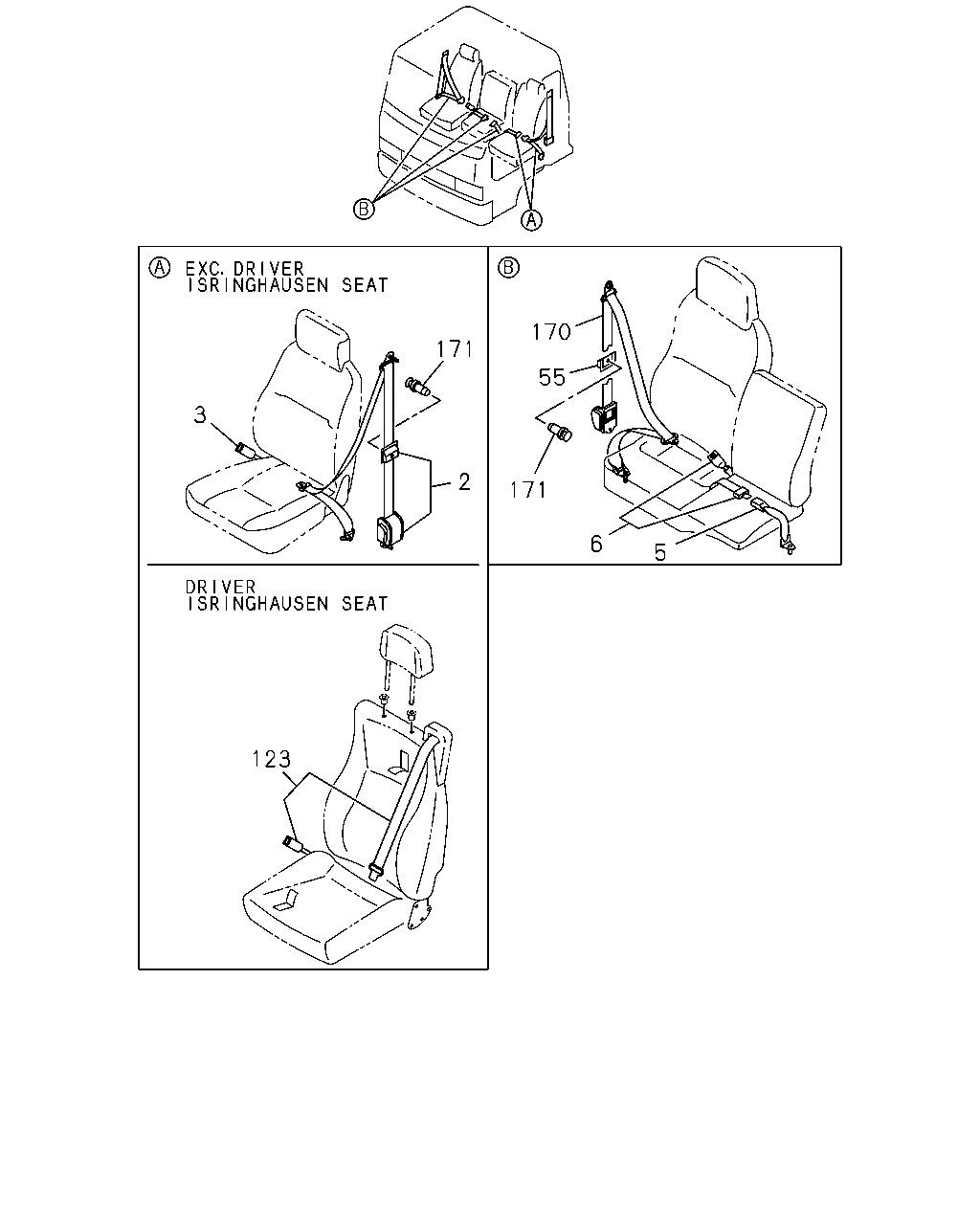

çizim 41449
170 171 55 3 2 171 6 5 123
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9603-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-514-2 01 1 9603-9904
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-514-5 01 1 9905-
3 BELT; SEAT,BUCKLE SIDE 1-75618-779-0 01 1 9603-9708
3 BELT; SEAT,BUCKLE SIDE
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-779-0 01 1 9709-
3 BELT; SEAT,BUCKLE SIDE
SAUDI ARABIA EQUIPMENT(WH1) 		1-75618-735-2 01 1 9709-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-739-0 01 1 9603-9904
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75618-739-0 01 1 9905-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-562-1 01 1 9905-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75617-511-2 01 1 9603-9904
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3),FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-511-4 01 1 9905-
55 GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-513-0 01 1 9905-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-513-0 02 1 9603-
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-569-0 01 1 9905-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-780-4 01 1 9603-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-509-2 01 1 9603-9904
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-509-5 01 1 9905-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) 		1-75617-561-1 01 1 9905-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
