Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

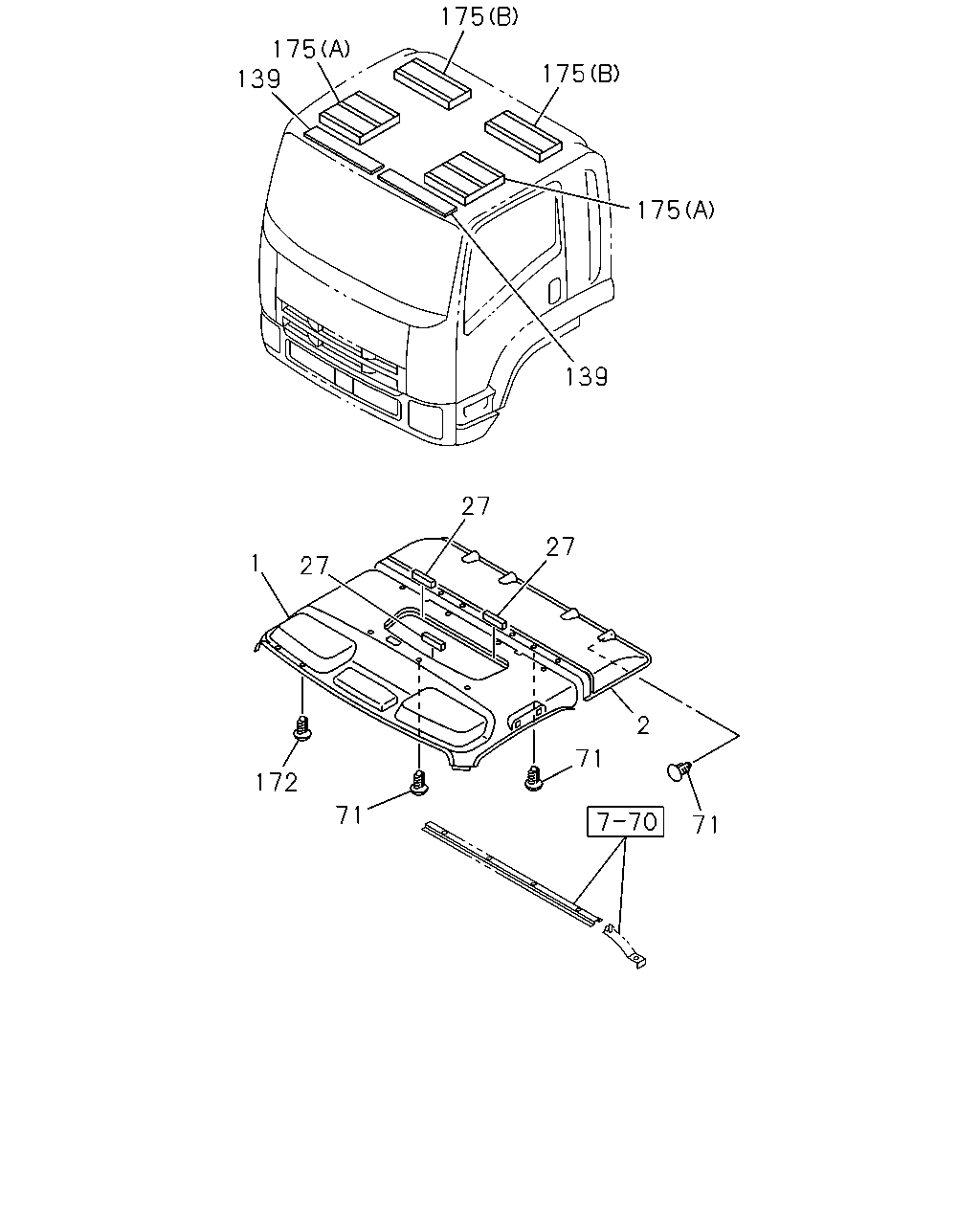

6-66 — HEAD LINING AND TRIM
(#46342) — 18 parça
175
175
139
175
175
139
27
27
1
27
2
71
172
71
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97411-883-3
01
1
0812-1306
1
LINING; HD
FLUORESCENT LAMP<6UC> EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY
8-97426-734-0
01
1
1307-
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97411-882-3
01
1
0812-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-730-0
01
1
1307-
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97411-885-3
01
1
0812-1306
1
LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> EXC. FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-732-0
01
1
1307-
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY
8-97411-884-3
01
1
0812-1306
1
LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG>, FLUORESCENT LAMP<6UC> DARK GRAY
8-97426-733-0
01
1
1307-
2
LINING; HD,ROOF RR
DARK GRAY
8-97415-674-0
01
1
0812-1306
2
LINING; HD,ROOF RR
DARK GRAY
8-97427-627-0
01
1
1307-
27
INSULATION; ROOF
8-98046-638-1
03
1
0812-0911
27
INSULATION; ROOF
FLUORESCENT LAMP<6UC>
8-98046-638-2
03
1
0912-
71
FASTENER; HD LINING
DARK GRAY
8-97405-282-0
07
1
0812-
139
SEAL; ROOF
8-98076-274-0
02
1
0812-1009
139
SEAL; ROOF
8-98169-116-0
02
1
1010-
172
RETAINER; HEAD LINING
DARK GRAY
8-97411-875-0
14
1
0812-
175
CUSHION; HEAD LINING
(A)
8-98030-965-2
02
1
0812-
175
CUSHION; HEAD LINING
(B)
8-98082-685-1
02
1
0812-
