◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11422 - FTS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#46341) — 21 parça

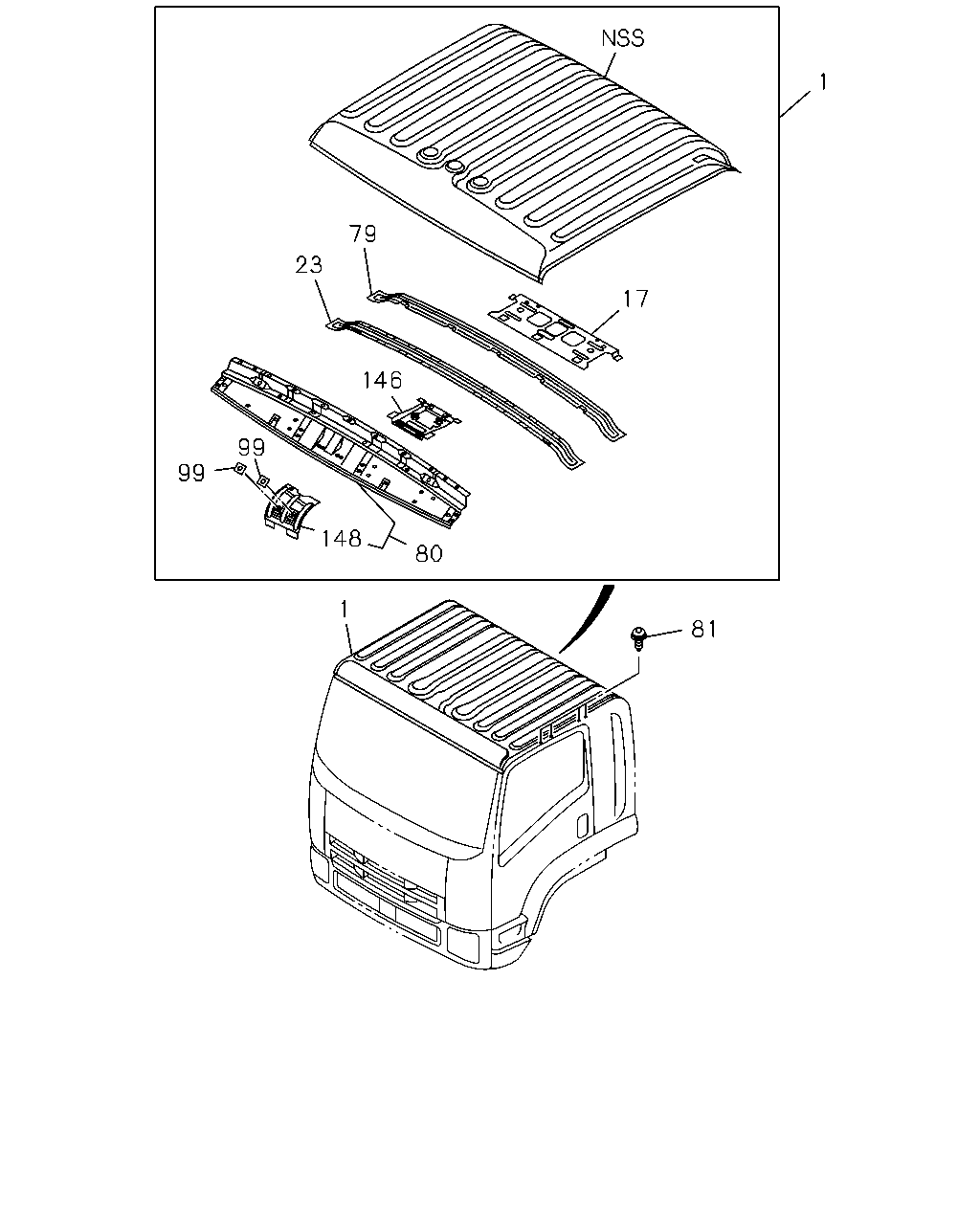

çizim 110871
1 79 23 17 146 99 99 148 80 1 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98048-093-3 01 1 0812-1001
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98048-093-3 01 1 1002-1308
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98246-480-0 01 1 1309-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98152-807-0 01 1 1002-1308
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98246-482-0 01 1 1309-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98020-507-5 01 1 0812-1001
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98020-507-5 01 1 1002-1308
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-479-0 01 1 1309-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98152-808-0 01 1 1002-1308
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98246-483-0 01 1 1309-
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 0812-1001
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1002-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 0812-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 0812-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98047-271-1 01 1 0812-1308
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-472-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98028-744-0 08 1 0812-0910
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 0911-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 0812-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 0812-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 0812-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
