◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#4634) — 1180 parça

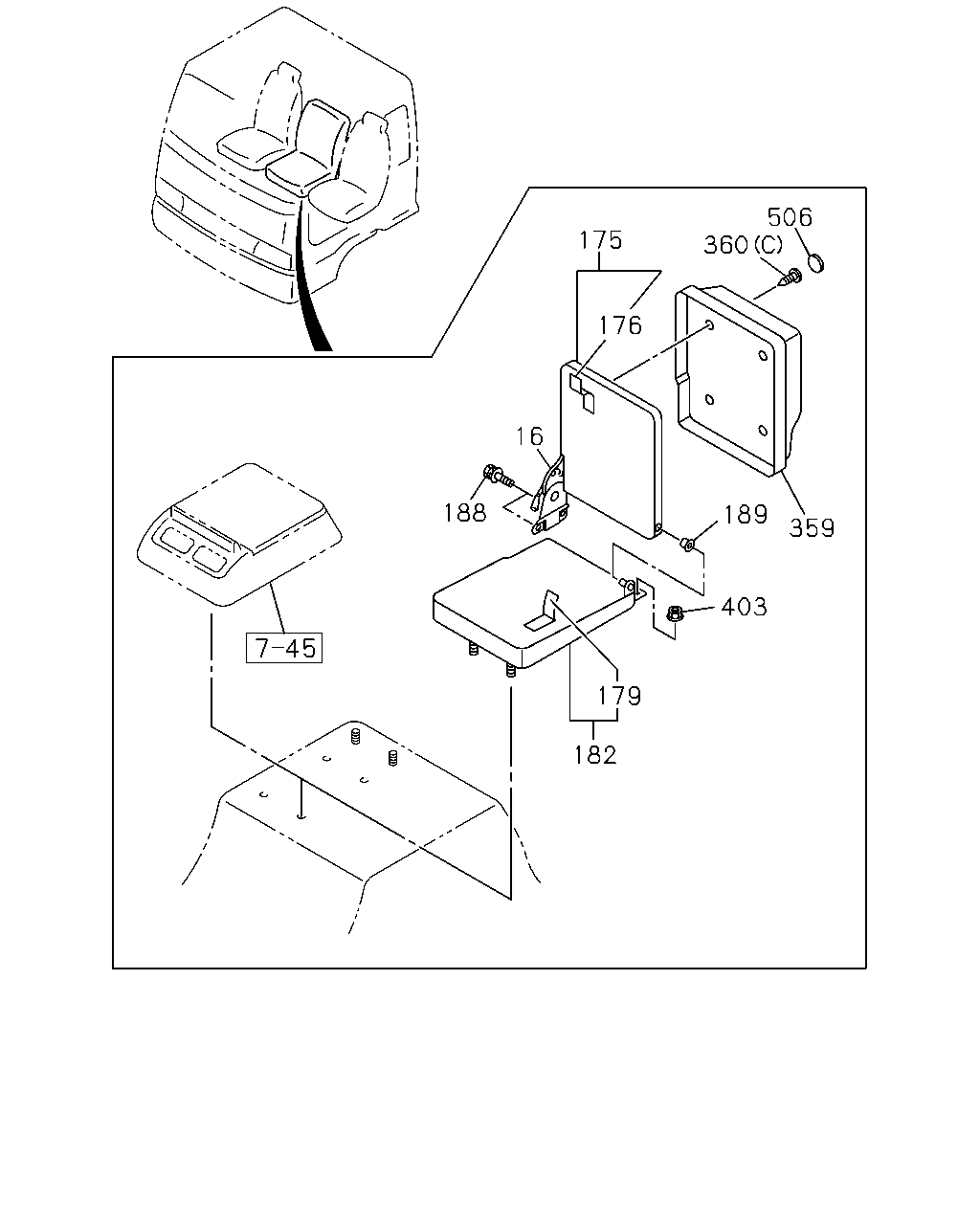

çizim 7814
506 360 175 176 16 188 189 359 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING 1-75418-057-1 01 1 9603-9605
16 ADJUSTER ASM; RECLINING 1-75418-062-0 01 1 9606-9904
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-062-0 01 1 9905-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-601-0 01 1 9905-
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-592-0 01 1 9603-9605
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-924-0 01 1 9606-9904
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-598-1 01 1 9905-0003
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-255-0 01 1 0004-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-587-1 01 1 9603-9605
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-925-0 01 1 9606-9904
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-864-0 01 1 9905-0003
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-257-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-257-0 01 1 9603-9904
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-884-0 01 1 9905-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-075-0 01 1 0004-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-258-1 01 1 9603-9904
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-941-0 01 1 9905-0003
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-077-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-859-0 01 1 9603-9904
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-931-0 01 1 9905-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-068-0 01 1 0004-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-858-1 01 1 9603-9904
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75117-932-0 01 1 9905-0003
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-069-0 01 1 0004-
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-519-0 01 1 9603-9904
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75027-830-0 01 1 9905-0003
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-247-1 01 1 0004-
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-518-1 01 1 9603-9904
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75027-858-0 01 1 9905-0003
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-248-1 01 1 0004-
188 BOLT; BACK TO CUSHION
M10X16 FLANGE 		1-75198-053-0 04 1 9603-
189 BUSHING; HINGE,CENTER SEAT BACK 8-97854-900-0 01 1 9603-
359 BOX; PARCEL 1-72538-157-4 01 1 9603-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9603-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9603-
403 NUT; CENTER SEAT
M8 FLANGE 		8-94279-504-1 04 1 9603-
506 CAP; PARCEL BOX 1-09983-164-2 04 1 9603-

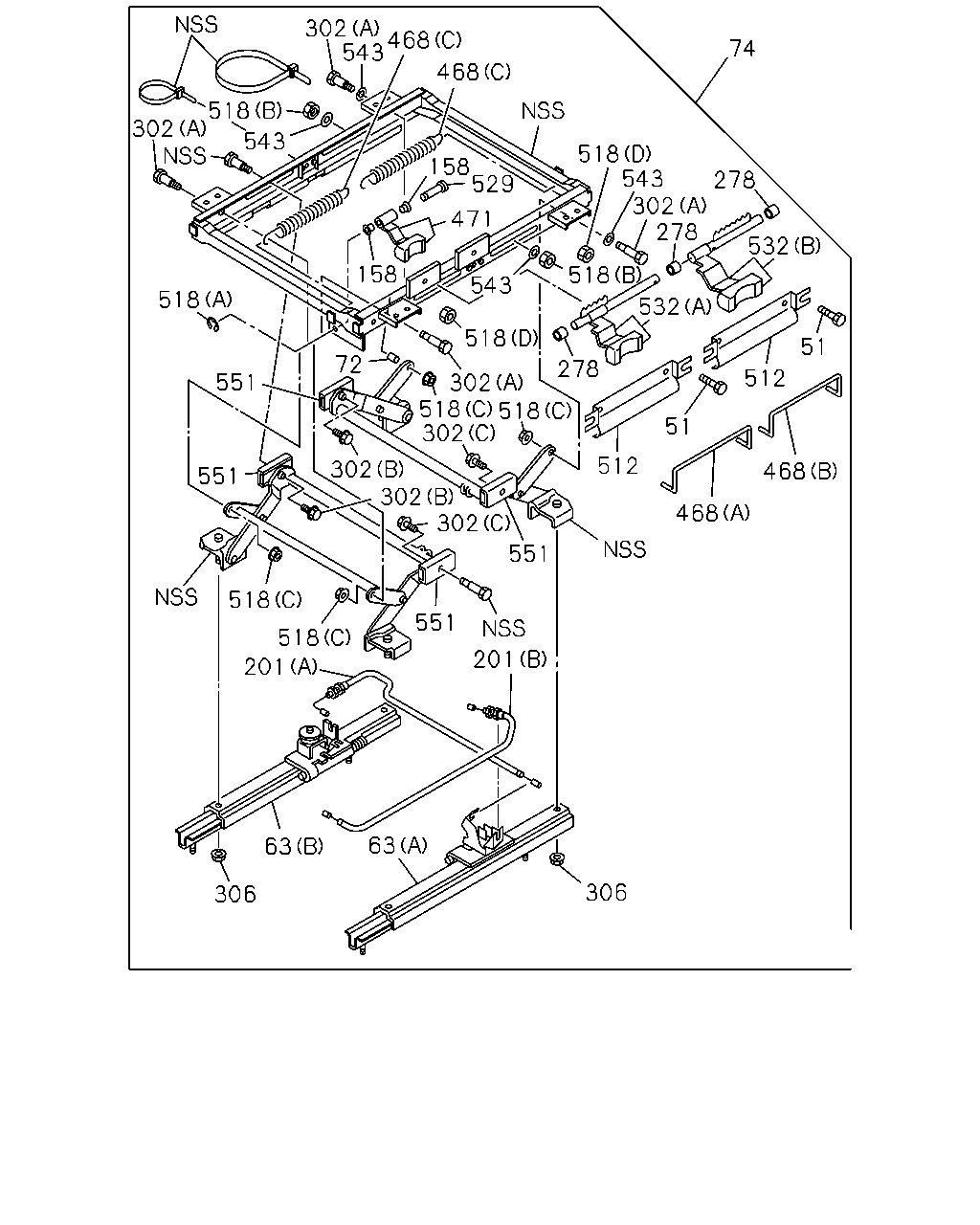

çizim 9121
302 468 543 74 468 518 302 543 158 529 518 543 278 302 278 471 532 543 518 158 518 532 518 51 278 72 512 551 302 302 51 12 302 302 302 468 551 468 551 518 551 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-1 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
51 SCREW; COVER
M6X12 W/LK WASHER 		9-03910-612-0 04 1 9603-9904
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M6X12 W/LK WASHER 		9-03910-612-0 04 1 9905-0003
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004-0012
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0101-0102
51 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-325-0 04 1 0103-
51 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M6X12 W/LK WASHER 		9-03910-612-0 04 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 02 1 0004-0012
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-226-0 01 1 9603-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9905-9910
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9603-9705
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-295-0 01 1 9706-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9905-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-324-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
72 SPACER; SEAT ADJ 1-75518-269-0 02 1 9603-9904
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-269-0 02 1 9905-0003
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0004-0012
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-269-0 02 1 0101-0102
72 SPACER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-334-0 02 1 0103-
72 SPACER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-269-0 02 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-255-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-276-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-300-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
158 BUSHING; LINK ARM 1-75518-209-0 02 1 9603-9904
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-209-0 02 1 9905-0003
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0101-0102
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0101-0102
158 BUSHING; LINK ARM
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-209-0 02 1 0103-
158 BUSHING; LINK ARM
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-209-0 02 1 0004-0012
201 CABLE; ADJ
(A) L=667 		1-75518-201-0 01 1 9603-9705
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 9706-9904
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667 		1-75518-288-0 01 1 9905-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0101-0102
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0101-0102
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) L=667 		1-75518-288-0 01 1 0103-
201 CABLE; ADJ
(B) L=605 		1-75518-202-1 01 1 9603-9705
201 CABLE; ADJ
(B) L=605 		1-75518-289-0 01 1 9706-9904
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605 		1-75518-289-0 01 1 9905-0003
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0004-0012
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0101-0102
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-0 01 1 0101-0102
201 CABLE; ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) L=605 		1-75518-289-1 01 1 0103-
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667 		1-75518-288-0 01 1 0004-0012
201 CABLE; ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605 		1-75518-289-0 01 1 0004-0012
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 9603-9904
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-244-0 03 1 9905-0003
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0012
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0101-0102
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0101-0102
278 COLLAR; FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-244-0 03 1 0103-
278 COLLAR; FRT SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-0 02 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-266-0 02 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-0 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-266-1 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-0 04 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-270-0 04 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-270-0 04 1 0103-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-271-1 02 1 9603-9904
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-271-1 02 1 9905-0003
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-271-1 02 1 0101-0102
302 BOLT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-336-0 02 1 0103-
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-0 02 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-0 04 1 0004-0012
302 BOLT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-271-1 04 1 0004-0012
306 NUT; SEAT ADJ
M8 FLANGE 		8-94279-518-0 04 1 9603-9904
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 04 1 9905-9912
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE 		8-94279-518-0 06 1 0001-0003
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0101-0102
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0101-0102
306 NUT; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8 FLANGE 		1-75538-207-0 06 1 0103-
306 NUT; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 06 1 0004-0012
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9603-9904
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9905-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 9603-9904
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
471 LEVER; SEAT ADJ 1-75518-220-1 01 1 9603-9705
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 9706-9904
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-290-0 01 1 9905-0003
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0012
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0101-0102
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0101-0102
471 LEVER; SEAT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-290-0 01 1 0103-
471 LEVER; SEAT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-290-0 01 1 0004-0012
512 COVER; LEVER 1-75518-245-0 02 1 9603-9904
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-245-0 02 1 9905-0003
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0012
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0101-0102
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-0 02 1 0101-0102
512 COVER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-245-1 02 1 0103-
512 COVER; LEVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-0 02 1 0004-0012
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-263-0 01 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-263-0 01 1 0103-
518 NUT; TILT ADJ
(B) 		1-75518-264-0 04 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-264-0 04 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-264-0 04 1 0103-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT 		5-09984-020-0 02 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0103-
518 NUT; TILT ADJ
(C) M8 FLANGE 		8-94152-886-0 04 1 9603-9904
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) (C) M8 FLANGE 		8-94152-886-0 04 1 9905-0003
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0102
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0101-0102
518 NUT; TILT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) M8 FLANGE 		8-94152-886-0 04 1 0103-
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-263-0 01 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-264-0 04 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0004-0012
518 NUT; TILT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 FLANGE 		8-94152-886-0 04 1 0004-0012
529 PIN; LINK 1-75518-262-0 01 1 9603-9904
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-262-0 01 1 9905-0003
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0101-0102
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0101-0102
529 PIN; LINK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-262-0 01 1 0103-
529 PIN; LINK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-262-0 01 1 0004-0012
532 LEVER ASM; TILT
(A) 		1-75518-221-0 01 1 9603-9904
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-221-0 01 1 9905-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0012
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0101-0102
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0101-0102
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-221-0 01 1 0103-
532 LEVER ASM; TILT
(B) 		1-75518-222-1 01 1 9603-9904
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-222-1 01 1 9905-0003
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0004-0012
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0101-0102
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0101-0102
532 LEVER ASM; TILT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-222-1 01 1 0103-
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0004-0012
532 LEVER ASM; TILT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
ID=6.4 		9-09160-506-0 04 1 9603-9904
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) ID=6.4 		9-09160-506-0 04 1 9905-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=6.4 		9-09160-506-0 04 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=6.4 		9-09160-506-0 04 1 0103-
543 WASHER; HEIGHT ADJUSTER
ID=10.5 		9-09164-510-0 02 1 9603-9904
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA) ID=10.5 		9-09164-510-0 02 1 9905-0003
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 		9-09164-510-0 02 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) ID=10.5 		9-09164-510-0 02 1 0101-0102
543 WASHER; HEIGHT ADJUSTER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-335-0 02 1 0103-
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=6.4 		9-09160-506-0 04 1 0004-0012
543 WASHER; HEIGHT ADJUSTER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 		9-09164-510-0 02 1 0004-0012
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 9603-9904
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-265-0 04 1 9905-0003
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0101-0102
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0101-0102
551 SLIDER; HEIGHT ADJ
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-265-0 04 1 0103-
551 SLIDER; HEIGHT ADJ
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0004-0012

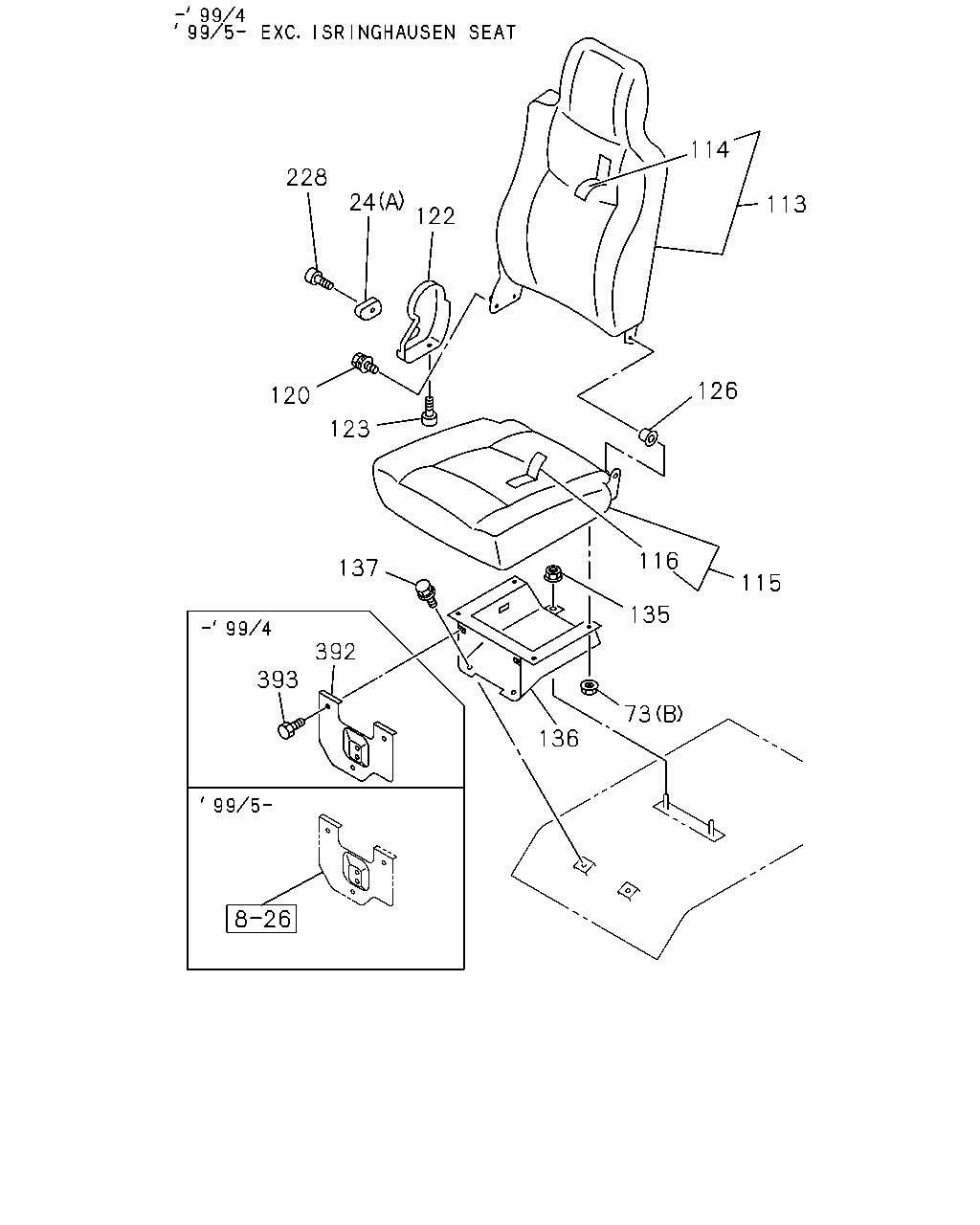

çizim 39328
114 228 24 113 122 126 120 123 116 137 115 135 392 393 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-056-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9905-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
(A) M8 FLANGE 		8-94279-518-0 08 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) M8 FLANGE 		8-94279-518-0 08 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
(B) M8 FLANGE 		8-94279-518-0 04 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		8-94279-518-0 04 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-586-1 01 1 9603-9904
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9905-0003
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004-0105
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-547-1 01 1 0106-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-590-2 01 1 9603-9904
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9905-0003
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75208-060-1 01 1 0106-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-256-0 01 1 9603-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-277-2 01 1 9603-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-583-2 01 1 9603-9904
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-531-2 01 1 9603-9904
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-841-1 01 1 9603-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-225-1 01 1 9603-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-
120 BOLT; RECLINING ADJ
M8X18 		8-94279-109-1 02 1 9603-9904
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003
120 BOLT; RECLINING ADJ
EXC. ISRINGHAUSEN SEAT(SJA) M8X20 		8-97255-906-0 02 1 0004-
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 9603-9904
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904
123 SCREW; COVER,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 9603-9904
126 BUSHING; HINGE,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9603-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-547-1 01 1 9603-9609
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 9905-
136 STAND; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75558-521-5 01 1 9603-9609
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9603-9904
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
392 COVER; STAND,PASSENGER SEAT 1-75558-535-3 01 1 9610-9904
393 BOLT; COVER,SEAT STAND
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9610-9904

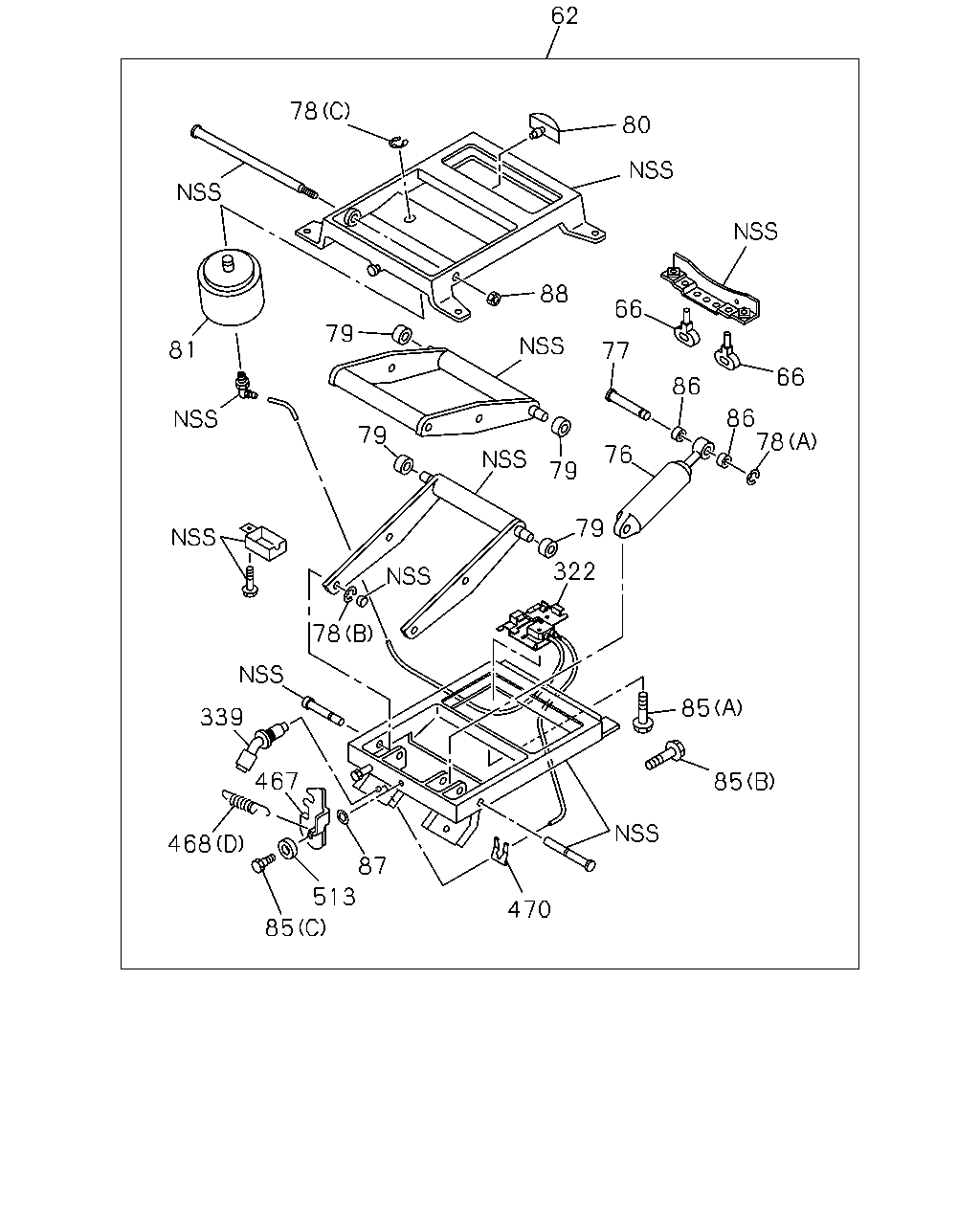

çizim 39331
62 78 80 88 66 79 81 77 66 86 86 78 79 76 79 79 322 78 85 339 467 85 468 87 513 470 85
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-241-3 01 1 9603-9712
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-255-0 01 1 9801-9804
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-259-0 01 1 9805-9904
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9905-
66 RUBBER; LWR STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9603-9904
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 9905-
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9603-9904
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9905-
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905-
77 PIN; DAMPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9603-9904
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 9905-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9603-9904
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 9905-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9603-9904
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10 		9-09185-410-0 02 1 9905-
78 RING; SNAP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9603-9904
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15 		9-09185-415-0 01 1 9905-
79 ROLLER ASM; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9603-9904
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 9905-
80 RUBBER; STOPPER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9603-9904
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-123-0 01 1 9905-
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9603-9904
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9905-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9603-9904
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9905-0102
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75538-208-0 02 1 0103-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9603-9904
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 9905-0003
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0004-
85 BOLT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9603-9904
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-0 01 1 9905-
86 BUSHING; GUIDE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9603-9904
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 9905-
87 WASHER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9603-9904
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 9905-
88 NUT; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		8-94279-519-0 01 1 9603-9904
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-273-1 01 1 9905-
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-148-1 01 1 9603-9804
322 VALVE; AIR SPRING
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-0 01 1 9805-9904
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-2 01 1 9905-
339 UNION; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-0 01 1 9603-9904
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-1 01 1 9905-
467 LEVER; LOCK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9603-9904
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 9905-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-206-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-206-0 01 1 0103-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-207-0 01 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-207-0 01 1 0103-
468 SPRING; RETURN
(D) 		1-75538-132-0 01 1 9603-9904
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 9905-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 9603-9904
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) (C) 		1-75518-208-0 02 1 9603-9904
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA) (C) 		1-75518-208-0 02 1 9905-0003
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0101-0102
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (C) 		1-75518-208-0 02 1 0103-
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0004-0012
468 SPRING; RETURN
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0004-0012
470 CLIP; HOSE
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9603-9904
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 9905-
513 SPACER; LEVER
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9603-9904
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 9905-
çizim 41085
27 1 2 12 13 336 16 336 587 336 63 325 55 336 590 46 81 76 582 582 582 582 581
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-559-1 01 1 9603-9904
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9905-9910
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-576-1 01 1 9603-9904
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9905-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-624-2 01 1 9603-9904
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9905-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-236-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-253-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905-
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-276-2 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-1 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-842-0 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
16 ADJUSTER ASM; RECLINING 1-75418-057-1 01 1 9603-9605
16 ADJUSTER ASM; RECLINING 1-75418-062-0 01 1 9606-9904
16 ADJUSTER ASM; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-062-0 01 1 9905-
16 ADJUSTER ASM; RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75417-601-0 01 1 9905-
27 REST; HD,FRT SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75657-029-0 01 1 9905-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9603-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 02 1 0004-0012
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-226-0 01 1 9603-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-226-0 01 1 9905-9910
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-226-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-227-0 01 1 9603-9705
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-295-0 01 1 9706-9904
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75518-295-0 01 1 9905-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-324-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-324-0 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75518-324-0 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-0 01 1 9911-9912
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75518-227-0 01 1 0001-0003
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0101-0102
63 ADJUSTER; SEAT SLIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) 		1-75518-227-1 01 1 0103-
63 ADJUSTER; SEAT SLIDE
ISRINGHAUSEN SEAT(SJA) 		1-75517-953-0 01 1 9905-
63 ADJUSTER; SEAT SLIDE
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-227-1 01 1 0004-0012
76 DAMPER; AIR SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9603-9904
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 9905-
76 DAMPER; AIR SUSP
ISRINGHAUSEN SEAT(SJA) 		1-75537-276-0 01 1 9905-
81 SPRING; AIR
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9603-9904
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-1 01 1 9905-
81 SPRING; AIR
ISRINGHAUSEN SEAT(SJA) 		1-75537-275-0 01 1 9905-
325 COVER; SUSPENSION DEVICE
ISRINGHAUSEN SEAT(SJA) 		1-75537-274-0 01 1 9905-
336 COVER; DRIVER SEAT 1-75518-194-2 01 1 9603-9904
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 9905-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
581 PIPE; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-73907-606-0 01 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-09980-619-1 02 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-
582 BOLT; PIPE,SEAT
ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 9905-
587 VALVE; LUMBAR SUPPORT
ISRINGHAUSEN SEAT(SJA) 		1-75197-006-0 01 1 9905-
590 KNOB KIT; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75417-599-0 01 1 9905-
çizim 41152
359 533 535 365 98 360 98 360 537 360 536 360 534 360 359
BalonParca AdiParca NoAdetTipApplied Date
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9603-9904
98 WASHER; HINGE
ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 9905-
359 BOX; PARCEL 1-72538-157-4 01 1 9603-
360 SCREW; PARCEL
(A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 9603-
360 SCREW; PARCEL
(B) M4X16 		0-70080-416-0 06 1 9603-
360 SCREW; PARCEL
(C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9603-
360 SCREW; PARCEL
(D) 		1-09983-165-0 02 1 9603-
365 LOCK ASM; SEAT 1-72538-180-0 01 1 9603-
533 LID; PARCEL BOX 1-72538-194-2 01 1 9603-
534 STRIKER; PARCEL BOX 1-72538-181-0 01 1 9603-
535 HINGE; PARCEL BOX 1-72447-391-1 01 1 9603-
536 RUBBER; CUSHION 5-09983-002-1 02 1 9603-
537 BRACKET; RUBBER 1-72548-057-1 02 1 9603-
çizim 41201
1 2 99 101 17 18 13 24 228 12 19 74 327 73 336 91 55 46 42 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-559-1 01 1 9603-9904
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9905-9910
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-576-1 01 1 9603-9904
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9905-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-624-2 01 1 9603-9904
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9905-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-236-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-253-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905-
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-276-2 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-1 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-842-0 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9603-9904
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
18 COVER; RECLINING 1-75418-052-0 01 1 9603-9904
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 9905-0003
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0003
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-056-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9905-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9603-9904
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-491-4 01 1 9905-0003
42 STAND; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0004-0012
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0101-0102
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0101-0102
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103-
42 STAND; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-0 01 1 0103-
42 STAND; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75558-604-0 01 1 0103-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9603-
73 NUT; ADJ,HEIGHT CONT
(A) M8 FLANGE 		8-94279-518-0 08 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) M8 FLANGE 		8-94279-518-0 08 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
(B) M8 FLANGE 		8-94279-518-0 04 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		8-94279-518-0 04 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-255-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-276-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-300-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
91 SCREW; SEAT ADJ COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0003
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9603-9904
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0003
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 9603-9904
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9905-0003
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9603-9904
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
327 CLIP; COVER 1-09987-249-0 01 1 9603-9904
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
336 COVER; DRIVER SEAT 1-75518-194-2 01 1 9603-9904
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 9905-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
çizim 42217
117 113 114 115 119 116 122 137 135 65 136
BalonParca AdiParca NoAdetTipApplied Date
65 SCREW; ADJ TO SEAT
ISRINGHAUSEN SEAT(SJA) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-586-1 01 1 9603-9904
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-832-0 01 1 9905-0003
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-226-0 01 1 0004-0105
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-547-1 01 1 0106-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-590-2 01 1 9603-9904
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-590-2 01 1 9905-0003
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-721-0 01 1 0004-0105
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75208-060-1 01 1 0106-
113 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-267-0 01 1 9905-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75116-256-0 01 1 9603-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-939-0 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-056-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-277-2 01 1 9603-9904
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-277-2 01 1 9905-0003
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-600-0 01 1 0004-
114 COVER; TRIM,PASSENGER SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75116-464-0 01 1 9905-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-583-2 01 1 9603-9904
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75027-829-0 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75207-210-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75028-531-2 01 1 9603-9904
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75028-531-2 01 1 9905-0003
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75026-771-0 01 1 0004-
115 CUSHION ASM; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75026-268-0 01 1 9905-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-841-1 01 1 9603-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75117-929-0 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) 		1-75127-026-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-225-1 01 1 9603-9904
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-225-1 01 1 9905-0003
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA) 		1-75116-575-0 01 1 0004-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75116-465-0 01 1 9905-
117 REST; HD
ISRINGHAUSEN SEAT(SJA) 		1-75658-052-0 01 1 9905-
119 ADJ; SEAT RECLINING,ASSIST SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75418-064-0 01 1 9905-
122 COVER; ADJ,RECLINING 1-75418-050-0 01 1 9603-9904
122 COVER; ADJ,RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-050-0 01 1 9905-
122 COVER; ADJ,RECLINING
ISRINGHAUSEN SEAT(SJA) 		1-75418-063-0 01 1 9905-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 9603-
136 STAND; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75558-547-1 01 1 9603-9609
136 STAND; PASSENGER SEAT 1-75558-550-3 01 1 9610-9904
136 STAND; PASSENGER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75558-550-7 01 1 9905-
136 STAND; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75558-521-5 01 1 9603-9609
136 STAND; PASSENGER SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75557-486-0 01 1 9905-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603-
çizim 43095
1 39 321 321 321 39 40 39 99 2 101 30 17 18 13 12 24 228 74 19 327 73 336 91 55 46 62 73
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-559-1 01 1 9603-9904
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9905-9910
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-831-0 01 1 9911-0003
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-169-0 01 1 0101-0105
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-576-1 01 1 9603-9904
1 BACK ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75027-940-0 01 1 9905-
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-624-2 01 1 9603-9904
1 BACK ASM; SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9905-9910
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-861-0 01 1 9911-0003
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0004-0012
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0101-0102
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-170-0 01 1 0103-0105
1 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-457-0 01 1 0106-
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-169-0 01 1 0004-0012
1 BACK ASM; SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-456-0 01 1 0106-
1 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-456-0 01 1 0106-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-236-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-936-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-041-0 01 1 0101-
2 COVER; TRIM,FRT SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-253-1 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
ISRINGHAUSEN SEAT(SJA) 		1-75117-965-0 01 1 9905-
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-276-2 01 1 9603-9904
2 COVER; TRIM,FRT SEAT,BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9905-9910
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-907-0 01 1 9911-0003
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0004-0012
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0101-0102
2 COVER; TRIM,FRT SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-042-0 01 1 0103-
2 COVER; TRIM,FRT SEAT,BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-041-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) 		1-75028-600-1 01 1 9603-9904
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9905-9910
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-828-0 01 1 9911-0003
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75207-152-1 01 1 0101-
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9603-9904
12 CUSHION; SEAT,FRT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9905-9910
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75028-529-2 01 1 9911-0003
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0004-0012
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-0 01 1 0101-0102
12 CUSHION; SEAT,FRT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-148-1 01 1 0103-
12 CUSHION; SEAT,FRT
ISRINGHAUSEN SEAT(SJA) 		1-75027-939-0 01 1 9905-
12 CUSHION; SEAT,FRT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-152-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75117-842-0 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75117-928-0 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-100-0 01 1 0101-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9603-9904
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9905-9910
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-224-1 01 1 9911-0003
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0004-0012
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0101-0102
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-713-0 01 1 0103-
13 COVER; TRIM,FRT SEAT,CUSHION
ISRINGHAUSEN SEAT(SJA) 		1-75117-964-0 01 1 9905-
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-100-0 01 1 0004-0012
17 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9603-9904
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) M8X18 		8-94279-109-1 02 1 9905-0003
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0101-0102
17 BOLT; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M8X20 		8-97255-906-0 02 1 0103-
17 BOLT; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20 		8-97255-906-0 02 1 0004-0012
18 COVER; RECLINING 1-75418-052-0 01 1 9603-9904
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75418-052-0 01 1 9905-0003
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0101-0102
18 COVER; RECLINING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75418-052-0 01 1 0103-
18 COVER; RECLINING
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75418-052-0 01 1 0004-0012
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9603-9904
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9905-0003
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0101-0102
19 SCREW; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0103-
19 SCREW; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-056-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (B) 		1-75418-056-0 01 1 9905-0003
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0101-0102
24 KNOB; RECLINING,FRT,SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) 		1-75418-056-0 01 1 0103-
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-059-0 01 1 9603-9904
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-75418-059-0 01 1 9905-
24 KNOB; RECLINING,FRT,SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75418-056-0 01 1 0004-0012
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75116-320-0 01 1 9603-9904
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9905-9910
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75027-834-0 01 1 9911-0003
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004-0012
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0101-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0101-
30 REST ASM; ARM,FRT SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75127-012-0 01 1 0101-
30 REST ASM; ARM,FRT SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-012-0 01 1 0004-0012
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0101-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0101-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) M10 		9-09110-410-0 01 1 0101-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9603-9904
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9905-9910
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-94279-521-0 01 1 9911-0003
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0101-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0101-
39 NUT; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 		1-75147-657-0 01 1 0101-
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 		1-75147-657-0 01 1 0004-0012
39 NUT; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M10 		9-09110-410-0 01 1 0004-0012
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9603-9904
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9905-9910
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 9911-0003
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0012
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0101-
40 SPACER; ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-94285-921-0 02 1 0101-
40 SPACER; ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0004-0012
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 9603-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 9603-
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-241-3 01 1 9603-9712
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-255-0 01 1 9801-9804
62 DAMPER ASM; SEAT SUSP
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-259-0 01 1 9805-9904
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-4 01 1 9905-
73 NUT; ADJ,HEIGHT CONT
(A) M8 FLANGE 		8-94279-518-0 08 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (A) M8 FLANGE 		8-94279-518-0 08 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		1-75538-207-0 04 1 0004-
73 NUT; ADJ,HEIGHT CONT
(B) M8 FLANGE 		8-94279-518-0 04 1 9603-9904
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE 		8-94279-518-0 04 1 9905-0003
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0101-0102
73 NUT; ADJ,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) M8 FLANGE 		1-75538-207-0 08 1 0103-
73 NUT; ADJ,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M8 FLANGE 		1-75538-207-0 08 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-255-1 01 1 9603-9705
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-276-0 01 1 9706-9712
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-300-0 01 1 9801-9904
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-300-0 01 1 9905-9912
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-318-0 01 1 0001-0003
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-318-1 01 1 0101-0102
74 ADJUSTER; FRT SEAT,HEIGHT CONT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-331-0 01 1 0103-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-318-1 01 1 0004-0012
91 SCREW; SEAT ADJ COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9603-9904
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 9905-0003
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0101-0102
91 SCREW; SEAT ADJ COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0103-
91 SCREW; SEAT ADJ COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0004-0012
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 9603-9904
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA) 		8-97854-087-0 01 1 9905-0003
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0101-0102
99 BUSHING; SEAT BACK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		8-97854-087-0 01 1 0103-
99 BUSHING; SEAT BACK
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-97854-087-0 01 1 0004-0012
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 9603-9904
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA) 		5-75190-138-0 01 1 9905-0003
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0101-0102
101 LEVER ASM; LUMBAR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		5-75190-138-0 01 1 0103-
101 LEVER ASM; LUMBAR
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0004-0012
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 9603-9904
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 9905-0003
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0004-0012
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0101-0102
228 SCREW; KNOB
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA) M4X6 		8-97042-273-0 01 1 0103-
228 SCREW; KNOB
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6 		8-97042-273-0 01 1 0004-0012
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0101-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9603-9904
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9905-9910
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 9911-0003
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-
321 WASHER; PL,ARM REST
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0101-
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0004-0012
321 WASHER; PL,ARM REST
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 OD=22 		9-09164-708-0 01 1 0004-0012
327 CLIP; COVER 1-09987-249-0 01 1 9603-9904
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA) 		1-09987-249-0 01 1 9905-0003
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0101-0102
327 CLIP; COVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-09987-249-0 01 1 0103-
327 CLIP; COVER
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-249-0 01 1 0004-0012
336 COVER; DRIVER SEAT 1-75518-194-2 01 1 9603-9904
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75518-194-2 01 1 9905-0003
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0101-0102
336 COVER; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC) 		1-75518-194-2 01 1 0103-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (A) 		1-72537-207-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (B) 		1-72537-209-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (C) 		1-72537-211-0 01 1 9905-
336 COVER; DRIVER SEAT
ISRINGHAUSEN SEAT(SJA) (D) 		1-72537-213-0 01 1 9905-
336 COVER; DRIVER SEAT
EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-194-2 01 1 0004-0012
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
