◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11422 - FTS(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#46339) — 17 parça

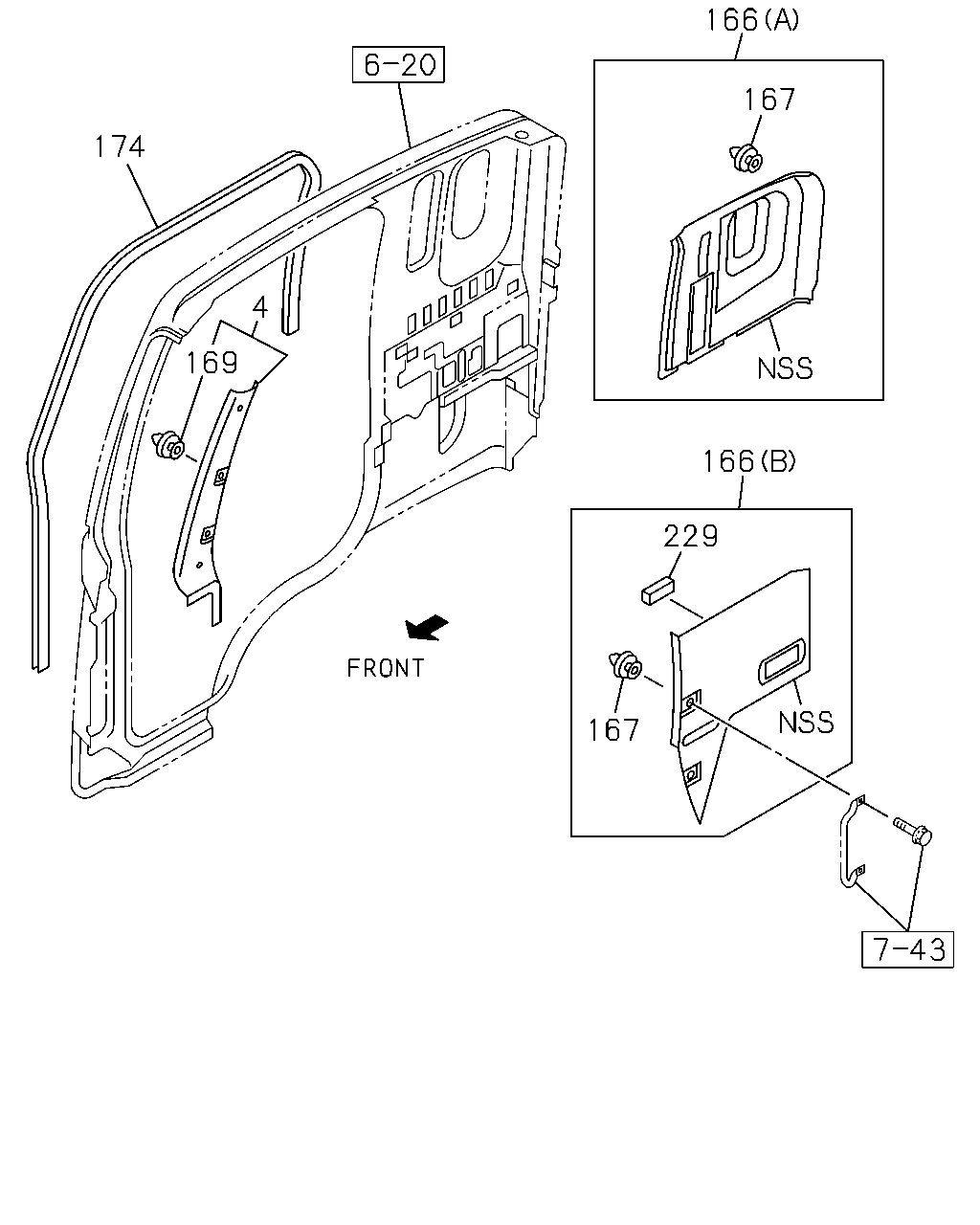

çizim 110857
166 167 174 4 169 166 229 167
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 0812-
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 0812-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 0812-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 0812-
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-459-1 01 1 0812-
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 0812-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 12 1 0812-
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 0812-
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0812-
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-918-1 01 1 0812-0912
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1001-1509
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510-
174 FINISHER; BODY SIDE
DARK GRAY 		8-97412-917-1 01 1 0812-0912
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1001-1509
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510-
229 SEAL 8-98080-972-0 02 1 0812-
229 SEAL 8-98080-972-0 02 1 0812-
