Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

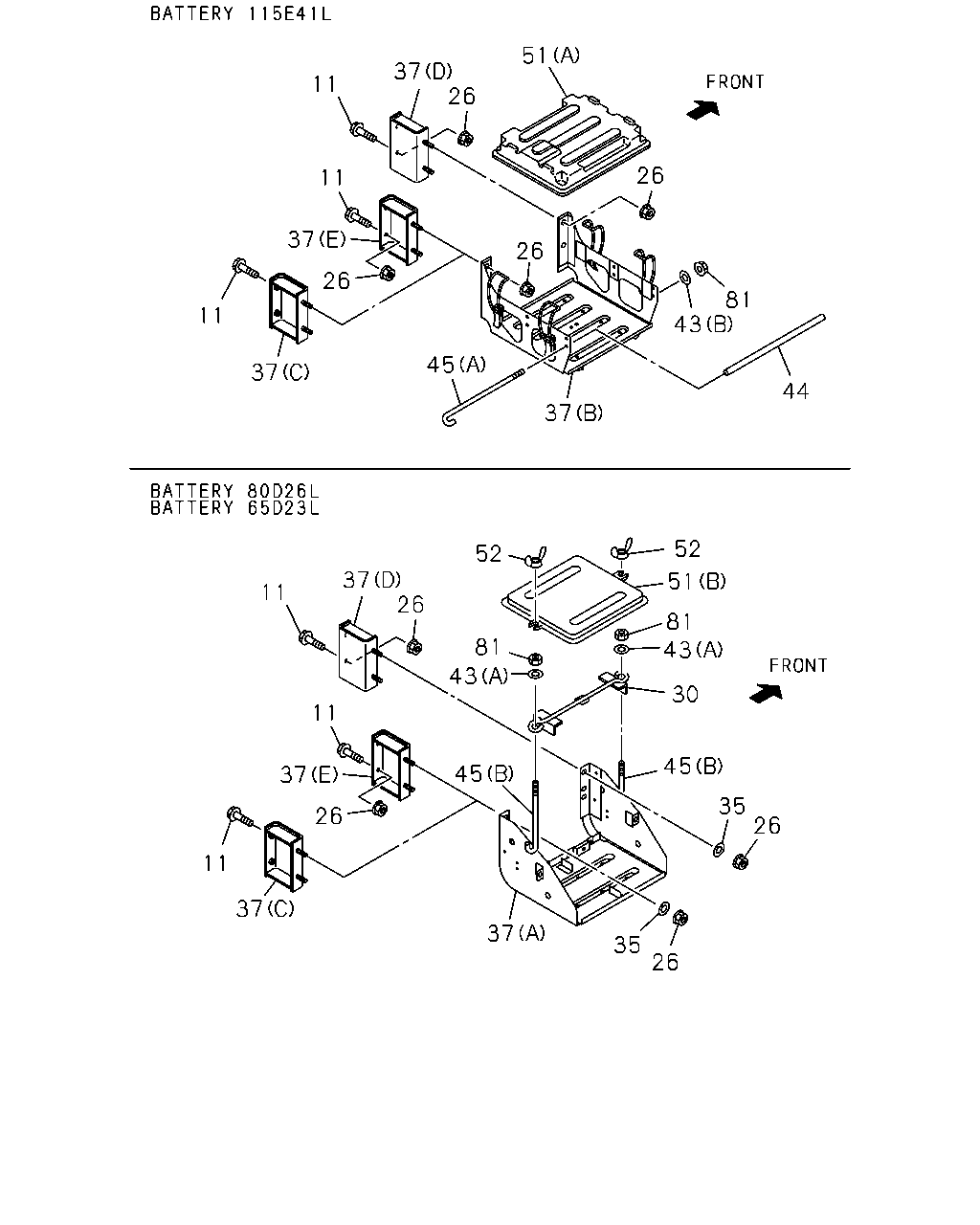

5-20 — BATTERY CARRIER
(#46327) — 25 parça
26
35
37
37
11
11
11
37
26
45
43
52
37
26
81
45
26
35
30
43
52
81
51
44
43
81
37
45
37
11
11
11
37
37
26
26
51
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
0812-1011
11
BOLT; BRKT FIX
EURO2 SPECIFICATION<NT2> M10X35 FLANGE
0-28651-035-0
04
1
1012-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0812-1011
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0812-1011
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1012-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1012-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
0812-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
0812-
37
BRACKET; BATTERY
(C)
8-98070-047-0
01
1
0812-0906
37
BRACKET; BATTERY
(C)
8-98144-194-0
01
1
0907-1011
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1012-
37
BRACKET; BATTERY
(E)
8-98088-828-0
01
1
0812-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D)
8-98091-497-0
01
1
0812-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (D)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (B)
8-97384-068-2
01
1
0812-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0812-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
0812-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
0812-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A)
8-97134-740-0
02
1
0812-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
9-53616-615-0
02
1
0812-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
0812-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
0812-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
0812-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0812-
