Isuzu WW
▶
TRUCKS
▶
FTS
▶
11422 - FTS(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

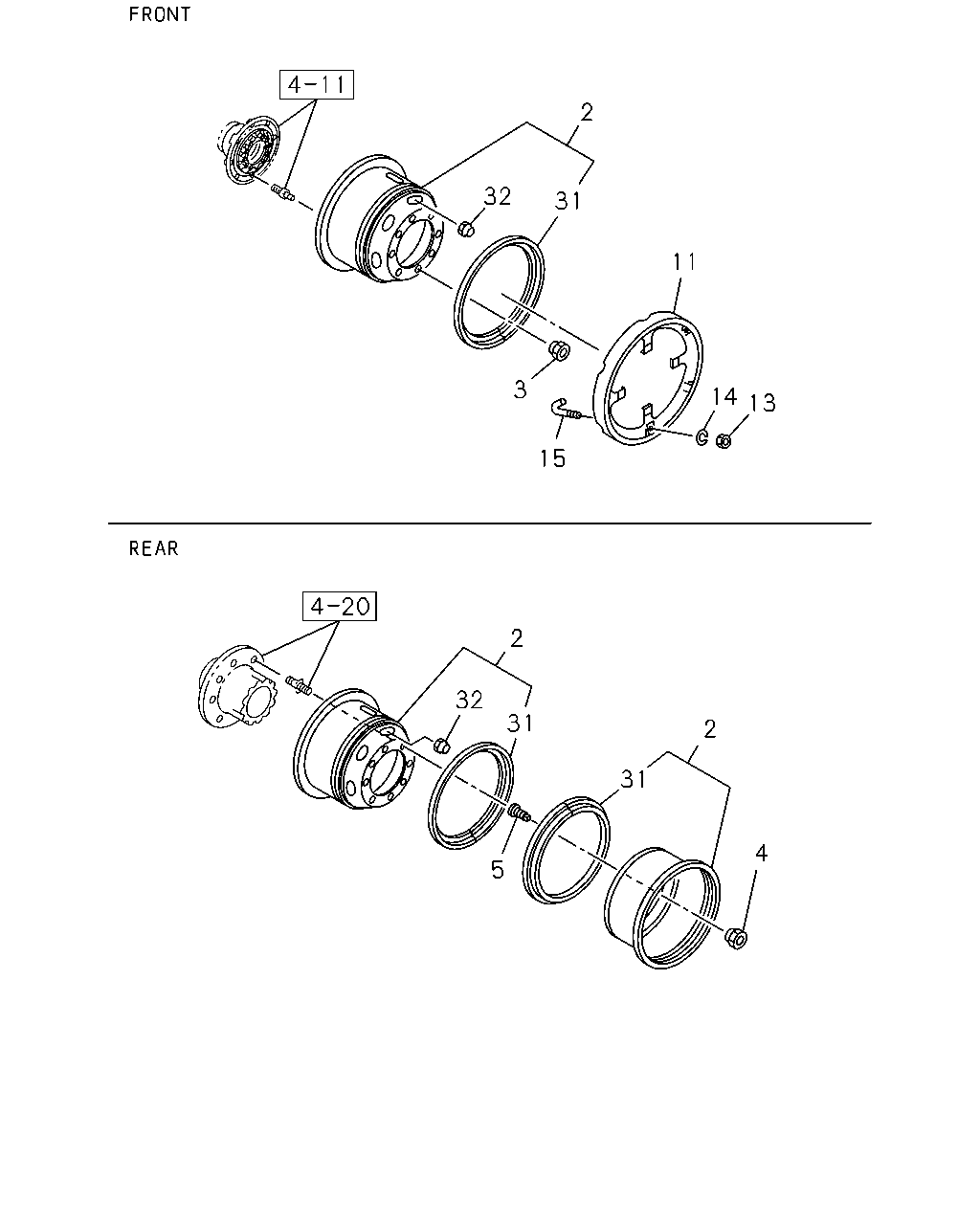

4-80 — ROAD WHEEL
(#46323) — 20 parça
2
32
31
11
3
14
13
15
2
32
31
2
31
4
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT
1-42350-268-2
02
1
0812-
2
WHEEL; DISC
REAR
1-42350-268-2
04
1
0812-
2
WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42350-268-2
01
1
0812-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE
1-42350-268-2
01
1
0812-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
08
1
0812-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
08
1
0812-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
08
1
0812-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
08
1
0812-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
08
1
0812-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
08
1
0812-
11
STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66>
1-43139-002-2
02
1
0812-
13
NUT; STEP DISC
DISC WHEEL STEP<W66> M10
0-91110-510-0
06
1
0812-
14
WASHER; LK,STEP DISC
DISC WHEEL STEP<W66> ID=10.2
0-91510-510-0
06
1
0812-
15
BOLT; STEP DISC
DISC WHEEL STEP<W66> L=44
9-43139-023-1
06
1
0812-
31
RING; SIDE,DISC WHEEL
FRONT
1-42355-012-1
02
1
0812-
31
RING; SIDE,DISC WHEEL
REAR
1-42355-012-1
04
1
0812-
31
RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42355-012-1
01
1
0812-
31
RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE
1-42355-012-1
01
1
0812-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>
1-42374-001-0
07
1
0812-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
06
1
0812-
