7-43 — SUN VISOR AND ASSIST GRIP (#4632) — 190 parça

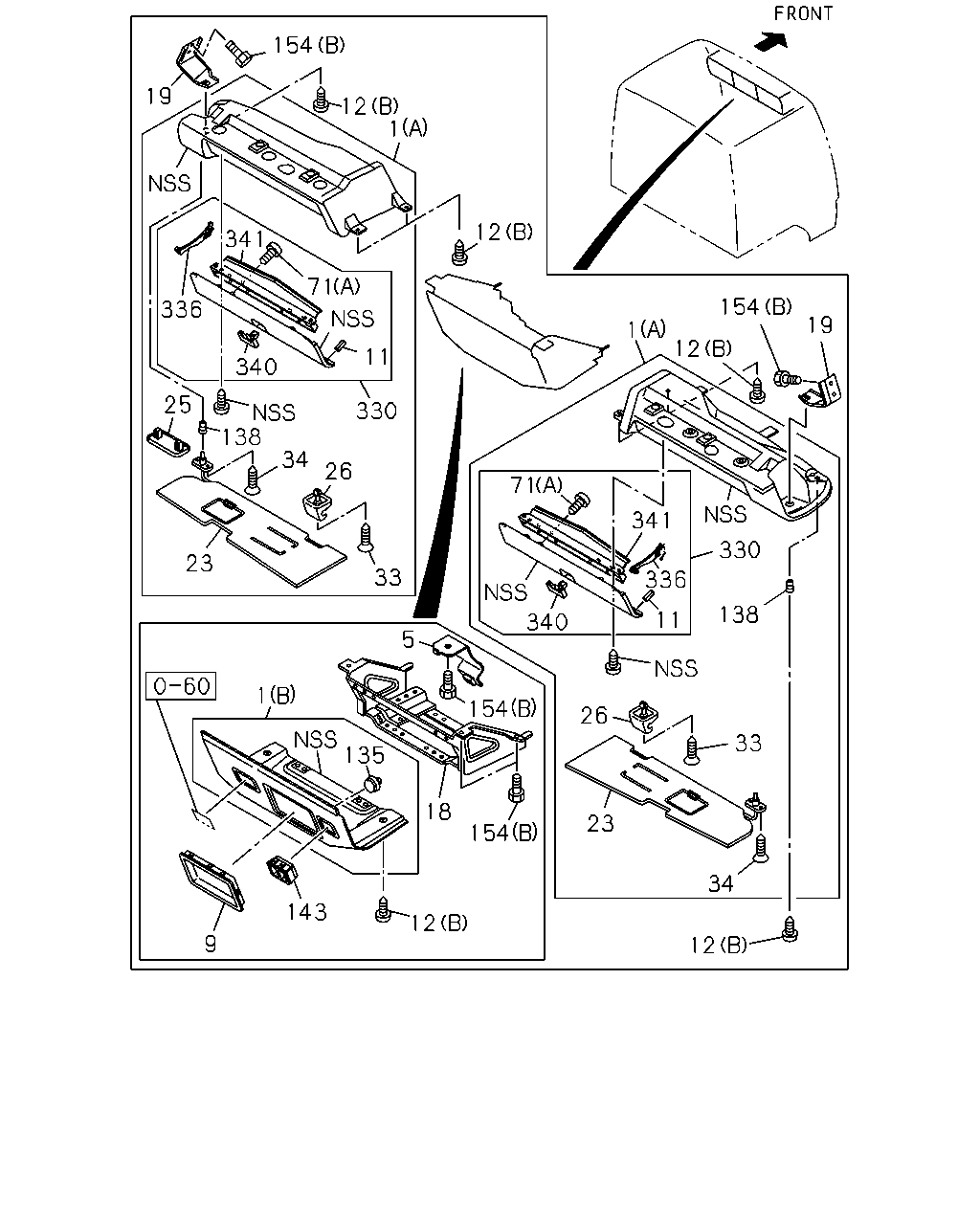

154 19 12 1 12 341 71 154 336 19 1 12 11 340 25 330 138 34 26 71 341 330 336 23 33 138 11 340 5 1 154 26 135 33 18 23 154 34 143 12 9 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9603-0001
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9603-
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9603-9904
11	CAP; HEADER SHELF	8-94270-538-0	02	1	9905-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
18	SUPPORT; HEADER SHELF CENTER	1-72447-702-2	01	1	9603-9604
18	SUPPORT; HEADER SHELF CENTER	1-72447-739-0	01	1	9605-
19	SUPPORT ASM; HEADER SHELF	1-72448-324-1	01	1	9603-
19	SUPPORT ASM; HEADER SHELF	1-72448-323-1	01	1	9603-
23	SUN VISOR	1-73138-150-1	01	1	9603-
23	SUN VISOR	1-73138-148-1	01	1	9603-9904
23	SUN VISOR EXC. CHEAPER CAB(WY1)	1-73138-148-1	01	1	9905-0011
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	0012-
25	COVER; HOLE,SUN VISOR CHEAPER CAB(WY1)	1-73318-614-0	01	1	9905-0011
25	COVER; HOLE,SUN VISOR EXC. SUN VISOR PASSENGER<D20>	1-73318-614-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9603-0011
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-142-0	01	1	0012-
26	HOLDER; SUN VISOR	1-73138-142-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9603-9904
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	9905-0011
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	01	1	0012-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9603-0011
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	04	1	0012-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	05	1	9603-9705
135	CLIP; HEADER SHELF OD=7.9 BLACK	8-94279-974-1	04	1	9706-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9603-9904
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	9905-0011
138	NUT; BRKT,HEADER SHELF SUN VISOR PASSENGER<D20>	1-09984-166-0	02	1	0012-
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	02	1	0012-
143	BEZEL	1-72448-411-0	01	1	9603-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-9904
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
330	LID; HEADER SHELF	1-72448-360-3	02	1	9603-9904
330	LID; HEADER SHELF	1-72448-360-3	01	1	9905-
336	STAY; LID	1-72448-379-3	04	1	9603-9904
336	STAY; LID	1-72448-379-3	02	1	9905-
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9603-9904
340	LOCK; HEADER SHELF	1-72448-376-0	01	1	9905-
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9603-9904
341	HINGE; LID,HEADER SHELF	1-72448-403-1	01	1	9905-

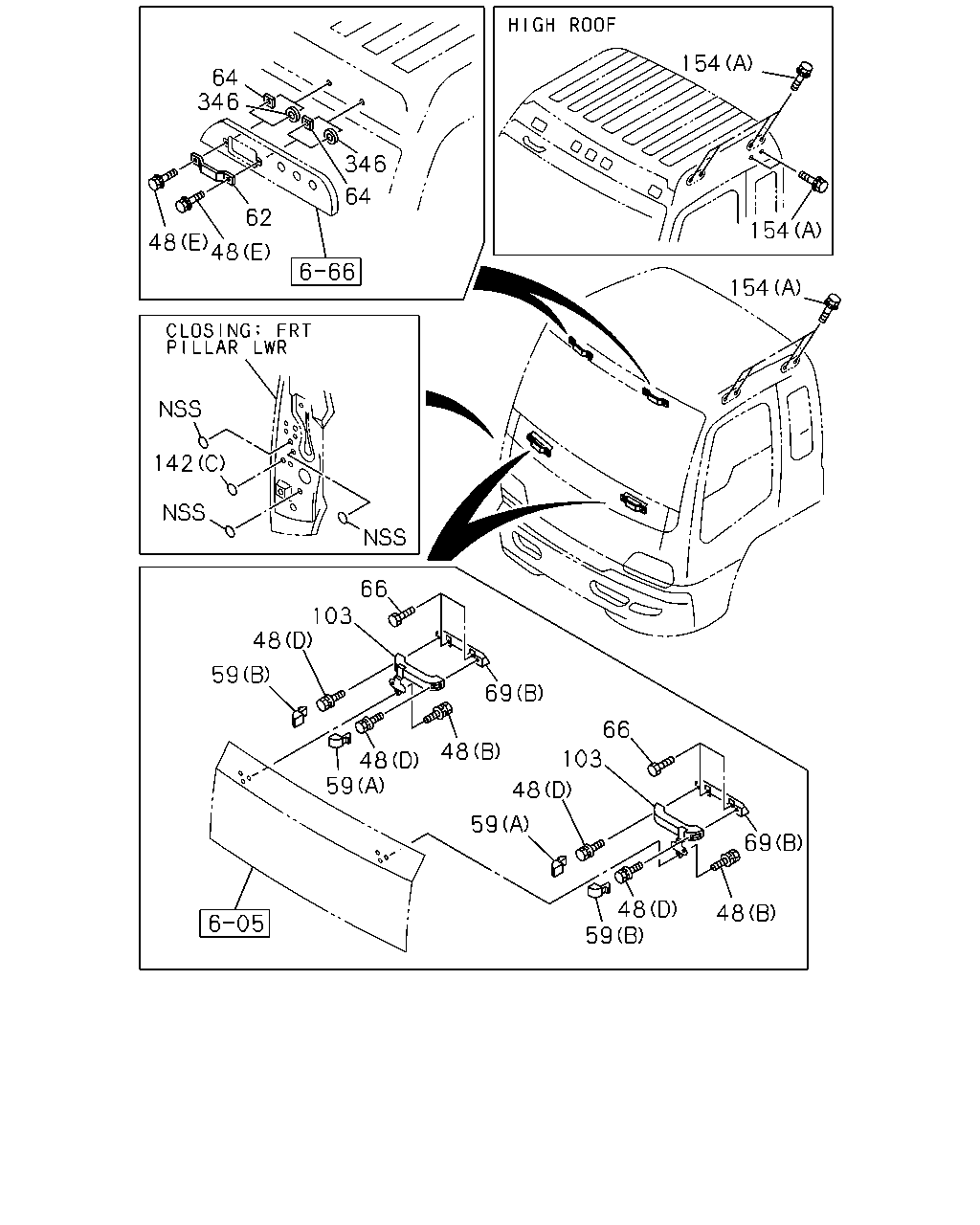

154 64 346 346 64 154 62 48 48 154 142 66 103 48 59 69 66 48 103 48 59 48 59 69 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9904
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-
48	BOLT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	9603-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	9603-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-
62	GRIP; ASSIST,ROOF PANEL	1-71997-895-1	01	1	9603-9610
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	9611-9904
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	02	1	9905-
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-71907-492-0	01	1	9905-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9603-0104
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0105-
64	SHEET; ASSIST GRIP EXC. HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	0105-
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 25X25	8-94272-533-0	02	1	0105-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9603-
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	9603-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9603-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9603-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9603-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9603-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9710-9904
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9905-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) 25X25	8-94272-533-0	03	1	9905-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (A) 25X25	8-94272-533-0	02	1	0003-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (B)	1-71997-691-1	02	1	0003-
142	SEAL; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9603-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9710-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (B)	1-71997-691-1	01	1	0003-
142	SEAL; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	9603-9709
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9603-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9603-9904
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9603-9904
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
346	WASHER; WATER SEAL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>	1-09985-344-0	02	1	0105-

54 87 325 12 71 71 83 329 83 106 1 55 150 142 75 54 71 59 72 48 48 75 142 69 49 56 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B)	1-72447-700-0	01	1	9603-
1	BOARD; HEADER SHELF (A)	1-72448-578-3	01	1	9603-9704
1	BOARD; HEADER SHELF (A)	1-72448-576-3	01	1	9603-9704
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-
1	BOARD; HEADER SHELF CHEAPER CAB(WY1) (A)	1-72448-556-3	01	1	9905-0011
1	BOARD; HEADER SHELF EXC. SUN VISOR PASSENGER<D20> (A)	1-72448-556-3	01	1	0012-
1	BOARD; HEADER SHELF EXC. CHEAPER CAB(WY1) (A)	1-72448-596-2	01	1	9905-0011
1	BOARD; HEADER SHELF SUN VISOR PASSENGER<D20> (A)	1-72448-596-2	01	1	0012-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9603-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9603-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	06	1	9603-9607
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9608-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-
48	BOLT; ASSIST GRIP (E) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9603-9603
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-9904
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9905-
48	BOLT; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9603-9709
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9710-0002
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0003-
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9603-
49	NUT; ASSIST GRIP 10PE1S(60L) GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9701-9702
49	NUT; ASSIST GRIP 10PE1S(60L) PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9703-9709
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> M8 FLANGE	1-09984-126-0	01	1	9710-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9603-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9603-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-0	02	1	9603-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9603-
59	COVER; ASSIST GRIP (A)	1-71998-789-2	02	1	9603-
59	COVER; ASSIST GRIP (B)	1-71998-790-2	02	1	9603-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9603-
69	BRACKET; ASSIST GRIP (B)	1-65580-203-0	02	1	9603-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9603-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	9603-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9603-
71	SCREW (C) M6X37 W/PL WASHER	1-09981-423-0	04	1	9603-9702
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9703-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9603-9904
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	03	1	9905-
71	SCREW ASSIST GRIP A POST<NBK> (D) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9603-9612
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71907-400-0	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 6WA1 TC-S(56L) GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-400-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	9712-
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9701-9702
72	GRIP; ASSIST,CAB ENTRY,BACK 10PE1S(60L) PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9703-9703
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-495-0	01	1	9704-9711
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	9712-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> V TYPE ENG<91L>	1-71997-548-0	01	1	0003-
75	SHEET; ASSIST GRIP,CAB ENTRY 6WA1 TC-S(56L) GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9603-9709
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9710-0002
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52> L TYPE ENG<90L>	1-71997-548-0	02	1	0003-
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9603-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9603-
142	SEAL; ASSIST GRIP (C) OD=25 BLACK	1-76798-019-0	01	1	9909-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9603-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9710-9904
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	9905-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17> (A) 25X25	8-94272-533-0	03	1	9905-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (A) 25X25	8-94272-533-0	02	1	0003-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> V TYPE ENG<91L> (B)	1-71997-691-1	02	1	0003-
142	SEAL; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9603-9709
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9710-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> L TYPE ENG<90L> (B)	1-71997-691-1	01	1	0003-
142	SEAL; ASSIST GRIP 6WA1 TC-S(56L) GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	9603-9709
150	CLIP; ASSIST GRIP HOLE OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0002-
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
