◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#46308) — 189 parça
çizim 20491
11 4 339 339 269 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 09.743 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>, UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR ELECTR IC CONT BRIGHT<7HX> 		8-97137-289-0 01 1 9611-9704 ● ● ● ● ● ● ● ●
4 09.743 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>, UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR ELECTR IC CONT BRIGHT<7HX> 		8-97180-255-0 01 1 9705-9711 ● ● ● ● ● ● ● ●
4 09.743 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>, UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR ELECTR IC CONT BRIGHT<7HX> 		8-97137-289-0 01 1 9712-9712 ● ● ● ● ● ● ● ●
4 09.743 CLUSTER
EXC. DOOR MIRROR ELEC CONT<DG2>, UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),DOOR MIRROR ELECTR IC CONT BRIGHT<7HX> 		8-97180-255-0 01 1 9801- ● ● ● ● ● ● ● ●
11 09.743 CLUSTER ASM; METER
BLACK 		8-97152-773-5 01 1 9611- ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) BLACK 		8-97152-773-5 01 1 9611- ● ● ● ●
11 09.743 CLUSTER ASM; METER
INST PANEL FOR DIN E SIZE AUDIO(7QL) BLACK 		8-97153-717-3 01 1 9611- ● ● ● ●
161 09.772 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> 		8-97122-058-1 01 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3) 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9611- ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER
DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (A) 		8-97115-518-0 01 1 9611- ● ● ● ● ● ●
339 09.743 BEZEL; SW,CLUSTER METER
UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97101-616-0 01 1 9611- ● ● ● ● ● ●

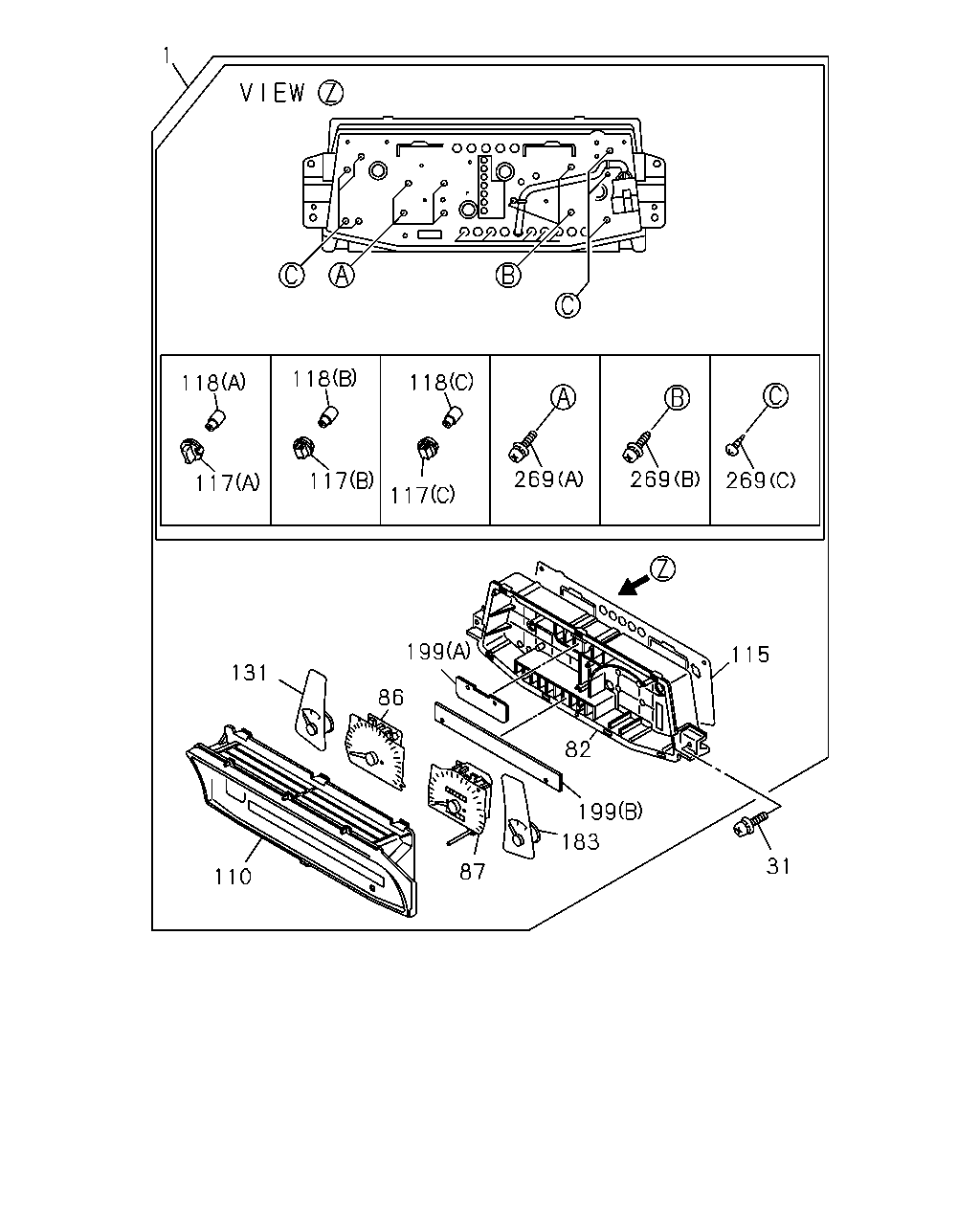

çizim 69676
1 118 118 118 269 269 269 117 117 117 199 115 82 199 183 31 87 131 86 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97112-483-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97112-481-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97112-480-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-477-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-97112-479-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-478-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, ELECTRICFUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,ELECTRI C FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-459-2 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-460-3 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-456-4 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-457-2 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97179-722-0 01 1 9712- ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97112-467-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97112-468-4 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97179-723-0 01 1 9712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 		8-97132-069-2 01 1 9611- ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> 		8-97135-890-1 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> 		8-97135-892-1 01 1 9611- ● ● ● ● ● ● ● ●
86 09.750 TACHOMETER; CLUSTER METER
6VD1 ENG(RLV) TACHOMETER<U16> 		8-97179-664-0 01 1 9712- ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-256-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97132-261-2 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD),A/T THM(RMQ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611- ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-252-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97132-253-2 01 1 9611- ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97132-258-2 01 1 9611- ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 		8-97132-518-2 01 1 9611- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9611- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9712- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-267-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97139-579-0 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-266-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97132-276-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-265-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-272-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-271-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-264-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97180-223-0 01 1 9712- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97132-325-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97132-275-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97180-224-0 01 1 9712- ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 3W 		8-94449-732-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> 09.765 (D) 14V 3W 		8-97104-703-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> (A) 24V 3W GREEN 		8-97045-599-0 AR 1 9712-9802 ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V 3W 		8-94449-731-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 09.765 (E) 14V 3W 		8-97104-702-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (D) 12V 3.4W 		9-82691-397-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (A) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9712- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-0 01 1 9611- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-1 01 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-0 01 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-3 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97132-289-2 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97132-288-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> (A) 		8-97132-280-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-287-0 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> (B) 		8-97132-284-0 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-286-1 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (A) 		8-97139-534-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97139-582-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
6VD1 ENG(RLV) TACHOMETER<U16> (B) 		8-97180-225-0 01 1 9712- ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) (B) 		8-97132-285-1 01 1 9611- ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3) 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9611- ● ● ● ●

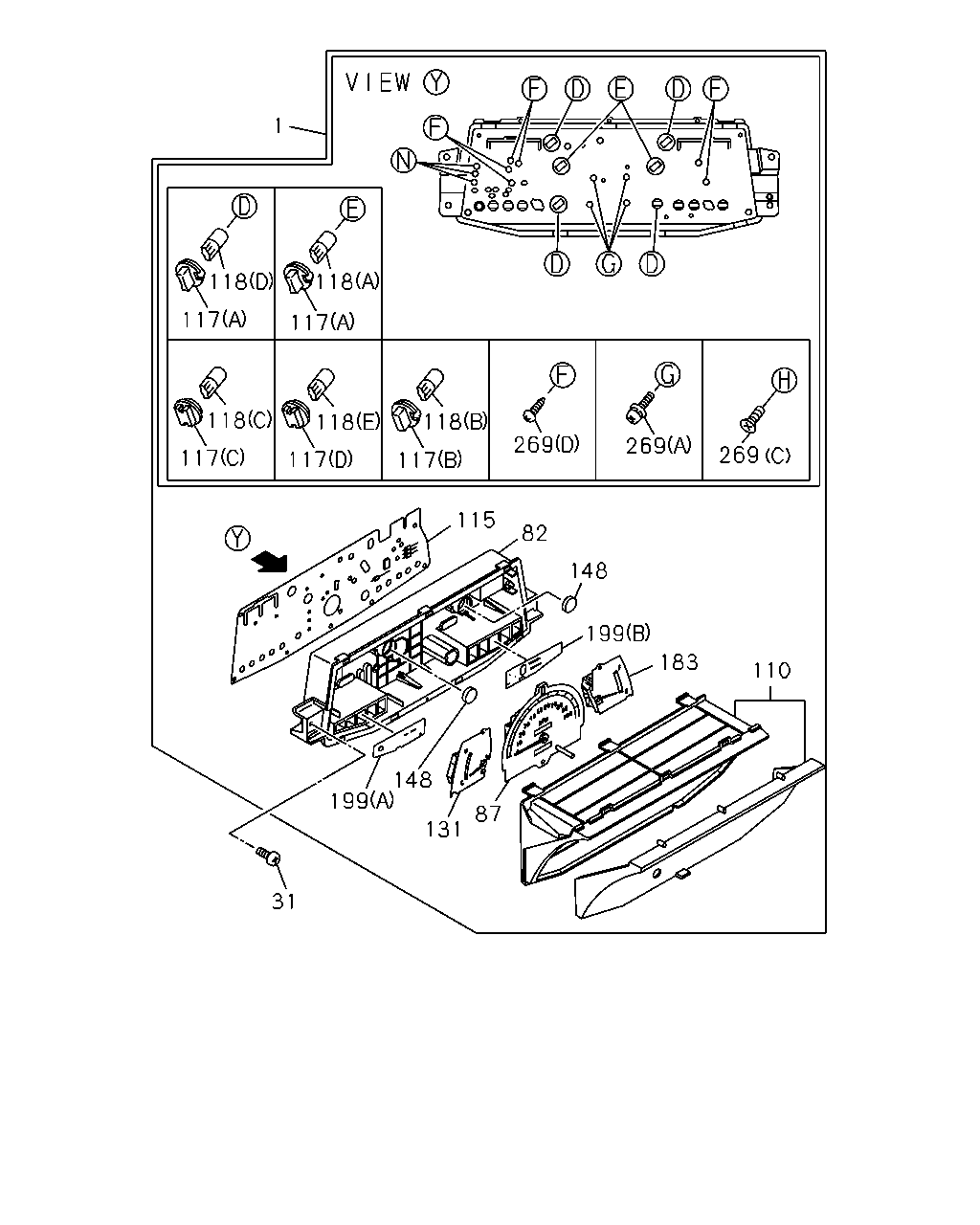

çizim 72237
1 118 117 118 117 118 269 269 269 117 117 118 118 117 115 82 148 199 183 110 148 199 131 87 31
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97112-483-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97112-481-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1> 		8-97137-245-0 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16> 		8-97112-480-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-477-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),ELECTRIC FUEL INJECTION<6GG> 		8-97112-479-2 01 1 9611- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-478-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1>, ELECTRICFUEL INJECTION<6GG> 		8-97112-478-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), SPEEDOMETER MILE<UC1>,TACHOMETER<U16>,ELECTRI C FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9611-9802 ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16>,ELECTRIC FUEL INJECTION<6GG> 		8-97112-476-2 01 1 9803- ● ● ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-459-2 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-460-3 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97112-456-4 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97112-457-2 01 1 9611- ● ● ● ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97179-722-0 01 1 9712- ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97112-467-3 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97112-468-4 01 1 9611- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97179-723-0 01 1 9712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 		8-97132-069-2 01 1 9611- ● ● ●
31 09.761 SCREW; METER,INST PANEL
02.726 M5X16 TAPPING W/PL WASHER 		0-74300-516-0 04 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
TACHOMETER<U16> 		8-97104-695-0 01 1 9611- ● ● ● ● ● ● ● ●
82 09.743 CASE ASM; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97118-775-0 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-256-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97132-261-2 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
A/T AISIN(RMD),A/T THM(RMQ) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97135-887-1 01 1 9611- ● ● ●
87 09.761 SPEEDOMETER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-252-1 01 1 9611- ● ● ● ● ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97132-253-2 01 1 9611- ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97132-258-2 01 1 9611- ● ● ● ●
87 09.761 SPEEDOMETER
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) 		8-97132-518-2 01 1 9611- ● ● ●
110 09.748 GLASS; CLUSTER METER
TACHOMETER<U16> 		8-97080-609-0 01 1 9611- ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-94325-075-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
110 09.748 GLASS; CLUSTER METER
EXC. TACHOMETER<U16> 		8-97171-067-0 01 1 9712- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-267-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97139-579-0 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> 		8-97132-266-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97132-276-1 01 1 9611- ● ● ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-265-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-272-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> 		8-97132-271-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. SPEEDOMETER MILE<UC1>, TACHOMETER<U16> 		8-97132-264-1 01 1 9611- ● ● ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97180-223-0 01 1 9712- ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 		8-97132-325-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 		8-97132-275-1 01 1 9611- ● ● ● ●
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> 		8-97180-224-0 01 1 9712- ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
09.765 (A) 12V 3.4W 		5-82188-001-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
02.892 (C) 12V 1.4W BLACK 		8-94114-138-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
(B) 14V 3W 		8-94449-732-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> 09.765 (D) 14V 3W 		8-97104-703-0 AR 1 9611- ● ● ● ● ● ● ● ●
117 09.744 SOCKET; BULB,GAUGE & CLOCK
EXC. TACHOMETER<U16> (A) 24V 3W GREEN 		8-97045-599-0 AR 1 9712-9802 ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(A) 14V 3.4W W/CAP 		5-82194-024-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(C) 12V 1.4W 		8-94152-313-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
(B) 12V 3W 		8-94449-731-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> 09.765 (E) 14V 3W 		8-97104-702-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (D) 12V 3.4W 		9-82691-397-0 AR 1 9611- ● ● ● ● ● ● ● ●
118 08.991 BULB; CLUSTER METER
EXC. TACHOMETER<U16> (A) 14V 3.4W W/CAP 		8-97171-066-0 AR 1 9712- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
TACHOMETER<U16> 		8-97139-580-0 01 1 9611- ● ● ● ● ● ● ● ●
131 01.148 GAUGE; TEMP,CLUSTER METER
EXC. TACHOMETER<U16> 		8-97109-304-1 01 1 9611- ● ● ● ● ● ● ● ●
148 09.748 LENS; PILOT,TURN SIGNAL,CLUSTER
EXC. TACHOMETER<U16> 		8-94325-264-0 02 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
TACHOMETER<U16> 		8-97139-581-0 01 1 9611- ● ● ● ● ● ● ● ●
183 03.107 GAUGE; FUEL
EXC. TACHOMETER<U16> 		8-97109-306-3 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
TACHOMETER<U16> (A) 		8-97104-686-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (B) 		8-97132-283-0 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) (B) 		8-97132-289-2 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9611-9802 ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) SPEEDOMETER MILE<UC1> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3), TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE),4JB1 ENG(RLF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. UNITED KINGDOM EQUIPMENT(EK3), SPEEDOMETER MILE<UC1>, TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JA1 ENG(RLE) EXC. TACHOMETER<U16> (A) 		8-97132-279-1 01 1 9803- ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) TACHOMETER<U16> EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97132-288-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) EXC. TACHOMETER<U16> (A) 		8-97132-280-1 01 1 9611- ● ● ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-287-0 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4JB1 ENG(RLF),4ZE1 ENG(RLJ) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) AUSTRALIA EQUIPMENT(RR3) EXC. TACHOMETER<U16> (B) 		8-97132-284-0 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) TACHOMETER<U16> EXC. SPEEDOMETER MILE<UC1> (B) 		8-97132-286-1 01 1 9611- ● ● ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> (A) 		8-97139-534-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> EXC. HONG KONG EQUIPMENT(PQ1) (B) 		8-97139-582-1 01 1 9611- ● ● ● ●
199 09.772 LENS; WARNING LAMP
6VD1 ENG(RLV) TACHOMETER<U16> (B) 		8-97180-225-0 01 1 9712- ● ● ● ●
199 09.772 LENS; WARNING LAMP
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) (B) 		8-97132-285-1 01 1 9611- ● ● ●
269 09.743 SCREW; METER CLUSTER
09.744 (A) 		8-97045-595-0 04 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
16.085 (E) M5X16 TAPPING 		9-09829-323-1 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> 09.744 (B) 		8-97069-347-0 03 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
TACHOMETER<U16> EXC. UNITED KINGDOM EQUIPMENT(EK3) 09.744 (C) 		8-97069-348-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
EXC. TACHOMETER<U16> 09.744 (D) M3X31 		8-94326-740-0 06 1 9611- ● ● ● ● ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1), TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 02 1 9611- ● ● ● ●
269 09.743 SCREW; METER CLUSTER
UNITED KINGDOM EQUIPMENT(EK3) TACHOMETER<U16> 09.744 (C) 		8-97069-348-0 08 1 9611- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
