1 |
05.809 DRUM; BRK,RR
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97032-891-2 |
02 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94455-285-1 |
02 |
1 |
9312-9711 |
● |
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-94455-285-1 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94455-285-1 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
|
8-97034-770-1 |
02 |
1 |
9312-9407 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9312-9407 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
|
8-97034-770-1 |
02 |
1 |
9408-9510 |
|
|
● |
● |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC)
DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9408-9510 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
DISC BRAKE FRT<J52>
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
G.V.W. 6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97034-770-1 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42),FINAL GEAR RATIO 39/6(R43)
G.V.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
EXC. DUMP CHASSIS(V4D)
|
8-97034-770-2 |
02 |
1 |
9512-9711 |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-2 |
02 |
1 |
9512-9711 |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH),4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 6.5-7.0TON(RPW)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97034-770-2 |
02 |
1 |
9512-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
DISC BRAKE FRT<J52>,BRK WHL LK CONT
LSPV<6PH>
|
8-97034-770-2 |
02 |
1 |
9512-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO 4
3/7(R42)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>
|
8-97034-770-2 |
02 |
1 |
9512-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
|
8-97034-770-2 |
02 |
1 |
9712-9804 |
|
|
● |
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-2 |
02 |
1 |
9712-9804 |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
BRK WHL LK CONT LSPV<6PH>
|
8-97034-770-2 |
02 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
G.V.W. 6.5-7.0TON(RPW)
|
8-97034-770-2 |
02 |
1 |
9712-9804 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4HF1 ENG(RLS)
|
8-97034-770-2 |
02 |
1 |
9805- |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-2 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1
ENG(RLS)
|
8-97034-770-2 |
02 |
1 |
9805- |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DISC BRAKE FRT<J52>
|
8-94382-884-2 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-94382-884-3 |
02 |
1 |
9511-9711 |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. DISC BRAKE FRT<J52>
|
8-94382-884-3 |
02 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-94382-884-3 |
02 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>
|
8-94382-884-3 |
02 |
1 |
9511-9711 |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94382-884-3 |
02 |
1 |
9511-9711 |
|
|
|
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
4JB1 ENG(RLF),4BE1 ENG(RLH)
|
8-94382-884-3 |
02 |
1 |
9712- |
|
|
● |
|
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94382-884-3 |
02 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
4BE1 ENG(RLH)
G.V.W. 4.0-4.5TON(RPR),G.V.W.
4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU)
|
8-94382-884-3 |
02 |
1 |
9712- |
|
|
|
● |
|
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-94382-884-3 |
02 |
1 |
9712- |
|
|
|
|
|
● |
|
| |
1 |
05.809 DRUM; BRK,RR
|
5-42315-041-2 |
02 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
8 |
05.809 HUB; RR AXLE
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94335-927-3 |
02 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-42311-009-2 |
02 |
1 |
9312-9711 |
● |
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
5-42311-009-2 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
|
5-42311-009-2 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97026-139-2 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
● |
|
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
EXC. DISC BRAKE FRT<J52>
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BE1 ENG(RLH)
|
8-97026-139-2 |
02 |
1 |
9511-9511 |
|
|
|
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97026-139-2 |
02 |
1 |
9512- |
|
|
● |
|
|
● |
|
| |
8 |
05.809 HUB; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97026-139-2 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97026-139-2 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-94382-893-3 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-94382-893-3 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-94382-893-3 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
|
8-94382-893-3 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
|
8-97032-606-2 |
02 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(A)
M14X50 LH THREAD
|
9-42332-605-4 |
06 |
1 |
9312- |
● |
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(A) RH THREAD
M14X50 RH THREAD
|
9-42331-605-4 |
06 |
1 |
9312- |
● |
● |
|
|
|
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M16X35,M16X26 LH THREAD
|
8-94365-255-0 |
06 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
(B)
M16X35,M16X26 RH THREAD
|
8-94365-254-0 |
06 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
M16 LH THREAD
|
8-94161-997-0 |
06 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
08.915
M16
|
9-99110-516-0 |
06 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-082-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BE1 ENG(RLH)
NSK
|
9-00093-082-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-082-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
9-00093-082-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-082-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
NSK
|
9-00093-082-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
NSK
|
9-00093-082-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-607-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-607-0 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-607-0 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
NSK
|
9-00093-607-0 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
TKK
|
8-94336-315-1 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-315-1 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
TKK
|
8-94336-315-1 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BE1 ENG(RLH)
TKK
|
8-94336-315-1 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-315-1 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
TKK
|
8-94336-315-1 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-315-1 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JG2 ENG(RJC),4JB1 ENG(RLF)
TKK
|
8-94336-315-2 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
TKK
|
8-94336-315-2 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-317-1 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-317-2 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-317-2 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
TKK
|
8-94336-317-2 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-960-1 |
02 |
1 |
9312-9406 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
M52
|
9-09644-037-3 |
02 |
1 |
9312-9509 |
● |
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
M52
|
9-09644-037-3 |
02 |
1 |
9312-9509 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9510-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
M52
|
8-97137-092-0 |
02 |
1 |
9510-9510 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH)
M52
|
8-97137-092-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
M52
|
8-97137-092-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
M52
|
8-97137-092-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
M52
|
8-97137-092-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
4JG2 ENG(RJC),4JB1 ENG(RLF)
M52
|
8-97137-092-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
M52
|
8-97137-092-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
05.829
M55
|
9-09644-502-3 |
02 |
1 |
9312-9509 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97137-093-0 |
02 |
1 |
9510-9510 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
|
8-97137-093-0 |
02 |
1 |
9511-9606 |
|
|
|
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97137-093-0 |
02 |
1 |
9511-9606 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M55
|
8-97137-094-0 |
02 |
1 |
9607-9804 |
|
|
|
|
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
M55
|
8-97137-094-0 |
02 |
1 |
9607-9804 |
|
|
|
● |
|
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
M55
|
8-97137-094-0 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
ID=52
|
9-09853-214-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4BE1 ENG(RLH)
ID=52
|
9-09853-214-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
ID=52
|
9-09853-214-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
ID=52
|
9-09853-214-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
ID=52
|
9-09853-214-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
4JG2 ENG(RJC),4JB1 ENG(RLF)
ID=52
|
9-09853-214-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
ID=52
|
9-09853-214-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
ID=55
|
9-09653-002-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=55
|
9-09653-002-0 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
ID=55
|
9-09653-002-0 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
ID=55
|
9-09653-002-0 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
04.686
M6X16 W/LK WASHER
|
0-50040-616-0 |
04 |
1 |
9312-9507 |
● |
● |
● |
● |
● |
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
9508- |
● |
● |
● |
● |
● |
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
BRK WHL LK CONT LSPV<6PH>
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97029-901-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97029-901-0 |
02 |
1 |
9312-9702 |
● |
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
9703-9711 |
● |
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 43/8(R40)
|
8-94366-192-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
REAR AXLE STANDARD 244MM(R39)
|
8-94366-192-0 |
02 |
1 |
9712- |
● |
|
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
9712- |
|
● |
|
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
|
8-97032-495-0 |
02 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
8-97032-496-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97032-496-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97032-496-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97032-496-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
8-97032-496-0 |
02 |
1 |
9511-9511 |
|
|
● |
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97032-496-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
|
8-97032-496-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
EXC. DUMP CHASSIS(V4D)
|
8-97032-496-0 |
02 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97032-496-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97032-496-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97032-496-0 |
02 |
1 |
9512- |
|
|
|
|
|
● |
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
L=780
|
8-97029-887-0 |
02 |
1 |
9312-9505 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
L=780
|
8-94366-190-1 |
02 |
1 |
9506-9510 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
L=780
|
8-94366-190-1 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
L=780
|
8-94366-190-1 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
L=780
|
8-94366-190-1 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97029-900-0 |
02 |
1 |
9312-9702 |
|
|
|
|
|
|
● |
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94341-978-0 |
02 |
1 |
9703- |
|
|
|
|
|
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
9312- |
● |
● |
|
|
|
|
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
9312- |
● |
● |
|
|
|
|
● |
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
12 |
1 |
9312- |
● |
● |
|
|
|
|
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
36 |

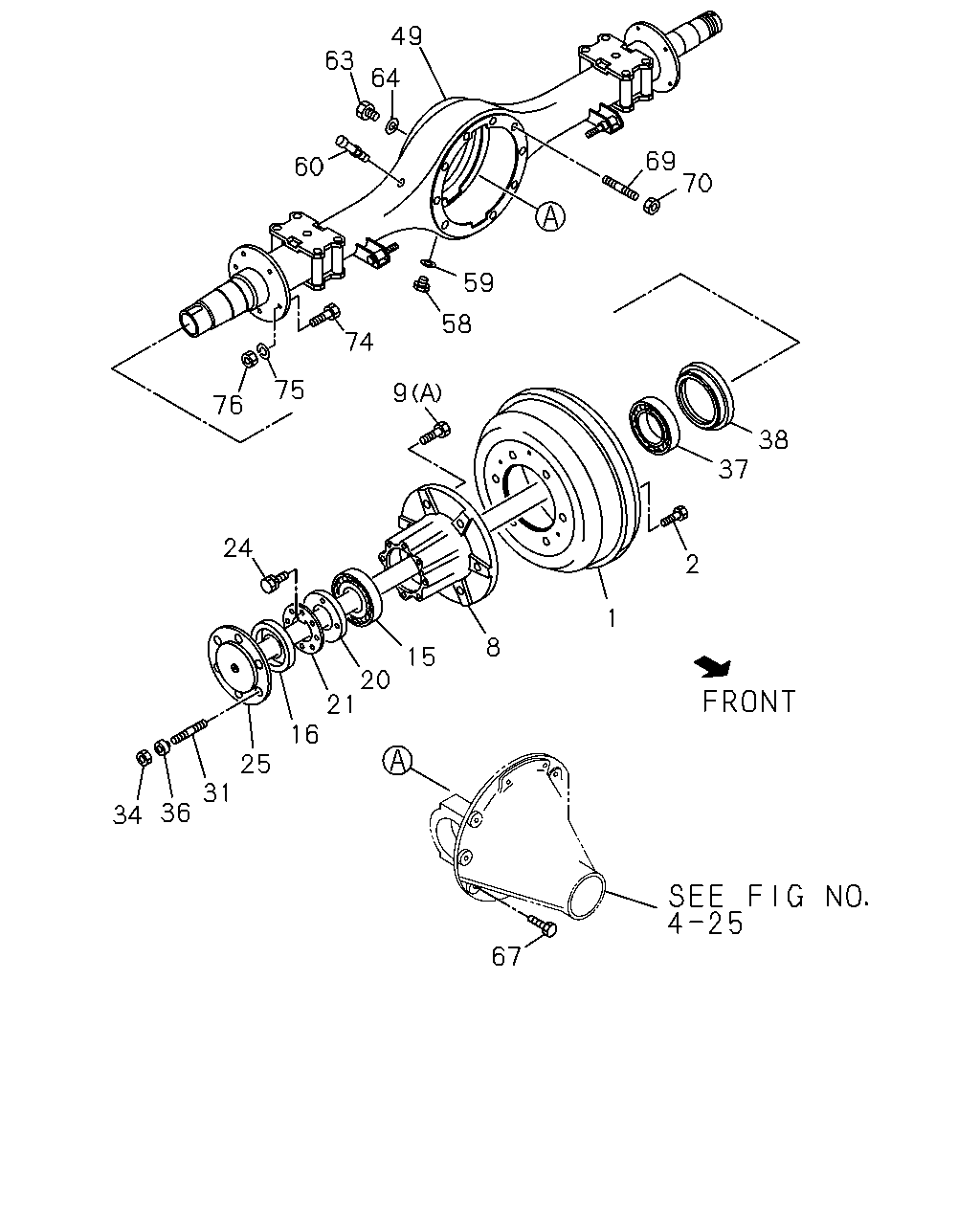

05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH)
NSK
|
9-00093-081-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NSK
|
9-00093-081-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
NSK
|
9-00093-081-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
9512-9801 |
● |
● |
● |
|
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
NSK
|
9-00093-081-0 |
02 |
1 |
9512-9801 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
02 |
1 |
9512-9801 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
04 |
1 |
9802- |
● |
● |
● |
|
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
NSK
|
9-00093-081-0 |
04 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
NSK
|
9-00093-081-0 |
04 |
1 |
9802- |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-624-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NSK
|
9-00093-624-0 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
NSK
|
9-00093-624-0 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
TKK
|
8-94336-314-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-314-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
TKK
|
8-94336-314-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
TKK
|
8-94336-314-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
TKK
|
8-94336-314-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
TKK
|
8-94336-314-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
TKK
|
8-94336-314-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
TKK
|
8-94336-314-1 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
TKK
|
8-94336-314-1 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9312-9510 |
● |
● |
● |
● |
● |
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NOK
|
8-94367-959-0 |
02 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9511-9511 |
● |
● |
● |
● |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
NOK
|
8-94367-959-0 |
02 |
1 |
9511-9511 |
● |
|
● |
|
|
● |
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
NOK
|
8-94367-959-0 |
02 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
NOK
|
8-94367-959-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
NOK
|
8-94367-959-0 |
02 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
9512- |
● |
● |
● |
|
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF)
NOK
|
8-94367-959-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
NOK
|
8-94367-959-0 |
02 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-316-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-316-1 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
TKK
|
8-94336-316-1 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
TKK
|
8-94336-316-1 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-958-0 |
02 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-958-0 |
02 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
NOK
|
8-94367-958-0 |
02 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
NOK
|
8-94367-958-0 |
02 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
44 |

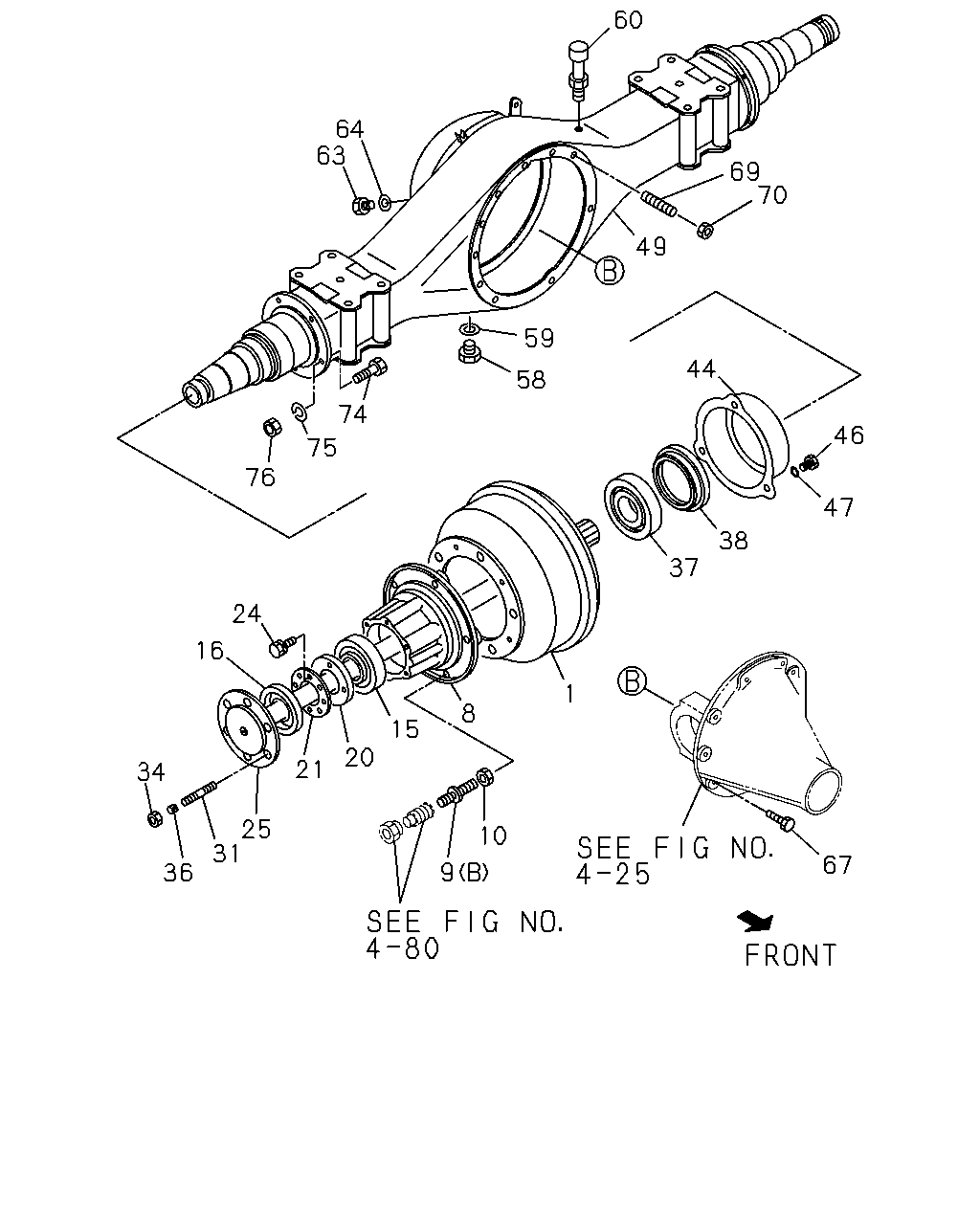

05.815 CATCHER; OIL,RR AXLE SHAFT
|
8-97029-433-0 |
02 |
1 |
9312-9406 |
|
|
● |
● |
|
● |
|
| |
44 |
05.815 CATCHER; OIL,RR AXLE SHAFT
|
5-42330-017-2 |
02 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
M6X10
|
0-20800-610-0 |
10 |
1 |
9312-9406 |
|
|
● |
● |
|
● |
|
| |
46 |
05.815 BOLT; OIL CATCHER,RR AXLE SHAFT
M6X10
|
0-20800-610-0 |
06 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
00.679
ID=6.1
|
9-09150-606-0 |
10 |
1 |
9312-9406 |
|
|
● |
● |
|
● |
|
| |
47 |
05.815 WASHER; LK,OIL CATCHER,RR AXLE S
00.679
ID=6.1
|
9-09150-606-0 |
06 |
1 |
9312-9406 |
|
|
|
|
|
|
● |
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE HEAVY DUTY 292MM(G73)
|
8-97032-769-1 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
REAR AXLE STANDARD 244MM(R39)
|
8-97032-768-2 |
01 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97032-768-2 |
01 |
1 |
9312- |
|
● |
|
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH)
DUMP CHASSIS(V4D)
|
8-97032-772-1 |
01 |
1 |
9312- |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1
ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
8-97032-861-1 |
01 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97032-861-1 |
01 |
1 |
9312-9510 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97032-861-1 |
01 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU)
|
8-97032-861-1 |
01 |
1 |
9511-9511 |
|
|
● |
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH)
EXC. DUMP CHASSIS(V4D)
|
8-97032-861-1 |
01 |
1 |
9511-9511 |
|
|
● |
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH)
G.V.W. 4.5-5.0TON(RPS),G.V.W.
5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,BRK WHL LK
CONT LSPV<6PH>
|
8-97032-861-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH)
BRK WHL LK CONT LSPV<6PH>
|
8-97032-861-1 |
01 |
1 |
9511-9511 |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. DUMP CHASSIS(V4D)
|
8-97032-861-2 |
01 |
1 |
9512- |
|
|
● |
|
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97032-861-2 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 3.5-4.0TON(RPQ),G.V.W.
4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V
.W. 5.0-5.5TON(RPT),G.V.W.
5.5-6.0TON(RPU)
|
8-97032-861-2 |
01 |
1 |
9512- |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97032-861-2 |
01 |
1 |
9512- |
|
|
|
|
|
● |
|
| |
49 |
05.387 CASE; RR AXLE
4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97070-484-1 |
01 |
1 |
9312-9510 |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97070-484-3 |
01 |
1 |
9511-9804 |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4BE1 ENG(RLH),4HF1 ENG(RLS)
G.V.W. 6.5-7.0TON(RPW)
|
8-97070-484-3 |
01 |
1 |
9511-9804 |
|
|
|
● |
|
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 39/7(GV1),FINAL
GEAR RATIO 41/7(R41),FINAL GEAR RATIO
43/7(R42)
|
8-97070-484-3 |
01 |
1 |
9805- |
|
|
|
|
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
|
8-97032-770-2 |
01 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
05.506
|
8-94363-097-0 |
01 |
1 |
9312-9406 |
● |
● |
● |
● |
● |
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
9407- |
● |
● |
● |
● |
● |
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
9312- |
● |
● |
● |
● |
● |
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
09 |
1 |
9312-9408 |
● |
|
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
09 |
1 |
9312-9408 |
|
|
● |
● |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9409-9510 |
● |
|
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9409-9510 |
|
|
● |
● |
|
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9511- |
● |
|
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
REAR AXLE STANDARD 244MM(R39)
M10X40 W/LK WASHER
|
0-50061-040-0 |
08 |
1 |
9312- |
● |
|
|
|
|
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
08 |
1 |
9312- |
|
● |
|
|
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
REAR AXLE HEAVY DUTY 292MM(G73)
M10X40.5 L=52.5
|
8-97026-282-0 |
04 |
1 |
9312-9408 |
● |
|
|
|
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
04 |
1 |
9312-9408 |
|
|
● |
● |
|
● |
|
| |
69 |
05.387 STUD; AXLE CASE
REAR AXLE STANDARD 244MM(R39)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9312-9407 |
● |
|
|
|
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9312-9407 |
|
● |
|
|
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
REAR AXLE STANDARD 244MM(R39)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9408-9408 |
● |
|
|
|
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9408-9408 |
|
● |
|
|
|
|
● |
| |
69 |
05.387 STUD; AXLE CASE
4HF1 ENG(RLS)
FINAL GEAR RATIO 39/6(R43)
G.V.W. 5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9408-9408 |
|
|
● |
● |
|
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
9409- |
● |
● |
● |
● |
● |
● |
● |
| |
70 |
05.387 NUT; CARRIER
REAR AXLE HEAVY DUTY 292MM(G73)
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9408 |
● |
|
|
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
04 |
1 |
9312-9408 |
|
|
● |
● |
|
● |
|
| |
70 |
05.387 NUT; CARRIER
REAR AXLE STANDARD 244MM(R39)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9312-9407 |
● |
|
|
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9312-9407 |
|
● |
|
|
|
|
● |
| |
70 |
05.387 NUT; CARRIER
REAR AXLE STANDARD 244MM(R39)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9408-9408 |
● |
|
|
|
|
|
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9408-9408 |
|
● |
|
|
|
|
● |
| |
70 |
05.387 NUT; CARRIER
4HF1 ENG(RLS)
FINAL GEAR RATIO 39/6(R43)
G.V.W. 5.5-6.0TON(RPU)
EXC. DISC BRAKE FRT<J52>,DUMP
CHASSIS(V4D)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9408-9408 |
|
|
● |
● |
|
|
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
9409- |
● |
● |
● |
● |
● |
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M10X25
|
9-09800-768-1 |
12 |
1 |
9312- |
● |
● |
|
|
|
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
08 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
9409- |
● |
● |
|
|
|
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
08 |
1 |
9312- |
|
|
|
|
|
|
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
06.168
M10 FLANGE
|
8-94242-425-0 |
12 |
1 |
9312-9408 |
● |
● |
|
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.002
M10
|
9-09110-510-0 |
12 |
1 |
9409- |
● |
● |
|
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
06.168
M10 FLANGE
|
8-94242-425-0 |
12 |
1 |
9511- |
● |
● |
|
|
|
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9312-9510 |
|
|
● |
● |
|
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
9511- |
|
|
● |
● |
● |
● |
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
08 |
1 |
9312- |
|
|
|
|
|
|
● |
