4-11 — FRONT HUB AND DRUM OR ROTOR (#46305) — 120 parça

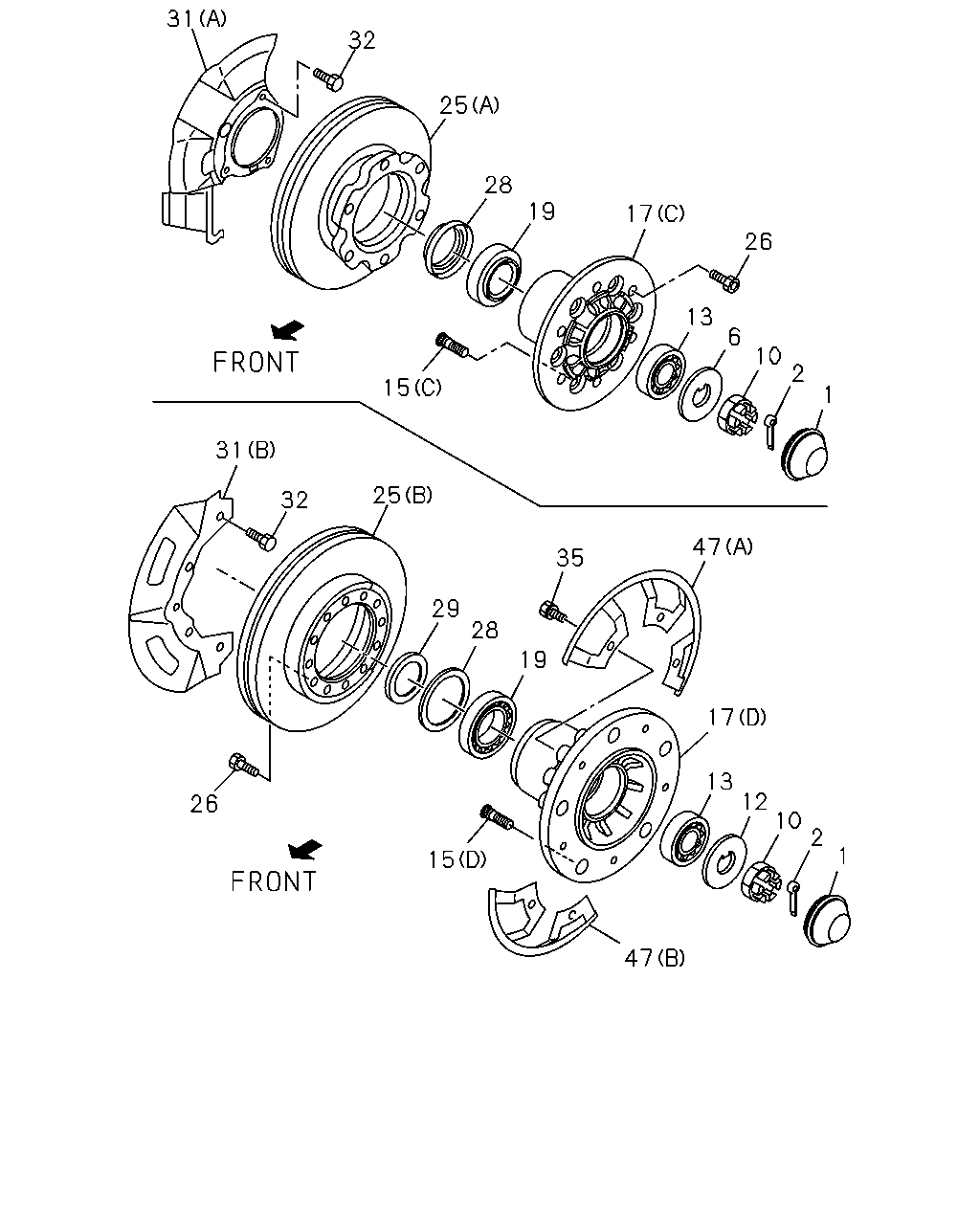

çizim 66438
31 32 25 28 19 17 26 13 6 10 2 15 1 31 25 32 47 35 29 28 19 17 13 12 10 2 26 1 15 47
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9312- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 9-08105-040-0 02 1 9312-9809 ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9810- ● ● ● ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 9312- ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9312- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 9312- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9312- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X45 LH THREAD 		8-94342-389-0 06 1 9312-9411 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 9412- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X45 RH THREAD 		8-94342-388-0 06 1 9312-9411 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 9412- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9312-9711 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9312-9711 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9712-9804 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9712-9804 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9805- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9805- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9712-9804 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9712-9804 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9805- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9805- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9312-9510 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9511-9711 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9312-9510 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9511-9711 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9312-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9312-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9712-9804 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9712-9804 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9805- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9805- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94365-825-3 02 1 9312- ●
17 06.307 HUB; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 9312- ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9712- ● ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9312-9510 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9511-9711 ● ● ● ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> (D) 		8-97017-193-0 02 1 9312- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 9312- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94336-290-0 02 1 9312-9406 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 9312- ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97031-007-1 02 1 9312- ●
25 05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52> (B) 		8-97015-857-0 02 1 9312-9407 ●
25 05.809 ROTOR; DISC BRK,FRT
DISC BRAKE FRT<J52> (B) 		8-97015-887-0 02 1 9408- ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 9312- ●
26 05.812 BOLT; BRK,DISC TO HUB
DISC BRAKE FRT<J52> 		8-94474-923-0 24 1 9312- ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-94368-555-0 02 1 9312-9806 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 9807- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 9312- ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK 		8-94246-302-0 02 1 9312- ● ● ● ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-265-0 01 1 9312- ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97034-264-0 01 1 9312- ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-698-2 01 1 9312-9711 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-697-2 01 1 9312-9711 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-698-2 01 1 9712-9804 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-697-2 01 1 9712-9804 ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-698-2 01 1 9805- ●
31 04.665 COVER; DUST,FRT BRAKE
DISC BRAKE FRT<J52> (B) 		8-97023-697-2 01 1 9805- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 9312- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
DISC BRAKE FRT<J52> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 06 1 9312- ●
35 05.002 BOLT; DRUM COVER
DISC BRAKE FRT<J52> 11.377 M10X20 W/LK WASHER 		0-50041-020-0 10 1 9312-9711 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
DISC BRAKE FRT<J52> (A) 		8-94479-193-0 02 1 9312-9711 ●
47 06.308 HOLDER; TIRE VALVE,FRT HUB
DISC BRAKE FRT<J52> (B) 		8-94479-194-0 02 1 9312-9711 ●

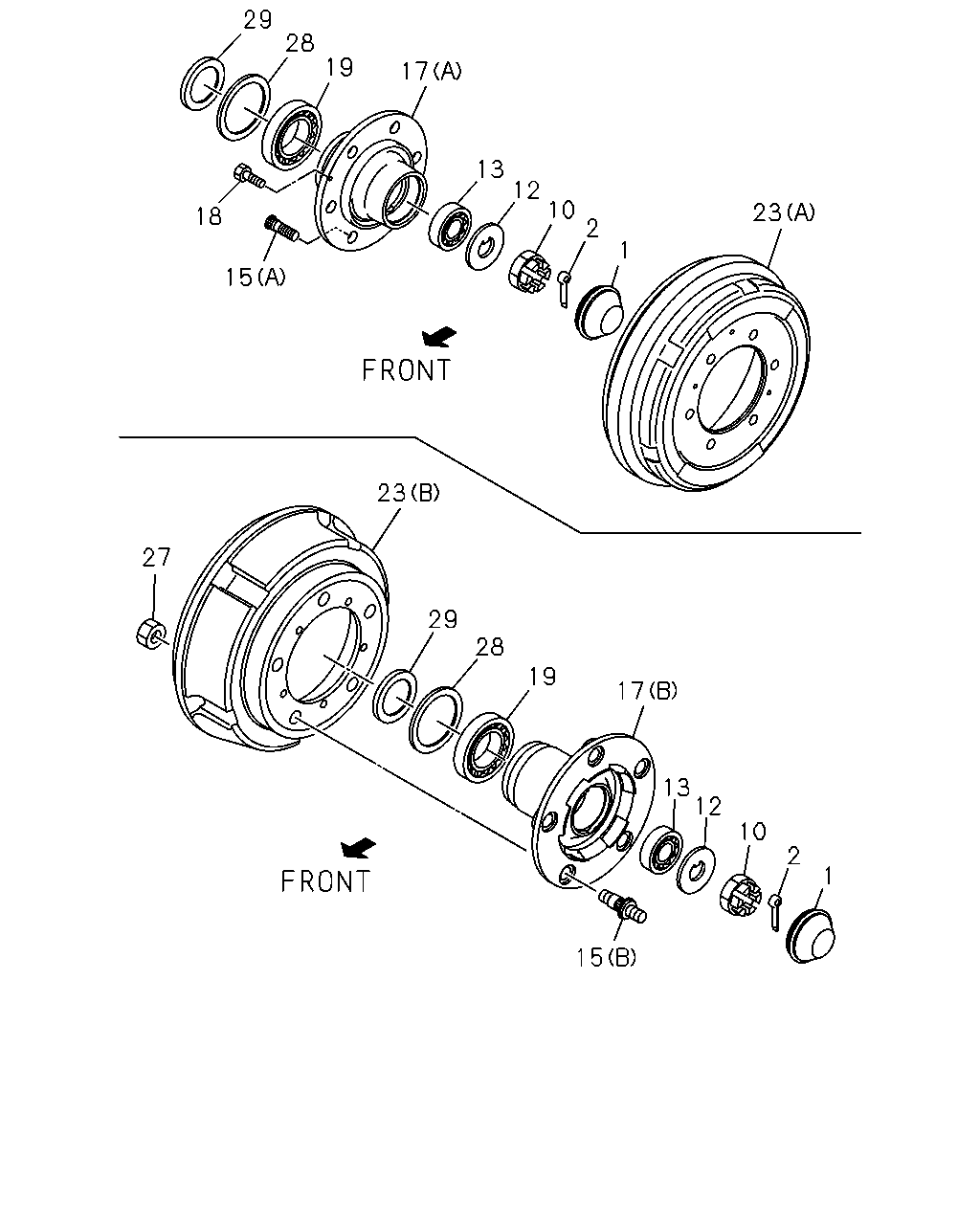

çizim 70488
29 28 19 17 13 12 10 2 23 18 1 15 23 27 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 9312- ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT 9-08105-040-0 02 1 9312-9809 ● ● ● ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 9810- ● ● ● ● ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 9312- ● ● ● ● ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94247-356-1 02 1 9312- ● ● ● ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 9312- ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X45 LH THREAD 		8-94342-389-0 06 1 9312-9411 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 LH THREAD 		8-97126-491-0 06 1 9412- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X45 RH THREAD 		8-94342-388-0 06 1 9312-9411 ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) M14X39 RH THREAD 		8-97126-490-0 06 1 9412- ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9312-9711 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9312-9711 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9712-9804 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9712-9804 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 LH THREAD 		9-42332-605-4 06 1 9805- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) M14X50 RH THREAD 		9-42331-605-4 06 1 9805- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9712-9804 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9712-9804 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9805- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9805- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9312-9510 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 9511-9711 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9312-9510 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 9511-9711 ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9312-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9312-9711 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9712-9804 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9712-9804 ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 LH THREAD 		8-97017-042-0 05 1 9805- ●
15 05.812 PIN; WHEEL,FRT AXLE
DISC BRAKE FRT<J52> (D) M18X46 RH THREAD 		8-97017-041-0 05 1 9805- ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-94365-825-3 02 1 9312- ●
17 06.307 HUB; FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-94420-597-1 02 1 9312- ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9712- ● ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9312-9510 ● ● ●
17 06.307 HUB; FRT AXLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94365-459-0 02 1 9511-9711 ● ● ● ●
17 06.307 HUB; FRT AXLE
DISC BRAKE FRT<J52> (D) 		8-97017-193-0 02 1 9312- ●
18 06.022 BOLT; DRUM TO HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.012 M6X18 		0-20800-618-0 02 1 9312- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 9312- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) JTEKT 		8-94336-290-0 02 1 9312-9406 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-149-0 02 1 9312- ● ● ● ● ● ● ●
23 05.809 DRUM; BRK,FRT
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97085-071-1 02 1 9312- ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) (B) 		8-94385-650-3 02 1 9312-9409 ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) (B) 		8-94385-650-3 02 1 9410-9711 ● ● ●
23 05.809 DRUM; BRK,FRT
4HF1 ENG(RLS) (B) 		8-94385-650-3 02 1 9712- ● ●
23 05.809 DRUM; BRK,FRT
(B) 		8-94385-650-3 02 1 9712- ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC) (AVT) BRAZIL EQUIPMENT(RWF) (B) 		8-94385-650-3 02 1 9712- ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 9312-9409 ● ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 9410-9510 ● ● ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 9511-9711 ● ● ●
23 05.809 DRUM; BRK,FRT
4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 9712- ● ●
23 05.809 DRUM; BRK,FRT
4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) (06H),(07H),(08V),(43C),(44C),(46H), (47H),(49H),(50C),(50H),(57H),(58H), (59H),(64H),(94H),(95H),(98H) EXC. DISC BRAKE FRT<J52> (B) 		8-97094-434-2 02 1 9712- ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
EXC. DISC BRAKE FRT<J52> 00.050 M20 		9-99110-520-0 10 1 9712- ● ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
EXC. DISC BRAKE FRT<J52> 00.050 M20 		9-99110-520-0 10 1 9312-9510 ● ● ●
27 05.813 NUT; WHEEL PIN,FRT AXLE
EXC. DISC BRAKE FRT<J52> 00.050 M20 		9-99110-520-0 10 1 9511-9711 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-94368-555-0 02 1 9312-9806 ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 9807- ●
28 06.326 SEAL; OIL,FRT HUB
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-94248-117-1 02 1 9312- ● ● ● ● ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK 		8-94246-302-0 02 1 9312- ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
