Sayfa 4-10 - Isuzu EPC

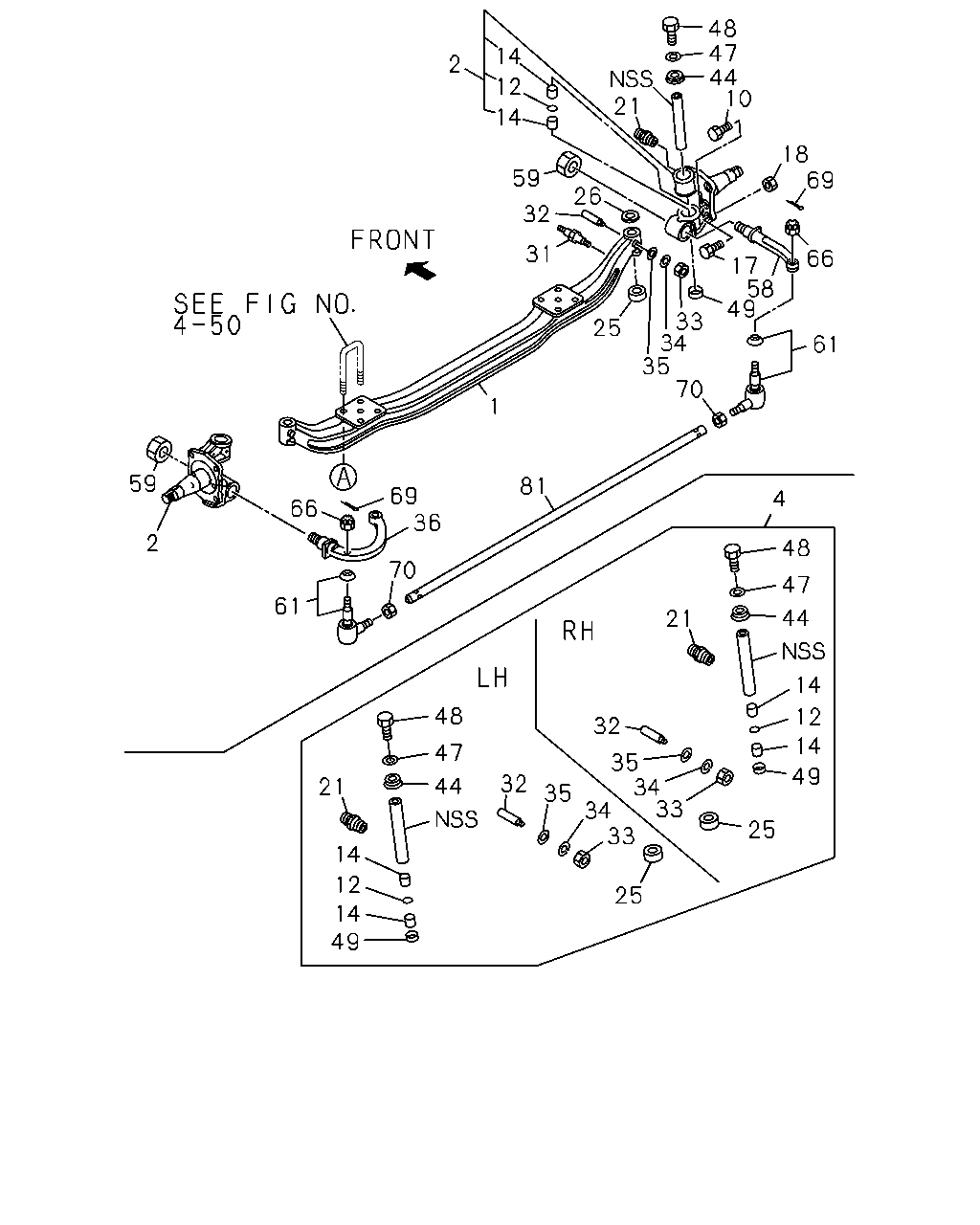

4-10 — FRONT AXLE (#46304) — 151 parça

48 47 44 10 14 2 21 12 14 18 69 59 26 32 31 66 17 58 49 33 34 35 70 25 61 1 59 81 69 36 4 66 2 48 70 47 61 21 44 14 48 12 32 14 47 35 34 33 49 32 21 44 35 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94246-310-4	01	1	9312-9711	●	●	●	●	●	●	●
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97137-585-0	01	1	9712-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94169-412-0	01	1	9312-9711	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94169-411-0	01	1	9312-9711	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9712-9804	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9712-9804	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9805-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9805-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-081-0	01	1	9312-9711					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-080-0	01	1	9312-9711					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9712-					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9712-					●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87830-978-1	01	1	9312-9711	●	●	●	●	●	●	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87831-608-0	01	1	9712-	●	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	9312-	●	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225	9-09561-230-0	02	1	9312-	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO WO/NOTCH	8-94107-672-2	04	1	9312-9711	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9312-9711	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO WO/NOTCH	8-94107-672-2	04	1	9712-	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9712-	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO WO/NOTCH	8-94107-672-2	04	1	9805-9805	●	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	9805-9805	●	●	●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X24 EYE-BOLT	5-09000-208-1	03	1	9312-	●	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	9-09840-025-0	03	1	9312-9407	●	●	●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	9408-	●	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9312-	●	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-1	02	1	9312-9711	●	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-1	01	1	9712-	●	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-943-0	01	1	9712-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9312-9711	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.460 T=1.95	8-94168-490-0	01	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9712-9804	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.460 T=1.95	8-94168-490-0	01	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	9805-	●	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	9805-	●	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94249-010-1	02	1	9312-9711	●	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-944-0	02	1	9712-	●	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-726-0	02	1	9312-9706	●	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-945-1	02	1	9707-	●	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	9312-	●	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=10.2	9-09150-510-0	02	1	9312-	●	●	●	●	●	●	●
35	06.216 WASHER; PL,KEY BOLT TO KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.792 ID=10.5 OD=26	9-09160-710-0	02	1	9312-9706	●	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-139-0	01	1	9312-9711	●	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97168-291-0	01	1	9712-	●	●	●	●	●	●	●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=36	8-94248-675-0	02	1	9312-	●	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.896 ID=10.5	9-09164-510-0	02	1	9312-	●	●	●	●	●	●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.642 M10X16	0-20801-016-0	02	1	9312-	●	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94248-566-0	02	1	9312-	●	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97032-913-0	01	1	9312-9711	●	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97168-292-0	01	1	9712-	●	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-724-0	02	1	9312-	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-349-1	01	1	9312-9711	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97107-348-1	01	1	9312-9711	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-101-0	01	1	9712-9804	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-100-0	01	1	9712-9804	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-101-1	01	1	9805-	●	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-100-1	01	1	9805-	●	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M16 SLOTTED	9-99116-516-0	02	1	9312-	●	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.022 OD=3.7 L=25	9-08114-025-0	02	1	9312-9703	●	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9704-	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9312-9804	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	9312-9804	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	9805-	●	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	9805-	●	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97061-866-0	01	1	9312-9711	●	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-023-0	01	1	9712-	●	●	●	●	●	●	●

132 129 131 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	9312-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	9312-	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94169-412-0	01	1	9312-9711	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-94169-411-0	01	1	9312-9711	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9712-9804	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9712-9804	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-781-0	01	1	9805-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97141-783-0	01	1	9805-	●	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-081-0	01	1	9312-9711					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-94455-080-0	01	1	9312-9711					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-784-0	01	1	9712-					●
2	06.020 KNUCKLE; FRT AXLE DISC BRAKE FRT<J52>	8-97141-785-0	01	1	9712-					●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-1	02	1	9312-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-598-1	01	1	9312-9410	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-592-0	01	1	9411-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) GRAY	8-97075-597-1	01	1	9312-9410	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-591-0	01	1	9411-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-3	01	1	9312-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-3	01	1	9312-	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	9312-	●

116 85 126 116 115 134 135 82 87 126 109 108 85 109 113 124 108 91 96 113 124 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94146-299-0	01	1	9312-9510	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-94146-299-0	01	1	9511-9611	●	●	●
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	9612-	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9312-9510	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9511-	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-147-0	01	1	9312-9510	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-147-0	01	1	9511-9611	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97170-634-0	01	1	9612-9711	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-146-0	01	1	9312-9510	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-94146-146-0	01	1	9511-9611	●	●	●
87	07.242 BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59>	8-97170-633-0	01	1	9612-9711	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94252-359-0	02	1	9312-9510	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-94252-359-0	02	1	9511-9611	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	9612-	●	●	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9312-9510	●	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9511-	●	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9312-9510	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9511-9611	●	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	9612-	●	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	5-51631-017-0	04	1	9312-9510	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	5-51631-017-0	04	1	9511-9611	●	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	9612-	●	●	●
113	07.242 BRACKET; STAB TO BODY,LWR FRONT STABILIZER SHAFT<F59> (A)UPPER	8-94452-452-2	02	1	9312-9510	●	●
113	07.242 BRACKET; STAB TO BODY,LWR FRONT STABILIZER SHAFT<F59> (A)UPPER	8-94452-452-2	02	1	9511-9611	●	●	●
113	07.242 BRACKET; STAB TO BODY,LWR FRONT STABILIZER SHAFT<F59> (B)LOWER	8-97170-746-0	02	1	9612-	●	●	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	9312-9510	●	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	9511-	●	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 09.011 M10	9-09110-410-0	04	1	9312-9412	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9501-9510	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9511-	●	●	●
124	07.242 BRACKET; STAB TO BODY,UPR FRONT STABILIZER SHAFT<F59> (B)LOWER	8-94252-361-0	02	1	9312-9510	●	●
124	07.242 BRACKET; STAB TO BODY,UPR FRONT STABILIZER SHAFT<F59> (B)LOWER	8-94252-361-0	02	1	9511-9611	●	●	●
124	07.242 BRACKET; STAB TO BODY,UPR FRONT STABILIZER SHAFT<F59> (A)UPPER	8-97170-751-0	02	1	9612-	●	●	●
125	07.242 BOLT; STAB TO BODY FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9312-9510	●	●
125	07.242 BOLT; STAB TO BODY FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9511-	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244	5-51631-017-0	04	1	9312-9510	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244	5-51631-017-0	04	1	9511-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-145-0	01	1	9312-9510	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-145-0	01	1	9511-9611	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-630-0	01	1	9612-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-144-0	01	1	9312-9510	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-94146-144-0	01	1	9511-9611	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-629-0	01	1	9612-	●	●	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59>	8-94252-447-1	02	1	9312-9510	●	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59>	8-94252-447-1	02	1	9511-9611	●	●	●
135	07.240 BOLT; BRKT TO STAB FRONT STABILIZER SHAFT<F59>	8-97170-627-0	02	1	9612-9711	●	●	●
