0-87 — COUPLING; INJECTION PUMP (#463) — 16 parça

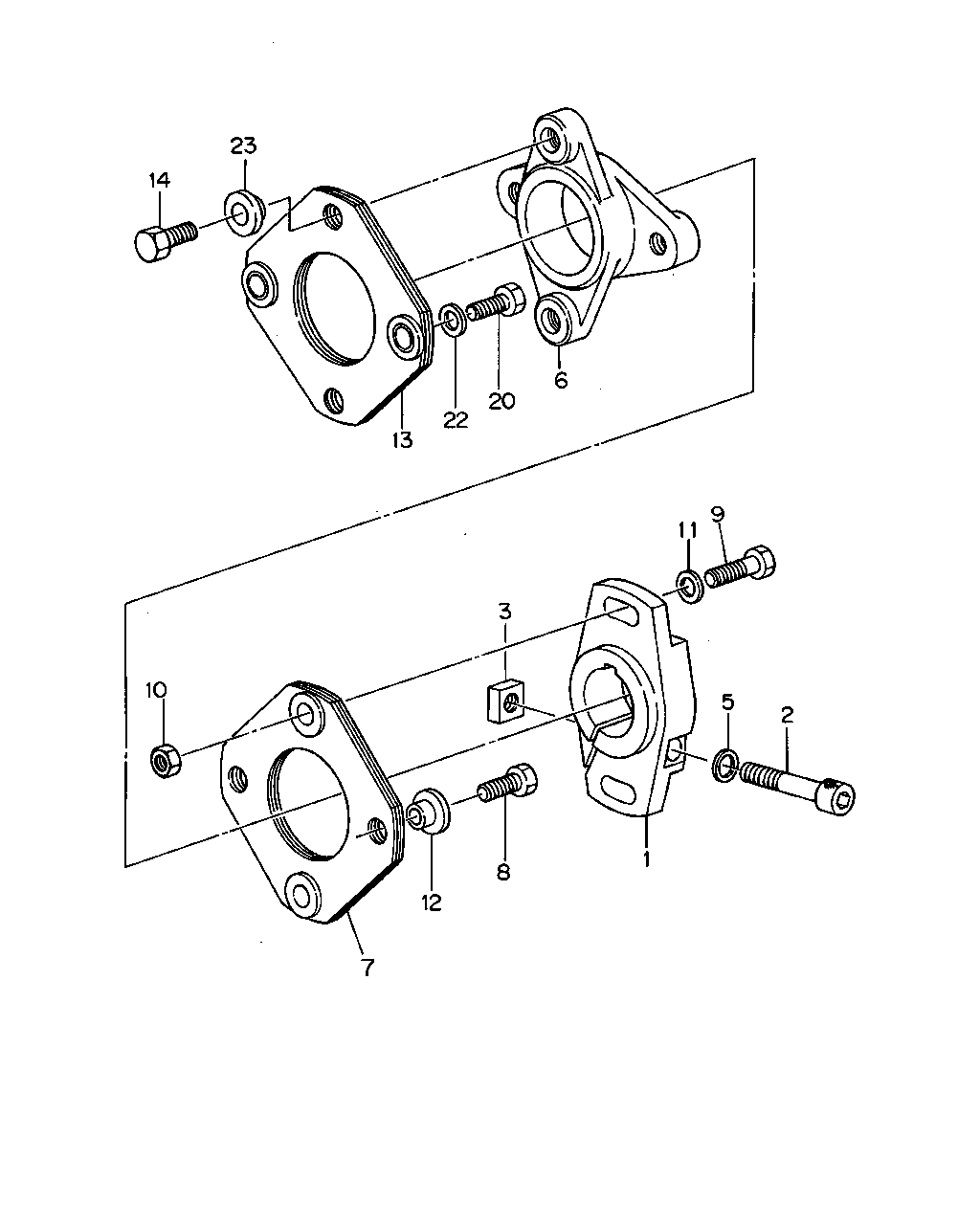

çizim 96323
14 23 13 22 20 6 9 11 2 5 1 3 8 12 7 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15782-004-0 01 1 8712- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-020-0 01 1 8712- ● ● ●
3 NUT; COUPLING FIX,INJ PUMP 1-15789-033-0 01 1 8712- ● ● ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15789-021-0 01 1 8712- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15781-002-0 01 1 8712- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-003-0 01 1 8712- ● ● ●
8 BOLT; PLATE TO CROSS COUPLING 1-15789-018-0 02 1 8712- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-016-0 02 1 8712- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-073-0 02 1 8712- ● ● ●
11 WASHER; PLATE TO COUPLING,INJ PUMP 1-15789-017-0 02 1 8712- ● ● ●
12 WASHER; PLATE TO CROSS COUPLING 1-15789-019-0 02 1 8712- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-023-0 01 1 8712- ● ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-018-0 02 1 8712- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-024-0 02 1 8712- ● ● ●
22 WASHER; PL,COUPLING TO INJ PUMP 1-15789-011-0 02 1 8712- ● ● ●
23 BUSHING; PLATE 1-15789-019-0 02 1 8712- ● ● ●
