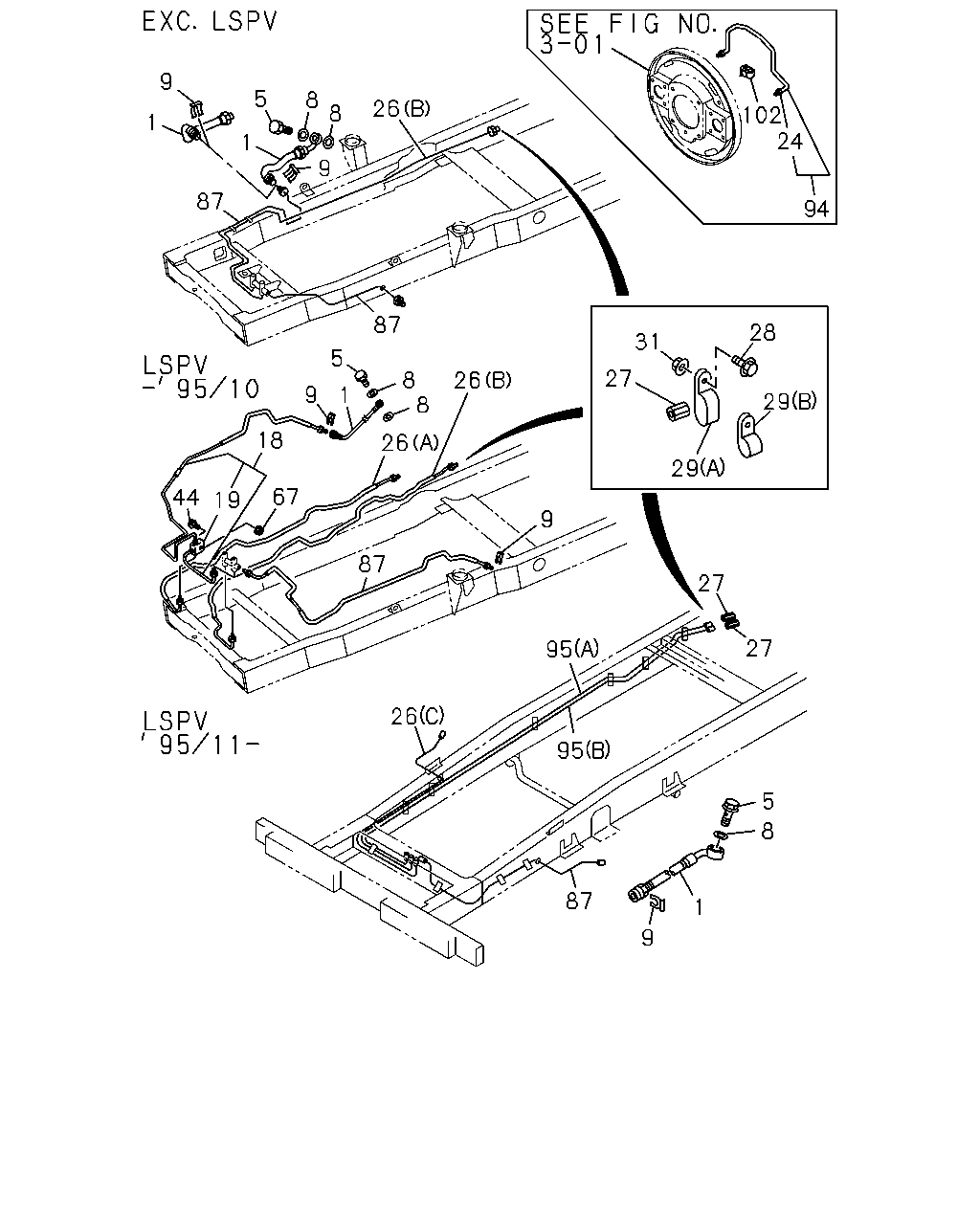

3-52 — BRAKE PIPING; OIL,FRONT (#46298) — 171 parça

9 5 8 26 8 102 24 1 1 9 87 94 87 28 31 5 27 8 8 26 9 1 29 18 26 29 67 44 19 9 87 27 27 95 26 95 5 8 87 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	04.680 HOSE; FLEX,FRT BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97035-064-0	02	1	9312-	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) L=310	8-97035-063-0	02	1	9312-9404	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) L=310	8-97035-063-0	02	1	9312-9404		●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) L=310	8-97035-063-0	02	1	9405-9510	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> L=310	8-97035-063-0	02	1	9405-9510		●	●		●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) L=310	8-97035-063-0	02	1	9511-9809	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> L=310	8-97035-063-0	02	1	9511-9809		●	●	●	●	●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) L=310	8-97035-063-0	02	1	9810-	●
1	04.680 HOSE; FLEX,FRT BRK L=310	8-97035-063-0	02	1	9810-		●	●	●		●	●
1	04.680 HOSE; FLEX,FRT BRK EXC. DISC BRAKE FRT<J52> L=310	8-97035-063-0	02	1	9810-					●
1	04.680 HOSE; FLEX,FRT BRK DISC BRAKE FRT<J52>	8-97084-970-0	02	1	9312-					●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9312-9711	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9312-9711					●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9712-9804	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9712-9804					●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9805-	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 04.665 M10X22	5-09675-017-0	02	1	9805-					●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9312-9711	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9312-9711					●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9712-9804	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9712-9804					●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9805-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 4JG2 ENG(RJC) (9HY) DISC BRAKE FRT<J52> 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9805-					●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9312-9406	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	9312-9406	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	9312-9406		●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9407-9510	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	9407-9510	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9407-9510		●	●		●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9511-9809	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	9511-9809	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9511-9809		●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9810-	●	●	●	●	●	●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-94137-662-0	02	1	9810-	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9810-		●	●	●		●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK EXC. DISC BRAKE FRT<J52> 04.681	8-94137-662-0	02	1	9810-					●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP)	8-97089-974-2	01	1	9312-9510	●
18	04.685 PIPE; OIL,UNION TO FRT FLEX HOSE DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97070-366-1	01	1	9312-9510	●				●
19	04.686 UNION; OIL PIPE DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> M10 3WAY	9-09227-305-0	01	1	9312-9510	●				●
24	04.686 NUT; UNION,OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	04	1	9312-9406	●
24	04.686 NUT; UNION,OIL PIPE EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	04	1	9312-9406		●	●	●	●	●	●
24	04.686 NUT; UNION,OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	04	1	9407-9510	●
24	04.686 NUT; UNION,OIL PIPE EXC. DISC BRAKE FRT<J52> 08.963	9-09217-625-0	04	1	9407-9510		●	●		●	●	●
24	04.686 NUT; UNION,OIL PIPE EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963	9-09217-625-0	04	1	9511-	●
24	04.686 NUT; UNION,OIL PIPE EXC. DISC BRAKE FRT<J52> 08.963	9-09217-625-0	04	1	9511-		●	●	●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97091-494-3	01	1	9312-9510	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97106-977-1	01	1	9312-9510	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97073-489-3	01	1	9312-9404	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97113-551-0	01	1	9405-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (C)	8-97122-630-0	01	1	9511-9601	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) 04.685 (C)	8-97146-895-0	01	1	9602-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97089-975-2	01	1	9312-9510	●	●					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97089-975-2	01	1	9511-	●	●					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.685 (C)	8-97135-723-0	01	1	9511-9711	●						●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.685 (C)	8-97135-723-0	01	1	9712-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. REAR WIDE TREAD(V4T) (B)	8-97100-787-0	01	1	9312-9510			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY FRAME-KICK UP<7EW> (B)	8-97100-787-0	01	1	9511-			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4BE1 ENG(RLH) REAR WIDE TREAD(V4T) (B)	8-97094-285-3	01	1	9312-9510			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4BE1 ENG(RLH) (B)	8-97094-285-3	01	1	9312-9510					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97094-285-3	01	1	9312-9510						●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (B)	8-97094-285-3	01	1	9511-9801			●		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY (B)	8-97094-285-3	01	1	9511-9801				●		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4BE1 ENG(RLH) EXC. FRAME-KICK UP<7EW> (B)	8-97094-285-3	01	1	9802-			●	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97070-368-3	01	1	9312-9510			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-97070-368-3	01	1	9312-9510					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97070-368-3	01	1	9511-9602			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-97070-368-3	01	1	9511-9602					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (B)	8-97070-368-3	01	1	9603-9801			●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> (B)	8-97070-368-3	01	1	9603-9801					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B)	8-97070-368-3	01	1	9802-			●		●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> (A)	8-97070-367-4	01	1	9312-9510					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> 04.685 (C)	8-97122-629-0	01	1	9511-9801					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY DISC BRAKE FRT<J52> BRK WHL LK CONT LSPV<6PH> 04.685 (C)	8-97122-629-0	01	1	9802-					●
26	05.476 PIPE; BRK,JOINT TO 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52> (C)	8-97200-660-0	01	1	9802-					●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	9312-9510	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE EXC. BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT	9-09227-005-0	01	1	9511-	●	●	●	●	●	●	●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9312-9510	●				●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9511-9711	●		●		●		●
27	04.686 UNION; BRK PIPE BRK WHL LK CONT LSPV<6PH> 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9712-	●				●
28	04.686 BOLT; UNION CLIP M6X25 FLANGE	0-28080-625-0	01	1	9604-9610	●	●	●	●	●	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9611-	●	●	●	●	●	●	●
28	04.686 BOLT; UNION CLIP M6X25 FLANGE	0-28080-625-0	01	1	9312-9510	●	●	●		●	●	●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20	9-09525-532-0	01	1	9312-9510	●	●	●	●	●	●	●
29	04.686 CLIP; UNION EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (B) ID=16 L=20	9-09525-532-0	01	1	9511-	●	●	●	●	●	●	●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20	9-09535-533-0	01	1	9511-9711	●		●		●		●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20	9-09535-533-0	01	1	9712-	●				●
29	04.686 CLIP; UNION BRK WHL LK CONT LSPV<6PH> (A) ID=16X2 L=20	9-09535-533-0	01	1	9312-9510	●				●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9312-9510	●	●	●		●	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9511-	●	●	●	●	●	●	●
44	04.686 BOLT; JOINT BRK WHL LK CONT LSPV<6PH> 01.531 M8X25 FLANGE	0-28080-825-0	01	1	9312-9408	●				●
44	04.686 BOLT; JOINT BRK WHL LK CONT LSPV<6PH> M8X30 FLANGE	0-28680-830-0	01	1	9409-9510	●				●
67	04.686 NUT; UNION BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	01	1	9312-9408	●				●
67	04.686 NUT; UNION BRK WHL LK CONT LSPV<6PH> 07.633 M8 FLANGE	0-91150-108-0	01	1	9409-9510	●				●
87	04.685 PIPE; BRK,5 WAY TO UNION FRT INDEPENDENT SUSPENSION(6PP) 05.476	8-97075-570-3	01	1	9312-	●
87	04.685 PIPE; BRK,5 WAY TO UNION FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH>	8-97073-488-1	01	1	9312-	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP)	8-97091-666-2	01	1	9312-9510	●	●			●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION REAR WIDE TREAD(V4T)	8-97091-666-2	01	1	9312-9510			●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW>	8-97091-666-2	01	1	9511-	●	●	●	●	●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP)	8-97077-519-3	01	1	9312-9510	●	●			●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION REAR WIDE TREAD(V4T)	8-97077-519-3	01	1	9312-9510			●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW>	8-97077-519-3	01	1	9511-	●	●	●	●	●	●	●
87	04.685 PIPE; BRK,5 WAY TO UNION DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97077-467-3	01	1	9312-	●				●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. REAR WIDE TREAD(V4T)	8-97035-359-3	01	1	9312-9510			●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97035-359-3	01	1	9511-9601			●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97108-750-1	01	1	9602-			●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. REAR WIDE TREAD(V4T)	8-97100-788-1	01	1	9312-9510			●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH>	8-97100-788-1	01	1	9511-9601			●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH>	8-97146-126-0	01	1	9602-9711			●
87	04.685 PIPE; BRK,5 WAY TO UNION FRAME-KICK UP<7EW>	8-97146-126-0	01	1	9712-			●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	9312-9404	●	●					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-223-0	01	1	9312-9404			●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	9405-9510	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-223-0	01	1	9405-9510		●	●		●	●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-223-0	01	1	9511-	●	●					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-223-0	01	1	9511-			●		●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	9312-9404	●	●					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-222-0	01	1	9312-9404			●	●	●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	9405-9510	●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-222-0	01	1	9405-9510		●	●		●	●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97019-222-0	01	1	9511-	●	●					●
94	04.685 PIPE; BRK,W/C TO W/C 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) EXC. DISC BRAKE FRT<J52>	8-97019-222-0	01	1	9511-			●		●	●
94	04.685 PIPE; BRK,W/C TO W/C 4HF1 ENG(RLS)	8-94154-916-0	02	1	9312-9510			●	●	●
94	04.685 PIPE; BRK,W/C TO W/C EXC. DISC BRAKE FRT<J52>	8-94154-916-0	02	1	9511-9711				●
94	04.685 PIPE; BRK,W/C TO W/C 4BE1 ENG(RLH),4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW)	8-94154-916-0	02	1	9511-9711					●
94	04.685 PIPE; BRK,W/C TO W/C (50C),(94H),(95H),(96H),(98H)	8-94154-916-0	02	1	9712-9804				●
94	04.685 PIPE; BRK,W/C TO W/C 4BE1 ENG(RLH),4HF1 ENG(RLS) (50C),(94H),(95H),(96H),(98H) G.V.W. 6.5-7.0TON(RPW)	8-94154-916-0	02	1	9712-9804					●
94	04.685 PIPE; BRK,W/C TO W/C (50C),(94H),(95H),(96H),(98H)	8-94154-916-0	02	1	9805-				●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97122-632-2	01	1	9511-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97122-636-1	01	1	9511-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97135-724-0	01	1	9511-9711	●						●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97135-724-0	01	1	9712-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97135-725-0	01	1	9511-9711	●						●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97135-725-0	01	1	9712-	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (A)	8-97122-631-0	01	1	9511-					●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B)	8-97122-635-0	01	1	9511-9603					●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B)	8-97148-980-0	01	1	9604-9801					●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> (B)	8-97200-626-0	01	1	9802-					●
102	04.686 CLIP; PIPE (50C),(94H),(95H),(96H),(98H) 04.685	8-94128-306-0	01	1	9801-9804				●
102	04.686 CLIP; PIPE 4BE1 ENG(RLH),4HF1 ENG(RLS) (50C),(94H),(95H),(96H),(98H) G.V.W. 6.5-7.0TON(RPW) 04.685	8-94128-306-0	01	1	9801-9804					●
102	04.686 CLIP; PIPE (50C),(94H),(95H),(96H),(98H) 04.685	8-94128-306-0	01	1	9805-				●

13 48 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97078-164-2	01	1	9312-	●
13	04.685 PIPE; OIL,UNION TO UNION REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97041-000-3	01	1	9312-	●	●					●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>,REAR WIDE TREAD(V4T)	8-97035-362-1	01	1	9312-9402			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>	8-97035-362-1	01	1	9403-9510			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97035-362-1	01	1	9511-9705			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>	8-97181-784-0	01	1	9706-9711			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>	8-97181-784-0	01	1	9712-9803			●
13	04.685 PIPE; OIL,UNION TO UNION FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT DSPV<JL8>	8-97202-128-0	01	1	9804-			●
13	04.685 PIPE; OIL,UNION TO UNION REAR WIDE TREAD(V4T) EXC. BRK WHL LK CONT DSPV<JL8>	8-97068-791-2	01	1	9312-9402			●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW>	8-97068-791-2	01	1	9403-9510			●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW>	8-97068-791-2	01	1	9511-9605			●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW>	8-97147-940-0	01	1	9606-9608			●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW>	8-97166-500-0	01	1	9609-9711			●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT DSPV<JL8>, FRAME-KICK UP<7EW>	8-97166-500-0	01	1	9712-			●
13	04.685 PIPE; OIL,UNION TO UNION	8-97042-208-5	01	1	9511-				●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97091-590-3	01	1	9312-9704					●	●
13	04.685 PIPE; OIL,UNION TO UNION EXC. BRK WHL LK CONT LSPV<6PH>	8-97178-897-0	01	1	9705-					●	●
46	04.685 PIPE; BRK,JOINT TO VLV BRK WHL LK CONT LSPV<6PH>	8-97093-658-3	01	1	9312-9510	●
46	04.685 PIPE; BRK,JOINT TO VLV BRK WHL LK CONT LSPV<6PH>	8-97093-658-3	01	1	9511-9711	●						●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97093-658-3	01	1	9712-	●
46	04.685 PIPE; BRK,JOINT TO VLV 4BE1 ENG(RLH) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH>	8-97105-406-1	01	1	9511-9711			●
46	04.685 PIPE; BRK,JOINT TO VLV 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH>	8-97130-054-1	01	1	9511-9711			●
46	04.685 PIPE; BRK,JOINT TO VLV BRK WHL LK CONT LSPV<6PH>	8-97069-356-3	01	1	9312-9603					●
46	04.685 PIPE; BRK,JOINT TO VLV BRK WHL LK CONT LSPV<6PH>	8-97148-829-1	01	1	9604-					●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97093-659-3	01	1	9312-9510	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97093-659-3	01	1	9511-9711	●						●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC),4JB1 ENG(RLF),4BE1 ENG(RLH) BRK WHL LK CONT LSPV<6PH>	8-97093-659-3	01	1	9712-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4BE1 ENG(RLH) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH>	8-97105-407-1	01	1	9511-9711			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH>	8-97130-055-1	01	1	9511-9711			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97069-357-3	01	1	9312-9603					●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN BRK WHL LK CONT LSPV<6PH>	8-97148-830-2	01	1	9604-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
