3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#46295) — 59 parça

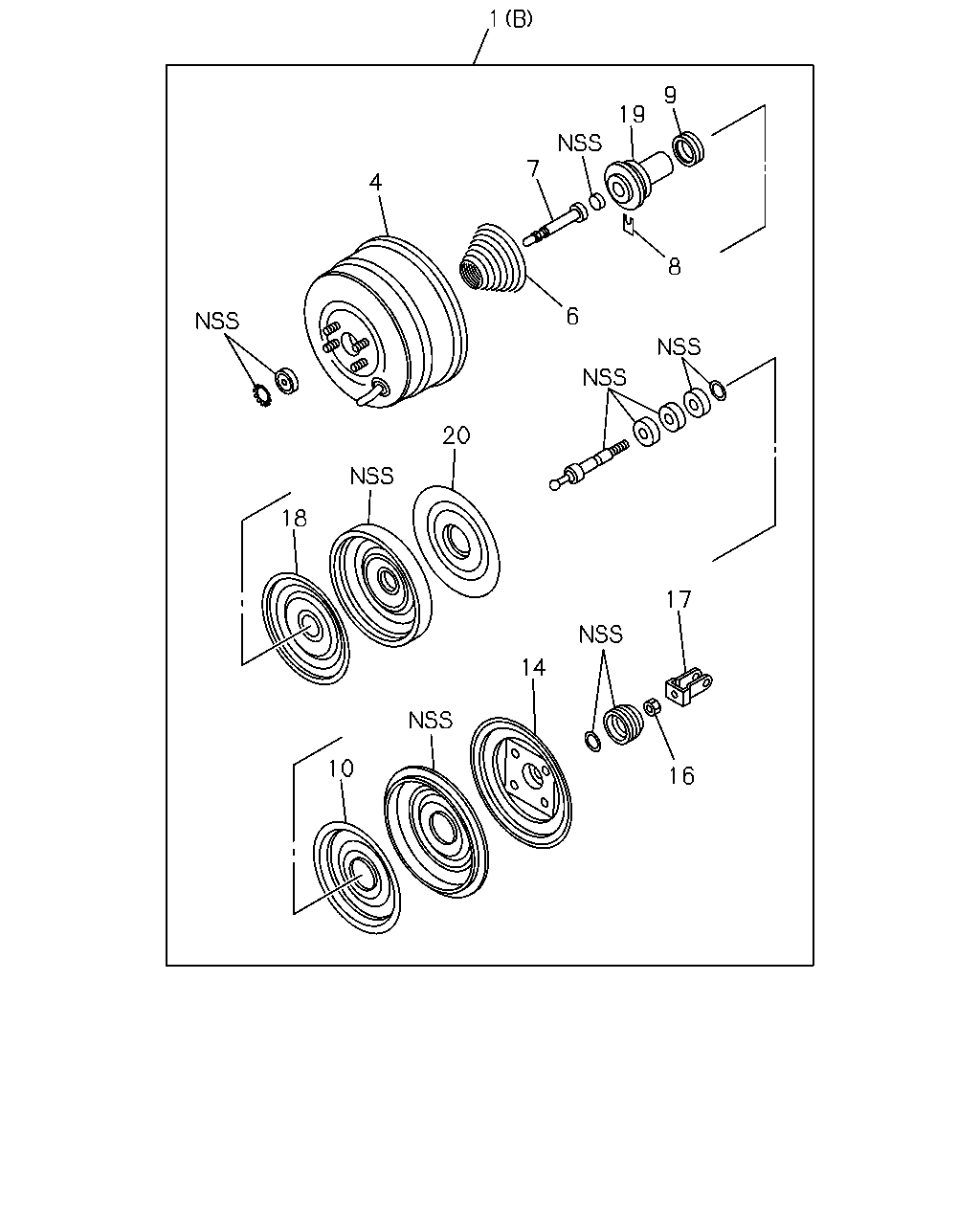

çizim 18014
1 9 19 7 4 8 6 20 18 17 14 10 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) (A) 		8-97033-986-1 01 1 9312-9510 ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97033-986-1 01 1 9511-9801 ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97177-972-1 01 1 9802- ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97036-928-0 01 1 9312-9801 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97177-973-2 01 1 9802-9804 ●
4 04.906 SHELL; FRT,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97114-074-0 01 1 9312-9801 ●
6 04.924 SPRING; M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94402-126-0 01 1 9312-9801 ●
7 04.924 ROD; PUSH,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94402-132-0 01 1 9312-9801 ●
8 04.924 KEY; STOPPER,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94402-133-0 01 1 9312-9801 ●
9 04.924 BODY; VALVE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94402-135-0 01 1 9312-9801 ●
10 04.922 PLATE; DIAPH,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94415-029-1 01 1 9312-9801 ●
14 04.906 SHELL; RR,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97114-075-0 01 1 9312-9801 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) M10 FLANGE 		8-97096-430-0 01 1 9312-9510 ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) M10 FLANGE 		8-97096-430-0 01 1 9511- ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 03.459 M10 		9-09111-510-0 01 1 9312-9801 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-402-0 01 1 9802-9804 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94341-787-0 01 1 9312-9510 ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94341-787-0 01 1 9511- ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		5-47829-011-0 01 1 9312-9801 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-403-0 01 1 9802-9804 ●
18 04.906 PLATE; DIAPH,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94415-030-1 01 1 9312-9801 ●
19 04.906 BODY; CENTER,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94402-131-0 01 1 9312-9801 ●
20 04.906 PLATE; CENTER,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-94415-031-0 01 1 9312-9801 ●

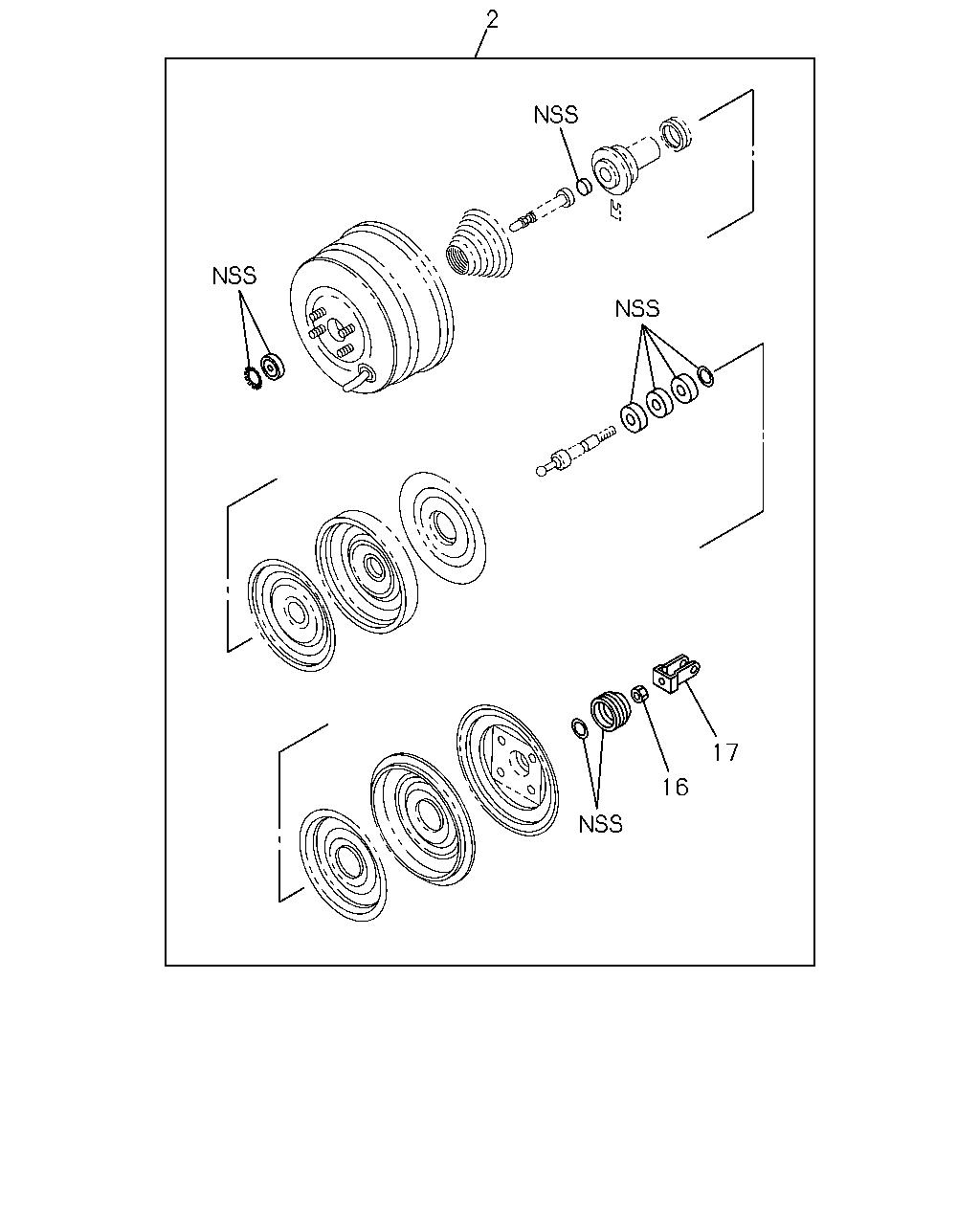

çizim 70396
2 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 04.898 REPAIR KIT; M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97114-072-0 01 1 9312-9801 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) M10 FLANGE 		8-97096-430-0 01 1 9312-9510 ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) M10 FLANGE 		8-97096-430-0 01 1 9511- ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 03.459 M10 		9-09111-510-0 01 1 9312-9801 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-402-0 01 1 9802-9804 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94341-787-0 01 1 9312-9510 ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94341-787-0 01 1 9511- ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		5-47829-011-0 01 1 9312-9801 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-403-0 01 1 9802-9804 ●
çizim 70439
1 47 17 16 24 15 12 11 23 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) (A) 		8-97033-986-1 01 1 9312-9510 ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97033-986-1 01 1 9511-9801 ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) (A) 		8-97177-972-1 01 1 9802- ● ● ● ● ● ● ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97036-928-0 01 1 9312-9801 ●
1 04.901 MASTER VAC ASM; BRK
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97177-973-2 01 1 9802-9804 ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		9-83315-319-0 01 1 9312-9510 ● ● ● ● ● ● ●
3 04.906 RETAINER; FRT SHELL,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		9-83315-319-0 01 1 9511- ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 04.913 		9-83345-063-0 01 1 9312-9510 ● ● ● ● ● ● ●
11 04.906 FILTER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 04.913 		9-83345-063-0 01 1 9511- ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94341-722-0 01 1 9312-9510 ● ● ● ● ● ● ●
12 04.906 SILENCER; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94341-722-0 01 1 9511- ● ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94375-083-0 01 1 9312-9510 ● ● ● ● ● ● ●
15 04.906 RETAINER; GUARD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94375-083-0 01 1 9511- ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) M10 FLANGE 		8-97096-430-0 01 1 9312-9510 ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) M10 FLANGE 		8-97096-430-0 01 1 9511- ● ● ● ● ● ● ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 03.459 M10 		9-09111-510-0 01 1 9312-9801 ●
16 04.662 NUT; VLV ROD,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-402-0 01 1 9802-9804 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94341-787-0 01 1 9312-9510 ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94341-787-0 01 1 9511- ● ● ● ● ● ● ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		5-47829-011-0 01 1 9312-9801 ●
17 04.662 CLEVIS; YOKE,M/VAC
G.V.W. 6.5-7.0TON(RPW) 		8-97186-403-0 01 1 9802-9804 ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-94152-349-0 01 1 9312-9510 ● ● ● ● ● ● ●
23 04.910 SEAL; M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94152-349-0 01 1 9511- ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-97025-156-0 01 1 9312-9510 ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-97025-156-0 01 1 9511-9801 ● ● ● ● ● ● ●
24 04.906 GUARD; VLV BODY,M/VAC
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU),G.V.W. 6.0-6.5TON(RPV) 		8-94375-084-1 01 1 9802- ● ● ● ● ● ● ●
47 04.901 SPACER; M/VAC
00.864 		8-97167-489-0 01 1 9802- ● ● ● ● ● ● ●
