◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50695 - NKR-LHD ▶ 3 - Brakes, Brake System ▶ 3-21 - VACUUM TANK ▶
3-21 — VACUUM TANK (#46293) — 19 parça

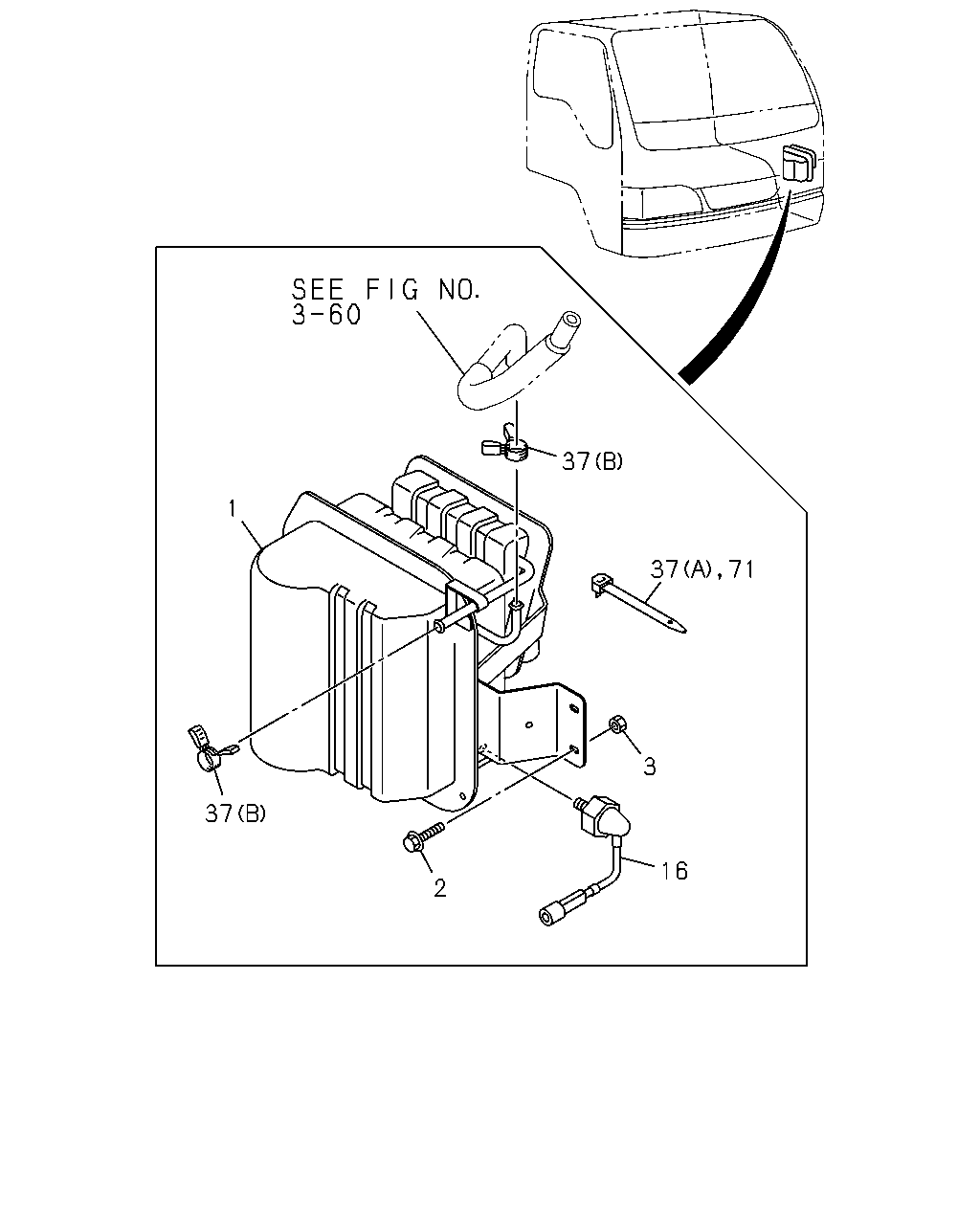

çizim 19561
37 1 37 71 3 37 16 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH<S2T> 		8-97078-216-1 01 1 9312-9510 ● ● ● ● ● ● ●
1 04.902 TANK; VAC,MAIN
EXC. POWER ASSIST CLUTCH<S2T> 		8-97078-216-1 01 1 9511- ● ● ● ● ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> 		8-97078-215-1 01 1 9312-9510 ● ● ● ●
1 04.902 TANK; VAC,MAIN
POWER ASSIST CLUTCH<S2T> 		8-97078-215-1 01 1 9511- ● ● ● ● ●
2 04.902 BOLT; VAC TANK
04.047 M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 9312-9404 ● ● ● ● ● ●
2 04.902 BOLT; VAC TANK
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9405-9510 ● ● ● ● ● ●
2 04.902 BOLT; VAC TANK
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9511- ● ● ● ● ● ● ●
3 04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9312-9510 ● ● ● ● ● ●
3 04.902 NUT; VAC TANK TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9511- ● ● ● ● ● ● ●
16 04.906 SWITCH; VAC 8-97073-374-1 01 1 9312-9510 ● ● ● ● ● ●
16 04.906 SWITCH; VAC 8-97073-374-1 01 1 9511- ● ● ● ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 		8-94238-568-0 01 1 9312-9510 ● ● ● ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 		8-94238-568-0 01 1 9511- ● ● ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 02.559 (A) L=219.5 		1-09987-136-0 01 1 9312-9510 ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 02.559 (A) L=219.5 		1-09987-136-0 01 1 9511- ● ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 		8-94238-568-0 02 1 9312-9510 ● ● ● ●
37 04.902 CLIP; RUBBER HOSE
POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16 		8-94238-568-0 02 1 9511- ● ● ● ● ●
71 04.681 CLIP; V/HOSE & HARNESS
4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-0 01 1 9312-9510 ● ● ● ● ●
71 04.681 CLIP; V/HOSE & HARNESS
4BE1 ENG(RLH) EXHAUST BRAKE<NF8> 02.559 L=250 		5-09707-030-1 01 1 9511- ● ● ● ● ●
