3-10 — BRAKE PEDAL AND CONTROL (#46291) — 90 parça

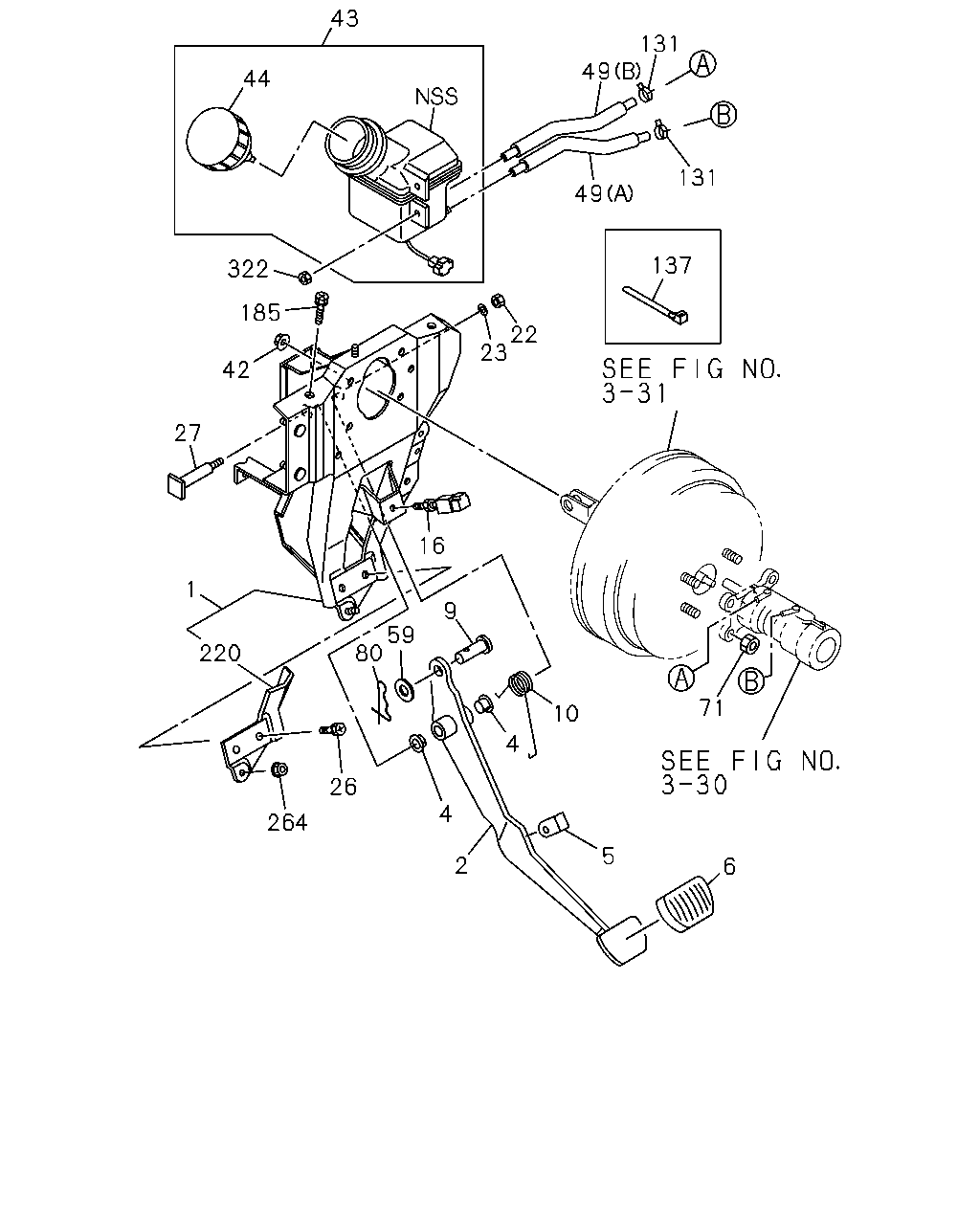

çizim 67959
43 131 49 44 131 49 137 322 185 22 23 42 27 16 1 9 59 80 220 71 10 4 26 4 264 5 2 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 04.634 BRACKET ASM; PEDAL 8-97857-042-3 01 1 9312-9510 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97857-042-6 01 1 9511- ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97856-336-0 01 1 9312-9510 ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97856-336-1 01 1 9511- ● ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 9312-9510 ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 9511- ● ● ● ● ● ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-0 01 1 9312-9510 ● ● ● ● ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-0 01 1 9511- ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-1 01 1 9312-9510 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-1 01 1 9511- ● ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 9312-9510 ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 9511- ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9312-9510 ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9511- ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-94118-754-1 01 1 9312-9403 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 9404-9510 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 9511- ● ● ● ● ● ● ●
22 04.634 NUT; SHAFT
09.011 M10 		9-09110-410-0 01 1 9312-9406 ● ● ● ● ● ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 9407-9407 ● ● ● ● ● ●
22 04.634 NUT; SHAFT
09.011 M10 		9-09110-410-0 01 1 9407-9407 ● ● ● ● ● ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 9408-9510 ● ● ● ● ● ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 9511- ● ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-610-0 01 1 9312-9406 ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-610-0 01 1 9407-9407 ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 02 1 9512- ● ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
09.003 M10X25 		1-09980-494-0 02 1 9312-9510 ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
09.003 M10X25 		1-09980-494-0 02 1 9511-9511 ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL
00.833 		8-97853-213-0 01 1 9312-9510 ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL
00.833 		8-97853-213-0 01 1 9511-9511 ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 9512- ● ● ● ● ● ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9312-9510 ● ● ● ● ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9511- ● ● ● ● ● ● ●
43 04.651 TANK ASM; OIL
EXC. DISC BRAKE FRT<J52> 		8-97049-568-4 01 1 9312-9510 ● ● ● ● ● ● ●
43 04.651 TANK ASM; OIL
EXC. DISC BRAKE FRT<J52> 		8-97049-568-4 01 1 9511- ● ● ● ● ● ● ●
43 04.651 TANK ASM; OIL
DISC BRAKE FRT<J52> 		8-97049-566-4 01 1 9312-9711 ● ●
43 04.651 TANK ASM; OIL
DISC BRAKE FRT<J52> 		8-97178-245-0 01 1 9712- ● ●
44 04.651 CAP; OIL TANK 8-97095-698-0 01 1 9312-9510 ● ● ● ● ● ●
44 04.651 CAP; OIL TANK 8-97095-698-0 01 1 9511-9711 ● ● ● ● ● ● ●
44 04.651 CAP; OIL TANK
EXC. DISC BRAKE FRT<J52> 		8-97095-698-0 01 1 9712- ● ● ● ● ● ● ●
44 04.651 CAP; OIL TANK
DISC BRAKE FRT<J52> 		8-97178-291-0 01 1 9712- ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A),(B) 		8-97108-099-0 02 1 9312-9401 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-97108-099-1 01 1 9402-9406 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-97113-827-0 01 1 9407-9407 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-97113-827-0 01 1 9407-9506 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 6.5-7.0TON(RPW) (B) 		8-97113-827-0 01 1 9507-9510 ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-97109-500-0 01 1 9402-9406 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-97113-828-0 01 1 9407-9407 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-97113-828-0 01 1 9407-9506 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 6.5-7.0TON(RPW) (A) 		8-97113-828-0 01 1 9507-9510 ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) (B) L=315 		8-97129-584-0 01 1 9507-9510 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 9511-9511 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 9511-9801 ● ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=315 		8-97129-584-0 01 1 9802- ● ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) (A) L=320 		8-97129-585-0 01 1 9507-9510 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 9511-9511 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 9511-9801 ● ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=320 		8-97129-585-0 01 1 9802- ● ● ● ● ● ● ●
59 04.634 WASHER; PL,JAW JOINT
02.575 ID=15 		9-09160-514-0 01 1 9312-9510 ● ● ● ● ● ●
59 04.634 WASHER; PL,JAW JOINT
02.575 ID=15 		9-09160-514-0 01 1 9511- ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9312-9510 ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9511- ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9312-9510 ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9511- ● ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97094-435-0 04 1 9312-9506 ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 6.5-7.0TON(RPW) 		8-97094-435-0 04 1 9507-9510 ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
G.V.W. 3.5-4.0TON(RPQ),G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS), G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TO N(RPU) 		8-97130-480-0 04 1 9507-9510 ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 9511-9511 ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 9511-9801 ● ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 9802- ● ● ● ● ● ● ●
137 04.681 CLIP; BAND,RUBBER HOSE
03.162 L=140 		5-09707-031-0 01 1 9312-9510 ● ● ● ● ● ●
137 04.681 CLIP; BAND,RUBBER HOSE
03.162 L=140 		5-09707-031-0 01 1 9511-9606 ● ● ● ● ● ● ●
137 04.681 CLIP; BAND,RUBBER HOSE
02.559 L=250 		5-09707-030-1 01 1 9607- ● ● ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 		1-09980-494-0 02 1 9312-9510 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 		1-09980-494-0 02 1 9511-9511 ● ● ● ● ● ● ●
185 04.634 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9312-9510 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9511-9603 ● ● ● ● ● ● ●
185 04.634 BOLT; BRKT
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9604-9711 ● ● ● ● ● ● ●
185 04.634 BOLT; BRKT
00.829 M10X25 		8-94279-212-0 02 1 9312-9406 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
00.829 M10X25 		8-94279-212-0 03 1 9412-9412 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
00.829 M10X25 		8-94279-212-0 02 1 9501-9510 ● ● ● ● ● ●
185 04.634 BOLT; BRKT
00.829 M10X25 		8-94279-212-0 02 1 9511-9603 ● ● ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 02 1 9604- ● ● ● ● ● ● ●
220 04.634 BRACKET; STRG SHAFT 8-97857-044-1 01 1 9312-9510 ● ● ● ● ● ●
220 04.634 BRACKET; STRG SHAFT 8-97857-044-1 01 1 9511- ● ● ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9312-9510 ● ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
03.417 M8 FLANGE 		8-94279-517-0 01 1 9511-9609 ● ● ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9610- ● ● ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 04 1 9312-9412 ● ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 02 1 9501-9510 ● ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 02 1 9511- ● ● ● ● ● ● ●
