3-02 — FRONT DISC BRAKE CALIPER (#46288) — 49 parça

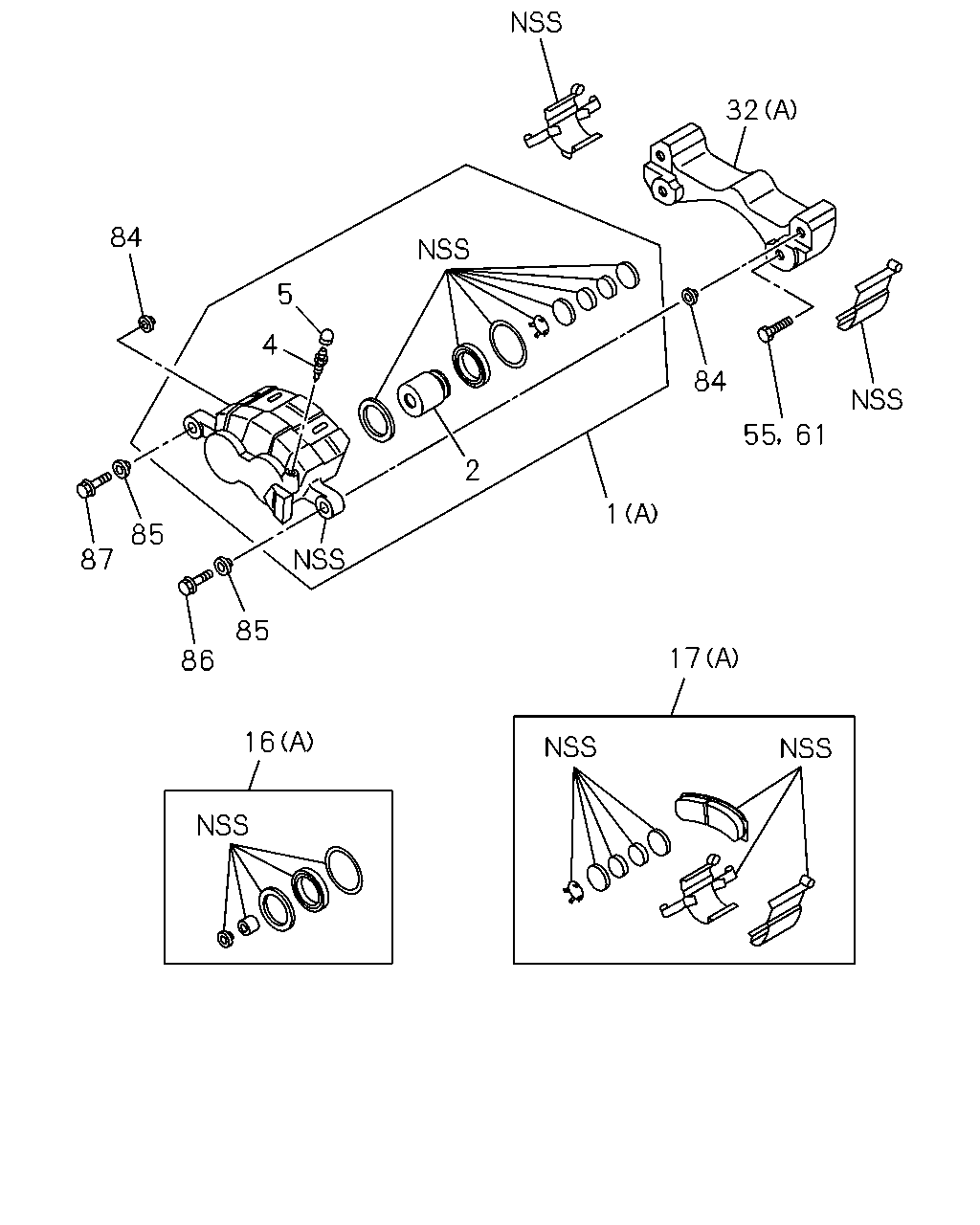

32 84 5 4 84 55 61 2 1 85 87 85 17 86 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-399-0	01	1	9312-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-398-0	01	1	9312-	●
1	04.665 CALIPER; FRT DISC BRK DISC BRAKE FRT<J52> (B)	8-94324-765-1	01	1	9312-		●
1	04.665 CALIPER; FRT DISC BRK DISC BRAKE FRT<J52> (B)	8-94324-764-1	01	1	9312-		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	9312-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-94468-350-0	04	1	9312-		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	9312-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT DISC BRAKE FRT<J52>	1-47615-027-0	02	1	9312-		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	9312-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT DISC BRAKE FRT<J52>	9-47619-038-0	02	1	9312-		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	9312-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-94479-584-1	01	1	9312-		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-3	01	1	9312-9406	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-4	01	1	9407-9510	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-4	01	1	9511-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-97094-710-0	01	1	9312-		●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-404-0	02	1	9312-	●
32	04.665 SUPPORT; FRT DISC BRK DISC BRAKE FRT<J52>	8-94468-352-1	01	1	9312-		●
32	04.665 SUPPORT; FRT DISC BRK DISC BRAKE FRT<J52>	8-94468-351-1	01	1	9312-		●
55	04.681 BOLT; SUPPORT BRKT TO DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97042-716-1	02	1	9312-	●
61	04.665 BOLT; SUPPORT BRKT TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681	8-97042-716-1	02	1	9312-	●
84	04.665 BUSHING; LOCK PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-978-0	02	1	9312-9809	●
85	04.665 BOOT; PIN FRT INDEPENDENT SUSPENSION(6PP)	8-97029-977-0	04	1	9312-	●
86	04.665 PIN; GUIDE FRT INDEPENDENT SUSPENSION(6PP)	8-97029-999-0	02	1	9312-	●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	9312-	●
87	04.665 PIN; LOCK DISC BRAKE FRT<J52> 04.681	8-94479-685-1	02	1	9411-		●

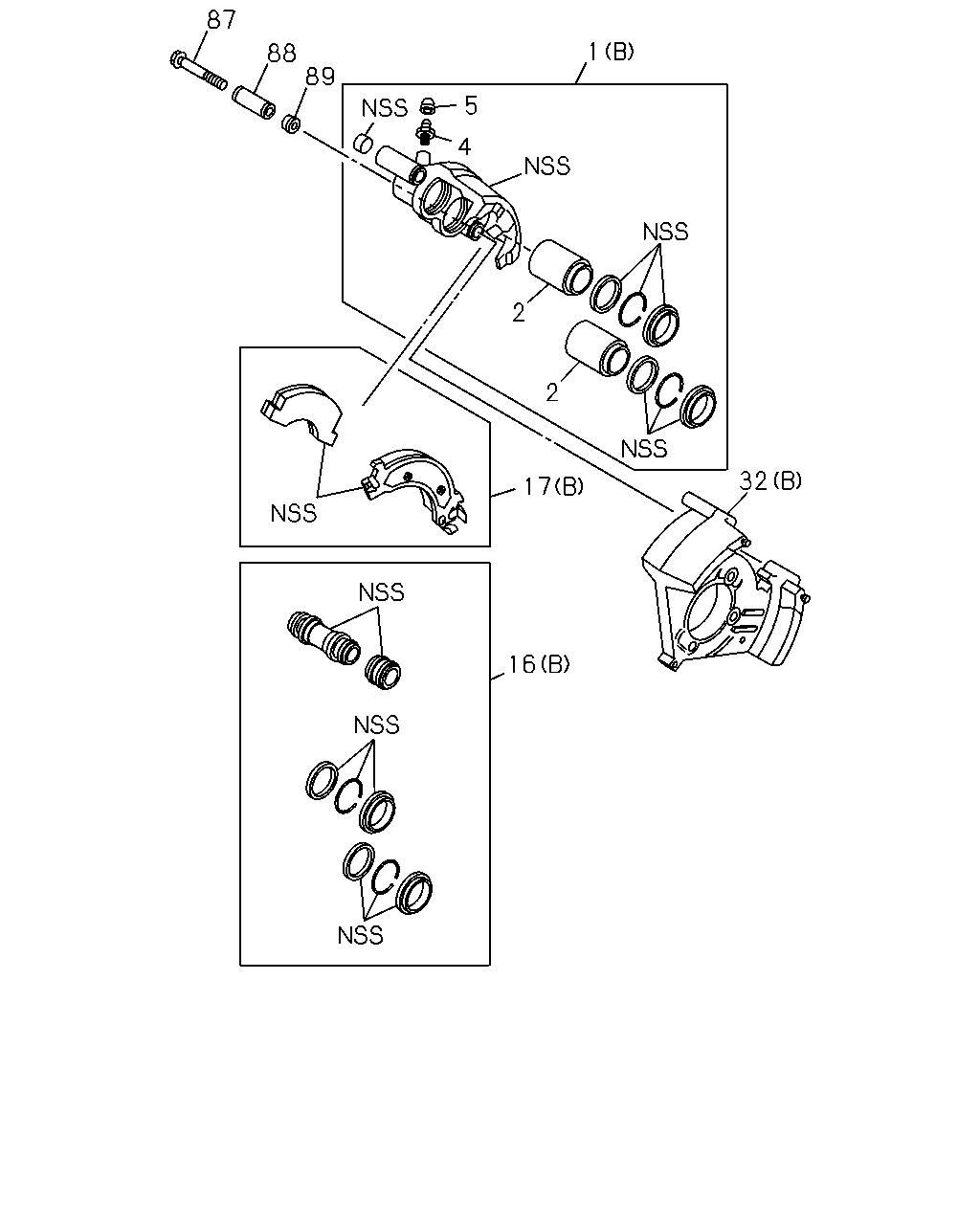

87 1 88 89 5 4 2 2 32 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-399-0	01	1	9312-	●
1	04.665 CALIPER; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97078-398-0	01	1	9312-	●
1	04.665 CALIPER; FRT DISC BRK DISC BRAKE FRT<J52> (B)	8-94324-765-1	01	1	9312-		●
1	04.665 CALIPER; FRT DISC BRK DISC BRAKE FRT<J52> (B)	8-94324-764-1	01	1	9312-		●
2	04.668 PISTON; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-402-0	04	1	9312-	●
2	04.668 PISTON; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-94468-350-0	04	1	9312-		●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	9-47615-027-0	02	1	9312-	●
4	04.666 SCREW; BLEEDER,DISC BRK,FRT DISC BRAKE FRT<J52>	1-47615-027-0	02	1	9312-		●
5	04.666 CAP; BLEEDER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	1-47619-009-0	02	1	9312-	●
5	04.666 CAP; BLEEDER,DISC BRK,FRT DISC BRAKE FRT<J52>	9-47619-038-0	02	1	9312-		●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-410-2	01	1	9312-	●
16	04.667 REPAIR KIT; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-94479-584-1	01	1	9312-		●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-3	01	1	9312-9406	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-4	01	1	9407-9510	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97078-409-4	01	1	9511-	●
17	05.017 PAD KIT; CALIPER,DISC BRK,FRT DISC BRAKE FRT<J52>	8-97094-710-0	01	1	9312-		●
32	04.665 SUPPORT; FRT DISC BRK FRT INDEPENDENT SUSPENSION(6PP)	8-97078-404-0	02	1	9312-	●
32	04.665 SUPPORT; FRT DISC BRK DISC BRAKE FRT<J52>	8-94468-352-1	01	1	9312-		●
32	04.665 SUPPORT; FRT DISC BRK DISC BRAKE FRT<J52>	8-94468-351-1	01	1	9312-		●
87	04.665 PIN; LOCK FRT INDEPENDENT SUSPENSION(6PP)	8-97029-998-0	02	1	9312-	●
87	04.665 PIN; LOCK DISC BRAKE FRT<J52> 04.681	8-94479-685-1	02	1	9411-		●
88	04.681 SLEEVE; LOCK PIN DISC BRAKE FRT<J52>	8-94468-353-0	02	1	9312-		●
89	04.665 BOOT; SLEEVE DISC BRAKE FRT<J52>	8-97088-726-0	02	1	9312-		●
